Indledning
This instruction manual provides detailed information on the setup, operation, and maintenance of your SabineTek SmartMike+ wireless Bluetooth microphone. Please read this manual thoroughly before using the device to ensure optimal performance and longevity.

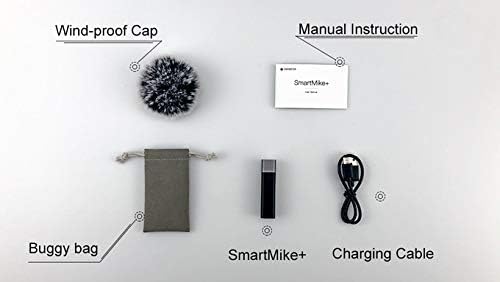

Hvad er der i æsken
- SabineTek SmartMike+ Microphone(s)
- Ladekabel
- Wind-proof Cap (Windscreen)
- Buggy Bag (Carrying Pouch)
- Brugervejledning (dette dokument)
Produkt overview
The SabineTek SmartMike+ is a compact and lightweight wireless microphone designed for high-quality audio recording with smartphones, cameras, and other compatible devices. It features advanced noise cancellation and real-time auto-sync technology for professional-grade sound.
Nøglefunktioner:
- Professionel lydkvalitet: Full-band audio 44.1~48kHz stereo CD-quality.
- Real-Time Auto-Sync Technology: Reduces post-editing time.
- Advanced Multi-Level Noise Cancellation: Embedded algorithm controlled by the SmartMike+ APP to block outer surrounding noise.
- Realtidsovervågning: Allows listening to audio during recording via headphones.
- Bluetooth 5.0-forbindelse: Provides faster, easier, and more stable connection.
- Bærbar og holdbar: Lightweight (14g), compact design with 5 hours of battery life.
Opsætning
1. Charging the SmartMike+
Before first use, fully charge the SmartMike+ using the provided charging cable. The device is equipped with a 110mAh high-quality lithium battery, providing approximately 5 hours of battery life on a full charge.
2. Forbindelse til smartphone (Bluetooth)
- Download SmartMike+ APP from your device's app store (available for iPhone/Android).
- Sørg for, at Bluetooth er aktiveret på din smartphone.
- Power on the SmartMike+ microphone.
- Open the SmartMike+ APP and follow the on-screen instructions to pair your microphone via Bluetooth.
3. Connecting to Camera/Other Devices (3.5mm Jack)
The SmartMike+ can also be used with cameras or other devices that support a 3.5mm audio input. Use the appropriate cable (not always included, may require separate purchase) to connect the microphone to your device's audio input jack.
Betjeningsvejledning
Tænd/sluk
- For at tænde skal du trykke på tænd/sluk-knappen og holde den nede, indtil indikatorlampen lyser.
- For at slukke skal du trykke på tænd/sluk-knappen og holde den nede, indtil indikatorlampen slukker.
Recording Audio/Video
Once connected to your smartphone via the SmartMike+ APP, you can initiate audio or video recording directly within the application. The app provides controls for recording, playback, and managing your audio files.
Støjreduktion
The SmartMike+ utilizes a multi-level noise cancellation algorithm. This feature is primarily controlled and optimized through the SmartMike+ APP, allowing the microphone to block ambient noise and capture clear, authentic sound even in noisy environments.
Realtidsovervågning
For real-time audio monitoring during recording, connect headphones to the SmartMike+ or your phone. This allows you to hear the audio being captured, ensuring sound quality and proper levels.
Opretholdelse
Rensning
Use a soft, dry cloth to clean the exterior of the SmartMike+. Do not use liquid cleaners or aerosols, as they may damage the device.
Batteripleje
- Undgå at aflade batteriet helt ofte.
- Oplad enheden regelmæssigt, selvom den ikke er i brug, for at opretholde batteriets sundhedstilstand.
- Opbevares på et køligt, tørt sted, når det ikke er i brug i længere perioder.
Opbevaring
When not in use, store the SmartMike+ in its provided buggy bag to protect it from dust and physical damage.
Fejlfinding
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Enheden tænder ikke | Lavt batteri | Charge the SmartMike+ fully. |
| Kan ikke parres via Bluetooth | Bluetooth not enabled; device out of range; interference | Ensure Bluetooth is on, bring devices closer, restart both devices. |
| Poor audio quality (muffled, distorted, dropouts) | Environmental noise; improper microphone placement; firmware issues; app settings | Ensure wind-proof cap is used in windy conditions. Adjust microphone proximity to source. Check for firmware updates via the app. Experiment with app settings, especially noise reduction levels. Ensure strong Bluetooth connection. |
| Voice gets lost in background noise | High ambient low-frequency noise (e.g., traffic) | While the SmartMike+ has noise cancellation, very loud or persistent low-frequency sounds can still impact voice clarity. Try to record in quieter environments or use external audio editing software for post-production cleanup. |
Specifikationer
| Feature | Detalje |
|---|---|
| Modelnummer | S610 |
| Varens vægt | 11.8 ounces (ca. 0.74 pund) |
| Produktdimensioner | 2.28 x 0.39 x 0.59 tommer |
| Mikrofon formfaktor | Mikrofonsystem |
| Strømkilde | Rechargeable, Battery Powered, Lithium Battery |
| Materiale | Metal |
| Signal-støjforhold | 70 dB |
| Hardware platform | Smartphone |
| Antal kanaler | 2 |
| Audio Følsomhed | 120 dB |
| Polar mønster | Omnidirektionel |
| Forbindelsesteknologi | Bluetooth |
| Connector Type | 3.5 mm Jack |
| Speciel funktion | Klip |
| Kompatible enheder | Camera, Personal Computer, Smartphone, Speaker |
| Farve | Sort |
Garanti og support
For warranty information and customer support, please refer to the documentation included with your purchase or visit the official SabineTek webwebsted. Gem din købsbevis til garantikrav.
