1. Introduktion
This manual provides essential information for the proper use and maintenance of your Tineco Full-Size LED Soft Roller Power Brush. This accessory is specifically designed to enhance the cleaning performance of your Tineco A10 and A11 series cordless vacuum cleaners on hard floor surfaces.
Image 1: Tineco Full-Size LED Soft Roller Power Brush. This image displays the main brush head with its soft roller and integrated LED lights.
1.1 Nøglefunktioner
- Kompatibilitet: Designed for Tineco A10 Master, A10 Hero, A10 Spartan, A10 Tango, A11 Master, A11 Hero, A11 Tango, and A11 Hero EX cordless vacuum cleaners.
- Hard Floor Optimization: Ideal for indoor hardwood floors and other hard surfaces, protecting them from scratches.
- Effektiv rengøring: Efficiently picks up fine dust and larger debris.
- Integreret LED lys: Illuminates hidden dust in dark areas for thorough cleaning.
Image 2: The soft roller brush head shown with various Tineco A10 and A11 series vacuum models, illustrating compatibility.
2. Opsætning og installation
The Tineco Full-Size LED Soft Roller Power Brush is designed for simple attachment and detachment from your compatible Tineco cordless vacuum cleaner.
2.1 Attaching the Power Brush
- Ensure your Tineco vacuum is powered off and disconnected from any charging source.
- Align the connector on the power brush with the corresponding port on the vacuum's extension wand or main body.
- Push firmly until you hear a click, indicating a secure connection.
Image 3: A hand demonstrating the simple installation process of attaching the soft roller brush to the vacuum's extension wand.
2.2 Detaching the Power Brush
- Power off the vacuum.
- Locate the release button or latch near the connection point.
- Press the button/latch and gently pull the power brush away from the vacuum.
3. Betjeningsvejledning
The Soft Roller Power Brush is designed for optimal performance on hard floor surfaces. Its soft microfiber material ensures effective cleaning without damaging delicate floors.
3.1 Hard Floor Cleaning
- Turn on your Tineco cordless vacuum. The LED lights on the brush head will automatically illuminate.
- Gently glide the power brush across hard floor surfaces such as wood, tile, marble, and stone tile.
- The soft roller is designed to pick up both fine dust and larger debris efficiently.
- Avoid using this brush on carpets or rugs, as it is specifically optimized for hard surfaces.

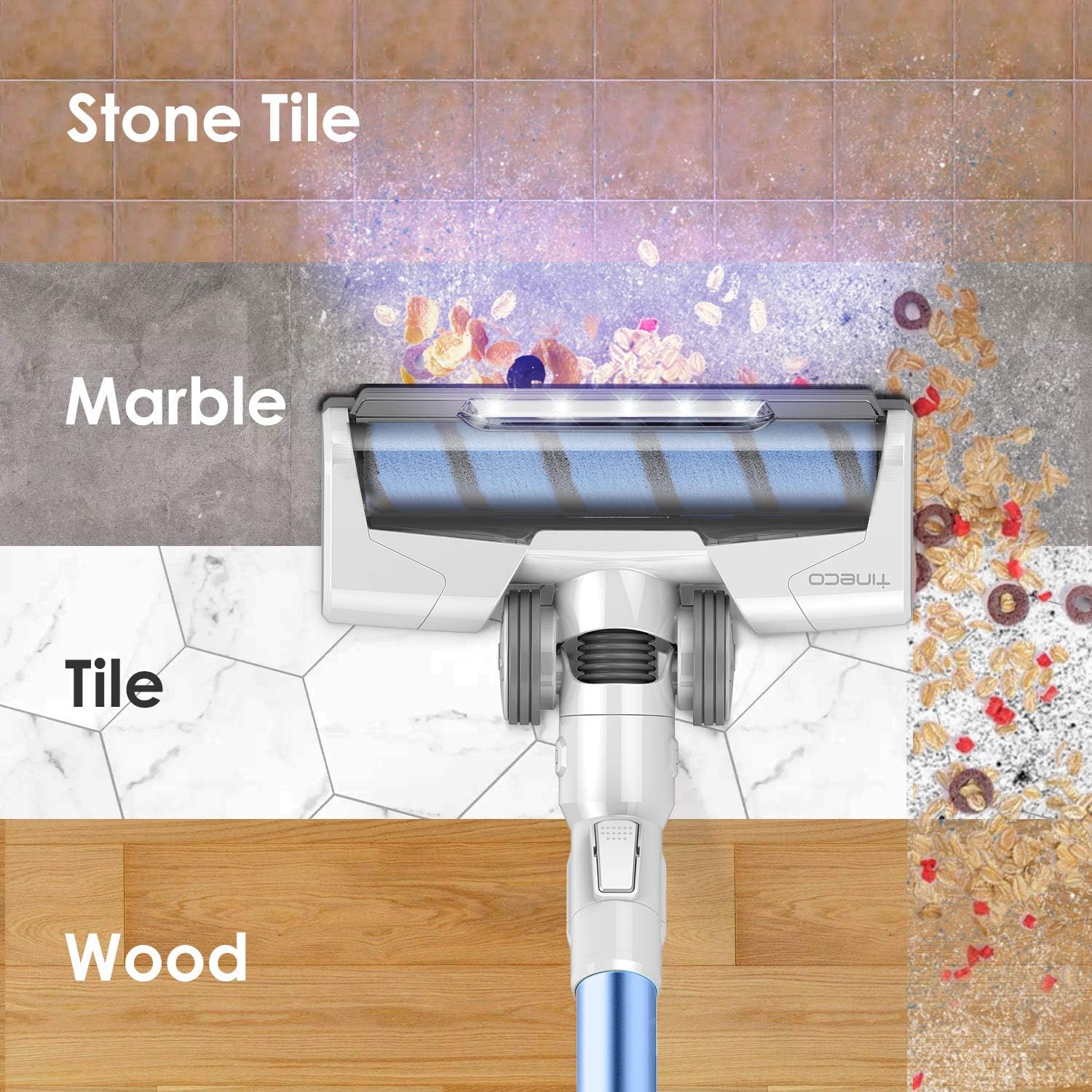

Image 4: The soft roller brush head cleaning different hard floor types including stone tile, marble, tile, and wood, demonstrating its versatility.
Image 5: The soft roller brush effectively collecting various types of debris, from fine dust to larger particles, on a hard floor.
3.2 LED-belysningsfunktion
The integrated LED lights on the front of the power brush illuminate the cleaning path, making it easier to spot hidden dust and debris, especially in dimly lit areas or under furniture.
Image 6: The LED lights on the brush head shining on a floor, highlighting dust particles for improved visibility during cleaning.
4. Vedligeholdelse
Regular maintenance of your Soft Roller Power Brush ensures optimal performance and extends its lifespan.
4.1 Cleaning the Soft Roller
- Detach the power brush from the vacuum.
- Locate the release mechanism for the soft roller (usually a latch or button on the side of the brush head).
- Remove the soft roller.
- Remove any tangled hair or debris from the roller and its housing. A pair of scissors may be helpful for cutting tangled hair.
- If necessary, the soft roller can be gently hand-washed with mild soap and water. Ensure it is completely dry before reinserting.
- Reinsert the clean, dry soft roller and secure it in place.
4.2 Roller Replacement
For best performance, it is recommended to replace the soft roller every 6-12 months, depending on usage frequency and floor type.
Image 7: An exploded diagram showing the internal components of the soft roller power brush, including the microfiber roller and motor, indicating parts that may require cleaning or replacement.
5. Fejlfinding
5.1 Power Brush Not Functioning
- Tjek forbindelsen: Ensure the power brush is securely attached to the vacuum's extension wand or main body. A loose connection can prevent power transfer.
- Vakuumeffekt: Verify that the vacuum itself is charged and powered on.
- Forhindringer: Check the soft roller and the air intake for any blockages or tangled debris that might prevent the roller from spinning.
5.2 Compatibility Issues (A11 Pet Series)
Some users have reported compatibility issues with certain Tineco A11 Pet series models. It has been noted that some A11 Pet models may use a 3-pin electrical connector, while this specific soft roller brush (Model FB1753F) uses a 2-pin connector. Please verify the connector type on your specific A11 Pet model before purchase to ensure compatibility. If you encounter this issue, contact Tineco customer service for assistance in identifying the correct brush model (e.g., FB1753K for 3-pin connectors).
6. Specifikationer
| Feature | Detalje |
|---|---|
| Mærke | Tineco |
| Modelnummer | A11 A10 |
| Speciel funktion | LED front lights, Microfiber material |
| Inkluderede komponenter | Børste |
| Farve | Grå |
| Indendørs/Udendørs brug | Indendørs |
| Specifikke brugsanvisninger | Hårdt gulv |
| Varens vægt | 2.2 pund |
| Pakkedimensioner | 11.46 x 11.14 x 3.23 tommer |
7. Garanti og support
7.1 Begrænset garanti
This Tineco product typically comes with a 1 års begrænset garanti. Please refer to the warranty card included with your original vacuum cleaner or visit the official Tineco webhjemmeside for detaljerede garantivilkår.
7.2 Kundesupport
For technical assistance, troubleshooting, or warranty claims, please contact Tineco's 24/7 Rapid Response Team. Contact information can usually be found on the official Tineco website or in the documentation provided with your Tineco vacuum cleaner.
