Jensen JWM60A Servicepakke Brugermanual

1. Introduktion

This manual provides detailed instructions for the Jensen PSVCJWM60A Service Pack, designed for use with the JWM60A or JWM62A Wall Mount Stereo systems. This service pack includes essential components to maintain or replace parts of your stereo system, ensuring continued functionality and connectivity.

Figur 1.1: Overview of the Jensen JWM60A Service Pack components.

The service pack contains the following key components:

• Strøm-/højttalerledningsnet: Essential wiring for power supply and speaker connections.
• 3.5mm A/V Cable: For audio and video input/output connections.
• Remote with Battery: A replacement remote control for convenient operation of your stereo.

2. Komponenter overview

2.1. Strøm-/højttalersele

The power/speaker harness is a critical component for supplying power to your Jensen stereo and connecting it to your speakers. Each wire is color-coded and labeled for correct identification and connection.

Figur 2.1: Detaljeret view of the power/speaker harness wires.

Figure 2.2: The connector plug of the power/speaker harness.

2.2. 3.5mm A/V Cable

This cable facilitates audio and video connections, typically used for auxiliary input or output. It features a 3.5mm jack on one end and standard RCA connectors (red, white, yellow) on the other.

Figure 2.3: The 3.5mm A/V cable.

2.3. Fjernbetjening

The remote control allows for convenient wireless operation of your Jensen stereo, providing access to various functions from a distance.

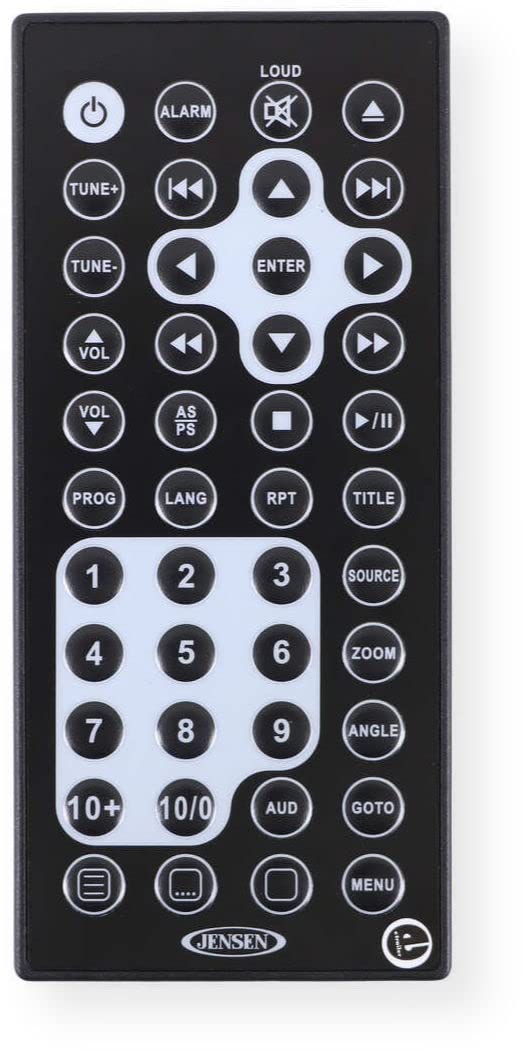

Figur 2.4: Forside view på fjernbetjeningen.

Figur 2.5: Tilbage view of the remote control with battery compartment open.

3. Opsætning og installation

This service pack is intended for replacement or repair of existing Jensen JWM60A or JWM62A Wall Mount Stereo components. Refer to your original stereo's user manual for detailed installation instructions for the main unit.

3.1. Power/Speaker Harness Installation

1. Afbryd strømmen: Before beginning any installation, ensure the main power to your stereo system is completely disconnected to prevent electrical shock or damage.
2. Identificer forbindelser: Carefully match the wires of the new harness to the corresponding connections on your stereo unit and speakers. Refer to the wiring diagram provided with your original stereo or consult a professional if unsure.
3. Sikre forbindelser: Sørg for, at alle ledningsforbindelser er sikre og korrekt isolerede for at forhindre kortslutninger.
4. Tilslut ledningsnet: Plug the harness connector firmly into the designated port on the back of your Jensen stereo.

3.2. 3.5mm A/V Cable Connection

1. Identificér porte: Locate the 3.5mm auxiliary input/output jack and the corresponding RCA input/output ports on your stereo or connected devices.
2. Tilslut kabel: Insert the 3.5mm jack into the stereo's auxiliary port and connect the red, white, and yellow RCA plugs to their respective audio (red for right, white for left) and video (yellow) ports on the external device.

3.3. Installation af fjernbetjeningsbatteri

The remote control typically comes with a pre-installed battery or a battery included separately. If the remote is not functioning, or if replacing the battery:

1. Åbent batterirum: On the back of the remote, locate the battery compartment cover. Slide or unclip the cover to open it.
2. Indsæt batteri: Insert the provided CR2025 lithium coin cell battery (or equivalent) with the positive (+) side facing upwards, as indicated inside the compartment.
3. Luk rum: Sæt dækslet til batterirummet på igen, og sørg for, at det klikker sikkert på plads.

4. Betjening af fjernbetjeningen

The remote control provides full functionality for your Jensen JWM60A or JWM62A stereo. Point the remote directly at the stereo's IR receiver for optimal performance.

• Tænd/sluk-knap (⏻): Turns the stereo on or off.
• Lydstyrkeknapper (VOL +/-): Justerer lydstyrken for udgangen.
• Tune/Track Buttons (⏮ / ⏭): Changes radio stations or skips tracks during media playback.
• Afspil/pause (⏸): Starter eller sætter medieafspilning på pause.
• Kildeknap: Cycles through available audio/video sources (e.g., Radio, CD, USB, AUX).
• Numeric Keypad (0-9, 10+, 10/0): For direct input of radio frequencies or track numbers.
• Menu/Setup Buttons: Giver adgang til systemindstillinger og konfigurationsmuligheder.

For a comprehensive list of remote functions and their specific uses, refer to the original user manual for your Jensen JWM60A or JWM62A stereo.

5. Vedligeholdelse

Proper maintenance ensures the longevity and optimal performance of your service pack components.

• Rensning: Use a soft, dry cloth to clean the remote control and cables. Avoid abrasive cleaners or solvents.
• Opbevaring: Store components in a cool, dry place away from direct sunlight and extreme temperatures when not in use.
• Udskiftning af batteri: Replace the remote control battery (CR2025) annually or when the remote's range decreases or it stops responding. Dispose of old batteries responsibly.
• Kabelpleje: Avoid bending or crimping cables excessively, as this can damage internal wiring.

6. Fejlfinding

If you encounter issues with your Jensen JWM60A Service Pack, consider the following troubleshooting steps:

If issues persist after attempting these steps, it is recommended to consult a qualified technician or contact Jensen customer support.

7. Specifikationer

8. Garanti og support

For information regarding product warranty, please refer to the warranty documentation included with your original Jensen stereo system or visit the official Jensen webwebsted. Garantivilkår og -betingelser kan variere.

For technical support, replacement parts, or further assistance, please contact Jensen customer service. Contact information can typically be found on the manufacturer's webwebstedet eller i din originale produktdokumentation.

Online ressourcer: Du kan muligvis finde yderligere support og ofte stillede spørgsmål på Jensen-butikken på Amazon or the official Jensen brand webwebsted.
