GREENCYCLE Wireless Remote Light Switch and Receiver Kit

1. Introduktion

The GREENCYCLE Wireless Remote Light Switch and Receiver Kit provides a convenient and flexible solution for controlling lighting and other compatible appliances without the need for traditional wiring or Wi-Fi connectivity. This kit is designed for easy installation and operation, making it suitable for various indoor and outdoor applications. Its robust design ensures durability and reliable performance in diverse environments.

2. Sikkerhedsoplysninger

• Sluk altid for strømmen ved afbryderen før installation eller vedligeholdelse. Failure to do so may result in electric shock or serious injury.
• Ensure the product's voltage and current ratings (110 Volts, 10 Amps) are compatible with your electrical system and connected load.
• Forsøg ikke at skille produktet ad eller ændre det. Overlad al service til kvalificeret personale.
• Keep the product away from excessive heat, direct sunlight, and moisture, unless specifically designed for such conditions (e.g., IP66 waterproof rating).
• This product is designed for resistive loads. Consult a qualified electrician if connecting to inductive or capacitive loads.

3. Pakkens indhold

The GREENCYCLE Wireless Remote Light Switch and Receiver Kit typically includes the following components:

• 1 x Wireless Remote Switch
• 1 x Wireless Receiver Plug
• Adhesive Tape for switch mounting
• Brugervejledning (dette dokument)

4. Produktet er slutview

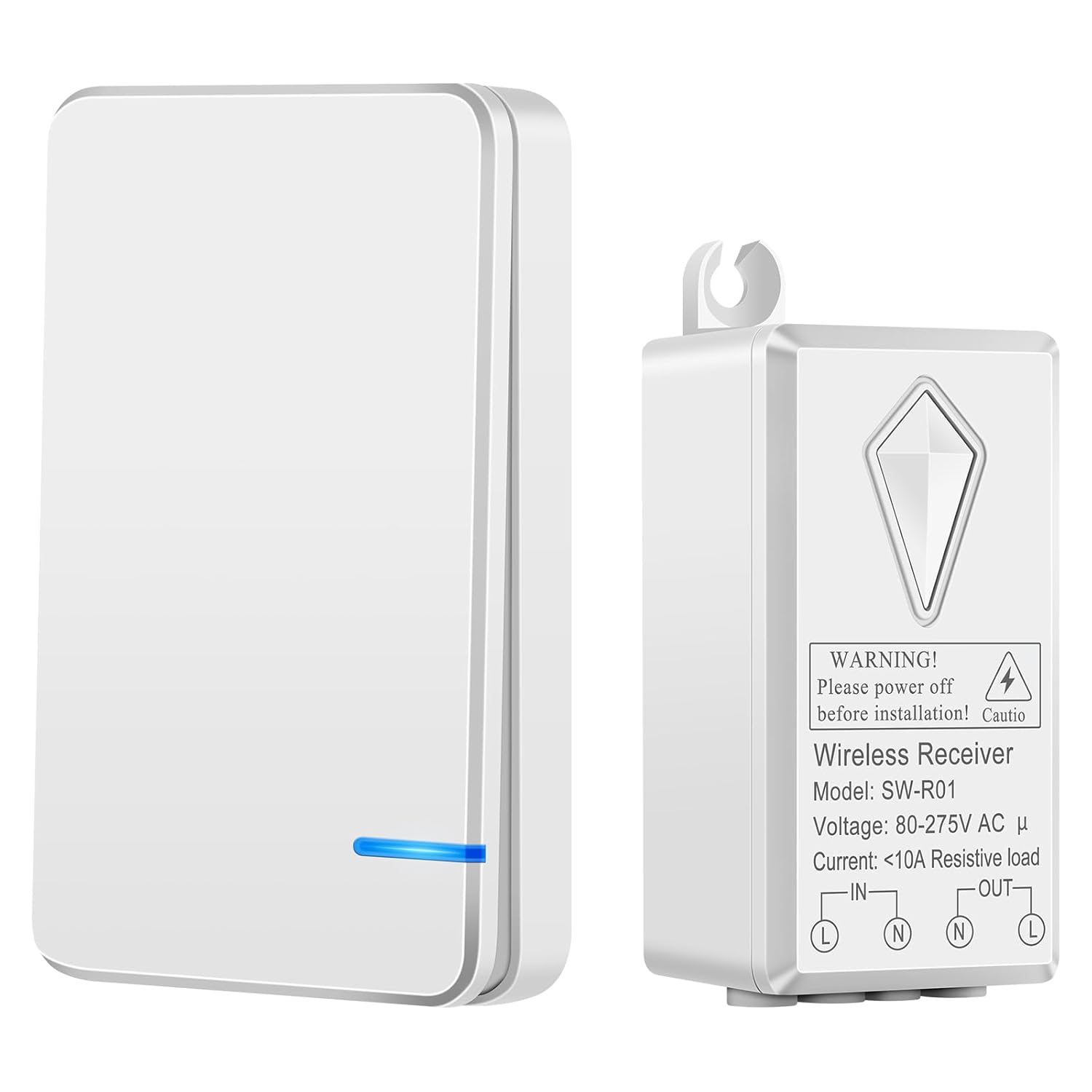

This image displays the two main components of the GREENCYCLE Wireless Remote Light Switch and Receiver Kit: the sleek, white wireless remote switch on the left and the compact wireless receiver on the right. The receiver features connection terminals and a warning label indicating its specifications and the need to power off before installation.

The GREENCYCLE Wireless Remote Light Switch and Receiver Kit offers a simple, effective way to control your lights or appliances. The kit consists of two primary parts:

• Wireless Remote Switch: A compact, battery-powered switch that can be placed anywhere. It features a low-pressing sound and a built-in LED indicator for easy location in the dark.
• Trådløs modtager: A small module that connects to your light fixture or appliance. It receives signals from the remote switch to turn the connected device ON or OFF.

Nøglefunktioner omfatter:

• No Wi-Fi or Wiring Needed: Simplifies installation and ideal for renters or areas without existing wiring.
• Long-Range Signal: Operates up to 1900FT outdoors and 229FT indoors, even through walls.
• IP66 vandtæt og vejrbestandig: Designed for durability in various conditions, suitable for outdoor use.
• V0 Fireproof Material: Constructed with high-temperature flame-retardant PC material for safety.
• Multi-vejs kontrol: Supports flexible pairing, allowing multiple switches to control one light, or one switch to control multiple lights.

This image visually represents the impressive wireless range of the GREENCYCLE system. It shows an indoor setting with a range of up to 229 feet and an outdoor setting with a range of up to 1900 feet, highlighting its suitability for various environments including garages, sheds, and porches.

This image highlights the durability features of the GREENCYCLE wireless light switch. It depicts water splashing onto the switch, emphasizing its IP66 waterproof rating for wet environments, and a flame near the switch, illustrating its V0 fireproof material for enhanced safety.

This image shows various household appliances that can be controlled by the GREENCYCLE wireless receiver, including ceiling fans, exhaust fans, wall lamps, loft lamps, cabinet lights, and pool lights. This demonstrates the versatility of the 10 Amp rated receiver for different lighting and small appliance applications.

5. Opsætning og installation

Follow these steps for proper installation of your GREENCYCLE Wireless Remote Light Switch and Receiver Kit:

5.1. Modtagerledningsføring

1. Sikkerhed først: Before beginning any wiring, ensure the main power supply to the circuit is turned OFF at the circuit breaker. Verify with a voltage tester.
2. Tilslut indgangsledninger: Connect the Live (L) and Neutral (N) wires from your AC 80-150V power source to the corresponding 'IN' terminals on the wireless receiver.
3. Tilslut udgangsledninger: Connect the Live (L) and Neutral (N) wires leading to your light fixture or appliance to the corresponding 'OUT' terminals on the wireless receiver.
4. Sikre forbindelser: Sørg for, at alle ledningsforbindelser er sikre og korrekt isolerede.

This diagram illustrates the simple wiring process for the wireless receiver. It shows the AC 80-150V input (Live and Neutral) connecting to the receiver, and the output (Neutral and Live) connecting to the light fixture. An indicator light and setting button are also highlighted on the receiver, along with a 1000W load capacity.

5.2. Remote Switch Mounting

The wireless remote switch offers flexible mounting options:

• Klæbende montering: Use the provided adhesive tape to stick the switch to any clean, flat surface. Ensure the surface is dry and free of dust or grease for optimal adhesion.
• Skrue montering: For a more permanent installation, the switch can be fixed with screws. Carefully separate the back plate of the switch, align it with your desired location, mark the screw holes, drill pilot holes if necessary, and secure the back plate with screws. Then, snap the switch onto the mounted back plate.

This image demonstrates two methods for installing the wireless remote switch: using adhesive tape to paste it directly onto a wall, or fixing it with screws by disassembling the back plate. Both methods offer flexible placement options without the need for traditional wiring.

6. Betjeningsvejledning

Once the receiver is wired and the remote switch is mounted, restore power to the circuit. The system is now ready for operation.

• Tænd/sluk: Simply press the button on the wireless remote switch to toggle the connected light or appliance ON or OFF.
• LED-indikator: The remote switch features a soft LED glow that helps locate it in the dark. This indicator also confirms button presses.

7. Parringsinstruktioner

The GREENCYCLE system allows for flexible pairing configurations, including multi-way control (e.g., multiple switches controlling one light, or one switch controlling multiple lights). Follow these steps to pair your remote switch with the receiver:

1. Start parringstilstand: Press and hold the pairing button on the receiver until its indicator light starts blinking (usually a few seconds). This indicates the receiver is in pairing mode.
2. Press Remote Switch: While the receiver's indicator light is blinking, quickly press the desired button on your wireless remote switch.
3. Bekræft parring: The receiver's indicator light will stop blinking and turn solid (or turn off, depending on the model) to confirm successful pairing.
4. Test funktionalitet: Press the remote switch button to ensure it controls the connected light or appliance as intended.
5. Add More Switches/Receivers: Repeat the process for any additional remote switches you wish to pair with the same receiver, or to pair a single switch with multiple receivers.

This graphic illustrates various pairing configurations for the GREENCYCLE wireless system. It shows how multiple switches can control one light, how one switch can control one light, and how one switch can control multiple lights, providing flexible control options for different lighting setups.

8. Vedligeholdelse

• Rensning: Use a soft, dry cloth to clean the surfaces of the remote switch and receiver. Do not use abrasive cleaners or solvents.
• Battery Replacement (Remote Switch): The remote switch has a built-in lithium battery designed to last 6-8 years or 600,000 presses. When the switch's performance degrades or the LED indicator no longer illuminates, the battery may need replacement. Refer to the specific instructions for opening the remote switch to replace the battery, ensuring not to damage the casing.
• Receiver Lifespan: The receiver is rated for 400,000 uses. No user-replaceable parts are typically available for the receiver.

9. Fejlfinding

10. Specifikationer

11. Garanti og support

For information regarding product warranty, technical support, or service, please contact GREENCYCLE TECH INC. directly. You may find contact details on the product packaging or the official GREENCYCLE webwebsted.

Gem venligst din købskvittering som købsbevis i tilfælde af garantikrav.
