1. Introduktion
The Honeywell Home MT1 Mechanical On/Off Room Thermostat is designed to provide automatic on/off control for gas boilers, circulation pumps, relays, and zone valves in various heating, cooling, or combined heating/cooling systems. Its robust design and simple operation make it an effective solution for temperature regulation.
This manual provides essential information for the safe and efficient installation, operation, and maintenance of your thermostat.
2. Sikkerhedsoplysninger
ADVARSEL: Fare for elektrisk stød
- Always disconnect power to the heating/cooling system at the main circuit breaker before installing or servicing the thermostat.
- Installation should only be performed by a qualified electrician or heating engineer in accordance with local regulations.
- Betjen ikke termostaten med våde hænder.
- Sørg for, at alle ledningsforbindelser er sikre og korrekt isolerede.
Læs alle instruktioner omhyggeligt, inden du fortsætter med installation eller drift.
3. Pakkens indhold
Bekræft, at din pakke indeholder følgende varer:
- Honeywell Home MT1 Mechanical On/Off Room Thermostat
- Instruktionsmanual
- Monteringsskruer
4. Installation

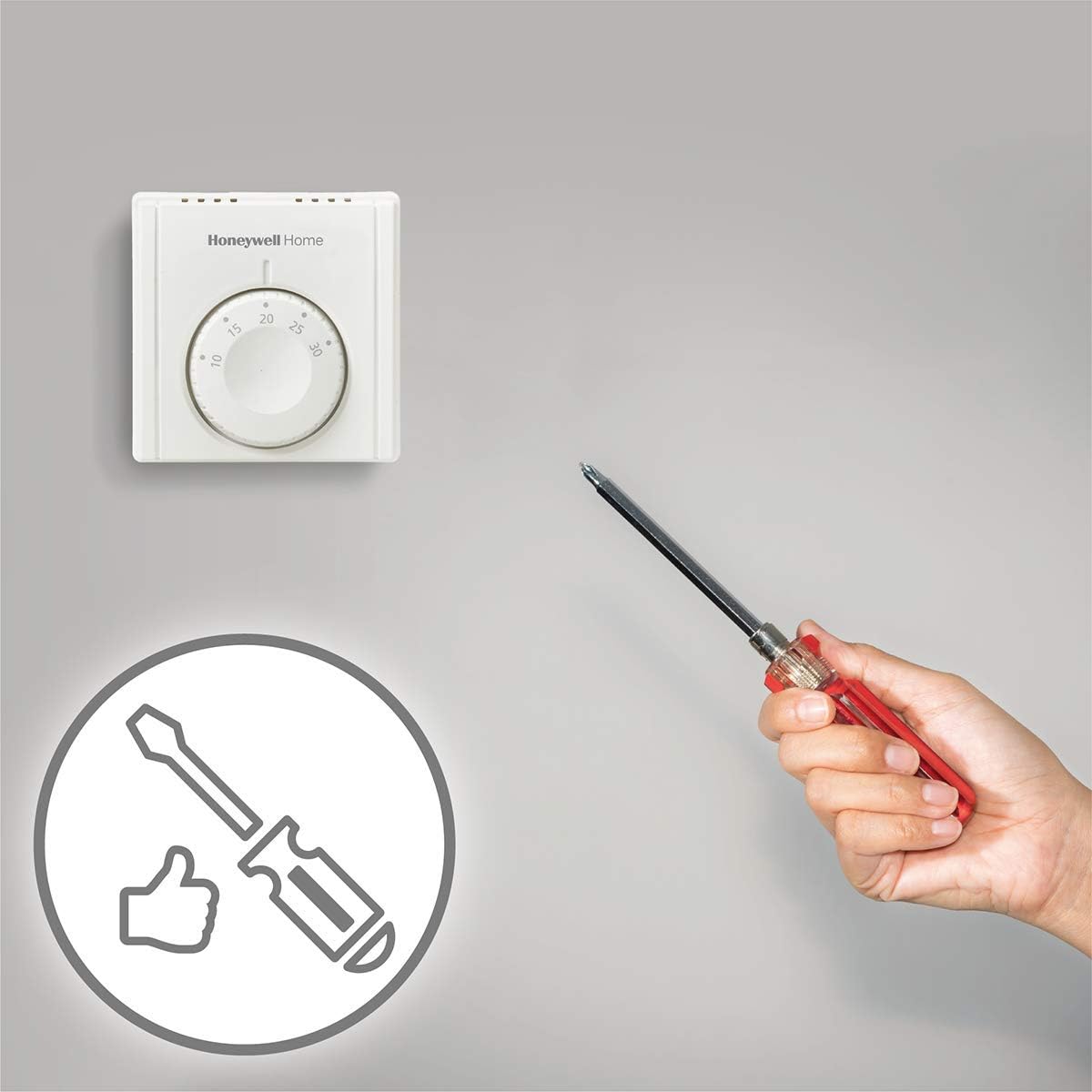

The MT1 thermostat is designed for direct wall mounting or installation on a conduit box. Follow these steps for proper installation:
- Vælg en placering: Vælg en central placering i rummet, væk fra direkte sollys, træk eller varmekilder (f.eks. radiatorer,amps) that could affect temperature readings. The thermostat should be mounted at approximately 1.5 meters (5 feet) above the floor.
- Afbryd strømmen: Turn off the power supply to your heating/cooling system at the main circuit breaker before beginning any wiring.
- Separate the Thermostat: Carefully separate the front cover from the backplate of the thermostat. The backplate is used for mounting and wiring.
- Monter bagpladen: Position the backplate on the wall or conduit box. Mark the drilling points. Drill holes if necessary and insert wall plugs. Secure the backplate using the provided mounting screws.
- Ledningsføring: Connect the system wiring to the easy-to-connect terminals on the backplate. The integrated conductor clamps ensure secure wiring. Refer to the wiring diagram provided with your specific unit for correct connections.
- Attach the Thermostat: Once wiring is complete and secure, carefully reattach the front cover of the thermostat to the mounted backplate. Ensure it clicks firmly into place.
- Gendan strøm: Turn the power supply back on at the main circuit breaker.
Installationsvideo
Video 1: This video provides a product demonstration, including aspects of its physical installation and basic setup. It shows the thermostat being handled and its backplate revealed for wiring.
5. Betjeningsvejledning
The Honeywell Home MT1 thermostat features a simple mechanical dial for temperature adjustment.
- Justering af temperatur: Rotate the central dial to set your desired room temperature. The temperature scale is typically from 10°C to 30°C.
- Temperaturkontrol: The thermostat will automatically turn your heating or cooling system on or off to maintain the set temperature. The dual diaphragm sensing element ensures accurate temperature control.
- Varmeforventer: The integrated heat anticipator helps to provide close temperature control, especially in systems with a high heating ramp rate, preventing overshoots.
- Cooling Loads: The thermostat supports changeover contact switching for cooling applications.
Operation video
Video 2: This product demonstration video also illustrates the basic operation of the thermostat, including how to adjust the temperature using the dial.
Video 3: A close-up video showing the thermostat's components and how the dial mechanism works, providing a detailed view of its internal structure and functionality.
6. Vedligeholdelse
The Honeywell Home MT1 thermostat requires minimal maintenance.
- Rensning: Periodically wipe the exterior of the thermostat with a soft, dry cloth. Do not use abrasive cleaners, solvents, or chemical sprays, as these can damage the finish or internal components.
- Undgå forhindringer: Ensure that the thermostat is not covered by furniture, curtains, or other objects that could obstruct airflow and affect its ability to accurately sense room temperature.
- Ingen dele, der kan serviceres af brugeren: The thermostat contains no user-serviceable parts. Do not attempt to open or repair the unit yourself. Contact qualified personnel for any issues beyond basic operation.
7. Fejlfinding
If you experience issues with your Honeywell Home MT1 thermostat, consider the following common solutions:
- Systemet svarer ikke:
- Check if the main power supply to your heating/cooling system is on.
- Ensure the thermostat is securely mounted and all wiring connections are firm.
- Verify that the set temperature is above (for heating) or below (for cooling) the current room temperature.
- Unøjagtig temperaturaflæsning:
- Confirm the thermostat is not exposed to direct sunlight, drafts, or heat sources.
- Ensure there are no obstructions around the thermostat that could impede airflow.
- Thermostat Not Turning On/Off:
- If the system is a boiler with radiators, ensure that individual radiator thermostats (TRVs) are not set to a lower temperature than the room thermostat.
- If the issue persists, contact a qualified technician for inspection.
8. Specifikationer
| Feature | Specifikation |
|---|---|
| Modelnummer | THR830TEU |
| Dimensioner (L x B x H) | 8.3 x 3.5 x 8.3 cm |
| Vægt | 290 g |
| Størrelse | Kompakt |
| Farve | Hvid |
| Stil | On/Off Mechanical |
| Slutte | Mat |
| Form | Rektangulær |
| Strømkilde | Kabler |
| Voltage | 230 volt |
| Antal produkter | 1 |
| Display Type | Analog |
| Monteringstype | Vægbeslag |
| Særlige funktioner | Automatisk |
| Brug | Kedel |
| Batterier påkrævet | Ingen |
| Forbindelsesteknologi | Wifi (Note: This is a mechanical thermostat; Wi-Fi functionality may refer to compatible smart home systems or other product variants.) |
| Kontroltype | Push button (Note: The primary control is a mechanical dial.) |
| Temperaturkontrol type | Opvarmning |
| Sætpunktsområde | 10 til 30°C |
| Driftstemperaturområde | 0 til 40°C |
9. Garanti og support
For warranty information, please refer to the documentation provided at the time of purchase or contact your retailer. For technical support or further assistance, please visit the official Honeywell Home webwebsted eller kontakt deres kundeservice.
You can find more information about Honeywell Home products at their official store: Honeywell Home Store.
