RYOBI 18-Volt ONE+ Ledningsfri Højvolumen Pumpe P738 Brugermanual

1. Introduktion

This manual provides essential information for the safe and efficient operation of your RYOBI 18-Volt ONE+ Cordless High Volume Power Inflator, model P738. Please read and understand all instructions before use to ensure proper function and to prevent injury.

Figur 1: The RYOBI 18-Volt ONE+ Cordless High Volume Power Inflator P738. This tool is designed for high-volume, low-pressure inflation and deflation tasks.

2. Sikkerhedsoplysninger

Følg altid grundlæggende sikkerhedsforanstaltninger, når du bruger dette produkt, for at reducere risikoen for brand, elektrisk stød og personskade.

• Læs alle instruktioner: Gør dig bekendt med værktøjets betjenings- og sikkerhedsretningslinjer.
• Brug i godt ventilerede områder: Ensure adequate airflow during operation.
• Hold dig væk fra børn: Dette værktøj er ikke et legetøj.
• Forslag 65 Advarsel: Dette produkt kan udsætte dig for kemikalier, herunder bly, som er kendt af staten Californien for at forårsage kræft og fødselsdefekter eller anden reproduktionsskade. For mere information gå til www.P65Warnings.ca.gov.
• Batterisikkerhed: Use only with compatible RYOBI ONE+ 18V batteries. Ensure the battery is securely attached before operation.
• Undgå overinflation: Do not exceed the recommended pressure for items being inflated.
• Sikre vedhæftede filer: Ensure nozzles are firmly attached before use.

3. Pakkens indhold

Your RYOBI 18-Volt ONE+ Cordless High Volume Power Inflator (P738) package includes:

• RYOBI 18-Volt ONE+ Cordless High Volume Power Inflator (Tool Only)
• Various Nozzle Attachments (for inflation and deflation)

Note: This product is sold as a "Tool Only" unit. Battery and charger are sold separately and are required for operation.

4. Opsætning

4.1 Montering af batteriet

1. Sørg for, at oppusteren er slukket.
2. Align the ribs on the battery with the grooves in the tool's port.
3. Skub batteriet ind i værktøjet, indtil det klikker sikkert på plads.
4. To remove, press the battery release latches and pull the battery out.

4.2 Montering af dyser

1. Select the appropriate nozzle for your inflation or deflation task.
2. For inflation, firmly push the desired nozzle onto the inflation port at the front of the tool.
3. For deflation, firmly push the desired nozzle onto the deflation port at the top of the tool.
4. Ensure the nozzle is securely attached before operating the tool.

Figur 2: Key features of the inflator, including convenient on-board storage for valve adapters.

5. Betjeningsvejledning

5.1 Inflation

1. Attach the appropriate nozzle to the inflation port.
2. Insert the nozzle into the item to be inflated.
3. Press the trigger to start inflation. The tool features a locking trigger for continuous operation, preventing user fatigue during extended use.
4. Monitor the item being inflated to prevent over-inflation.
5. Release the trigger or press it again if locked to stop inflation.

Figur 3: Inflating a standard twin air mattress. The inflator provides high volume airflow for quick inflation.

5.2 Deflation

1. Attach the appropriate nozzle to the deflation port (located at the top of the tool).
2. Insert the nozzle into the item to be deflated.
3. Press the trigger to start deflation. The tool will draw air out of the item.
4. Release the trigger to stop deflation.

Figur 4: Deflating a pool toy. The deflation feature helps to quickly pack away inflatable items.

5.3 Alsidige anvendelser

Beyond inflating air mattresses and pool toys, this tool can also function as a portable benchtop blower for cleaning work surfaces or accelerating charcoal readiness on a grill.

6. Vedligeholdelse

• Rensning: Hold værktøjet rent og fri for snavs. Brug en tør klud til at tørre ydersiden af. Brug ikke skrappe kemikalier eller slibende rengøringsmidler.
• Opbevaring: Store the tool in a dry, secure location away from children. Remove the battery when storing for extended periods.
• Dysepleje: Clean nozzles after each use to prevent blockages. Store them in the integrated storage on the tool's base.

7. Fejlfinding

8. Specifikationer

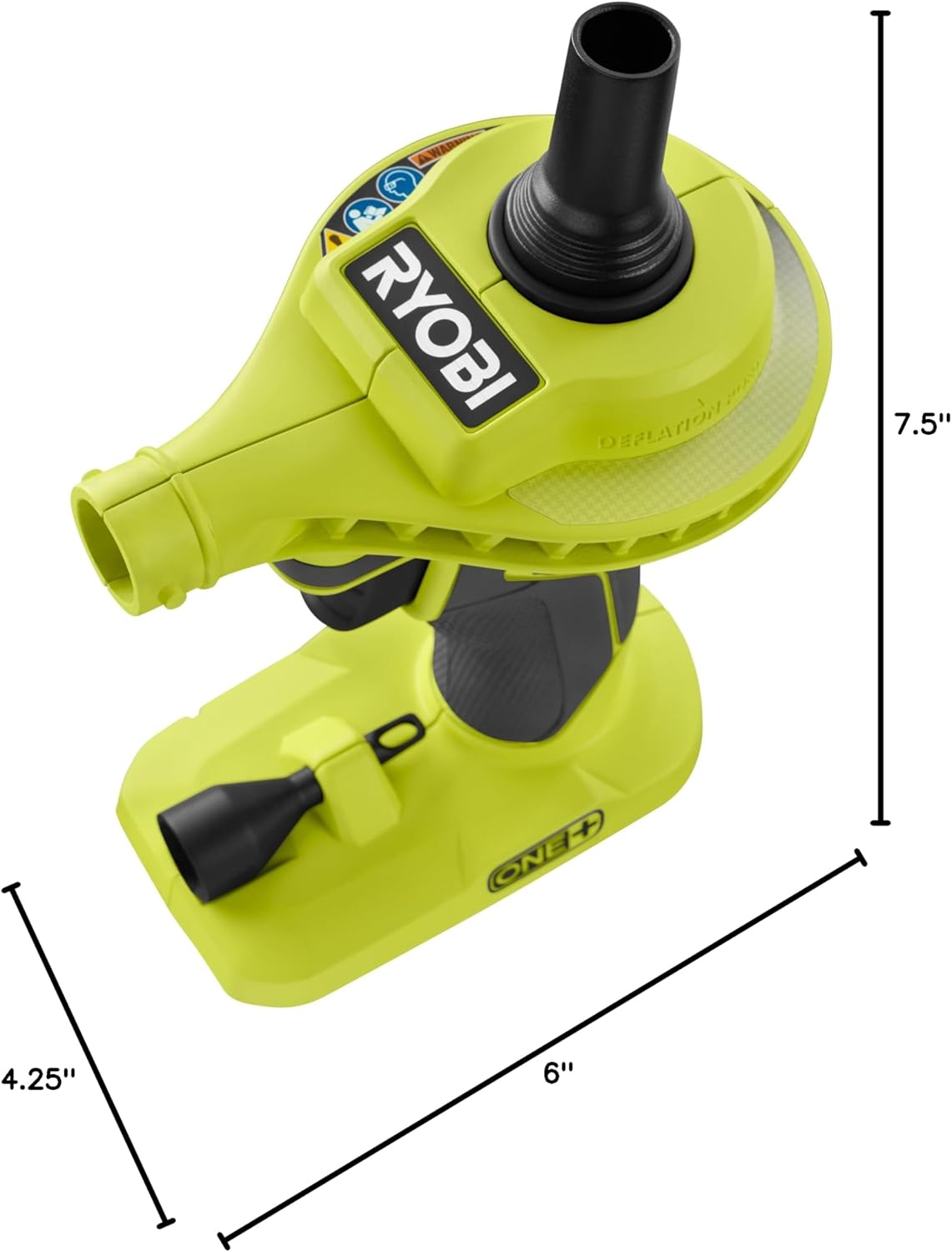

Figur 5: Physical dimensions of the inflator for reference.

9. Garanti og support

For garantioplysninger, teknisk support eller køb af reservedele henvises til den officielle RYOBI webwebstedet eller kontakt deres kundeservice direkte. Gem din købskvittering som købsbevis i tilfælde af garantikrav.
