KIMEX Motorized TV Lift Support - Model 018-6044

1. Introduktion

This manual provides essential information for the safe and efficient installation, operation, and maintenance of your KIMEX Motorized TV Lift Support, model 018-6044. Please read this manual thoroughly before installation and retain it for future reference.

The KIMEX 018-6044 motorized lift support is designed for 32-48 inch TV screens, supporting VESA patterns from 75x75mm to 400x400mm and a maximum weight of 50 kg. It allows for discreet installation within furniture and includes a remote control. Its adjustable and memorizable height makes it ideal for seamless furniture integration. The design features simple, tool-free installation with anti-detachment screws for maximum security, offering a modern and innovative solution for discreet TV placement.

2. Sikkerhedsoplysninger

• Sørg for, at alle komponenter er til stede og ubeskadigede før installation. Må ikke anvendes, hvis nogen af ​​delene mangler eller er defekte.
• Dette produkt er kun beregnet til indendørs brug.
• Overskrid ikke den maksimale vægtkapacitet på 50 kg (110 lbs).
• Ensure the mounting surface (furniture) can safely support the combined weight of the lift mechanism and the television.
• Keep children and pets away from the lift mechanism during operation to prevent injury.
• Do not attempt to modify the product. Unauthorized modifications may result in injury or product failure.
• Afbryd strømmen, før du udfører vedligeholdelse eller justeringer.

3. Pakkens indhold

Bekræft, at alle følgende komponenter er inkluderet i din pakke:

• Motorized TV Lift Mechanism
• VESA TV Mounting Brackets
• Fjernbetjening
• Strømadapter
• Monteringssæt (skruer, skiver, afstandsstykker)
• Instruktionsmanual

4. Opsætning og installation

The KIMEX 018-6044 is designed for recessed installation within furniture. Follow these steps carefully.

4.1. Prepare the Furniture

Ensure the furniture where the lift will be installed has adequate space and structural integrity to support the lift and TV. Refer to the dimensions diagram for precise measurements.

Figure 4.1: Technical drawing with dimensions of the KIMEX motorized TV lift. This diagram shows various measurements including height, width, and depth for proper furniture integration.

4.2. Mount the Lift Mechanism

1. Position the lift mechanism inside the furniture. Secure the base of the lift to the furniture using appropriate screws (provided in the hardware kit).
2. Ensure the lift is level and stable.

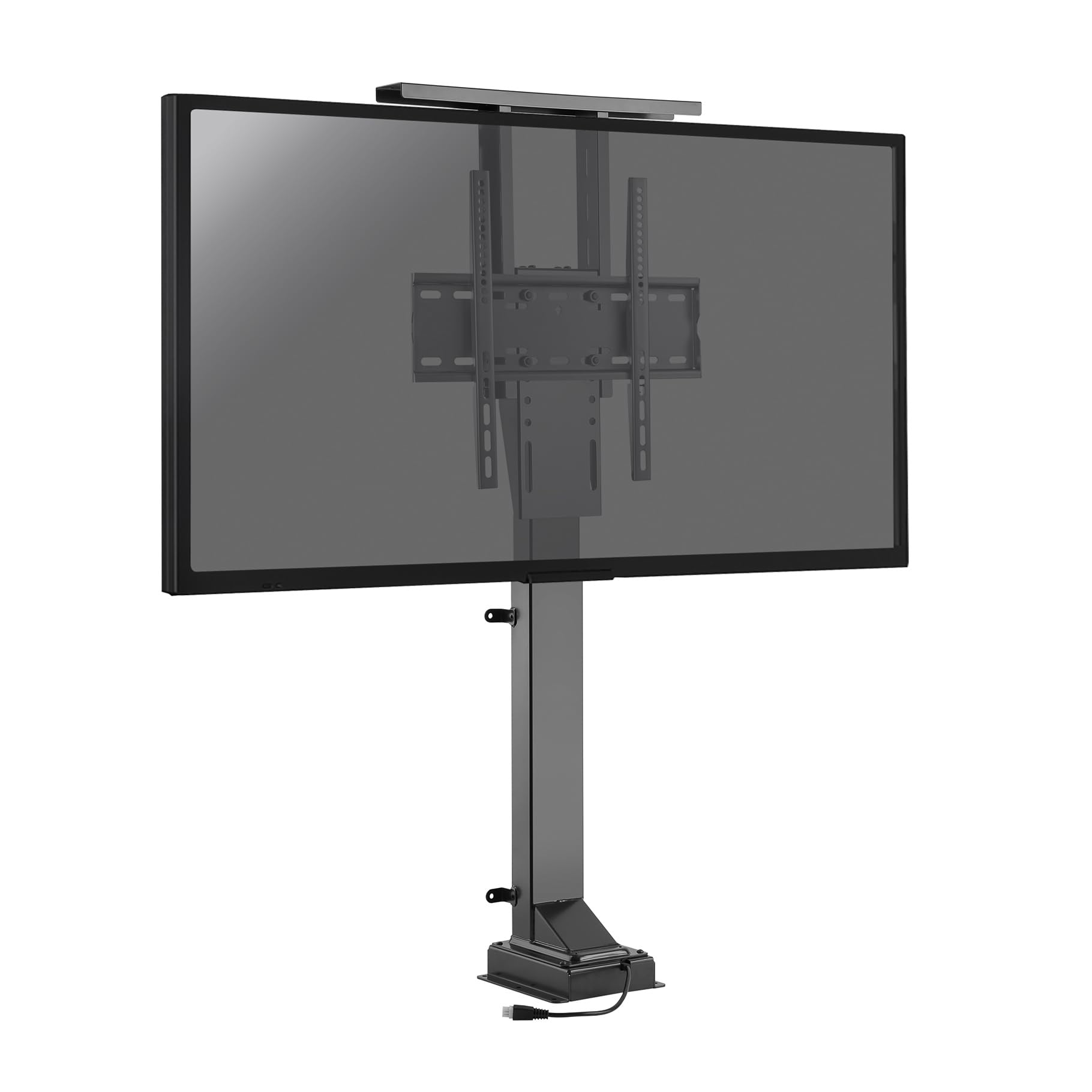

Figur 4.2: Forside view of the KIMEX motorized TV lift mechanism, showing the main structure and VESA mounting plate.

Figur 4.3: Side view of the KIMEX motorized TV lift mechanism, illustrating its profile and depth.

Figur 4.4: Bagside view of the KIMEX motorized TV lift mechanism, showing the back of the column and base.

4.3. Fastgør TV-monteringsbeslag

1. Attach the VESA mounting brackets to the back of your television using the appropriate screws and spacers from the hardware kit. Ensure the screws are tightened securely but do not overtighten.
2. Verify that the VESA pattern on your TV (75x75mm to 400x400mm) is compatible with the lift.

4.4. Mount the TV to the Lift

1. Carefully lift the television and hook the attached VESA brackets onto the lift mechanism's mounting plate.
2. Engage the anti-detachment screws or safety locks to secure the TV to the lift. This step is crucial for preventing accidental dislodgement.

Figure 4.5: The motorized TV lift with a television screen attached, viewed from the front, demonstrating the mounted TV.

4.5. Strømtilslutning

Connect the power adapter to the lift mechanism and then plug it into a suitable power outlet.

Figur 4.6: Eksample of the KIMEX motorized TV lift integrated into a bedroom cabinet, with the television extended for viewing.

5. Betjeningsvejledning

The motorized TV lift is operated using the included remote control.

5.1. Grundlæggende betjening

• Tryk på UP button to raise the television.
• Tryk på NED button to lower the television.
• Tryk på STOP knappen for at stoppe bevægelsen i en hvilken som helst ønsket position.

5.2. Setting Memory Positions

The lift allows you to save preferred height positions for quick recall.

1. Adjust the TV to your desired height using the UP/DOWN buttons.
2. Tryk på SÆT button once. The lift may beep or flash an indicator.
3. Press one of the memory preset buttons (e.g., M1, M2) to save the current position.
4. To recall a saved position, simply press the corresponding memory preset button.

6. Vedligeholdelse

Regular maintenance ensures the longevity and smooth operation of your TV lift.

• Rensning: Wipe the lift mechanism with a soft, dry cloth. Do not use abrasive cleaners or solvents.
• Inspektion: Periodically check all screws and connections to ensure they are tight. Inspect the power cable for any signs of damage.
• Smøring: The lift mechanism is generally maintenance-free. Do not apply lubricants unless specifically instructed by customer support.

7. Fejlfinding

If you encounter issues, refer to the following troubleshooting guide before contacting support.

8. Specifikationer

9. Garanti og support

KIMEX products are designed for reliability and performance. This product comes with a guarantee of spare parts availability for 3 years from the date of purchase.

For technical assistance, troubleshooting beyond this manual, or warranty claims, please contact KIMEX customer support through their official website or your retailer. Please have your model number (018-6044) and purchase information ready when contacting support.
