Produkt overview
The Greenlite LED PAR38 Motion Sensor Flood Light Bulb is designed for both indoor and outdoor use, providing efficient and bright illumination with integrated motion sensing capabilities. This 13W LED bulb is equivalent to a 100W incandescent bulb, offering 1050 lumens of 3000K Soft White light. It features an E26 medium base and is Energy Star certified, ensuring energy efficiency.

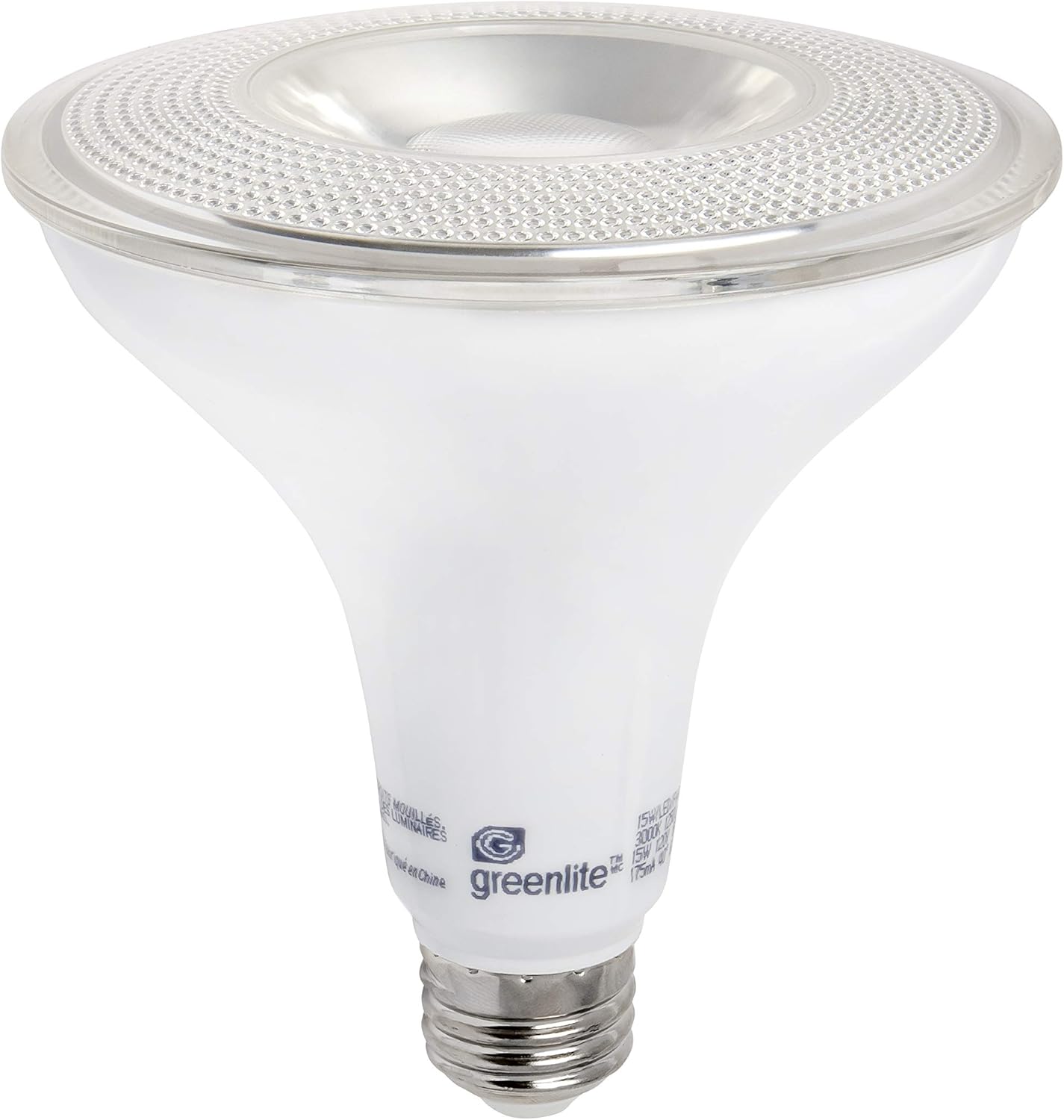

Image: The Greenlite LED PAR38 Motion Sensor Flood Light Bulb, showcasing its PAR38 shape and E26 medium base.
Image: Product packaging highlighting key features such as motion sensor, 13W PAR38, 100W equivalent, 1050 lumens, and Energy Star certification.
Sikkerhedsoplysninger
- ADVARSEL: Risiko for elektrisk stød. Afbryd strømmen før installation.
- Do not use with dimmers. This bulb is non-dimmable.
- Velegnet til våde steder.
- Sørg for, at armaturet er klassificeret til pærens effekt.tage og størrelse.
- Skil ikke pæren ad.
- Denne enhed er ikke beregnet til brug med nødudgange.
Opsætning og installation
- Sluk: Before replacing an existing bulb or installing a new one, ensure the power to the light fixture is turned off at the circuit breaker or wall switch.
- Fjern gammel pære: Carefully unscrew the old bulb from the fixture.
- Installer ny pære: Screw the Greenlite LED PAR38 Motion Sensor Flood Light Bulb into the E26 medium base socket. Ensure it is securely tightened but do not overtighten.
- Tænd: Restore power to the fixture. The bulb will illuminate briefly as it initializes.
Vigtig bemærkning: The motion sensor requires a brief warm-up period after power is applied. During this time, the bulb may remain on continuously before the motion sensing function becomes active. This can take up to an hour in some cases, as noted by user experiences.
Image: Dimensional drawing of the bulb, showing a width of 4.7 inches (119mm) and a height of 5.2 inches (132mm). Ensure your fixture can accommodate these dimensions.
Betjeningsvejledning
This Greenlite LED PAR38 bulb features an integrated motion sensor. It is designed to automatically turn on when motion is detected within its sensing range and turn off after a period of no motion. The bulb operates based on ambient light levels, typically activating only in low-light conditions (e.g., dusk to dawn) when motion is present.
- Automatisk drift: Once installed and powered, the bulb will automatically detect motion and ambient light.
- Bevægelsesdetektion: Sensoren registrerer bevægelse inden for sit synsfelt view. Factors like distance, object size, and movement speed can affect detection.
- Automatisk sluk: After motion ceases, the bulb will remain lit for a set period (typically a few minutes, non-adjustable) before turning off.
- Lysfølsomhed: The bulb is designed to operate in dark conditions. It will generally not activate during daylight hours, even if motion is detected.

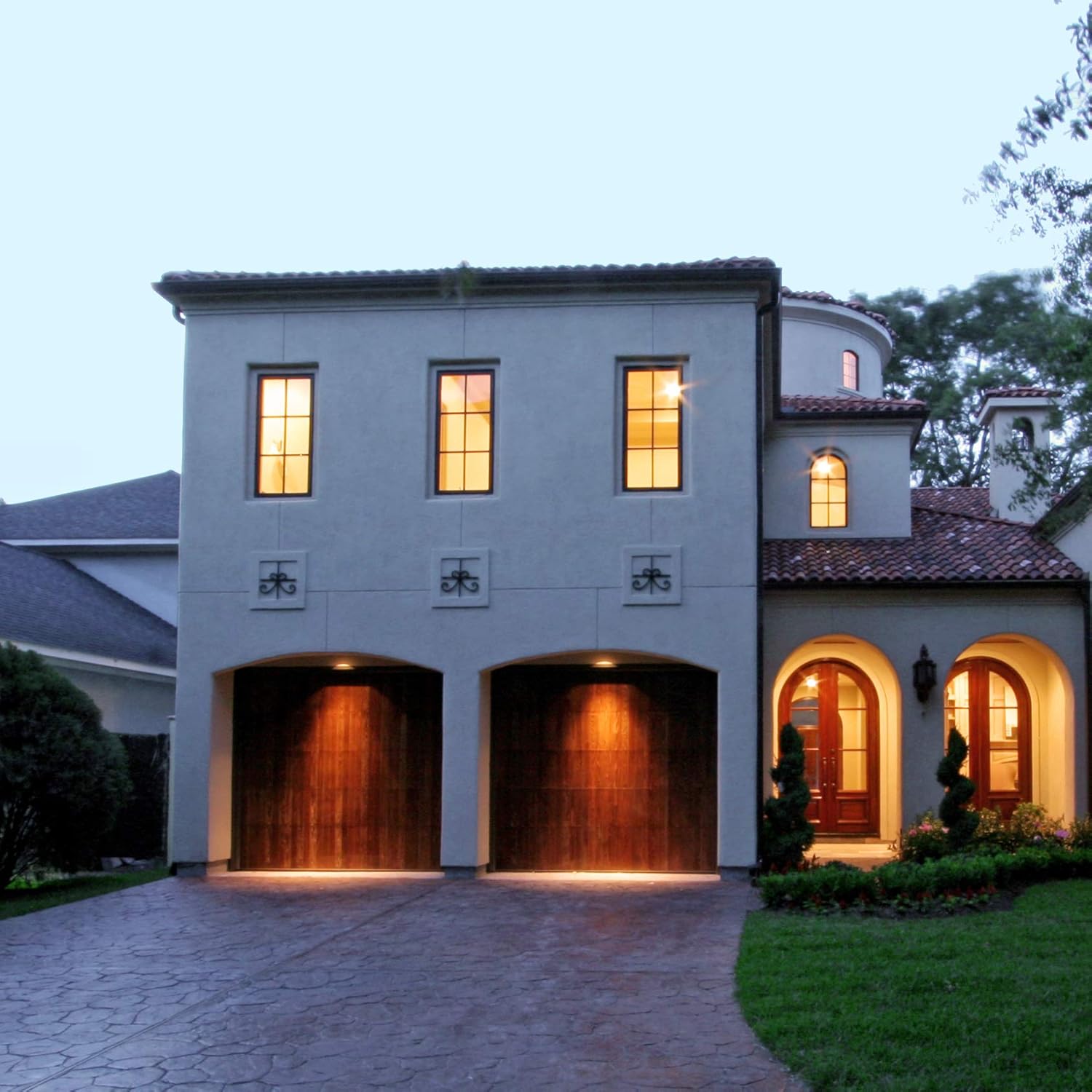

Billede: En eksample of the flood light bulbs installed in an outdoor setting, illuminating a driveway and garage area at night, demonstrating their effective coverage.
Opretholdelse
- Rensning: Ensure the bulb is cool and power is off before cleaning. Wipe the bulb and sensor lens gently with a soft, dry cloth. Do not use liquid cleaners or abrasive materials.
- Inspektion: Kontrollér regelmæssigt pæren og armaturet for tegn på skader eller løse forbindelser.
- Ingen dele, der kan serviceres af brugeren: Pæren indeholder ingen dele, som brugeren kan servicere. Forsøg ikke at åbne eller reparere den.
Fejlfinding
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Pæren tænder ikke. | No power; Bulb not screwed in properly; Sensor blocked; Ambient light too high. | Check power supply and circuit breaker. Ensure bulb is securely tightened. Clear any obstructions from the sensor. Test in darker conditions. |
| Pæren forbliver tændt kontinuerligt. | Initial warm-up period; Constant motion detected; Sensor malfunction; Ambient light too low (sensor thinks it's always dark). | Allow up to an hour for initial warm-up. Ensure no continuous motion is in the sensor's field. Check for external light sources interfering with the sensor. If problem persists, bulb may be faulty. |
| Pæren tænder/slukker uregelmæssigt. | Interference from moving objects (trees, traffic); Sensor sensitivity issues. | Adjust fixture angle if possible to minimize unwanted triggers. Ensure sensor is clean. |
| Lyset er for svagt eller for klart. | Incorrect bulb for application; Not designed for dimming. | This bulb is non-dimmable. Ensure it meets your brightness requirements (1050 lumens). |
Specifikationer
| Feature | Detalje |
|---|---|
| Mærke | Grønlit |
| Modelnummer | 48145 |
| Lys type | LED |
| Pære form størrelse | PAR38 |
| Wattage | 13 watt |
| Tilsvarende Wattage | 100 watt |
| Lysstyrke | 1050 lumen |
| Farvetemperatur | 3000 Kelvin (blød hvid) |
| Pære base | E26 Medium Base |
| Voltage | 120 volt |
| Indendørs/Udendørs brug | Indendørs, Udendørs |
| Speciel funktion | Motion Sensor, Shatter Resistant |
| Certificering | Energy Star, UL Listed, RoHS Compliant |
| Produktdimensioner | 4.73"W x 5.15"H (119mm x 132mm) |
| Varens vægt | 6.1 ounce |
Image: The bulb displaying its motion sensor icon, Energy Star, UL Listed, and RoHS compliance logos, indicating its safety and efficiency certifications.
Garanti og support
Specific warranty details for the Greenlite LED PAR38 Motion Sensor Flood Light Bulb (Model 48145) are not provided in this manual. For warranty information, technical support, or customer service inquiries, please refer to the manufacturer's official website or contact Greenlite customer support directly.
Fabrikant: Grønlit
Webwebsted: www.greenlite.ca
