1. Introduktion
This manual provides essential instructions for the safe assembly, operation, and maintenance of your vidaXL Electric Massage Recliner Chair, Model 248697. Please read this manual thoroughly before use and retain it for future reference.
Image 1.1: The vidaXL Electric Massage Recliner Chair, Model 248697, in beige fabric.
2. Vigtige sikkerhedsinstruktioner
To reduce the risk of electric shock, burns, fire, or injury, observe the following precautions:
- Read all instructions before using the chair.
- Må ikke bruges udendørs.
- Træk stikket ud af stikkontakten, når det ikke er i brug, og før rengøring.
- Må ikke arbejde under et tæppe eller pude. Overdreven opvarmning kan forekomme og forårsage brand, elektrisk stød eller personskade.
- Tæt opsyn er nødvendigt, når dette produkt bruges af, på eller i nærheden af børn, handicappede eller handicappede personer.
- Brug kun dette produkt til dets tilsigtede brug som beskrevet i denne vejledning. Brug ikke tilbehør, der ikke er anbefalet af producenten.
- Never operate this product if it has a damaged cord or plug, if it is not working properly, if it has been dropped or damaged, or dropped into water. Contact customer support for examination and repair.
- Bær ikke dette produkt ved ledning eller brug ledning som håndtag.
- Hold ledningen væk fra opvarmede overflader.
- Brug aldrig produktet med blokerede luftåbninger. Hold luftåbningerne fri for fnug, hår og lignende.
- Tab eller indsæt aldrig nogen genstand i nogen åbning.
- Må ikke anvendes, hvor der anvendes aerosolprodukter (sprayprodukter), eller hvor der administreres ilt.
- For at afbryde forbindelsen skal du dreje alle knapper til OFF-position og derefter tage stikket ud af stikkontakten.
- Stå ikke på stolen.
- Ensure all connections are secure before plugging into a power source.
3. Pakkens indhold
Please check that all components are present and undamaged before beginning assembly. If any parts are missing or damaged, do not proceed with assembly and contact customer support.
- Lænestolsbase
- Ryglæn
- Armrests (if separate)
- Strømadapter
- Fjernbetjening
- Assembly Hardware (screws, bolts, washers, etc.)
- Instruktionsmanual (dette dokument)
4. Monteringsvejledning
Assembly is required for this product. It is recommended that two adults assemble the chair. Ensure you have adequate space and all parts before starting.
- Udpak komponenter: Tag forsigtigt alle dele ud af emballagen, og læg dem på en blød, ren overflade for at forhindre ridser.
- Fastgør ryglæn: Align the backrest with the chair base. Slide the backrest into the receiving brackets on the chair base until it clicks securely into place. Ensure it is firmly seated.
- Tilslut elektriske ledninger: Locate the electrical wires extending from the backrest and the chair base. Carefully connect these wires, ensuring the connectors are fully engaged. Refer to any labels on the wires for correct pairing.
- Attach Armrests (if separate): If your model has separate armrests, attach them according to the specific instructions provided with your hardware. Typically, this involves aligning and securing them with bolts.
- Attach Legs/Feet: Screw or attach the chair legs/feet to the designated points on the bottom of the chair base. Ensure they are tightened securely.
- Tilslut strømadapter: Connect the power adapter cable to the chair's power input port. Do not plug into a wall outlet yet.
- Endelig kontrol: Before use, gently test the stability of the chair and ensure all connections are secure.
Image 4.1: Dimensional diagram of the recliner chair, illustrating overall size and reclining angles.
5. Betjeningsvejledning
Your vidaXL Electric Massage Recliner Chair features both reclining and massage functions, controlled by the included remote.
5.1 Strømtilslutning
Plug the power adapter into a standard electrical outlet. Ensure the chair's power cable is securely connected to the adapter.
5.2 Hvilefunktion
To recline the chair, locate the lever or button (if electric recline) on the side of the chair or on the remote control. Gently push back with your body weight while operating the mechanism. To return to the upright position, lean forward and engage the mechanism again.
Image 5.1: The recliner chair in various reclining positions, illustrating its range of motion.
5.3 Massagefunktion
The massage function is controlled via the remote control. The remote allows you to select different massage modes and intensity levels.

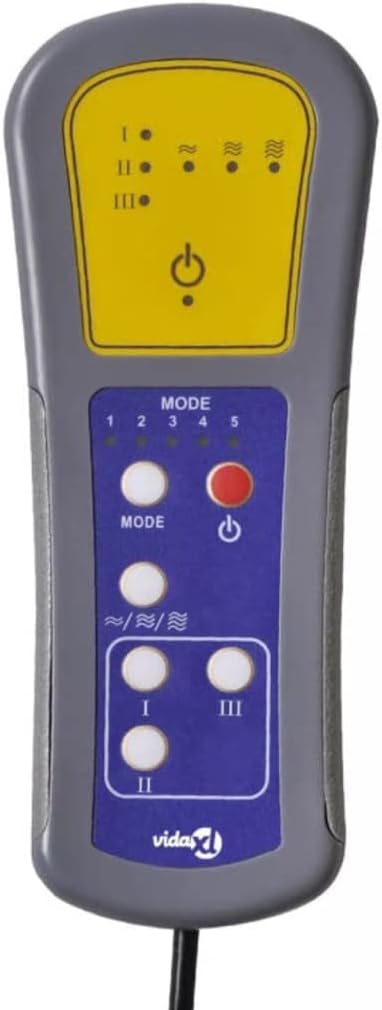

Image 5.2: The remote control for the massage and recline functions.
- Power knap: Tryk på rød tænd/sluk-knap to turn the massage function ON or OFF.
- Valg af tilstand: Brug MODE knap to cycle through different massage modes (e.g., continuous, pulse, wave). Indicators (1-5) will light up to show the active mode.
- Intensitetsniveauer: The remote typically offers three intensity levels, indicated by I, II, III. Press the corresponding button to select your desired intensity. The wave symbols (~) may also indicate intensity or type of massage.
- Målrettede massagezoner: Some remotes allow selection of specific massage zones (e.g., upper back, lower back, thighs). Refer to the remote's layout for these options.

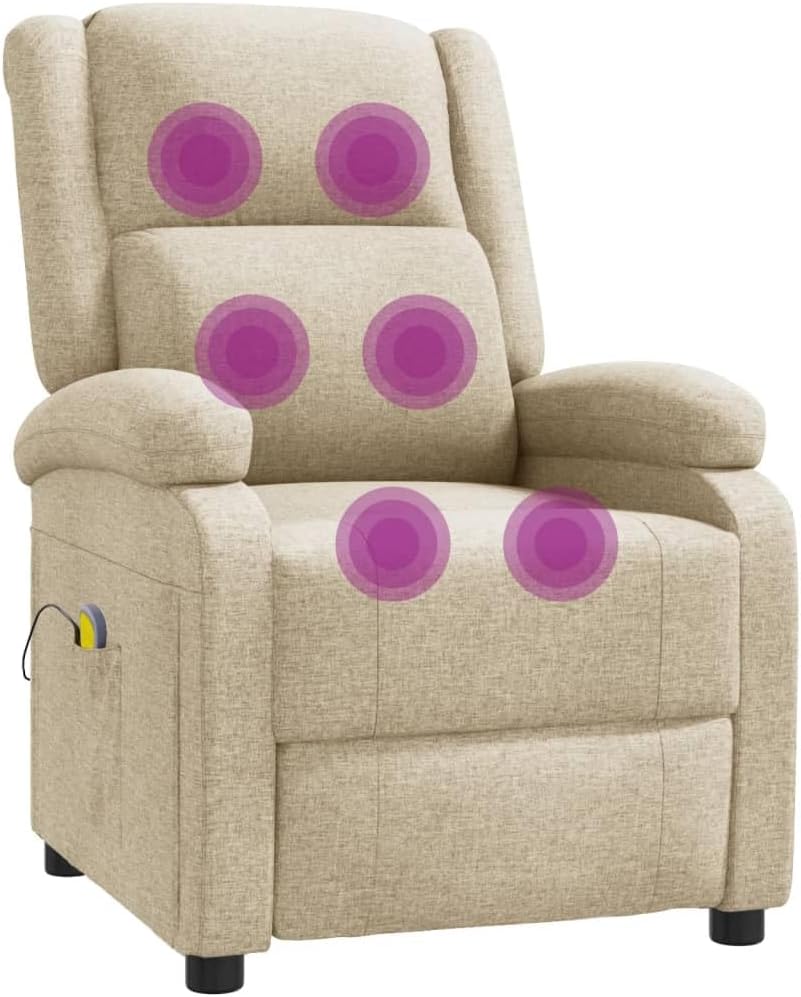

Image 5.3: Illustration of the massage points within the recliner chair.
6. Pleje og vedligeholdelse
Korrekt pleje vil forlænge levetiden og udseendet af din lænestol.
- Rensning: For fabric upholstery, vacuum regularly to remove dust and debris. For spills, blot immediately with a clean, dry cloth. For stubborn stains, use a mild fabric cleaner following the product instructions, testing on an inconspicuous area first. Do not use harsh chemicals or abrasive cleaners.
- Elektriske komponenter: Keep all electrical components, including the remote control and power adapter, dry and away from liquids.
- Flytning af stolen: When moving the chair, lift it rather than dragging it to prevent damage to the legs and frame.
- Inspektion: Kontrollér regelmæssigt alle bolte og forbindelser for at sikre, at de forbliver stramme. Efterspænd om nødvendigt.
7. Fejlfinding
If you encounter issues with your recliner chair, refer to the following common problems and solutions:
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Chair does not recline or massage. | No power, loose connection, remote control issue. | Ensure the power adapter is securely plugged into a working outlet and the chair. Check all electrical connections between chair components. Verify remote control batteries (if applicable) and functionality. |
| Massage function is weak or inconsistent. | Incorrect intensity setting, internal wiring issue. | Increase the intensity level using the remote control. If the problem persists, contact customer support. |
| Chair makes unusual noises during operation. | Loose hardware, obstruction in mechanism. | Check and tighten all assembly bolts. Inspect the reclining mechanism for any obstructions. |
| Difficulty assembling electrical components. | Unclear wiring instructions. | Ensure wires are connected color-to-color or according to any labels. If still unsure, consult a qualified electrician or contact customer support. |
8. Produktspecifikationer
- Model: 248697
- Mærke: vidaXL
- Farve: Beige
- Materiale: Fabric (Upholstery), Alloy Steel (Frame)
- Seated Dimensions (W x D x H): 71 cm x 90.5 cm x 96 cm (27.95 tommer x 35.63 tommer x 37.8 tommer)
- Reclined Dimensions (W x D x H): 71 cm x 158 cm x 71 cm (27.95 tommer x 62.2 tommer x 27.95 tommer)
- Sædemål (B x D): 50 cm x 52 cm (19.7 tommer x 20.5 tommer)
- Sædehøjde: 45 cm (17.7 tommer)
- Vægt: Cirka 24.95 kg (55 lbs)
- Montering påkrævet: Ja
- Strømkilde: Electric (Remote control may require batteries)
9. Kundesupport
For further assistance, missing parts, or warranty inquiries, please contact vidaXL customer support through their official website or the retailer where the product was purchased. Please have your model number (248697) and purchase details ready.
