ABC DESIGN Como 4 Diamante Stroller System User Manual

1. Introduktion

Thank you for choosing the ABC DESIGN Como 4 Diamante Stroller System. This comprehensive modular system is designed to provide comfort, safety, and versatility for your child from birth up to 3 years of age (or 22 kg). This manual provides essential information for the correct assembly, operation, and maintenance of your stroller system. Please read it thoroughly before use and keep it for future reference.

The Como 4 Diamante system includes a stroller frame, a convertible seat unit (bassinet/stroller seat), an infant car seat, and an adapter, offering a complete solution for various stagaf dit barns vækst.

2. Sikkerhedsoplysninger

• Always secure your child with the 5-point harness when using the stroller or car seat.
• Efterlad aldrig dit barn uden opsyn i klapvognen eller autostolen.
• Ensure all locking mechanisms are engaged before placing your child in the stroller.
• Do not overload the storage basket or hang bags on the handle, as this may cause instability.
• Avoid placing the stroller near open flames, heaters, or other heat sources.
• Undersøg regelmæssigt klapvognen for løse dele, beskadigede komponenter eller slidt stof. Stop brugen, hvis der findes skader.
• The infant car seat is designed for use in a vehicle. Always follow the car seat's specific installation instructions and your vehicle's owner's manual for proper installation.
• The bassinet is suitable for babies who cannot sit up unaided, roll over, or push themselves up on their hands and knees.

3. Pakkens indhold

Your ABC DESIGN Como 4 Diamante Stroller System includes the following components:

• Barnevognsstel med hjul
• Convertible Seat Unit (Bassinet/Stroller Seat)
• Autostol til spædbørn
• Adapter til bilsæde
• Matching Diaper Bag

Figure 1: Complete ABC DESIGN Como 4 Diamante Stroller System.

4. Opsætning og montering

4.1. Stroller Frame Assembly

1. Fold barnevognsstellet ud, indtil det låser på plads.
2. Attach the wheels by pushing them onto the axles until they click securely. Ensure all wheels are firmly attached.
3. Adjust the handle height by pressing the buttons on the sides of the handle and moving it to your desired position.

4.2. Attaching the Bassinet

The convertible seat unit can be transformed into a bassinet for newborns.

1. Ensure the seat unit is in the fully reclined position.
2. Adjust the straps and buckles to form the bassinet shape.
3. Align the bassinet with the attachment points on the stroller frame and press down firmly until it clicks into place. Verify it is securely attached.

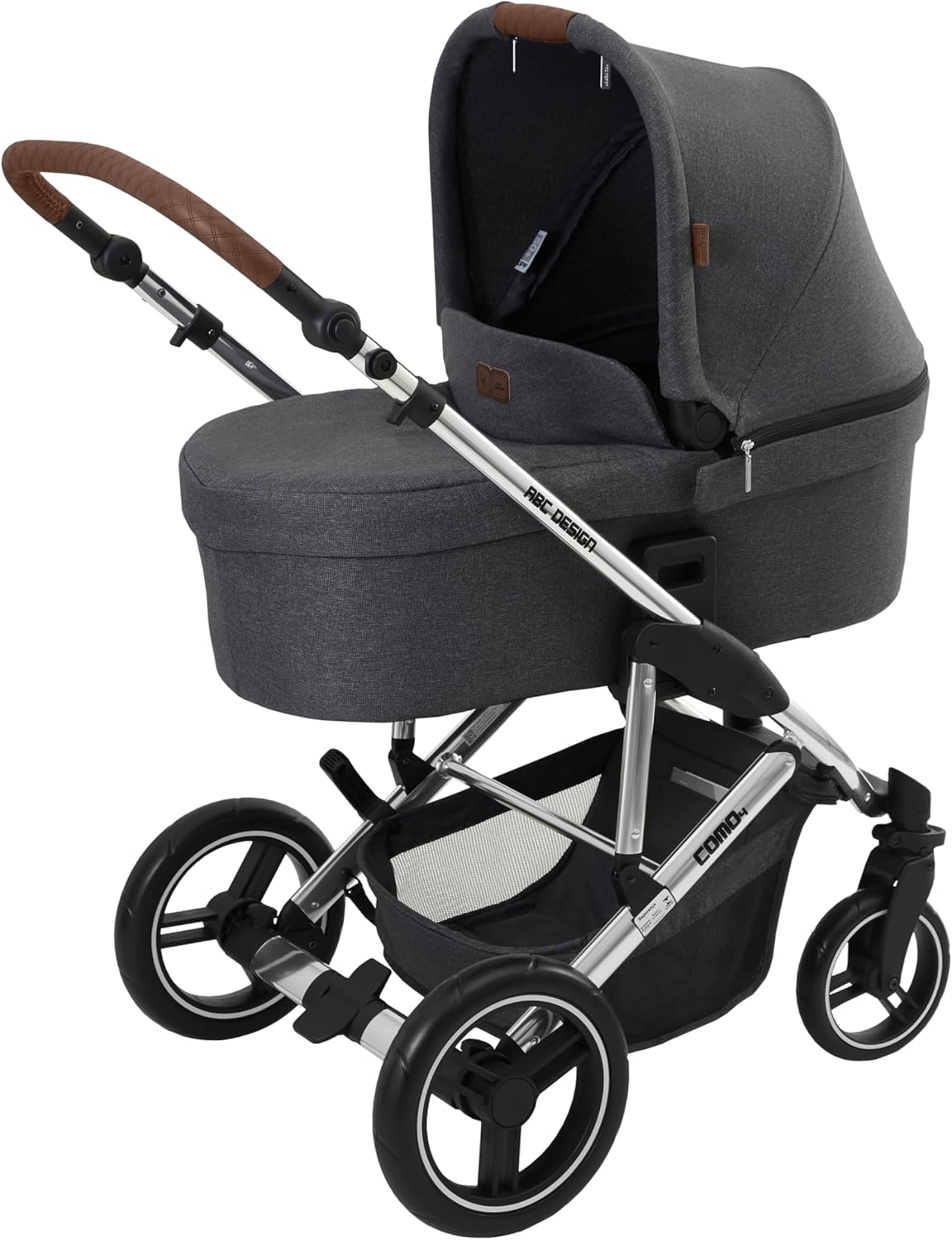

Figure 2: Stroller in Bassinet Mode.

4.3. Attaching the Infant Car Seat

To attach the infant car seat to the stroller frame:

1. First, attach the provided car seat adapters to the stroller frame. Ensure they click securely.
2. Place the infant car seat onto the adapters, aligning the connectors. Press down firmly until you hear a click, indicating it is locked in place.
3. Always check that the car seat is securely fastened to the adapters before use.

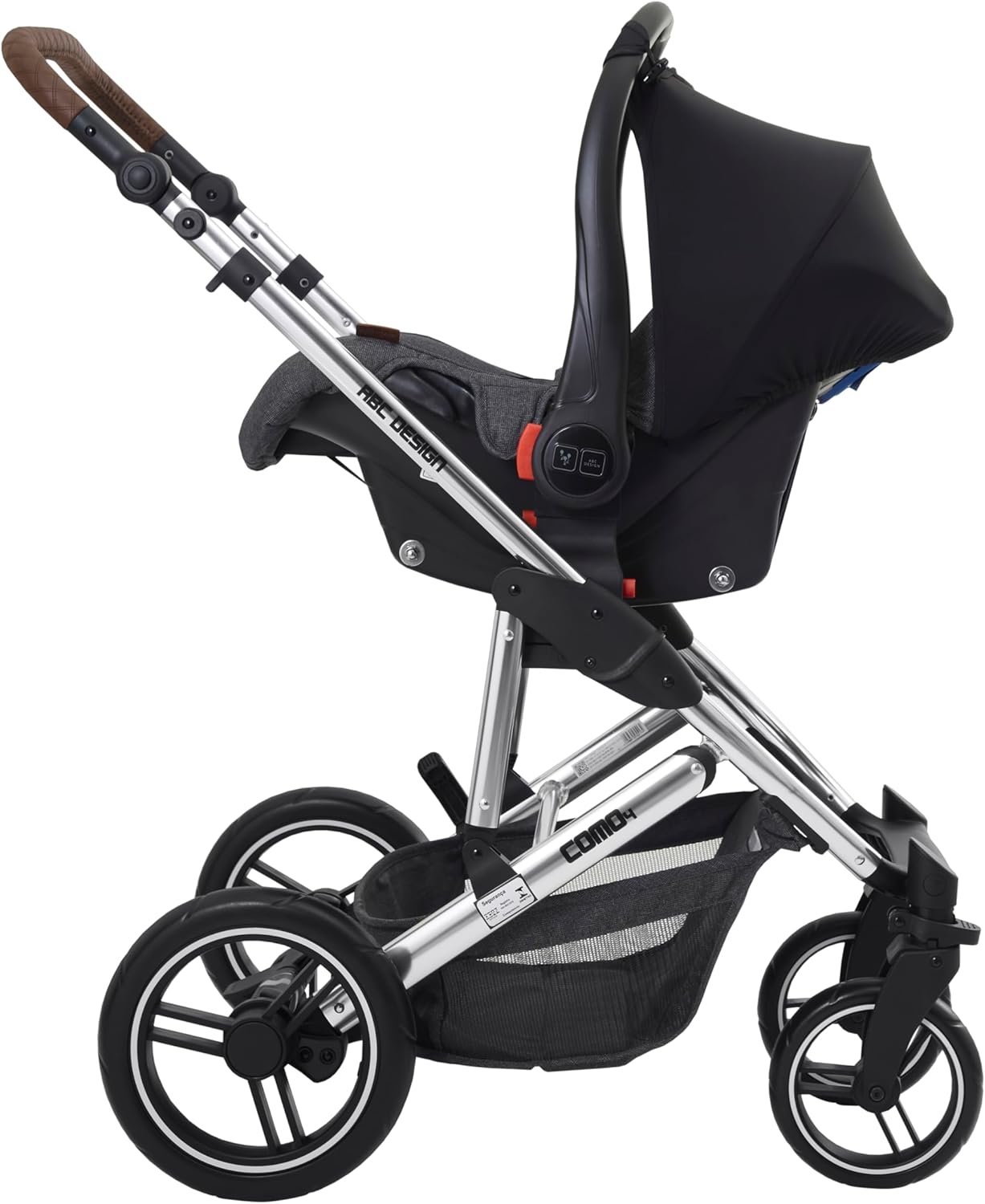

Figure 3: Stroller with Infant Car Seat.

5. Betjeningsvejledning

5.1. Stroller Seat Mode

The convertible seat unit can be used as a forward-facing or parent-facing stroller seat once your child can sit up unaided.

• Lænepositioner: Adjust the seat recline by using the lever or buttons located on the back of the seat. Ensure your child is securely fastened with the 5-point harness.
• Vendbart sæde: To reverse the seat direction, press the release buttons on both sides of the seat unit, lift it off the frame, rotate, and reattach until it clicks securely.
• Baldakin: The large canopy provides UV50+ protection and features a peek-a-boo window with magnetic closure for easy viewing and ventilation. It also includes a removable sun visor.

5.2. Foldning og udfoldning

The Como 4 Diamante stroller features a compact folding mechanism for easy storage and transport.

1. Ensure the seat unit is in the forward-facing position and fully upright (if applicable for your model's folding mechanism).
2. Aktiver bremsen.
3. Follow the specific folding instructions indicated on the stroller frame (usually involving pressing release buttons and folding the frame).
4. Once folded, the stroller is compact and can stand independently.

5.3. Wheels and Braking

• The front wheels are swivel wheels, allowing for easy maneuverability. They can be locked for stability on rough terrain.
• The rear wheels feature a reliable braking system. Engage the brake by pressing down on the pedal. Ensure the brake is fully engaged before leaving the stroller unattended.
• All four wheels are detachable for compact storage or maintenance.

5.4. Opbevaringskurv

The large storage basket located under the seat provides ample space for essentials. Do not exceed the recommended weight limit for the basket.

Figure 4: Stroller with convenient accessory bag.

6. Vedligeholdelse og pleje

• Stofpleje: The fabric components should be hand washed only. Refer to the care label for specific instructions.
• Rengøring af ramme: Tør rammen af ​​med adamp klud og mild sæbe. Tør grundigt. Brug ikke slibende rengøringsmidler.
• Vedligeholdelse af hjul: Regularly clean the wheels and axles to remove dirt and debris. Lubricate moving parts as needed with a silicone-based lubricant.
• Opbevaring: Store the stroller in a dry, cool place away from direct sunlight to prevent fading and material degradation.

7. Fejlfinding

• Barnevognen folder sig ikke gnidningsløst ud/ud: Check for any obstructions in the folding mechanism. Ensure all locking levers are disengaged.
• Wheels squeaking: Clean the wheel axles and apply a small amount of silicone lubricant.
• Sædeenheden er ikke fastgjort korrekt: Ensure the seat unit is correctly aligned with the frame's attachment points and pressed down firmly until it clicks. Check for any debris in the connectors.
• Brake not engaging: Check for obstructions around the brake mechanism. Ensure the brake pedal is fully depressed.

If you encounter persistent issues, please contact ABC DESIGN customer support.

8. Specifikationer

9. Garanti og support

Your ABC DESIGN Como 4 Diamante Stroller System is covered by a manufacturer's warranty. Please refer to the warranty card included with your product for specific terms and conditions. For technical support, spare parts, or any inquiries, please contact ABC DESIGN customer service through their official webwebstedet eller kontaktoplysningerne på din produktemballage.
