1. Introduktion
Thank you for choosing the DAEWOO DWC-SD1242 Front Load Washing Machine. This manual provides essential information for the safe and efficient operation, installation, and maintenance of your appliance. Please read this manual thoroughly before using the washing machine and keep it for future reference.
The DWC-SD1242 is a fully automatic front-load washing machine with a 13 kg capacity, designed for efficient and convenient laundry care. It features multiple wash programs and a user-friendly touch pad control system.
2. Sikkerhedsinstruktioner
Følg altid grundlæggende sikkerhedsforanstaltninger, når du bruger elektriske apparater, for at mindske risikoen for brand, elektrisk stød eller personskade.
2.1 Generel sikkerhed
- Læs alle instruktioner før brug af apparatet.
- Installer eller opbevar ikke apparatet, hvor det vil blive udsat for vejret eller temperaturer under frysepunktet.
- Vask ikke genstande, der er snavset med benzin, renserimidler eller andre brandfarlige eller eksplosive stoffer.
- Hold børn og kæledyr væk fra apparatet under drift.
2.2 Elektrisk sikkerhed
- Ensure the washing machine is connected to a properly grounded electrical outlet.
- Betjen ikke apparatet med en beskadiget netledning eller stik.
- Unplug the appliance before cleaning, performing maintenance, or if it is not in use for an extended period.
3. Opsætning og installation
Proper installation is crucial for the optimal performance and longevity of your washing machine. This appliance is designed for freestanding installation.
3.1 Udpakning
Carefully remove all packaging materials, including the shipping bolts located at the rear of the machine. Retain the shipping bolts for future transport if needed.
3.2 Beliggenhedskrav
Place the washing machine on a firm, level floor. Ensure there is adequate space around the machine for ventilation and maintenance. Avoid direct sunlight or extreme temperatures.
3.3 Nivellering af maskinen
Use a spirit level to ensure the machine is perfectly level. Adjust the leveling feet at the bottom of the machine by turning them clockwise or counter-clockwise until the machine is stable and level. Secure the lock nuts after leveling.
3.4 Vandforsyningstilslutning
Tilslut tilløbsslangerne til varmt- og koldtvandshanerne og til de tilsvarende tilløb på bagsiden af vaskemaskinen. Sørg for, at tilslutningerne er tætte for at forhindre lækager.
3.5 Afløbsslangetilslutning
Insert the drain hose into a standpipe or secure it over the edge of a sink. Ensure the drain hose is not kinked or blocked, allowing for proper water drainage.
3.6 Elektrisk tilslutning
Sæt netledningen i en jordet stikkontakt. Brug ikke forlængerledninger eller adaptere.

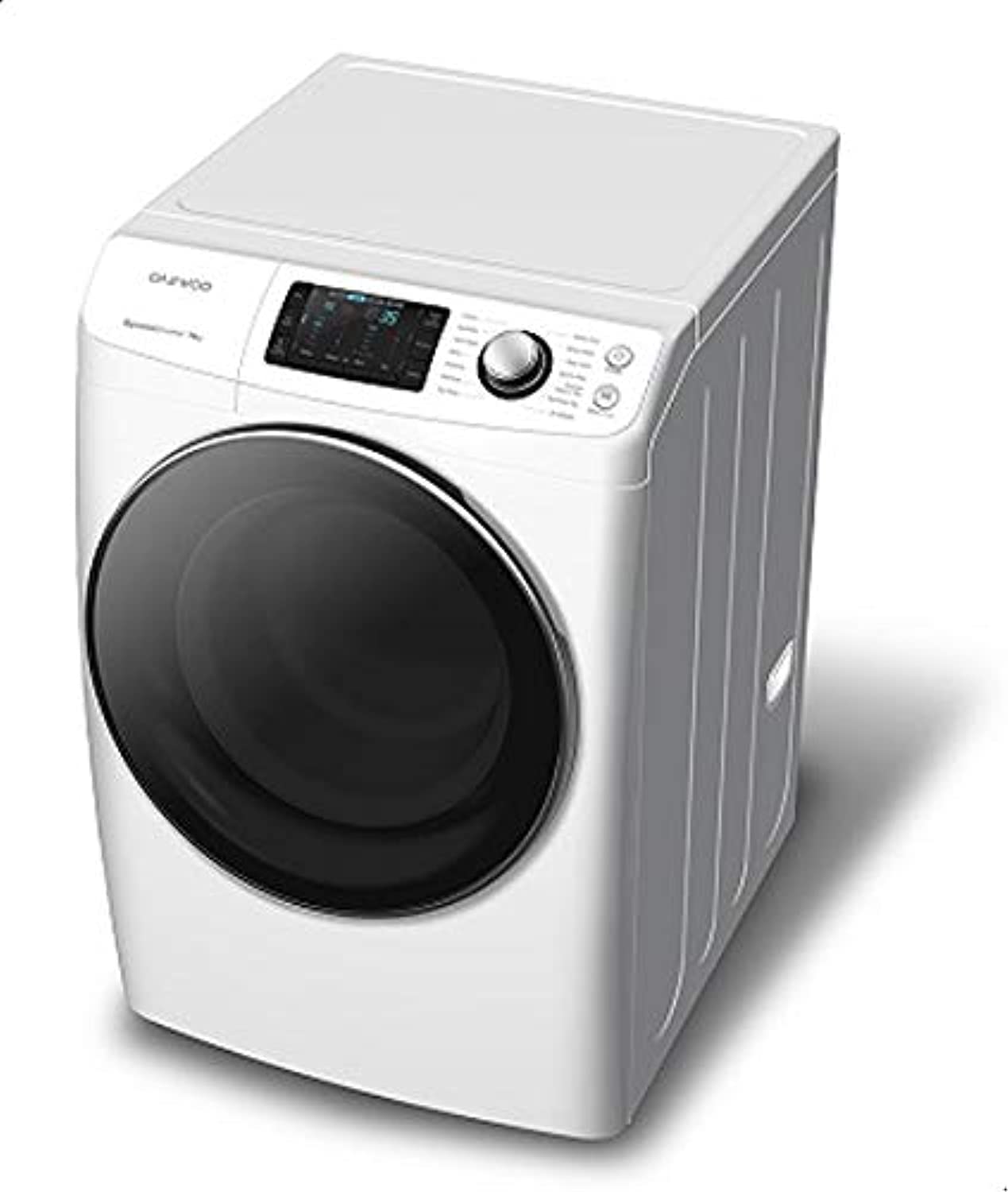

Figur 1: Forside view of the DAEWOO DWC-SD1242 Front Load Washing Machine. This image shows the appliance's white exterior, front-loading door, and control panel located at the top.
4. Betjeningsvejledning
This section guides you through the basic steps of operating your DAEWOO DWC-SD1242 washing machine.
4.1 Kontrolpanel overview
The washing machine features a touch pad control panel. Familiarize yourself with the program selector, temperature settings, spin speed options, and start/pause button.
4.2 Ilægning af vasketøj
Åbn lågen, og læg vasketøj i tromlen. Overfyld ikke maskinen; sørg for, at der er plads nok til, at tøjet kan rulle frit rundt. Luk lågen godt.
4.3 Tilsætning af vaskemiddel og tilsætningsstoffer
Pull out the detergent dispenser drawer. Add the appropriate amount of detergent to the main wash compartment. If using fabric softener or pre-wash detergent, add them to their respective compartments.
4.4 Valg af vaskeprogram
Turn the program selector knob or use the touch pad to choose the desired wash program based on the fabric type and soil level. Available cycle options include Drain and Spin.
4.5 Start af en vaskecyklus
Press the 'Start/Pause' button to begin the selected wash cycle. The machine will automatically fill with water and commence washing.
4.6 Pause/Annullering af en cyklus
To pause a cycle, press the 'Start/Pause' button. To cancel a cycle, press and hold the 'Start/Pause' button for a few seconds. The machine will drain the water and unlock the door.
4.7 Slut på cyklus
Once the wash cycle is complete, the machine will signal with an audible alert. The door will unlock, allowing you to remove your laundry.
5. Vedligeholdelse
Regular maintenance ensures the efficient operation and extends the lifespan of your washing machine.
5.1 Rengøring af ydersiden
Tør maskinens ydre af med en blød, damp klæde. Brug ikke slibende rengøringsmidler eller opløsningsmidler.
5.2 Rengøring af sæbeskuffen
Fjern og rengør sæbeskuffen med jævne mellemrum under rindende vand for at forhindre ophobning af vaskemiddel.
5.3 Rengøring af tromlen
Run a maintenance wash cycle (e.g., a hot wash with no laundry and a descaling agent) regularly to clean the drum and remove any residue.
5.4 Rengøring af afløbsfilteret
The drain filter should be cleaned periodically to prevent blockages. Locate the filter at the bottom front of the machine, open the cover, and carefully remove any lint or debris. Ensure to drain any residual water before removing the filter.
6. Fejlfinding
Før du kontakter service, se følgende tabel for almindelige problemer og løsninger på disse.
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Maskinen starter ikke | Power cord unplugged; Door not closed properly; Water supply off | Check power connection; Ensure door is latched; Open water taps |
| Vand løber ikke ud | Drain hose kinked or blocked; Drain filter clogged | Straighten drain hose; Clean drain filter |
| Overdreven vibration | Machine not level; Shipping bolts not removed; Uneven load | Adjust leveling feet; Remove shipping bolts; Redistribute laundry |
| Ingen vandpåfyldning | Water taps closed; Inlet hoses kinked; Water pressure too low | Open water taps; Straighten hoses; Check water supply pressure |
Hvis problemet fortsætter efter at have forsøgt disse løsninger, bedes du kontakte kvalificeret servicepersonale.
7. Specifikationer
- Mærke: DAEWOO
- Modelnummer: DWC-SD1242
- Indlæsningstype: Frontbelastning
- Kapacitet: 13 kilo
- Farve: Hvid
- Materiale: Metal
- Dimensioner (B x D x H): 70 x 80 x 120 cm
- Varens vægt: Approximately 60 kg (Shipping Weight)
- Kontroltype: Touch Pad
- Driftstilstand: Fuldautomatisk
- Cyklusindstillinger: Drain, Spin
- Installationsmetode: Frit stående
8. Garanti og support
For warranty information and customer support, please refer to the warranty card included with your purchase or contact your local DAEWOO service center. Keep your proof of purchase for warranty claims.
