Indledning
Welcome to your new TERIOS Mobile Game Controller. This manual provides detailed instructions for setup, operation, and maintenance to ensure optimal performance and an enhanced gaming experience across various platforms including Android smartphones, Windows PCs, and PlayStation 3 consoles. Please read this manual thoroughly before using the device.
Nøglefunktioner
- Innovative Gaming: Designed to enrich your mobile gaming experience with precision and responsiveness.
- Bred kompatibilitet: Connects via Bluetooth 4.0 to Android smartphones, and is compatible with Windows PC and PlayStation 3. Supports popular games like PUBG, Call of Duty, and Mobile Legends.
- Gaming Joysticks: Features dual analog sticks for comprehensive and precise control.
- Ergonomisk design: Comfortable grip with an integrated smartphone holder for extended gaming sessions.
- Turbofunktion: Allows for rapid, continuous input with a single button press.
- Responsive Active Buttons: Includes 2 quick access buttons on the back and numerous action buttons for enhanced accuracy.
- Lang batterilevetid: Up to 12 hours of continuous play on a single charge.

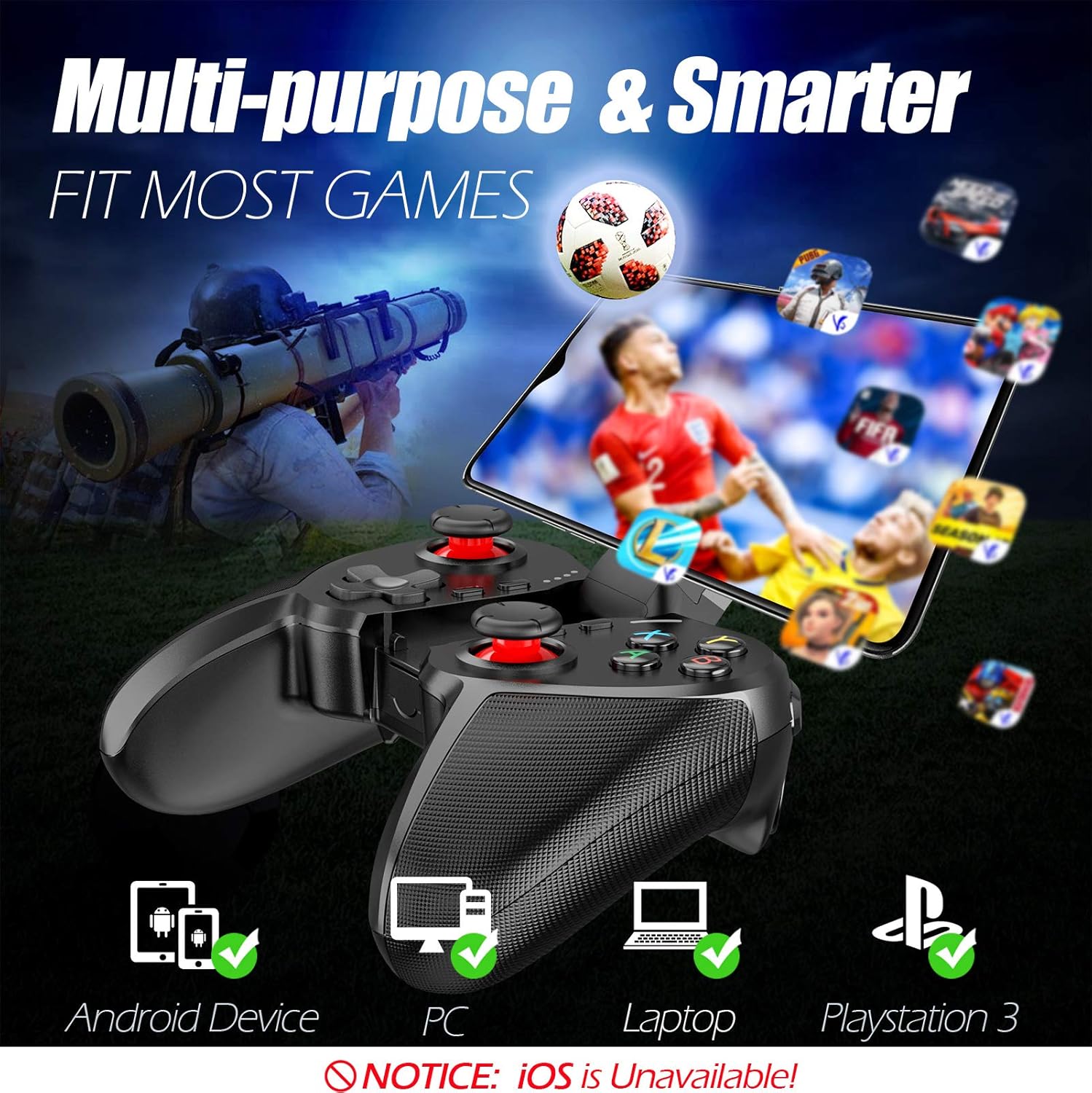

Figure 1: The TERIOS controller is compatible with Android devices, PCs, Laptops, and PlayStation 3.
Figure 2: Detail of the controller's built-in smartphone bracket, accurate buttons, and comfortable soft rubber grips.
Opsætning og tilslutning
1. Opladning af controlleren
Before first use, fully charge the controller. Connect the provided Micro USB cable to the controller's charging port and the other end to a USB power source (e.g., computer USB port, USB wall adapter). The indicator lights will show charging status and turn off when fully charged.
Figure 3: The controller features a 400mAh battery, providing 12-14 hours of playtime with a 2-3 hour charging time.
2. Tænd/sluk
- For at tænde: Tryk og hold på HJEM button for 2 seconds. The indicator lights will flash.
- For at slukke: Tryk og hold på HJEM button for 5 seconds until the indicator lights turn off. The controller will automatically power off after 5 minutes of inactivity.
3. Bluetooth Pairing (Android Smartphones / PS3)
- Sørg for, at controlleren er slukket.
- On your Android smartphone or PS3, enable Bluetooth.
- Tryk og hold på HJEM button on the controller until the indicator lights flash rapidly, indicating pairing mode.
- On your device, search for new Bluetooth devices. Select "TERIOS Gamepad" or similar from the list.
- Når den er tilsluttet, lyser indikatorlampen konstant.
4. PC-tilslutning
For PC connection, the controller typically uses a USB dongle (often included). Insert the USB dongle into an available USB port on your PC. The controller should automatically connect. If not, press the HJEM button to initiate connection.
5. Initial Setup and App (V3 App)
For optimal customization and compatibility with certain mobile games, it is recommended to download the V3 app from the Google Play Store. This app allows you to map virtual keys on your screen to the physical buttons of the controller.
- Download the "V3" app from the Google Play Store.
- Connect the TERIOS gamepad to your smartphone via Bluetooth.
- Open the V3 app and follow the on-screen instructions to customize key mappings for your desired games.
Figure 4: The V3 app allows for easy customization of virtual keys to match controller buttons, creating more combinations.
Betjeningsvejledning
1. Knaplayout og funktioner
Figure 5: The TERIOS Mobile Game Controller with a smartphone securely mounted in its integrated holder.
- Venstre analoge pind: Primær bevægelseskontrol.
- Højre analoge pind: Kamerastyring eller sekundær bevægelse.
- D-Pad (retningspad): Precise directional input.
- ABXY knapper: Standardhandlingsknapper (A, B, X, Y).
- L1/L2, R1/R2 Buttons: Skulder- og udløserknapper til forskellige handlinger i spillet.
- SELECT -knap: Bruges typisk til menu-navigation eller specifikke spilfunktioner.
- START-knap: Typically used for pausing games or accessing menus.
- HJEM knap: Powers on/off, enters pairing mode, and returns to home screen on some devices.
- TURBO knap: Activates the turbo function for other buttons.
- CLEAR -knap: Deaktiverer turbofunktionen.
Figure 6: The dual analog sticks are designed for precise control and execution in games.
2. Turbofunktion
The Turbo function allows a button to be pressed repeatedly as long as you hold it down, which is useful for rapid-fire actions in games.
- Sådan aktiveres: Tryk og hold på TURBO button, then press the desired action button (e.g., A, B, X, Y, L1, R1). Release both buttons. Now, holding down the action button will activate turbo fire.
- For at deaktivere: Tryk og hold på KLAR button, then press the action button for which turbo was activated. Release both buttons.
Figure 7: The dedicated Turbo button enables rapid-fire functionality with one click.
3. Smartphone Holder Usage
The integrated smartphone holder can accommodate most smartphone sizes. Gently extend the holder and place your smartphone securely within the clamps. Ensure the phone is centered for balance.
Opretholdelse
- Rensning: Brug en blød, tør klud til at rengøre controlleren. Brug ikke slibende rengøringsmidler eller opløsningsmidler.
- Opbevaring: Opbevar controlleren et køligt, tørt sted væk fra direkte sollys og ekstreme temperaturer.
- Batteripleje: For at forlænge batteriets levetid bør du undgå at aflade controlleren helt ofte. Oplad den regelmæssigt, selvom den ikke er i brug i længere perioder.
Fejlfinding
| Spørgsmål | Mulig årsag | Løsning |
|---|---|---|
| Controlleren opretter ikke forbindelse via Bluetooth. | Controlleren er ikke i parringstilstand; enhedens Bluetooth er slukket; interferens. | Ensure controller is in pairing mode (rapid flashing lights). Check device Bluetooth settings. Move closer to the device. Try restarting both controller and device. |
| Knapperne reagerer ikke eller er forsinkede. | Low battery; software glitch; interference. | Charge the controller fully. Restart the controller. Ensure no other strong wireless signals are nearby. For mobile games, check V3 app settings. |
| Controlleren afbryder ofte forbindelsen. | Lavt batteri; for langt fra enheden; interferens. | Charge the controller. Stay within the recommended Bluetooth range. Minimize wireless interference. |
| Turbo function not working. | Incorrect activation sequence; button not supported. | Ensure you press and hold TURBO, then press the desired action button, then release both. Some games or buttons may not fully support turbo. |
Produktspecifikationer
| Feature | Detalje |
|---|---|
| Mærke | TERIOS |
| Model | T-12 |
| Forbindelsesteknologi | Bluetooth 4.0 |
| Kompatible enheder | Android Smartphones, Windows PC, PlayStation 3 |
| Strømkilde | Batteridrevet (lithiumpolymer) |
| Batterikapacitet | 400mAh (approx. 1.48 Watt Hours) |
| Spilletid | Op til 12-14 timer |
| Opladningstid | 2-3 timer |
| Antal knapper | 16 (including ABXY, D-pad, analog sticks, L/R triggers/bumpers, Select, Start, Home, Turbo, Clear) |
| Særlige funktioner | Turbo Function, Dual Analog Sticks, In-built Smartphone Holder, Responsive Action Buttons |
| Dimensioner (pakke) | 17 x 12.4 x 7.7 cm |
| Vægt (pakke) | 310 g |
Garanti- og supportoplysninger
The TERIOS Mobile Game Controller is designed for durability and performance. For any product-related inquiries, technical support, or warranty claims, please refer to the contact information provided with your purchase or visit the official TERIOS support webwebsted. Gem venligst din købsbevis af garantihensyn.
