1. Produktet er slutview og sikkerhedsoplysninger
The Ariete 2759 Handy Force RBT is a versatile 2-in-1 corded vacuum cleaner designed for efficient cleaning of various surfaces. It functions as both a vertical stick vacuum and a portable handheld vacuum, utilizing cyclonic technology for effective dust separation and a HEPA filter for enhanced air purification.
Vigtige sikkerhedsinstruktioner:
- Læs alle instruktioner før brug af apparatet.
- Dette apparat er kun til husholdningsbrug. Må ikke bruges udendørs eller på våde overflader.
- Always ensure the power cord is undamaged and unplug the appliance before cleaning or maintenance.
- Saml ikke brandfarlige eller brændbare materialer, varm aske eller store, skarpe genstande op.
- Hold hår, løstsiddende tøj, fingre og alle dele af kroppen væk fra åbninger og bevægelige dele.
- Lad ikke børn betjene støvsugeren.
Image 1.1: The Ariete 2759 Handy Force RBT in its full stick vacuum configuration, showcasing dens elegante røde og sorte design.
2. Pakkens indhold
Pak forsigtigt alle komponenter ud, og sørg for, at du har modtaget følgende:
- Main Vacuum Unit (motor and dustbin)
- Extension Tube (for stick vacuum configuration)
- Motoriseret gulvbørste
- Spaltemundstykke
- Stofbørste
- Multifunktions børste
- Brugermanual
Billede 2.1: Eks.amples of included accessories, such as the crevice nozzle and brush tool, for specialized cleaning tasks.
3. Montering
The Ariete 2759 Handy Force RBT can be assembled in two primary configurations: as a stick vacuum or as a handheld vacuum.
3.1. Stick Vacuum Assembly
- Sæt forlængerrøret ind i hovedstøvsugeren, indtil det klikker sikkert på plads.
- Attach the motorized floor brush to the other end of the extension tube, ensuring it is firmly connected.
- Sørg for, at alle forbindelser er sikre inden brug.
3.2. Handheld Vacuum Assembly
- For handheld use, detach the extension tube from the main vacuum unit.
- Attach the desired accessory (e.g., crevice nozzle, fabric brush, multi-function brush) directly to the main vacuum unit's suction opening.
- Ensure the accessory is securely attached.
Image 3.1: The main vacuum unit configured for handheld use, demonstrating its compact form for cleaning elevated surfaces.
4. Betjeningsvejledning
4.1. Tænd/sluk
- Sæt netledningen i en passende stikkontakt (220V).
- Locate the power switch on the main vacuum unit.
- Press the power switch to turn the vacuum cleaner ON. Press it again to turn OFF.
4.2. Brug som stavstøvsuger
For floor cleaning, use the stick vacuum configuration with the motorized floor brush. This brush is suitable for various floor types, including terracotta, marble, stoneware, ceramic, and carpets.
Image 4.1: The motorized floor brush in operation, highlighting its integrated LED lights for improved visibility during cleaning.

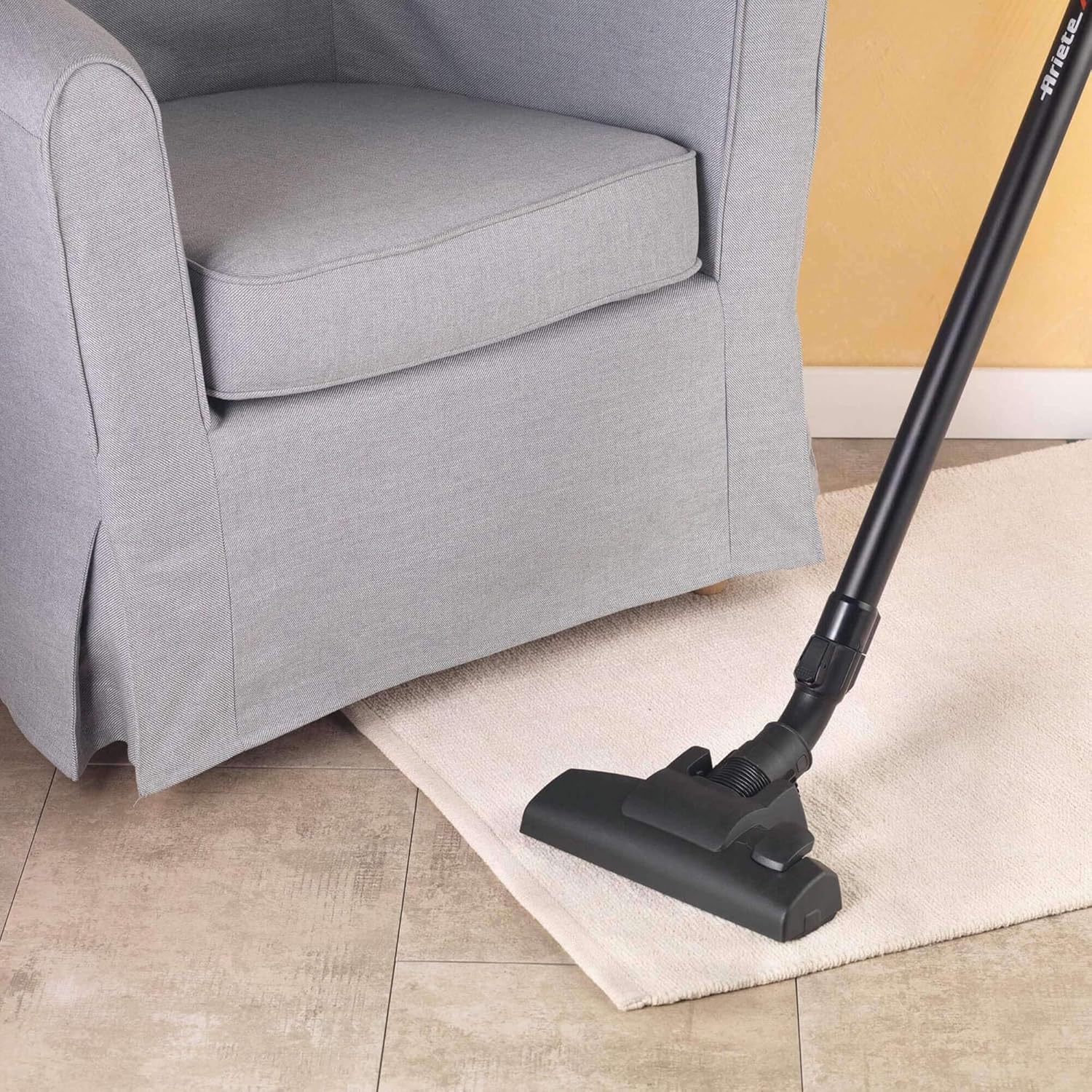

Image 4.2: The stick vacuum effectively cleaning a rug, demonstrating its maneuverability for different floor coverings.
4.3. Brug som håndstøvsuger
For cleaning upholstery, car interiors, shelves, or tight spaces, use the handheld configuration with the appropriate accessory.
Image 4.3: The main unit with an attached nozzle, ready for handheld cleaning tasks.
5. Vedligeholdelse og rengøring
Regelmæssig vedligeholdelse sikrer optimal ydeevne og forlænger din støvsugers levetid.
5.1. Tømning af skraldespanden
- Sørg for, at støvsugeren er taget ud af stikkontakten.
- Locate the dustbin release button or latch on the main unit.
- Remove the dustbin and empty its contents into a waste bin.
- Fastgør støvbeholderen forsvarligt til hovedenheden igen.
5.2. Rengøring af HEPA-filteret
The HEPA filter is washable and should be cleaned regularly to maintain suction power and air filtration efficiency.
- Træk støvsugeren ud.
- Remove the dustbin and then carefully extract the HEPA filter.
- Skyl filteret under koldt rindende vand, indtil vandet er klart. Brug ikke rengøringsmidler.
- Allow the filter to air dry completely for at least 24 hours before reinserting it. Do not use heat to dry.
- Ensure the filter is completely dry before placing it back into the vacuum cleaner.
5.3. Rengøringsbørster og tilbehør
- Regularly check the motorized floor brush for tangled hair or debris. Use scissors to cut and remove any obstructions.
- Tør alt tilbehør af med reklameamp klud efter behov.
6. Fejlfinding
If you encounter issues with your Ariete 2759 Handy Force RBT, refer to the following common problems and solutions:
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Vakuum tænder ikke | Not plugged in; Power outlet fault; Power switch off | Check power cord connection; Test outlet with another appliance; Ensure power switch is ON |
| Tab af sugekraft | Full dustbin; Clogged filter; Blockage in hose/brush | Empty dustbin; Clean/dry HEPA filter; Remove any blockages from the hose or brush |
| Usædvanlig støj | Blockage in brush or hose; Damaged component | Kontroller for og fjern blokeringer; Hvis støjen fortsætter, skal du kontakte kundesupport. |
| Motoriseret børste drejer ikke | Tangled debris; Connection issue | Clean debris from brush roll; Ensure brush is securely attached |
7. Specifikationer
Technical details for the Ariete 2759 Handy Force RBT:
| Feature | Specifikation |
|---|---|
| Modelnummer | 2759 (GAL-130294) |
| Magt | 600 watt |
| Voltage | 220 volt |
| Strømkilde | Elektrisk med ledning |
| Støjniveau | 68 decibel |
| Produktmål (L x B x H) | 28 x 15 x 68 cm |
| Varens vægt | 2.7 kilo |
| Filtertype | HEPA filter |
| Særlige funktioner | 2-in-1 functionality (stick and handheld), Cyclonic Technology |
| Inkluderede komponenter | Accessory kit (crevice nozzle, fabric brush, multi-function brush) |
8. Garanti og support
For warranty information, please refer to the documentation provided at the time of purchase. This typically includes details on coverage duration and terms.
If you require technical assistance, spare parts, or have questions not covered in this manual, please contact Ariete customer support through their official website or the retailer from whom you purchased the product. Ensure you have your model number (2759 Handy Force RBT) and proof of purchase available when contacting support.
