FORIOUS 8 Inch Widespread Brushed Gold Bathroom Faucet (Model FB-0300G)

1. Introduktion

This manual provides detailed instructions for the installation, operation, and maintenance of your FORIOUS 8 Inch Widespread Brushed Gold Bathroom Faucet, Model FB-0300G. Please read all instructions carefully before beginning installation to ensure proper function and longevity of your product. Retain this manual for future reference.

Image 1.1: Complete FORIOUS 8 Inch Widespread Brushed Gold Bathroom Faucet set, including the main spout, two handles, pop-up drain, and supply lines.

2. Produktet er slutview

The FORIOUS FB-0300G faucet is designed for modern bathrooms, featuring a brushed gold finish and a widespread 3-hole installation. Key features include:

• Pålidelig ydeevne: Equipped with an upgraded mixing cartridge tested for over 500,000 cycles, ensuring smooth operation and reduced leakage.
• Innovative Spout: A 360-degree swivel gooseneck spout with a built-in high-pressure aerator and an included 1.2 GPM spare water-saving aerator. This design reduces splash and promotes water conservation.
• Holdbar konstruktion: Constructed from 316 stainless steel with a 7-layer PVD brushed gold finish, passing 24-hour ASTM salt spray testing for enhanced resistance against peeling, rust, and fingerprints.
• Widespread Fit: Compatible with 3-hole bathroom vanity sinks ranging from 6 to 12 inches widespread.
• Komplet sæt: Includes 24-inch Innoflex PEX hoses (3/8-inch US standard pipe connection) and a pop-up drain for a comprehensive installation.

Billede 2.1: Nærbillede view of the faucet's built-in high-pressure aerator and the included 1.2 GPM spare water-saving aerator, designed for efficient water flow and splash reduction.

Image 2.2: Illustration of the water-saving aerator, highlighting its ability to inject air into the water stream, reducing water consumption by 30% and minimizing splash.

3. Opsætning og installation

The FORIOUS FB-0300G faucet is designed for quick and straightforward DIY installation. Ensure you have the necessary tools before starting.

3.1 Kontrol før installation

• Verify that your sink has three holes and is compatible with a 6-12 inch widespread installation.
• Sørg for, at alle komponenter, der er angivet i emballagen, er til stede.
• Sluk for hovedvandforsyningen, før installationen påbegyndes.

3.2 Installationstrin

1. Klargør vasken: Clean the sink surface where the faucet will be installed.
2. Installer håndtag: Insert the hot and cold water handles into the outer holes of the sink. Secure them from underneath with the provided washers and nuts.
3. Installer tud: Place the main spout into the center hole. Secure it from underneath using the provided mounting hardware.
4. Tilslut vandledninger: Attach the hot and cold water supply lines (24-inch Innoflex PEX hoses with 3/8-inch US standard pipe connection) to the corresponding faucet inlets and your home's water supply valves. Ensure connections are tight to prevent leaks.
5. Installer pop-up-afløb: Follow the instructions for installing the included pop-up drain into the sink's drain opening. Ensure a watertight seal.
6. Testhane: Once all connections are secure, slowly turn on the main water supply and check for any leaks. Operate both handles to ensure proper water flow and temperature control.

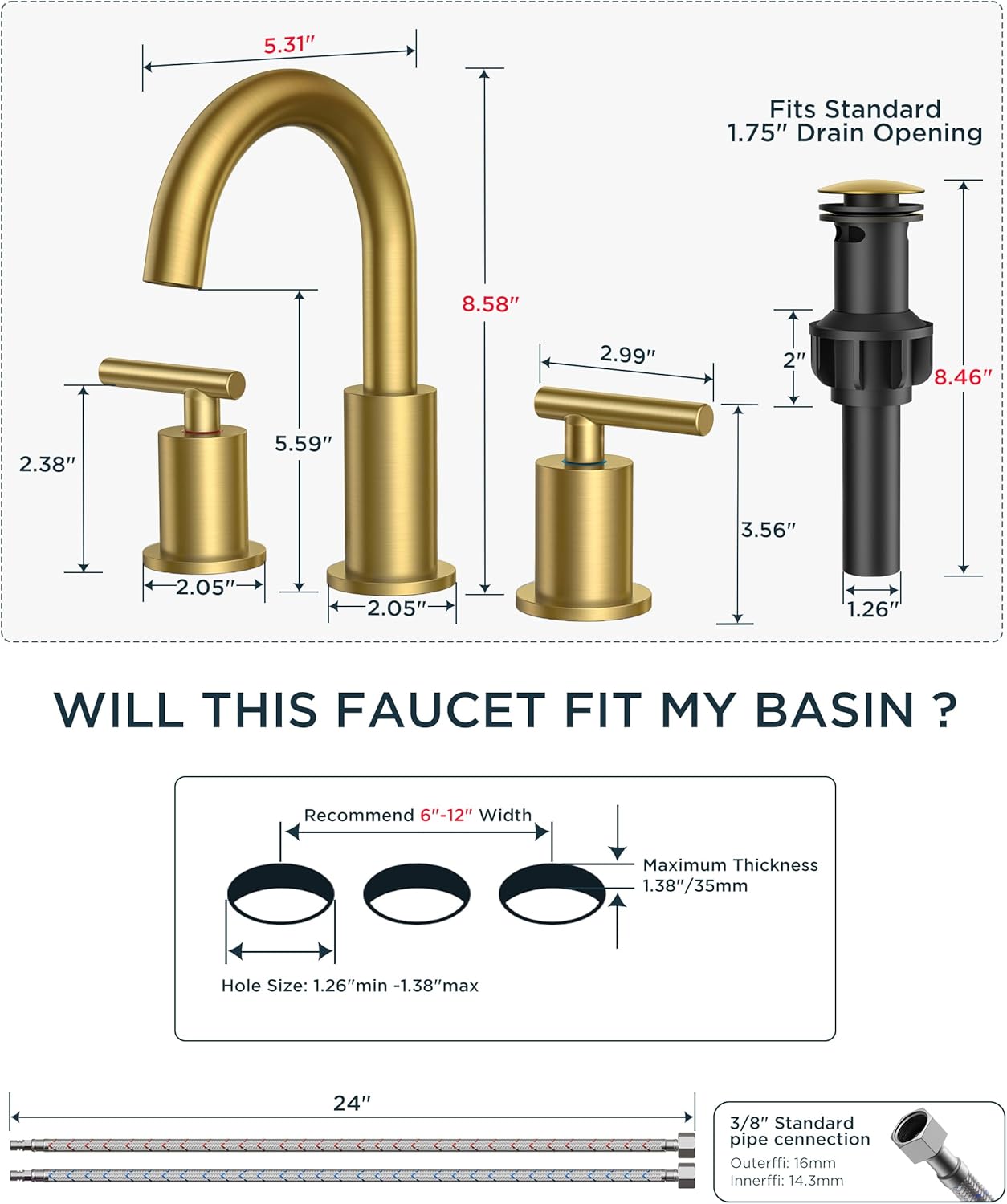

Image 3.1: Detailed dimensions of the faucet components and a diagram illustrating sink hole size and thickness requirements for compatibility.

Image 3.2: Visual guide for installing the widespread faucet, showing the placement of handles and spout on a 3-hole sink.

4. Betjeningsvejledning

The FORIOUS FB-0300G faucet features two handles for precise control over water temperature and flow.

• Vandflow: Turn the handles counter-clockwise to open the water flow and clockwise to close it.
• Temperaturkontrol: Det venstre håndtag styrer varmt vand, og det højre håndtag styrer koldt vand. Juster begge håndtag for at opnå den ønskede vandtemperatur.
• Drejelig tud: The gooseneck spout can swivel 360 degrees, providing flexibility for various sink tasks.

Image 4.1: The faucet in use, demonstrating the 360-degree swivel gooseneck spout for enhanced usability.

Image 4.2: Diagram illustrating the horizontal and vertical directions for operating the hot and cold water handles.

5. Vedligeholdelse

Regular maintenance helps preserve the appearance and functionality of your FORIOUS faucet.

• Rengøring af finishen: Clean the brushed gold finish with a soft, damp klud. Undgå slibende rengøringsmidler, stærke kemikalier eller skuresvampe, da disse kan beskadige overfladen.
• Rengøring af belufteren: To maintain optimal water flow and hygiene, regularly unscrew and clean the aerator. Remove any debris or mineral buildup.
• Lækagekontrol: Periodically inspect all connections for any signs of leaks. Tighten connections as needed.

Image 5.1: Illustration of the multi-layer surface treatment process, which enhances durability and resistance to fingerprints, water spots, and erosion.

6. Fejlfinding

Hvis du støder på problemer med din vandhane, kan du se følgende almindelige problemer og løsninger:

If the problem persists after attempting these solutions, please contact FORIOUS customer support for assistance.

7. Specifikationer

8. Garanti og support

FORIOUS stands behind the quality of its products.

8.1 Garantioplysninger

This FORIOUS faucet comes with an extended lifetime warranty, covering manufacturing defects and ensuring long-term reliability.

8.2 Kundesupport

For installation guidance, missing parts, requests for 1/2 adapters, or general support, please contact FORIOUS customer service. Our service team is committed to providing professional solutions within 24 hours.

You can also refer to the official user guide and installation manual available online:

• Brugervejledning (PDF)
• Installationsmanual (PDF)
