TURBRO Suburbs TS17 Elektrisk Pejseovn Brugervejledning

1. Introduktion

The TURBRO Suburbs TS17 Electric Fireplace Stove is designed to provide supplemental heating and a realistic flame effect for indoor spaces. This compact, freestanding unit offers 1400W (4777 BTU) of heating power, suitable for areas up to 400 sq. ft. It features a vintage design with LED flame effects and is CSA certified for safety in North America.

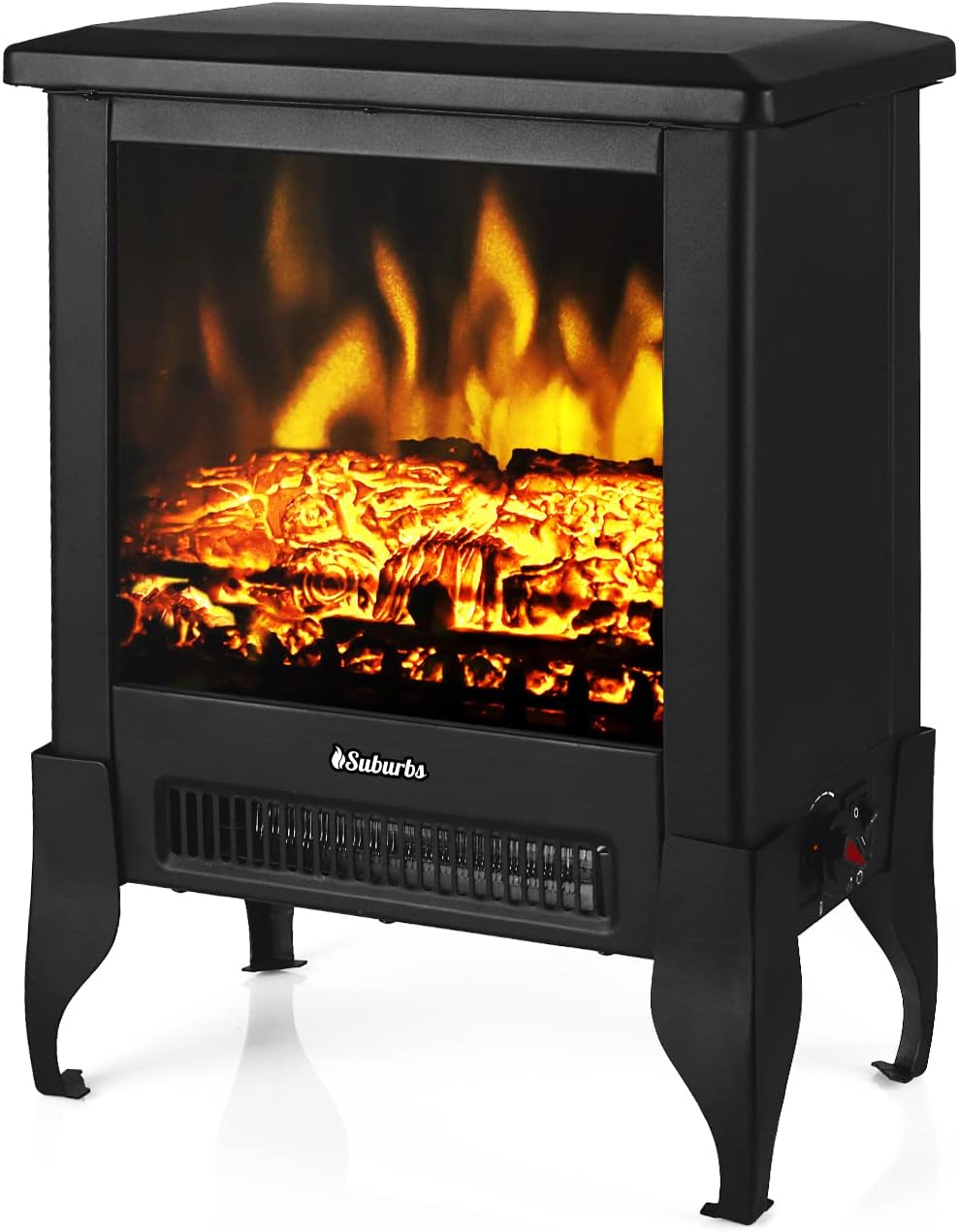

Billede 1.1: Forside view of the TURBRO Suburbs TS17 Electric Fireplace Stove.

2. Vigtige sikkerhedsoplysninger

Læs venligst alle sikkerhedsadvarsler og instruktioner omhyggeligt, inden du bruger dette produkt, for at forhindre personskade eller beskadigelse. Gem denne manual til senere brug.

• Elektrisk sikkerhed: Do not use extension cords or power strips with this appliance. Plug the unit directly into a wall outlet.
• Forbrændingsfare: Do not allow bare skin to touch the air outlet of the heater during operation. The heating element is located at the bottom, but the air outlet can become hot. The body of the stove remains cool to the touch.
• Overophedningsbeskyttelse: The unit is equipped with overheating protection, which automatically shuts off the heater if the internal temperature becomes too high. If this occurs, unplug the unit, allow it to cool, and check for any obstructions before restarting.
• Placering: Ensure the fireplace stove is placed on a stable, level surface. Maintain adequate clearance from combustible materials.
• Overvågning: Close supervision is necessary when the appliance is used by or near children or individuals with reduced physical, sensory, or mental capabilities.
• CSA-certificeret: This product is CSA certified, ensuring it meets North American safety standards.

3. Pakkens indhold

Bekræft, at alle nedenstående varer er inkluderet i din pakke:

• 1 x Electric fireplace stove
• 4 x ben
• 8 x Screws (packaged with the User Manual)
• 1 x Brugermanual (dette dokument)

4. Opsætningsvejledning

Follow these steps to assemble and prepare your electric fireplace stove for use:

1. Udpakning: Fjern forsigtigt alle komponenter fra emballagen. Gem emballagen til senere opbevaring eller forsendelse.
2. Fastgør ben:

   Locate the four legs and eight screws. Align each leg with the designated mounting points on the bottom of the fireplace stove. Secure each leg using two screws. Ensure all screws are fully tightened with a screwdriver for stability.



   Image 4.1: The TURBRO Suburbs TS17 Electric Fireplace Stove with its four legs securely attached, ready for placement.
3. Placering: Place the assembled fireplace stove on a firm, level surface. Ensure it is not blocking any vents or air intakes. Maintain a safe distance from furniture, curtains, and other flammable materials.
4. Strømtilslutning: Plug the power cord directly into a 110-120V / 60Hz wall outlet. Do not use extension cords or power strips.

5. Betjeningsvejledning

The TURBRO Suburbs TS17 features a simple control panel for easy operation.

Image 5.1: Close-up of the control panel showing the temperature control knob and power buttons.

1. Power On/Off and Flame Effect:

   Locate the power button (marked with a circle and vertical line, or a power symbol). Press this button to turn on the unit and activate the realistic flame effects. The flame effects can be operated independently without heat.



   Image 5.2: Realistic dancing flames and burning log effect inside the fireplace.

2. Activating Heat:

   To activate the heating function, locate the heater control button (marked with three wavy lines). Press this button to turn on the heating element.
3. Justering af temperatur:

   Use the temperature control knob to set your desired heat level. Turn the knob clockwise to increase the temperature and counter-clockwise to decrease it. The thermostat will maintain the set temperature by cycling the heater on and off.

4. Cool-to-Touch Feature:

   The heating element is positioned at the bottom of the unit, ensuring that the top and sides of the stove remain cool to the touch even during extended operation. This enhances safety, especially in households with children or pets.



   Image 5.3: A hand demonstrating that the top surface of the fireplace remains cool during operation.

6. Vedligeholdelse

Regelmæssig vedligeholdelse sikrer optimal ydeevne og levetid for din elektriske pejs.

• Rensning: Tag altid stikket ud af enheden før rengøring. Brug en blød, tør klud.amp klud til at tørre de udvendige overflader af. Brug ikke slibende rengøringsmidler eller opløsningsmidler.
• Fjernelse af støv: Periodically vacuum or wipe dust from the air intake and outlet vents to ensure proper airflow and prevent overheating.
• Opbevaring: If storing the unit for an extended period, unplug it and store it in a cool, dry place, preferably in its original packaging.

7. Fejlfinding

If you encounter issues with your TURBRO Suburbs TS17, refer to the following common problems and solutions:

8. Produktspecifikationer

9. Garanti og kundesupport

The TURBRO Suburbs TS17 Electric Fireplace Stove comes with a 1 års begrænset garanti.

For warranty claims, technical assistance, or any questions regarding your product, please contact TURBRO customer support. Refer to the back of your physical user manual for official brand email or visit the official TURBRO webwebsted for kontaktoplysninger.

When contacting support, please have your model number (Suburbs TS17) and purchase information readily available.
