1. Introduktion
This manual provides essential information for the safe and efficient operation of your CAMIPRO Carrier Digital Display Wall Mountable Voltage Stabilizer. This device is designed to protect your 2 Ton Inverter AC from voltage fluctuations, ensuring its longevity and optimal performance. Please read this manual thoroughly before installation and use.
2. Sikkerhedsoplysninger
- Ensure the stabilizer is installed by a qualified technician to prevent electrical hazards.
- Do not open the stabilizer casing. Der er ingen dele indeni, som kan serviceres af brugeren.
- Keep the stabilizer away from water, moisture, and direct sunlight.
- Sørg for korrekt ventilation omkring enheden for at forhindre overophedning.
- This stabilizer is specifically designed for Air Conditioners up to 2 Ton capacity. Do not connect other appliances.
- The unit features Intelligent Auto Restart with Microchip Low & High Auto Cut Off for enhanced safety against extreme voltage forhold.
3. Pakkens indhold
Upon opening the package, verify that the following item is included:
- CAMIPRO Carrier Digital Display Voltage Stabilizer (1 unit)
4. Opsætning og installation
The CAMIPRO Voltage Stabilizer is designed for wall mounting. Follow these steps for proper installation:
- Vælg en placering: Select a dry, well-ventilated area near your 2 Ton Inverter AC unit. Ensure the surface is sturdy enough to support the stabilizer's weight (approximately 8.24 kg).
- Montering: Securely mount the stabilizer to the wall using appropriate fasteners. Ensure it is level and stable.
- Tilslut indgangsstrøm: Connect the main power supply to the stabilizer's input terminal. The operating voltage range for the input is 140V-270V. The product will automatically cut off power if the voltage falls outside this range.
- Connect AC Unit: Connect your 2 Ton Inverter AC unit to the stabilizer's output terminal. Ensure all connections are tight and secure.
- Første gang tændt: Once all connections are made, switch on the main power supply. The digital display on the stabilizer will illuminate, showing the current voltage.
Figur 4.1: Forside view of the CAMIPRO Voltage Stabilizer, showing the digital display and branding.

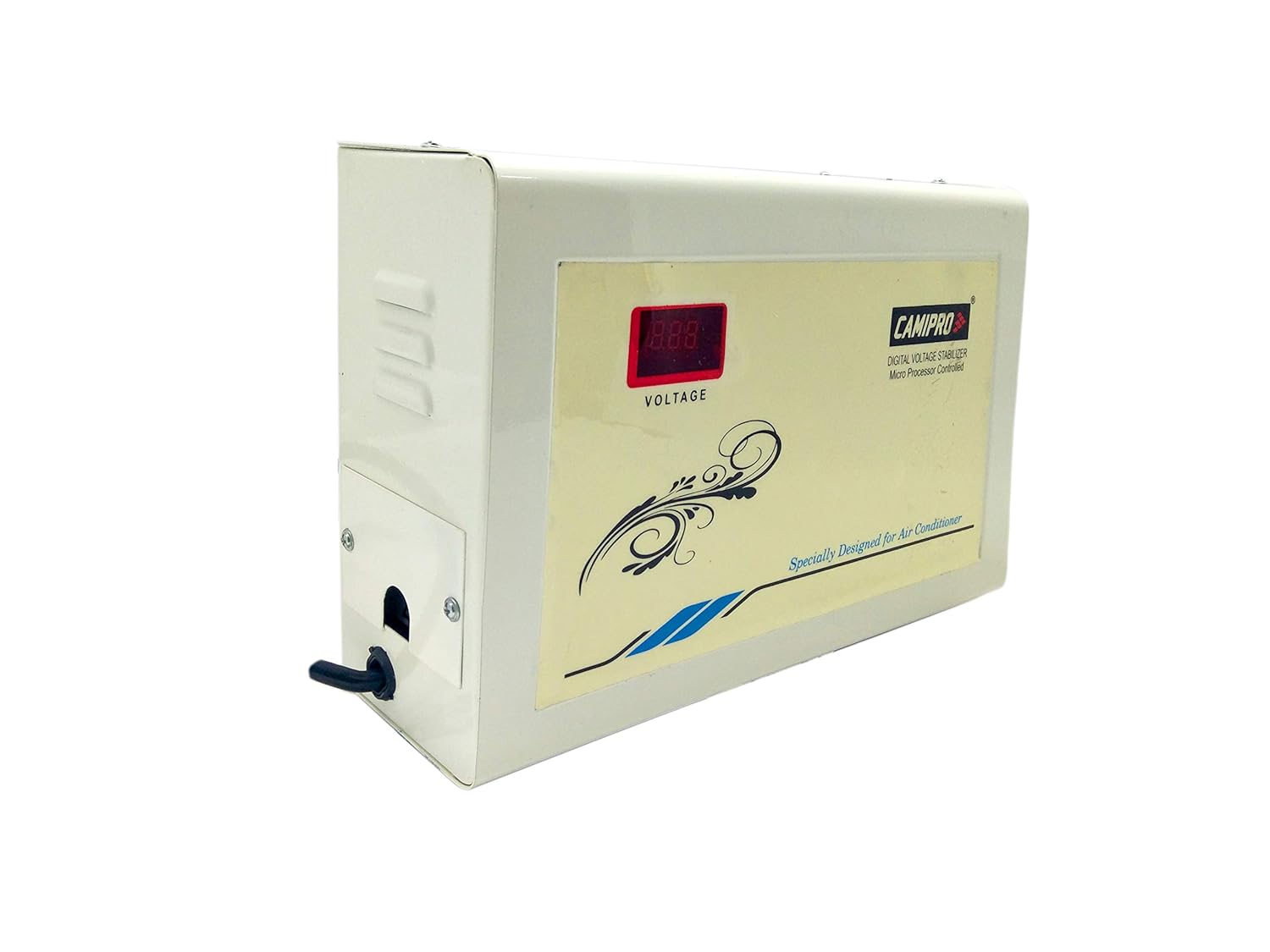

Figur 4.2: Side view of the CAMIPRO Voltage Stabilizer, illustrating its compact design and power connection point.
5. Betjeningsvejledning
The CAMIPRO Voltage Stabilizer operates automatically to protect your AC unit.
- Digital skærm: The front digital display continuously shows the incoming voltage. This allows you to monitor the power supply to your AC.
- Automatisk voltage forordning: The stabilizer automatically adjusts the output voltage to a safe range for your AC, even if the input voltage fluctuates between 140V and 270V.
- Høj/Lav Voltage Afskæring: Hvis input voltage goes below 140V or above 270V, the stabilizer will automatically cut off the power supply to your AC to prevent damage.
- Automatisk genstart: Når den bindtage returns to the safe operating range, the stabilizer will automatically restart and restore power to your AC after a short delay, ensuring continuous protection.
6. Vedligeholdelse
To ensure the longevity and optimal performance of your voltage stabilizer, follow these simple maintenance guidelines:
- Rensning: Periodically wipe the exterior of the stabilizer with a soft, dry cloth. Do not use liquid cleaners or abrasive materials.
- Ventilation: Ensure that the ventilation openings on the stabilizer are not blocked by dust or other objects. Good airflow is crucial for heat dissipation.
- Forbindelser: Occasionally check that all power connections are secure and free from corrosion.
- Undgå overbelastning: This stabilizer is rated for AC units up to 2 Ton. Do not connect appliances that exceed this capacity or other types of appliances.
7. Fejlfinding
If you encounter issues with your CAMIPRO Voltage Stabilizer, refer to the following common problems and solutions:
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Stabilizer not turning on / Digital display is off. | No input power, loose connection, or internal fault. | Check the main power supply. Ensure all connections are secure. If the problem persists, contact customer support. |
| AC not receiving power / Stabilizer shows 'Hi' or 'Lo' cut. | Input voltage is outside the 140V-270V operating range. | This is normal operation. The stabilizer has cut off power to protect your AC. Power will be restored automatically once the voltage returns to a safe range. If the voltage remains outside the range for an extended period, contact your electricity provider. |
| Stabilizer is on, but AC is not working. | AC unit issue, or stabilizer output issue. | Check if the AC unit itself is powered on and functioning correctly. Ensure the connection between the stabilizer and AC is secure. If the stabilizer display shows a stable voltage but the AC doesn't work, the issue might be with the AC unit. |
| Unusual noise or smell from the stabilizer. | Problem med intern komponent. | Immediately disconnect power from the stabilizer and contact customer support. Do not attempt to repair it yourself. |
8. Specifikationer
| Feature | Detalje |
|---|---|
| Mærke | CAMIPRO |
| Modelnavn | CAMIPRO Carrier Digital Display Vægmonterbar 2 Ton Inverter AC Dobbelt Booster Volumtage Stabilisator |
| Anbefalet anvendelse af produktet | Home (specifically for 2 Ton AC) |
| Input bindtagRækkevidde | 140V - 270V |
| AC Capacity Compatibility | Up to 2 Ton (Inverter AC) |
| Display Type | Digital |
| Sikkerhedsfunktioner | Intelligent Auto Restart, Microchip Low & High Auto Cut Off |
| Transformator type | Toroidal Transformers (German technology) |
| Monteringstype | Vægmonterbar |
| Varens vægt | 8 kg 240 g |
| Emnedimensioner (LxBxH) | 32 x 14 x 22 centimeter |
| Inkluderede komponenter | Stabilisator |
| Fabrikant | Transportør Midea India Pvt. Ltd. |
9. Garanti og support
Your CAMIPRO Voltage Stabilizer comes with a 2 års garanti fra købsdatoen. Denne garanti dækker fabrikationsfejl ved normal brug.
For warranty claims, technical support, or any inquiries regarding your product, please contact the manufacturer:
- Fabrikant: Transportør Midea India Pvt. Ltd.
- Webwebsted: www.carriermideaindia.com
Gem venligst din købskvittering som købsbevis i forbindelse med garantiservice.
