Lindy 4 Port HDMI 2.0 18G Splitter (Model 38236) Brugsanvisning

1. Introduktion

The Lindy 4 Port HDMI 2.0 18G Splitter is designed to distribute a single HDMI 2.0 source signal to up to four HDMI displays simultaneously. It supports resolutions up to 4K@60Hz 4:4:4 8bit, High-Dynamic Range (HDR), and HDCP 2.2, ensuring compatibility with a wide range of modern video content and devices. This device is suitable for applications requiring the display of high-quality video content across multiple screens.

Nøglefunktioner omfatter:

• Splits one HDMI 2.0 source to four HDMI displays.
• Supports resolutions up to 4K@60Hz 4:4:4.
• Compatible with HDR content.
• HDCP 2.2 support for content protection.
• EDID management for optimal display compatibility.

2. Sikkerhedsoplysninger

Please read all instructions carefully before operating this device. Retain this manual for future reference.

• Udsæt ikke enheden for vand eller fugt.
• Forsøg ikke at åbne eller reparere enheden. Overlad al service til kvalificeret personale.
• Sørg for korrekt ventilation for at forhindre overophedning.
• Brug kun den medfølgende strømadapter.
• Hold enheden væk fra varmekilder og direkte sollys.

3. Pakkens indhold

Bekræft at alle varer er til stede i pakken:

• Lindy 4 Port HDMI 2.0 18G Splitter
• Strømadapter
• Instruktionsmanual

4. Produktet er slutview

4.1 Frontpanel

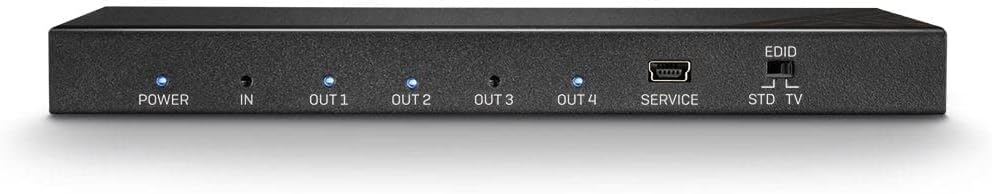

Image: Front panel of the Lindy 4 Port HDMI 2.0 18G Splitter, showing Power LED, Input LED, Output LEDs (OUT1-OUT4), Service port, and EDID switch.

• STRØM-LED: Lyser, når enheden er tændt.
• IN LED: Illuminates when an HDMI input signal is detected.
• OUT1-OUT4 LEDs: Illuminate when an HDMI output signal is detected on the corresponding port.
• SERVICE: USB port for firmware updates (for manufacturer use only).
• EDID switch: Used to manage EDID settings.
  • STD'er: Standard EDID (1080p 2ch audio).
  • TV: Copies EDID from the display connected to Output 1.

4.2 Bagpanel

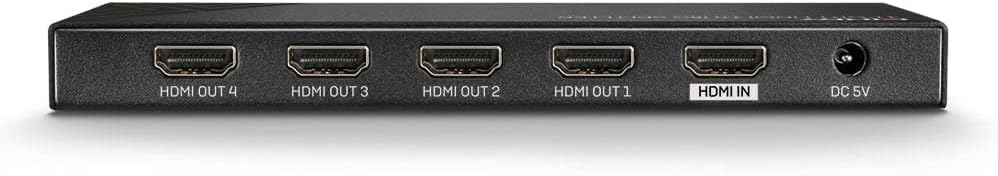

Image: Rear panel of the Lindy 4 Port HDMI 2.0 18G Splitter, showing HDMI OUT 1-4 ports, HDMI IN port, and DC 5V power input.

• HDMI IN: Connects to the HDMI source device (e.g., Blu-ray player, game console, PC).
• HDMI OUT 1-4: Connects to HDMI displays (e.g., TV, monitor, projector).
• DC 5V: Power input for the included power adapter.

5. Opsætning og installation

1. Sluk for enheder: Sørg for, at alle HDMI-kildeenheder og skærme er slukket, før du foretager tilslutninger.
2. Tilslut HDMI-kilde: Connect an HDMI cable from your source device (e.g., media player, game console) to the HDMI-IN porten på splitteren.
3. Tilslut HDMI-skærme: Tilslut HDMI-kabler fra HDMI OUT 1-4 ports on the splitter to your respective HDMI displays.
4. Set EDID: Before powering on, set the EDID switch according to your requirements:
   • For standard 1080p 2ch audio output, set the switch to STD.
   • To copy the EDID from the display connected to Output 1, set the switch to TV. This ensures the splitter communicates the optimal resolution and audio format supported by your primary display to the source.
5. Tilslut strøm: Tilslut den medfølgende 5V DC strømadapter til DC 5V port on the splitter, then plug the adapter into a suitable power outlet. The POWER LED on the front panel will illuminate.
6. Tænd enheder: Power on your HDMI displays, then power on your HDMI source device. The IN and OUT LEDs should illuminate, indicating active connections.

The splitter will automatically detect the input signal and distribute it to all connected displays.

6. Betjeningsvejledning

Once connected and powered on, the Lindy 4 Port HDMI 2.0 18G Splitter operates automatically. The input signal will be duplicated and sent to all four connected displays.

6.1 EDID Management

The EDID (Extended Display Identification Data) switch allows you to control how the splitter communicates with the source device regarding supported resolutions and audio formats. This is crucial for ensuring compatibility and optimal display quality.

• STD-tilstand: Provides a standard 1080p resolution with 2-channel audio. This setting is useful if you encounter compatibility issues with specific displays or sources, or if you require a consistent output resolution across all displays.
• TV-tilstand: The splitter reads the EDID information from the display connected to HDMI OUT 1 and relays it to the source device. This allows the source to output the highest common resolution and audio format supported by your primary display. If the primary display is disconnected or powered off, the splitter may revert to a default EDID or use the EDID of the next active display.

It is recommended to adjust the EDID switch while the source and displays are connected but before the source outputs video, or to power cycle the source after changing the EDID setting for the changes to take effect.

7. Vedligeholdelse

• Rensning: Disconnect the power adapter before cleaning. Use a soft, dry, lint-free cloth to wipe the exterior of the device. Do not use liquid cleaners or aerosols.
• Opbevaring: If storing the device for an extended period, disconnect all cables and store it in a cool, dry place away from direct sunlight.
• Ventilation: Ensure the device has adequate ventilation and that its vents are not blocked.

8. Fejlfinding

9. Specifikationer

Bemærk: Specifikationerne kan ændres uden varsel.

10. Garanti og support

Lindy provides a manufacturer's warranty for this product. Please refer to the official Lindy website or your purchase documentation for detailed warranty terms and conditions. For technical support or assistance, please contact Lindy customer service.

EU Spare Part Availability Duration: 1 Year (as per product information).

For yderligere information, besøg Lindy webwebsted.
