Indledning
This manual provides essential instructions for the safe and efficient operation, maintenance, and care of your EV Rider Transport AF Plus Automatic Folding Mobility Scooter. Please read this manual thoroughly before using the scooter to ensure proper understanding and to prevent injury or damage.
The EV Rider Transport AF Plus is designed for active individuals seeking a portable and convenient mobility solution. It features an automatic folding mechanism, a lightweight design, and a lithium battery for extended travel range.
Sikkerhedsoplysninger
Vigtige sikkerhedsadvarsler:
- Not intended for children or individuals with stability issues. This scooter is for adult use only.
- Always ensure the actuator lock is engaged to prevent accidental folding during use.
- Operate the scooter on stable, level surfaces. Avoid steep inclines or uneven terrain.
- Overskrid ikke den maksimale vægtkapacitet på 250 lbs.
- Always use the speed control dial to manage your speed safely.
- Ensure the battery is properly installed and secured before operation.
Opsætning
Folder scooteren ud
The EV Rider Transport AF Plus features an automatic folding mechanism. Use the provided key fob to unfold the scooter. Ensure there is sufficient clear space around the scooter during unfolding.

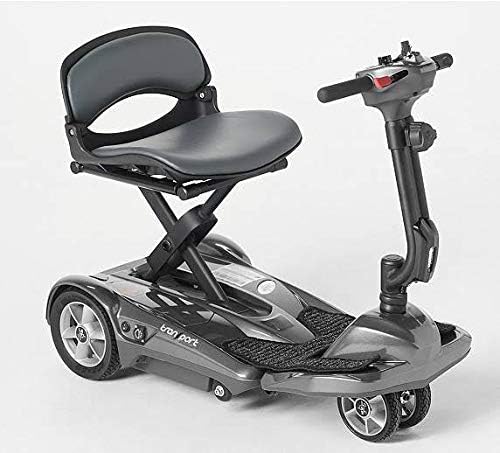

Image: The EV Rider Transport AF Plus scooter in its fully unfolded, ready-to-use state. It shows the seat, handlebars, and footrest.
Installation og opladning af batteri
The scooter is powered by a lithium battery. For initial use, or after extended storage, ensure the battery is fully charged.
- Find batterirummet, typisk under sædet.
- Insert the battery securely into its compartment.
- Connect the charging cable to the scooter's charging port and then to a standard electrical outlet.
- Opladerens indikatorlampe viser opladningsstatus (f.eks. rød for opladning, grøn for fuldt opladet).
Video: This video demonstrates the process of removing and installing the battery on the scooter, as well as connecting the charger for battery charging.
Billede: Et nærbillede view of the scooter's battery compartment and the charging port, showing where to connect the charger.
Betjeningsvejledning
Start af scooteren
- Sæt nøglen i tændingen, og drej den til "ON"-positionen.
- The display panel will illuminate, indicating the scooter is ready for operation.
Image: A close-up of the scooter's ignition key inserted into the keyhole, ready to turn on the power.
Adjusting Speed and Direction
The scooter features a speed control dial and a display panel to manage speed settings.
- Hastighedskontrol: Use the speed control dial on the handlebars to adjust the maximum speed.
- Frem/tilbage: The throttle control allows for forward movement. Some models may have a reverse function, typically activated via a switch or button.
Video: This video illustrates how to adjust the speed settings on the scooter's display panel and demonstrates the forward and reverse functions.
Image: A close-up of the scooter's handlebars, showing the speed control dial, throttle, and display panel.
Foldning af scooteren
To fold the scooter for transport or storage, use the key fob. Ensure the area is clear before initiating the folding process.
Image: The EV Rider Transport AF Plus scooter in its folded state, alongside the remote key fob used for automatic folding.
Opretholdelse
- Batteripleje: Charge the lithium battery regularly, even when not in use, to prolong its lifespan. Avoid fully discharging the battery.
- Rensning: Tør scooteren af med reklameamp klæde. Undgå at bruge skrappe kemikalier eller for meget vand.
- Dæk inspektion: Periodically check tire pressure and for any signs of wear or damage.
- Generel inspektion: Regularly inspect all moving parts, fasteners, and electrical connections for tightness and proper function.
Fejlfinding
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Scooteren tænder ikke. | Battery not charged, key not in "ON" position, loose battery connection. | Charge battery, turn key to "ON", check battery connection. |
| Reduceret rækkevidde eller effekt. | Low battery charge, aging battery, excessive load. | Fully charge battery, consider battery replacement if old, reduce load. |
| Scooter folds unexpectedly. | Actuator lock not engaged, remote fob accidentally pressed. | Ensure actuator lock is engaged before riding. Keep remote fob secure. |
Specifikationer
| Feature | Specifikation |
|---|---|
| Model | Transport AF Plus |
| Batteritype | Lithium (11.5 Ah) |
| Rejserækkevidde | Op til 10 miles |
| Tophastighed | 4 mph |
| Vægt kapacitet | 250 lbs |
| Scooter Weight (without battery/seat) | 49 lbs |
| Sædehøjde | 15 tommer |
| Materiale | Plast |
Garanti og support
For warranty information and customer support, please refer to the documentation included with your purchase or visit the official EV Rider webwebsted. Gem din købskvittering for garantikrav.
Fabrikant: EV rytter
ASIN: B07WR2KF39
