MODINE HS121S-01 Steam or Hot Water Unit Heater

1. Vigtige sikkerhedsoplysninger

Read all instructions carefully before installing or operating this unit heater. Failure to follow these instructions could result in property damage, personal injury, or death.

• Kun kvalificeret personale: Installation, maintenance, and repair must be performed by qualified, licensed professionals.
• Elektrisk sikkerhed: Disconnect all power before servicing. Ensure proper grounding and wiring in accordance with local and national electrical codes.
• Steam/Hot Water Safety: Exercise extreme caution when working with steam or hot water lines. High temperatures and pressures can cause severe burns.
• Montering: This unit must be securely mounted. WARNING: Install unit at least 8 ft. above the floor and out of reach. (Attention: Installer a 2.45m minimum au dessus du sol et hors d'atteinte.)
• Frirum: Maintain adequate clearances from combustible materials as specified in local codes and installation diagrams.
• Ventilation: Ensure proper ventilation around the unit for optimal performance and safety.

Billedbeskrivelse: Et nærbillede view of the warning label affixed to the Modine unit heater. The label clearly states "STEAM OR HOT WATER UNIT HEATER" and includes the model number HS121S01 and serial number 15011289. A prominent warning reads: "WARNING: INSTALL UNIT AT LEAST 8 FT. ABOVE THE FLOOR AND OUT OF REACH." Below this, the French translation is provided: "ATTENTION: INSTALLER A 2.45M MINIMUM AU DESSUS DU SOL ET HORS D'ATTEINTE." The Modine logo is also visible.

2. Produktet er slutview

The Modine HS121S-01 is a robust unit heater designed for industrial and commercial applications, utilizing either steam or hot water as its heat source. This unit efficiently distributes heated air through its integrated fan system, providing effective space heating.

Nøglefunktioner:

• Versatile Heating: Compatible with both steam and hot water heating systems.
• Kraftig luftstrøm: Equipped with a 0.17 HP motor for efficient air circulation.
• Holdbar konstruktion: Built for longevity in demanding environments.
• Elektrisk kompatibilitet: Operates on 115V-AC power.

Billedbeskrivelse: En top-down view of the Modine HS121S-01 unit heater, partially visible within its cardboard packaging. The central fan assembly with three blades and a protective grille is prominent, positioned above the heat exchange coils. The unit appears to be light gray in color.

Billedbeskrivelse: A slightly different angle of the Modine HS121S-01 unit heater, still in its packaging. This view also highlights the fan blades, motor, and the protective grille, with the heat exchange coils visible beneath. The overall structure of the unit heater is clearly depicted.

3. Opsætning og installation

Proper installation is critical for the safe and efficient operation of your Modine unit heater. It is strongly recommended that installation be performed by a licensed HVAC professional.

Installationstrin:

1. Valg af websted: Choose a location that meets the minimum clearance requirements, especially the 8 ft (2.45m) minimum height from the floor, and allows for proper air circulation and maintenance access.
2. Montering: Securely mount the unit using appropriate hangers or brackets capable of supporting the unit's weight (approximately 103 lbs) and any additional stress from piping.
3. Rørforbindelser: Connect the steam or hot water supply and return lines to the unit's coils. Ensure all connections are leak-free and properly insulated. Use appropriate valves for isolation and drainage.
4. Elektriske ledninger: Connect the unit to a dedicated 115V-AC power supply. All wiring must comply with local and national electrical codes. Ensure proper grounding.
5. Termostat installation: Install a suitable thermostat in the heated space, away from drafts or direct heat sources, to control the unit's operation.
6. System Fill and Purge: For hot water systems, fill the system and purge all air. For steam systems, ensure proper condensate return.
7. Initial Startup Check: Before applying full power, double-check all connections, mounting, and clearances.

4. Betjeningsvejledning

Once installed and checked by a professional, operating the Modine HS121S-01 is straightforward, primarily controlled by an external thermostat.

Normal drift:

• Tænd: Ensure the main power switch to the unit is in the "ON" position.
• Termostatindstilling: Set your room thermostat to the desired temperature. When the ambient temperature falls below the set point, the thermostat will signal the unit to activate.
• Opvarmningscyklus: The unit's fan will start, drawing air over the heated coils (steam or hot water). Warm air will then be discharged into the space.
• Automatisk slukning: Once the room reaches the set temperature, the thermostat will signal the unit to turn off, and the fan will stop.

Nedlukning:

• To temporarily stop heating, lower the thermostat setting below the current room temperature.
• For extended periods of non-use or maintenance, turn off the main power switch to the unit and close the steam/hot water supply valves.

5. Vedligeholdelse

Regular maintenance ensures the longevity and efficient performance of your Modine unit heater. Always disconnect power and shut off steam/hot water supply before performing any maintenance.

Anbefalet vedligeholdelsesplan:

• Monthly (during heating season):
  • Inspect the fan blades and motor for any obstructions or unusual noises.
  • Check for any visible leaks around piping connections.
• Annually (before heating season):
  • Rengøring af spole: Carefully clean the heating coils to remove dust, lint, and debris. A soft brush or vacuum cleaner with a brush attachment can be used. Ensure fins are not bent.
  • Inspektion af ventilator og motor: Check fan blades for damage and ensure they are securely fastened. Inspect the motor for signs of wear. Lubricate motor bearings if specified by the manufacturer (refer to motor specific instructions).
  • Elektriske forbindelser: Verify all electrical connections are tight and free from corrosion.
  • Monteringshardware: Check all mounting bolts and hangers for tightness and security.
  • Steam Traps/Valves (for steam units): Inspect and test steam traps for proper operation. Check all valves for smooth operation.

For complex maintenance or repairs, contact a qualified HVAC technician.

6. Fejlfinding

This section provides basic troubleshooting steps for common issues. For problems not listed or if solutions do not resolve the issue, contact a qualified service technician.

7. Specifikationer

Detailed technical specifications for the Modine HS121S-01 Unit Heater.

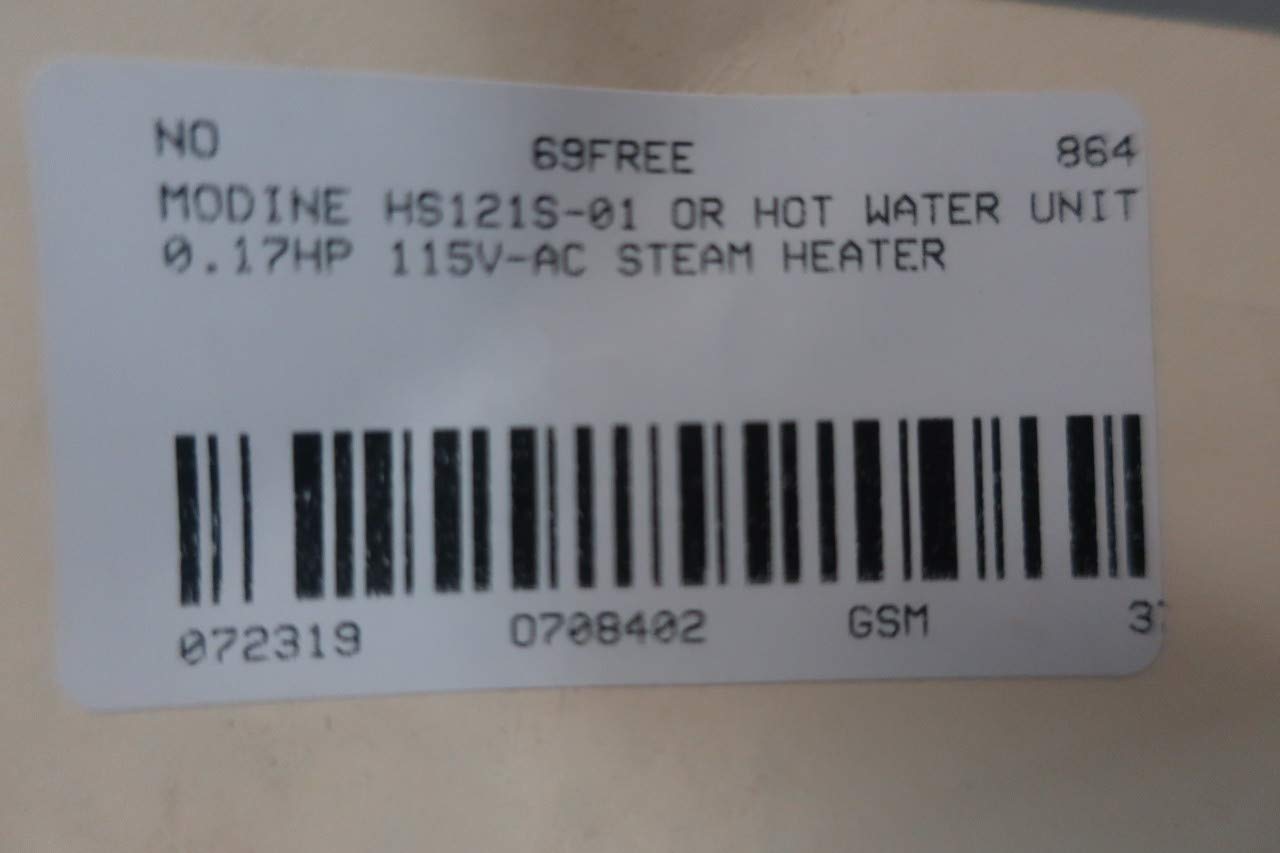

Billedbeskrivelse: A close-up image of a product label with a barcode. The text on the label includes "MODINE HS121S-01 OR HOT WATER UNIT 0.17HP 115V-AC STEAM HEATER" and a number "708402" which might be a part or batch number. This label confirms the model and basic electrical specifications.

8. Garanti og support

Modine products are manufactured to high standards and typically come with a manufacturer's warranty covering defects in materials and workmanship. Specific warranty terms and duration may vary by product and region.

For Warranty Claims and Technical Support:

• Refer to the warranty card included with your product for detailed terms and conditions.
• Contact Modine Customer Support directly for technical assistance, parts, or warranty service.
• Visit the official Modine webwebsted for de mest opdaterede kontaktoplysninger og supportressourcer: www.modine.com/support (This is a placeholder link, please refer to actual manufacturer website for correct URL)
• When contacting support, please have your model number (HS121S-01) and serial number (found on the unit's label) ready.
