La Crosse Technology V40A-PRO-INT Wi-Fi Professionel Vejrstation Brugsanvisning

1. Introduktion

This manual provides detailed instructions for the setup, operation, and maintenance of your La Crosse Technology V40A-PRO-INT Wi-Fi Professional Weather Center. This system offers accurate, hyper-local weather data and enhanced features when connected to the La Crosse View App. Please read this manual thoroughly before use to ensure optimal performance and longevity of your device.

Figur 1: Overview of the La Crosse Technology V40A-PRO-INT Weather Center, including the main display, outdoor multi-sensor, remote temperature/humidity sensor, and a smartphone displaying the La Crosse View App.

2. Hvad er der i æsken

Bekræft at alle komponenter er til stede i din pakke:

• Indendørs displayenhed: The main console for viewing weather data.
• Outdoor Multi-Sensor: Measures wind speed, wind direction, and rainfall.
• Remote Temperature/Humidity Sensor: Måler udendørs temperatur og luftfugtighed.
• Strømadapter: For the indoor display unit.
• Hurtig installationsvejledning: Provides initial setup instructions.

3. Opsætning

3.1. Første opstart

1. Insert 8 AA batteries (not included) into the outdoor multi-sensor and remote temperature/humidity sensor. Ensure correct polarity.
2. Plug the AC power adapter into the indoor display unit and a power outlet. Optional: Insert 3 AA batteries for backup power.
3. The display will power on and begin searching for sensor signals.

3.2. Sensorplacering

Proper placement of your sensors is crucial for accurate readings:

• Outdoor Multi-Sensor: Mount the multi-sensor in an open area, away from obstructions, to ensure accurate wind and rain measurements. The solar panel should face south for optimal charging.
• Remote Temperature/Humidity Sensor: Place this sensor in a shaded, well-ventilated location to avoid direct sunlight, which can cause inaccurate temperature readings.

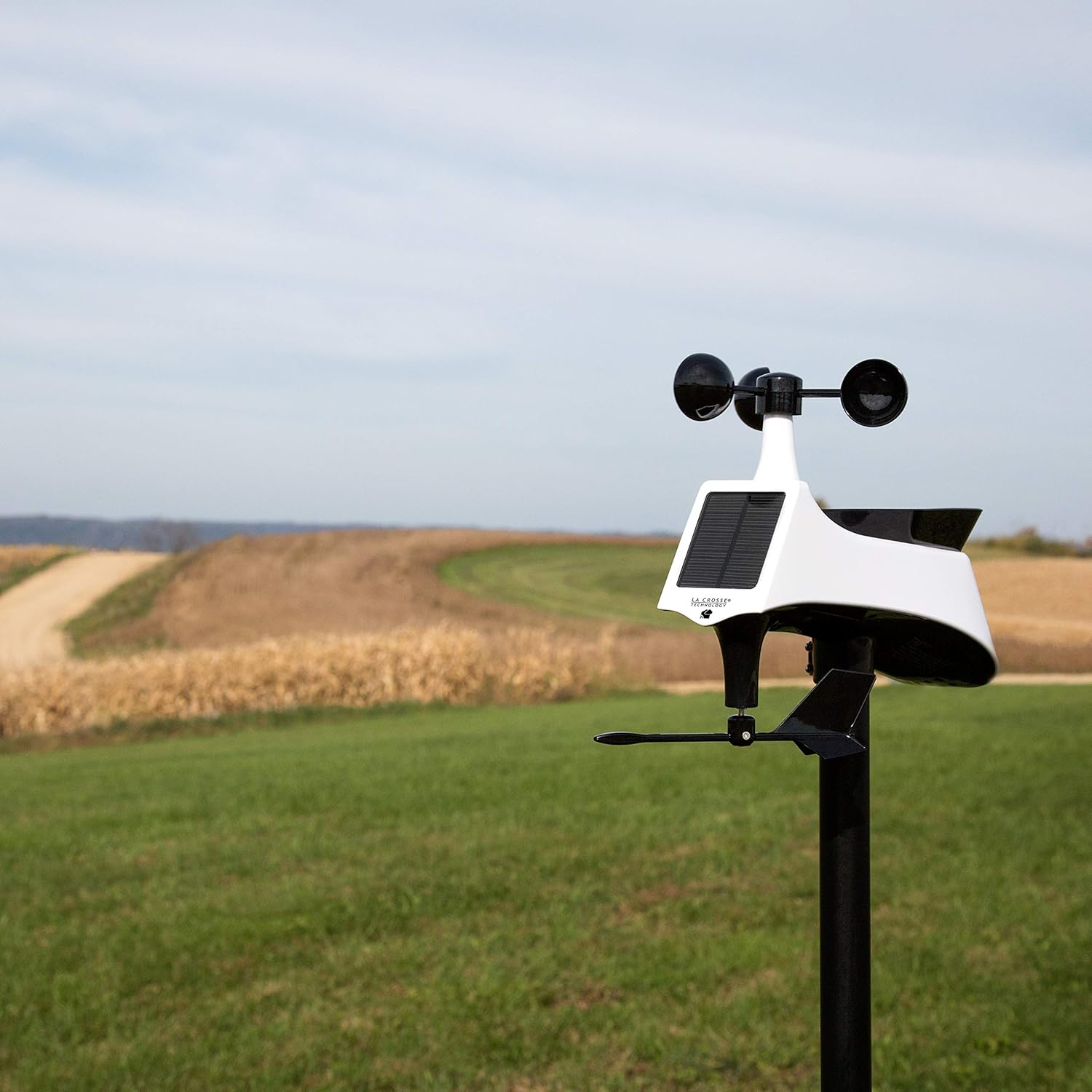

Figure 2: Proper placement of the outdoor multi-sensor in an unobstructed location.

Figure 3: Remote temperature/humidity sensor mounted on a shaded outdoor wall.

3.3. Wi-Fi Connection (La Crosse View app)

Connecting your weather center to Wi-Fi unlocks enhanced features, including NWS forecasts, internet time/date, and remote monitoring via the La Crosse View App. Ensure your mobile device is connected to a 2.4 GHz Wi-Fi network during setup.

1. Download La Crosse View App fra din enheds appbutik.
2. Follow the on-screen instructions within the app to connect your weather station.
3. The app will prompt you to scan the barcode located on the side of your display unit.

Figure 4: Back of the display unit with Wi-Fi connection instructions and barcode for app pairing.

4. Operating the Weather Center

4.1. Display overview

The illuminated color display provides a comprehensive overview of current and forecasted weather conditions. Key information includes:

• Tid og dato: Automatically set via Wi-Fi connection.
• Indendørs/udendørs temperatur og luftfugtighed: Current readings from the sensors.
• Vinddata: Speed, direction, and history.
• Nedbør: Current to total rainfall.
• Dynamic Forecast Icons: Visual representation of upcoming weather.
• Varmeindeks og dugpunkt: Calculated values for comfort.

Figur 5: Detaljeret view of the weather center's color display.

4.2. La Crosse View App funktioner

La Crosse View App enhances your weather monitoring experience:

• Fjernovervågning: View your weather data from anywhere via your smartphone.
• Tilpasselige advarsler: Set alerts for specific temperature, humidity, or wind conditions.
• Tillægssensorer: Expand your system with additional sensors (e.g., water leak, thermo-hygro) and monitor them through the app.
• Datastrøm: Access historical data, charts, and graphs for detailed analysis.

Figure 6: La Crosse View App demonstrating add-on sensor integration.

Figure 7: La Crosse View App showing detailed data streams and historical records.

4.3. Officiel produktvideo

5. Vedligeholdelse

• Udskiftning af batteri: Replace batteries in the outdoor sensors and indoor display annually or when the low battery indicator appears. Use high-quality alkaline or lithium batteries for optimal performance, especially in cold climates.
• Sensorrensning: Periodically clean the outdoor multi-sensor (especially the rain collector) to remove debris, leaves, or insects that may affect accuracy.
• Skærmpleje: Rengør skærmen med en blød,amp klæde. Undgå slibende rengøringsmidler.

6. Fejlfinding

• Ingen sensordata: Ensure batteries are fresh and correctly installed in sensors. Check sensor placement for obstructions or excessive distance from the display. Press the SENSOR button on the display to manually search for sensor signals.
• Upræcise læsninger: Verify sensor placement (e.g., shaded area for temperature, unobstructed for wind/rain). Ensure sensors are clean.
• Problemer med Wi-Fi-forbindelse: Confirm your mobile device is on a 2.4 GHz Wi-Fi network during app setup. Ensure the weather center is within range of your Wi-Fi router. Restart your router and the weather center if issues persist.
• App Not Displaying Data: Ensure the weather center is connected to Wi-Fi and the app is updated to the latest version.

7. Specifikationer

Figure 8: Physical dimensions of the indoor display unit.

8. Garanti og support

Garanti: La Crosse Technology, Ltd. provides a 1-year limited time warranty from date of purchase on this product relating to manufacturing defects in materials & workmanship.

For full warranty details, please visit the La Crosse Technology website or refer to the included warranty card.

Støtte: For additional support, resources, and video tutorials, please visit the La Crosse Technology website or contact their USA-based support team.

• Online support: lacrossetechnology.com/support
• Telefonsupport: Available Monday-Friday, 8AM-6PM CST.
