SUNMI T2 Smart POS-terminal med integreret printer Brugermanual

1. Introduktion

This manual provides essential instructions for the setup, operation, and maintenance of your SUNMI T2 Smart POS Terminal. The T2 is an integrated point-of-sale device featuring a 15.6-inch Full HD touch screen and a built-in thermal printer, designed for various commercial applications.

2. Produktet er slutview

2.1 Enhedskomponenter

The SUNMI T2 terminal integrates a high-resolution display, a powerful processor, and a thermal printer into a single unit. Key components include:

• 15.6-inch Full HD Touch Screen (1920x1080)
• Integrated Thermal Printer (80mm paper width, 200mm/s print speed)
• Base Unit with connectivity ports
• Strømindgang

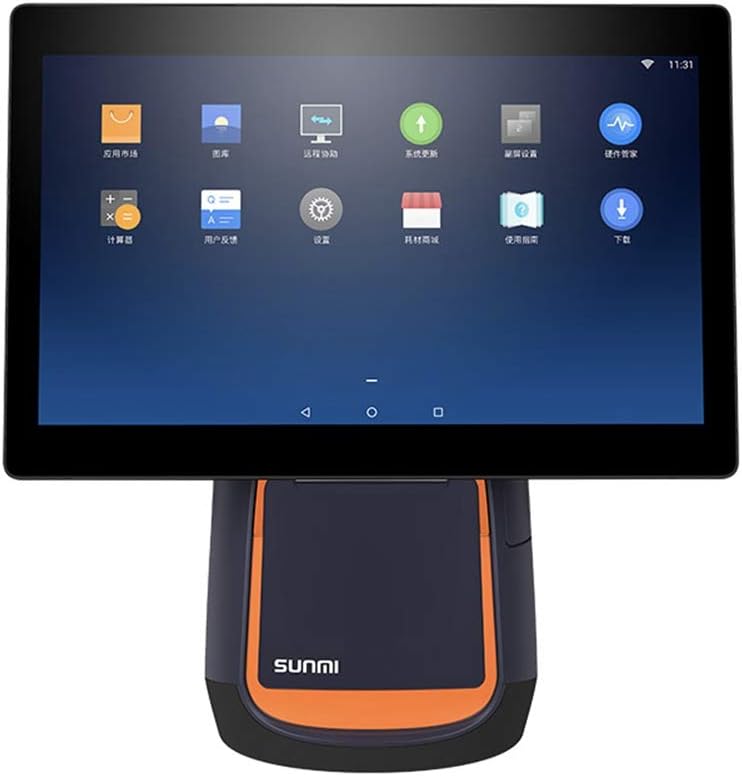

Figur 2.1: Forside view of the SUNMI T2 Smart POS Terminal. The 15.6-inch touch screen is visible, displaying various application icons, indicating its Android operating system interface.

Figur 2.2: Side view of the SUNMI T2 terminal, illustrating the design of the stand and the adjustable angle of the main display unit.

2.2 Pakkens indhold

Ved udpakning skal du kontrollere, at alle dele er til stede:

• SUNMI T2 Printer (T2 model)
• Strømkabel
• Brugervejledning (dette dokument)

3. Opsætningsvejledning

3.1 Udpakning og placering

1. Carefully remove the SUNMI T2 terminal from its packaging.
2. Place the device on a stable, flat surface, ensuring adequate ventilation around the unit.
3. Avoid placing the device near heat sources, direct sunlight, or in areas with high humidity or dust.

3.2 Strømtilslutning

1. Connect the provided power cable to the power input port located at the rear of the device base.
2. Sæt den anden ende af strømkablet i en almindelig stikkontakt.
3. The device will typically power on automatically or can be powered on using the power button.

3.3 Første opstart og konfiguration

1. Press and hold the power button (refer to Section 5.1 for button location) until the screen illuminates.
2. Follow the on-screen prompts to complete the initial setup, including language selection, Wi-Fi connection, and time zone settings.
3. Connect to your local network via Wi-Fi or Ethernet (if available) to ensure proper functionality and updates.

4. Betjeningsvejledning

4.1 Betjening af berøringsskærm

The SUNMI T2 features a capacitive multi-touch screen. Operate the device using standard touch gestures:

• Tryk på: Vælg elementer eller aktiver funktioner.
• Stryg: Navigate through menus or scroll content.
• Knib for at zoome: Adjust the size of on-screen content.

4.2 Integrated Printer Operation

The T2 includes an 80mm thermal printer for receipts and order tickets.

4.2.1 Ilægning af printerpapir

1. Locate the printer cover on the front of the device base.
2. Press the release button or latch to open the printer cover.
3. Insert a new roll of 80mm thermal paper, ensuring the paper feeds from the bottom and the leading edge extends slightly out of the printer slot.
4. Luk printerdækslet godt, indtil det klikker på plads.
5. Tear off any excess paper.

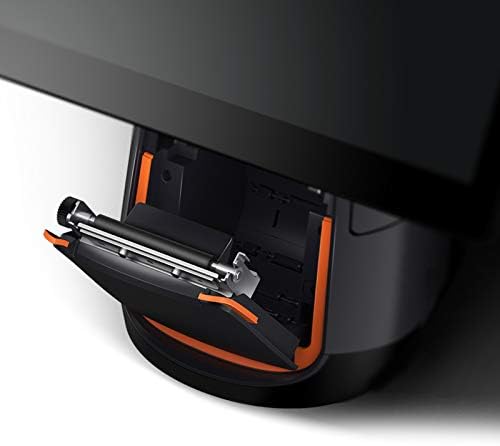

Figur 4.1: Detaljeret view of the integrated thermal printer compartment with the cover open, illustrating the correct method for inserting a new 80mm thermal paper roll.

Figur 4.2: Intern view of the SUNMI T2's thermal printer mechanism, highlighting its design for efficient paper handling and high-speed printing up to 200mm/s.

4.2.2 Udskrivning af kvitteringer

Once paper is loaded, the printer will automatically activate when a print command is issued from your POS software application. Ensure your application is correctly configured to use the integrated printer.

4.3 Forbindelse

The SUNMI T2 supports various connectivity options:

• Wi-Fi: 2.4G/5G (IEEE 802.11 a/b/g/n) for wireless network access.
• Bluetooth: Supports Bluetooth 2.1/3.0/4.0 (BLE) for connecting peripherals.
• USB-porte: USB Type A port x1, USB 3.1 Type C x1, USB 2.0 x2 (total 3 USB ports).
• RJ11: Cash drawer port x1.
• RJ45: LAN port x1 for wired network connection.
• Hovedtelefonstik: 3.5 mm lydudgang.
• Mikro-USB: Debug port x1.

Connect external devices such as barcode scanners, external keyboards, or cash drawers to the appropriate ports as needed.

5. Vedligeholdelse

5.1 Rengøring af enheden

• Power off the device and disconnect the power cable before cleaning.
• Brug en blød, fnugfri klud lidt dampened with water or a mild, non-abrasive cleaner to wipe the screen and exterior surfaces.
• Do not use harsh chemicals, abrasive pads, or excessive moisture.
• For the thermal printer head, use a specialized thermal printer cleaning pen or card to ensure optimal print quality.

5.2 Softwareopdateringer

Regularly check for and install software updates for the SUNMI OS and your POS application to ensure optimal performance, security, and access to new features. Updates can typically be found in the device's settings menu or through your POS software provider.

6. Fejlfinding

6.1 Almindelige problemer og løsninger

• Enheden tændes ikke:
  • Ensure the power cable is securely connected to both the device and a working electrical outlet.
  • Kontroller, at stikkontakten fungerer.
  • Try pressing and holding the power button for 10-15 seconds.
• Skærmen reagerer ikke:
  • Genstart enheden.
  • Sørg for, at skærmen er ren og fri for snavs.
• Printeren udskriver ikke:
  • Check if thermal paper is loaded correctly and not jammed.
  • Ensure the printer cover is securely closed.
  • Verify that the POS application is sending print commands and is configured for the integrated printer.
  • Genstart enheden.
• No network connection (Wi-Fi/Ethernet):
  • Check Wi-Fi settings and ensure you are connected to the correct network.
  • For Ethernet, ensure the cable is securely connected to the RJ45 port and your router/switch.
  • Restart your network equipment (router/modem).

If issues persist, refer to the support section or contact your vendor.

7. Specifikationer

The following table details the technical specifications of the SUNMI T2 Smart POS Terminal:

Figur 7.1: Overview of SUNMI T2 Technical Specifications, detailing hardware and software components.

8. Garanti og support

For warranty information and technical support, please refer to the documentation provided with your purchase or contact the vendor/manufacturer directly. Keep your purchase receipt as proof of purchase.

Manufacturer: Kunxilin Electronic CO. (Brand: SUNMI)
