1. Introduktion
This manual provides detailed instructions for the assembly, operation, and maintenance of your PERLESMITH Universal Floor TV Stand, Model PSFS01. This stand is designed to securely hold most 37-70 inch flat-panel, plasma, and curved LCD/LED televisions with VESA mounting patterns from 100x100mm to 600x400mm. Please read this manual thoroughly before installation to ensure safe and correct usage.
Image 1.1: The PERLESMITH Universal Floor TV Stand PSFS01, featuring a mounted television and a media device on its tempered glass base.
2. Sikkerhedsoplysninger
ADVARSEL: Failure to read and follow all instructions may result in personal injury or damage to the product. Keep this manual for future reference.
- Overskrid ikke den maksimale vægtkapacitet på 45 kg.
- Ensure your TV's VESA mounting pattern is compatible (100x100mm to 600x400mm).
- Dette produkt er kun beregnet til indendørs brug.
- Use only the provided hardware. Do not use damaged parts.
- If you have any questions or encounter difficulties during assembly, contact customer support.
- Sørg altid for, at stativet er placeret på en stabil, plan overflade for at forhindre, at det vælter.
Image 2.1: Key safety and design features, including a safety lock mechanism for the TV bracket, a durable tempered glass base, and non-slip feet for stability.
3. Pakkens indhold
Verify that all components are present and undamaged before beginning assembly. If any parts are missing or defective, please contact customer service.
Image 3.1: An exploded diagram showing all individual parts of the TV stand, including the base, support pillar, TV mounting plate, TV brackets, and various screws and tools.
Typisk pakkeindhold inkluderer:
- Base af hærdet glas
- Støttesøjle
- TV-monteringsplade
- TV Brackets (2 pcs)
- Media Shelf (optional, if included)
- Various Screws, Washers, Spacers for TV and Stand Assembly
- Allen Wrenches and other basic tools
- Kabelhåndteringsklip
4. Monteringsvejledning
Follow these steps carefully to assemble your TV stand.
- Attach the Support Pillar to the Base: Secure the main support pillar to the tempered glass base using the provided screws and tools. Ensure all connections are tight and stable.
- Install the TV Mounting Plate: Attach the TV mounting plate to the top of the support pillar. This plate will connect to the TV brackets.
- Attach TV Brackets to your Television: Carefully place your TV face down on a soft, clean surface. Identify the correct screws, washers, and spacers for your TV's VESA holes. Attach the two vertical TV brackets to the back of your television. Ensure they are securely fastened and evenly spaced.
- Mount the Television to the Stand: With assistance, carefully lift your television and hook the TV brackets onto the TV mounting plate on the stand. Ensure the TV is centered and level. Secure the TV to the mounting plate using the safety screws or locking mechanism.
- Install Media Shelf (if applicable): If your model includes a media shelf, attach it to the support pillar at your desired height.
- Kabelstyring: Organize your TV and media device cables using the provided cable management clips. Route them neatly along the back of the support pillar to maintain a clean appearance.
Image 4.1: Illustration of the integrated cable management system, demonstrating how to route power and signal cables along the central pillar for a tidy setup.
5. Betjeningsvejledning
Your PERLESMITH TV stand offers adjustable features for an optimized viewoplevelse.
5.1. Højdejustering
The TV mounting plate allows for multiple height settings. To adjust the height:
- With assistance, carefully unmount the TV from the stand.
- Adjust the position of the TV brackets on the back of your TV or the mounting plate on the pillar to one of the available height options.
- Remount the TV, ensuring it is securely fastened at the new height.
Image 5.1: A visual guide demonstrating the six distinct height adjustment levels for the TV bracket and plate, allowing customization for different viewing preferences or TV sizes.
5.2. Drejefunktion
The stand features a swivel mount, allowing you to rotate your TV for optimal viewing vinkler.
- Gently grasp the sides of your television.
- Rotate the TV left or right up to 25 degrees in either direction.
- Avoid forcing the TV beyond its maximum swivel range.
Image 5.2: A diagram illustrating the swivel functionality, showing the television rotating up to 25 degrees to the left and right, providing a total of 50 degrees of viewjustering.
6. Vedligeholdelse
Regelmæssig vedligeholdelse sikrer din TV-messes levetid og sikre drift.
- Rensning: Tør stativet af med en blød kludamp klud. Undgå slibende rengøringsmidler eller opløsningsmidler, der kan beskadige overfladen.
- Periodisk eftersyn: Kontrollér regelmæssigt alle skruer og forbindelser for at sikre, at de forbliver fastspændte. Efterspænd om nødvendigt.
- Stabilitetstjek: Ensure the stand remains on a stable and level surface.
7. Fejlfinding
Hvis du støder på problemer, kan du se følgende almindelige problemer og løsninger.
| Problem | Mulig årsag | Løsning |
|---|---|---|
| TV'et er ikke i vater | Uneven bracket attachment or floor surface. | Re-check TV bracket installation. Ensure stand is on a level surface. |
| Standen føles ustabil | Loose connections or overloaded. | Ensure all screws are tightened. Verify TV weight is within limits. |
| TV does not swivel smoothly | Obstruction or excessive weight. | Check for cables or objects obstructing movement. Ensure TV weight is within limits. |
8. Specifikationer
Detailed technical specifications for the PERLESMITH Universal Floor TV Stand PSFS01.
| Feature | Detalje |
|---|---|
| Model | PSFS01 |
| Kompatible tv-størrelser | 37" - 70" |
| Maksimal vægtkapacitet | 99 lbs (45 kg) |
| VESA-kompatibilitet | 100x100mm til 600x400mm |
| Drejevinkel | Up to 25 degrees left/right (50 degrees total) |
| Højdejustering | Multiple levels (6 options) |
| Materiale | Hærdet glas, legeret stål |
| Produktdimensioner | 114.1 x 9 x 46 cm (ca. 44.9 x 3.5 x 18.1 tommer) |
| Varens vægt | 11.6 kg (ca. 25.6 lbs) |

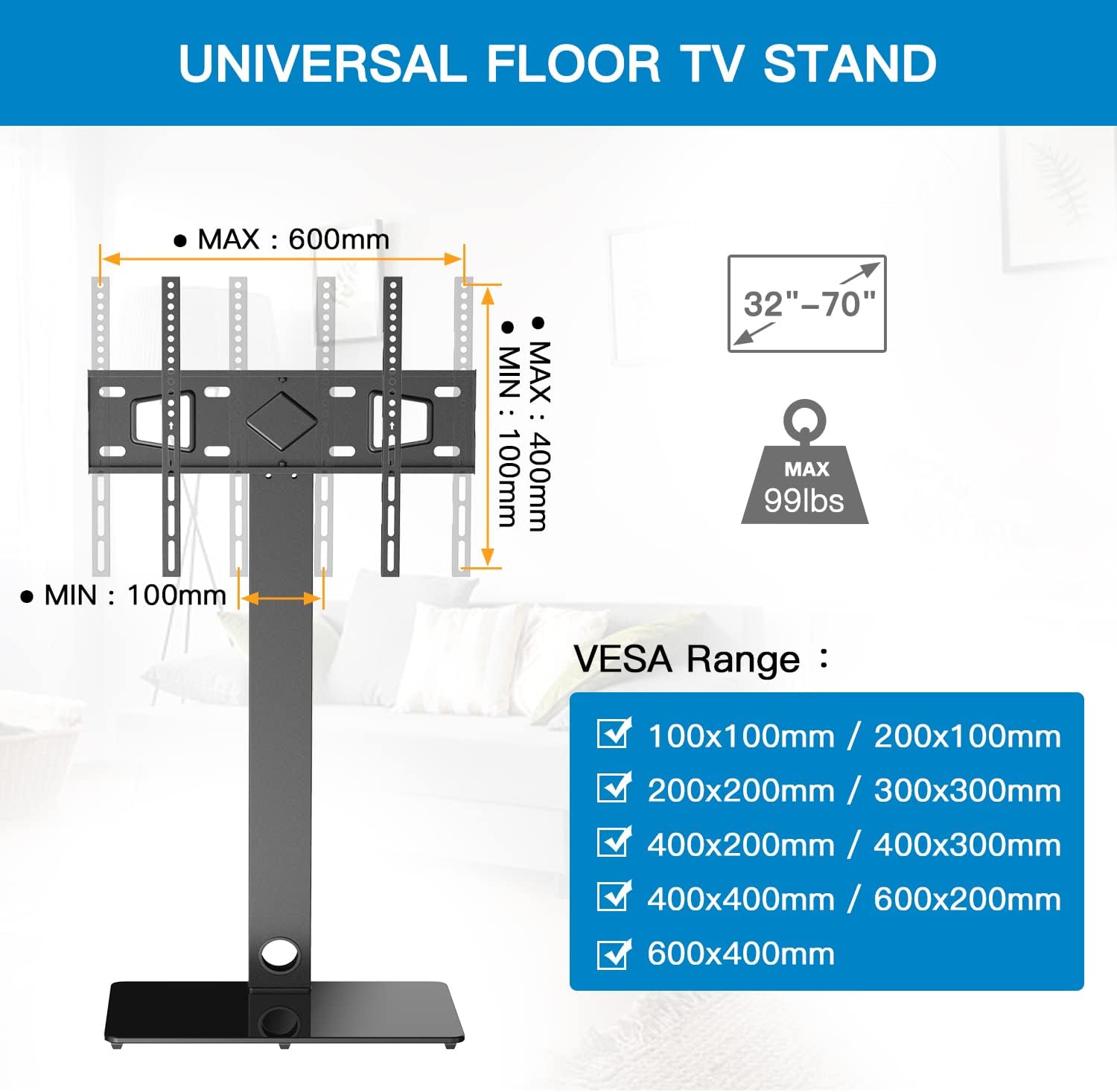

Image 8.1: A detailed diagram outlining the VESA compatibility range (100x100mm to 600x400mm) and the supported TV sizes (32-70 inches) and maximum weight (99 lbs).
9. Garanti og support
PERLESMITH products are manufactured with quality and durability in mind. This product comes with a standard manufacturer's warranty. For specific warranty details, product support, or assistance with any issues not covered in this manual, please contact PERLESMITH customer service directly. Contact information can typically be found on the product packaging or the official PERLESMITH webwebsted.
