Aputure LS C300d II LED Light User Manual

1. Introduktion

Tak for købetasing the Aputure LS C300d II LED Light. This professional-grade constant light is designed for broadcast video, photography, TV production, and studio shooting, offering exceptional color accuracy and powerful illumination. This manual provides detailed instructions for the safe and effective operation of your device.

Figure 1.1: The Aputure LS C300d II LED light and its included carrying case, showcasing its portability and comprehensive kit.

2. Produktfunktioner

• Perfect Color Fidelity: The LS C300d II features a 5500K color temperature and stepless dimming from 0% to 100%. With CRI 96+ and TLCI 97+, it ensures natural and accurate colors for broadcast video, photography, TV production, and studio shooting. The 5500K color temperature matches sunlight, providing a natural white light appearance.
• Ultra-High Brightness: Delivers 55000 Lux at 0.5m, making it 20% brighter than the original Aputure 300D. When paired with the Aputure Fresnel 2X lens mount, it can achieve 285,000 lux at 0.5m, comparable to a 2K watt tungsten light.
• 8 Lighting Effects & New 512DMX Lighting Function: The Aputure 300D II is equipped with 8 types of lighting effect modes, including Paparazzi, Spark, Lightning, Bad Bulb, TV, Breathing, Flash, and Explosion, allowing for creative freedom.
• Dobbelt kontrolmetoder: Control brightness, channel, fan speed, and more with the 100m remote control or the intuitive control box. The fanless controller and integrated power supply unit reduce connections and save effort.
• Nyt design: Firmware upgradeable via USB interface. The U-frame structure allows for flexible 360-degree rotation. The handbrake locking yoke securely supports the light's rotation angle.

Figure 2.1: Feature icons demonstrating the light's capabilities, such as remote control, app integration, and various lighting effects.

3. Pakkens indhold

Upon opening the package, please verify that all the following items are included and in good condition:

• Aputure LS C300d II LED Light Head
• Control Box / Power Supply Unit
• Refleks
• Connecting Cables (Power Cable, 5-pin XLR Cable)
• Fjernbetjening
• Bæretaske
• Brugervejledning (dette dokument)
• Rengøringsklud

Figur 3.1: En omfattende view of all items included in the Aputure LS C300d II product package.

4. Opsætning

1. Montering af lyshovedet: Attach the Aputure LS C300d II light head to a compatible light stand using its U-frame yoke. Secure it firmly with the handbrake locking mechanism.
2. Montering af reflektoren: Align the reflector with the Bowens mount on the front of the light head. Twist clockwise until it clicks into place.
3. Tilslutning af kontrolboksen: Connect the 5-pin XLR cable from the light head to the corresponding port on the control box. Ensure a secure connection.
4. Strømtilslutning: Connect the power cable to the control box, then plug the other end into a suitable power outlet.
5. Optional Battery Power: For portable operation, the control box supports V-Mount or Gold Mount batteries. Insert two high-capacity batteries into the designated slots on the control box. The light can also operate at half output with a single battery.

Figure 4.1: The Aputure LS C300d II with an optional Fresnel 2X attachment, illustrating how accessories can be mounted.

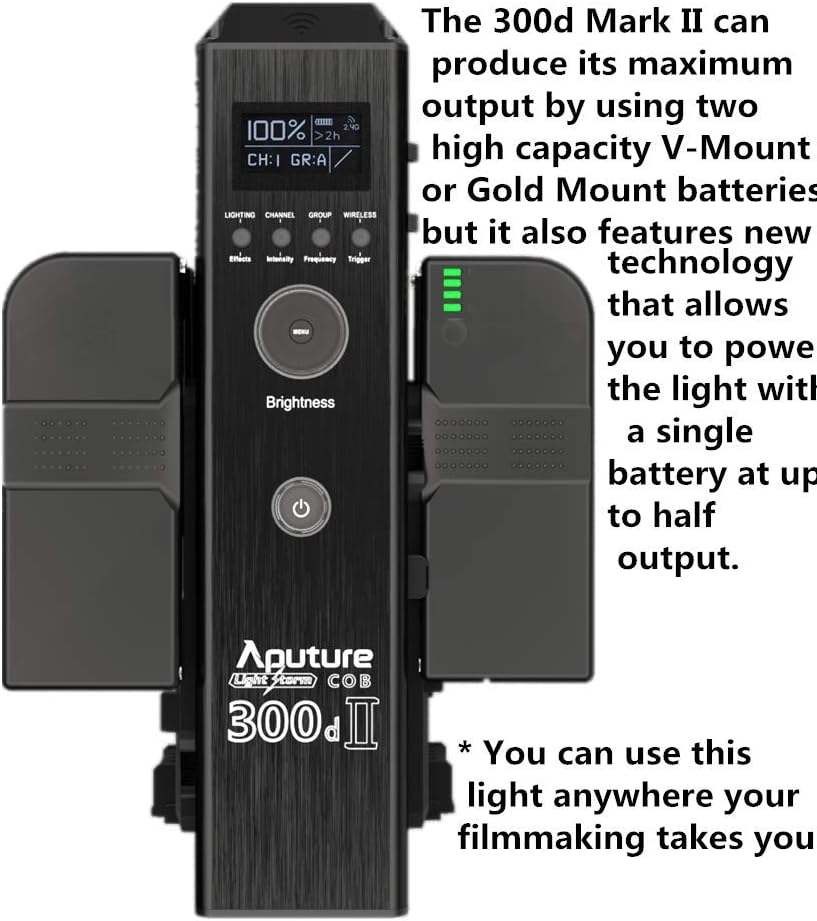

Figure 4.2: The control box, capable of powering the light using V-Mount or Gold Mount batteries for maximum output, or a single battery for half output.

5. Betjeningsvejledning

5.1 Grundlæggende betjening

• Tænd/sluk: Tryk på tænd/sluk-knappen på kontrolboksen for at tænde eller slukke lyset.
• Justering af lysstyrke: Use the control knob on the control box to adjust the light intensity from 0% to 100%.
• Kanalvalg: The control box allows selection of different channels for multi-light setups. Refer to the display for current channel information.

5.2 Specialeffekttilstande

The Aputure LS C300d II includes 8 built-in lighting effects to enhance your creative productions.

• Accessing Effects: Navigate through the menu on the control box to select the "Effects" mode.
• Available Effects: Paparazzi, Spark, Lightning, Bad Bulb, TV, Breathing, Flash, Explosion.
• Justering af effekter: Some effects may have adjustable parameters (e.g., speed, intensity). Refer to the control box display for specific options.

5.3 Fjernbetjening og app-styring

• Fjernbetjening: The included remote control allows for wireless adjustment of brightness, channel, and effects from up to 100m away. Ensure line of sight for optimal performance.
• Sidus Link-appen: Download the Sidus Link app on your smartphone or tablet for advanced control via Bluetooth. The app provides comprehensive control over all light functions and effects.

Figure 5.1: The Sidus Link app provides intuitive control over the Aputure LS C300d II from your mobile device.

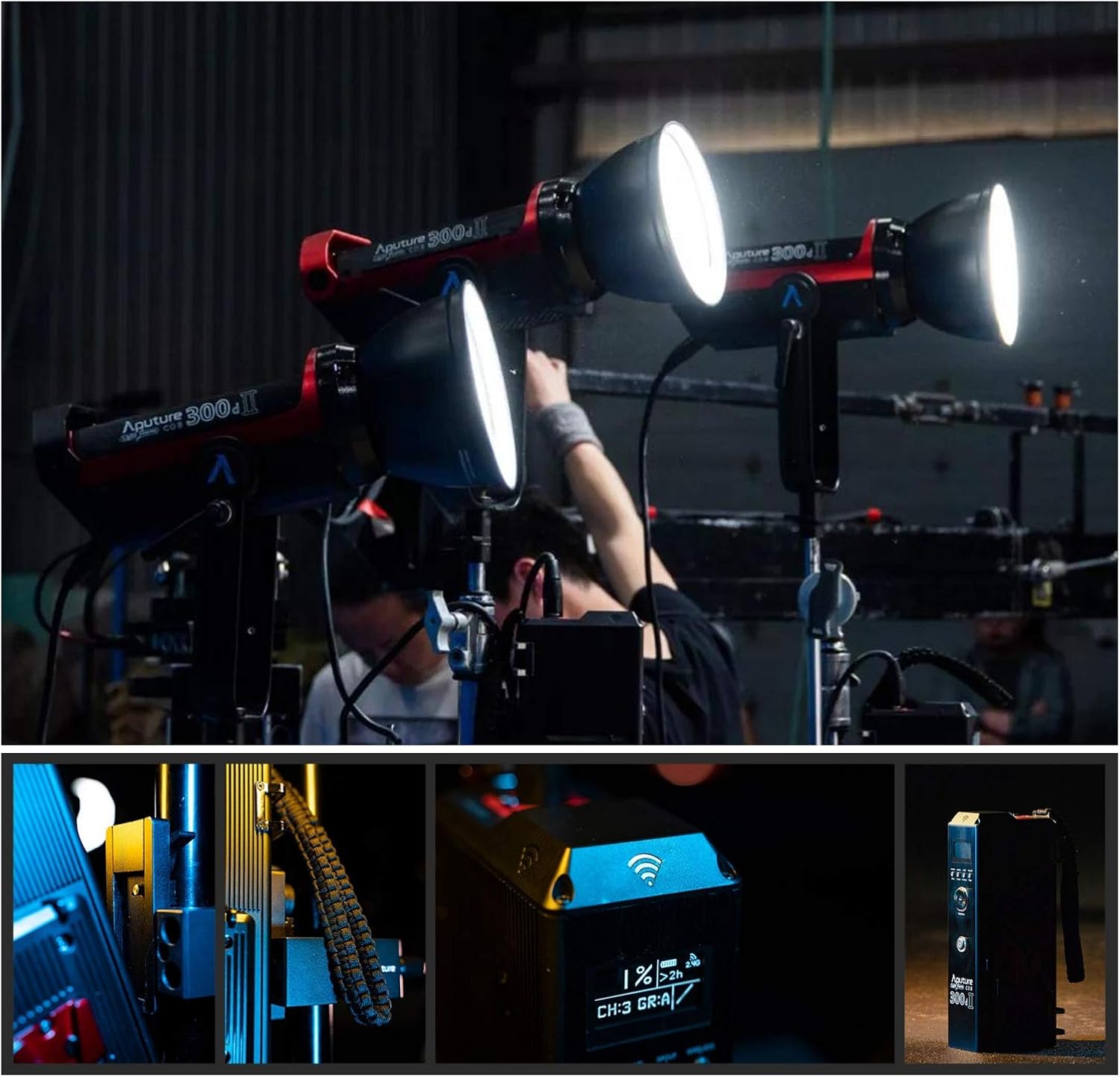

Figure 5.2: The Aputure LS C300d II in action, demonstrating its use in a professional environment and highlighting the clear display on the control box.

6. Vedligeholdelse

• Rensning: Regularly clean the light head and control box with a soft, dry cloth. For stubborn dirt, use a slightly damp cloth and then dry thoroughly. Do not use harsh chemicals or abrasive cleaners.
• Opbevaring: When not in use, store the light and its components in the provided carrying case in a cool, dry place, away from direct sunlight and excessive humidity.
• Firmwareopdateringer: Periodically check the Aputure website for firmware updates. Updates can be installed via the USB interface on the control box to improve performance and add new features.

7. Fejlfinding

8. Specifikationer

9. Garanti og support

Aputure provides a limited warranty for this product against defects in materials and workmanship under normal use. Please refer to the warranty card included in your package for specific terms and conditions. For technical support, service, or warranty claims, please contact Aputure customer service through their official webwebsted eller autoriserede distributører.

Official Aputure Webwebsted: www.aputure.com
