Legrand 067688L Mosaic Easy-LED indikatorlampe brugsanvisning

1. Introduktion

This manual provides essential information for the safe and correct installation, operation, and maintenance of the Legrand 067688L Mosaic Easy-LED Indicator Light. This 230V red LED indicator is designed for distributed phase applications within electrical installations. Please read this manual thoroughly before installation and keep it for future reference.

2. Sikkerhedsoplysninger

ADVARSEL: Risiko for elektrisk stød!

• Installation and maintenance must be performed by a qualified electrician in accordance with national and local electrical codes.
• Always disconnect power at the main circuit breaker or fuse box before installing, servicing, or removing the device.
• Brug ikke enheden, hvis den ser ud til at være beskadiget.
• Sørg for korrekt jordforbindelse, hvor det er nødvendigt.

3. Produktet er slutview

The Legrand 067688L is a compact LED indicator light designed for integration into Legrand Mosaic mechanisms. It provides a visual indication of the presence of a distributed phase (230V).

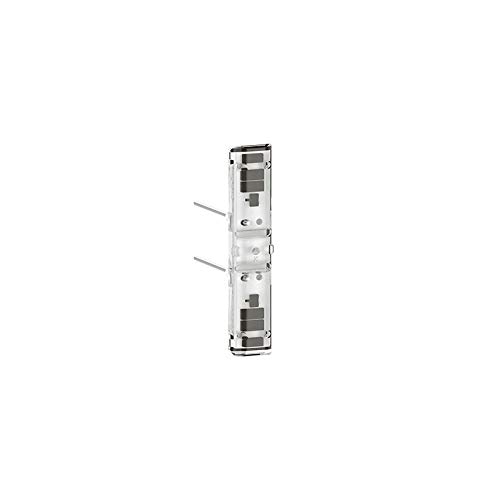

Figur 1: Forside view of the Legrand 067688L Mosaic Easy-LED Indicator Light. The image shows the compact, transparent body of the LED indicator with two metal pins for electrical connection. The internal components are visible through the clear casing.

Nøglefunktioner:

• Type: Easy-LED Indicator Light
• Voltage: 230V
• Farve: Rød
• Anvendelse: Distributed Phase Indication
• Montering: Clips onto the front face of a compatible Mosaic mechanism.

4. Installation (Opsætning)

Follow these steps to install the Legrand 067688L indicator light:

1. Strømafbrydelse: Ensure that the main power supply to the circuit where the indicator light will be installed is completely disconnected. Verify with a voltage tester.
2. Mechanism Preparation: Identify the compatible Legrand Mosaic mechanism. If present, carefully remove the existing "finger" or tab from the front face of the mechanism where the indicator light is to be inserted.
3. Indicator Insertion: Align the pins of the 067688L Easy-LED indicator light with the corresponding slots on the front face of the Mosaic mechanism.
4. Secure Clipping: Gently push the indicator light until it clips securely into place. Ensure it is flush with the mechanism's surface.
5. Genopkobling af strøm: Once the indicator light is securely installed and all connections are verified, restore power to the circuit.

Refer to the installation instructions of the specific Legrand Mosaic mechanism for detailed wiring diagrams and compatibility.

5. Betjening

The Legrand 067688L Easy-LED Indicator Light operates automatically. When the distributed phase (230V) is present and correctly connected to the mechanism, the red LED will illuminate, providing a clear visual indication of power presence. When the phase is absent or power is disconnected, the LED will turn off.

6. Vedligeholdelse

The Legrand 067688L indicator light requires minimal maintenance. To ensure optimal performance and appearance:

• Rensning: Disconnect power before cleaning. Use a soft, dry cloth to wipe the surface. Do not use abrasive cleaners, solvents, or excessive moisture.
• Inspektion: Periodically inspect the indicator light for any signs of damage or loose connections. If damage is observed, disconnect power and replace the unit.

7. Fejlfinding

If the Legrand 067688L indicator light does not illuminate when power is expected:

• Ingen belysning:
  • Tjek strømforsyningen: Verify that power is present at the circuit.
  • Tjek forbindelser: Ensure the indicator light is correctly and securely clipped into the Mosaic mechanism and that the mechanism itself is properly wired.
  • Undersøg for skader: Visually inspect the indicator light for any physical damage. If damaged, replace the unit.
• If the issue persists after performing these checks, consult a qualified electrician. Do not attempt to repair the unit yourself.

8. Specifikationer
