Zipro Drift Exercise Bike User Manual

1. Introduktion

The Zipro Drift exercise bike is a magnetic fitness ergometer designed for effective and comfortable home workouts. It features a robust construction, a quiet magnetic resistance system, and an intuitive computer display to track your progress. This manual provides essential information for assembly, operation, maintenance, and troubleshooting to ensure a safe and optimal user experience.

Figur 1: Hoved view of the Zipro Drift Exercise Bike.

2. Sikkerhedsoplysninger

• Always consult a physician before starting any new exercise program, especially if you have pre-existing health conditions.
• Ensure the exercise bike is placed on a flat, stable surface to prevent tipping.
• Hold børn og kæledyr væk fra udstyret under brug.
• The maximum user weight for this device is 120 kgOverskrid ikke denne grænse.
• Wear appropriate athletic footwear during your workout.
• Regularly inspect all components for wear and tear. Do not use the bike if any parts are damaged.
• Forsøg ikke at modificere udstyret.

3. Opsætning og montering

The Zipro Drift exercise bike requires assembly. Follow the instructions provided in the assembly diagram carefully. While assembly is generally straightforward, ensuring all connections are secure is crucial for safety and stability.

1. Unpack all components and verify against the parts list (not provided in this manual, refer to original packaging).
2. Fastgør de forreste og bageste stabilisatorer til hovedrammen.
3. Install the pedals, ensuring they are tightened correctly (left pedal is reverse-threaded).
4. Mount the seat post and saddle, adjusting to a comfortable height.
5. Attach the handlebar post and handlebars, connecting any necessary sensor wires for the computer.
6. Install the computer display onto the handlebar post.
7. Perform a final check to ensure all bolts and nuts are securely tightened before first use.

Figur 2: Overview of the Zipro Drift Exercise Bike highlighting its ergonomic design, magnetic resistance, compact size, and adjustable saddle.

Figure 3: A user adjusting the saddle, illustrating the bike's dimensions and adjustability for different user heights.

Figure 4: Detailed dimensions and key specifications of the Zipro Drift Exercise Bike, including user height range and weight capacity.

4. Betjeningsvejledning

4.1 Computer and Display

The integrated LCD computer provides real-time feedback on your workout. It is designed for intuitive operation, typically with a single button to cycle through various display modes.

• Tid: Varigheden af ​​din nuværende træning.
• Hastighed: Aktuel cykelhastighed.
• Afstand: Distance covered during the current workout.
• Total Distance (Odometer): Cumulative distance covered by the bike.
• Kalorier: Anslået forbrændte kalorier.
• Puls: Your current heart rate (requires holding the hand pulse sensors).
• SCAN: Automatically cycles through all display functions every few seconds.

Figur 5: Nærbillede view of the intuitive LCD display, showing various workout metrics.

Figure 6: A user interacting with the exercise bike's computer, demonstrating how to monitor progress and set goals.

4.2 Resistance Adjustment

The Zipro Drift features a magnetic resistance system with 8 manually adjustable levels. This allows you to easily increase or decrease the intensity of your workout to match your fitness level and goals.

• To adjust resistance, turn the large knob located on the main frame below the handlebars.
• Turn clockwise to increase resistance (higher numbers indicate more resistance).
• Turn counter-clockwise to decrease resistance (lower numbers indicate less resistance).

Figure 7: The manual resistance adjustment knob, offering 8 levels of magnetic resistance for varied workout intensity.

4.3 Saddle and Handlebar Adjustment

Proper adjustment of the saddle and handlebars is essential for comfort and effective training, as well as injury prevention.

• Saddelhøjde: Loosen the adjustment knob on the seat post, raise or lower the saddle to your desired height (recommended for users 140-175 cm tall, saddle height 63-85 cm from ground), and then securely tighten the knob.
• Styrets position: The handlebars are fixed in position for stability and optimal sensor placement.

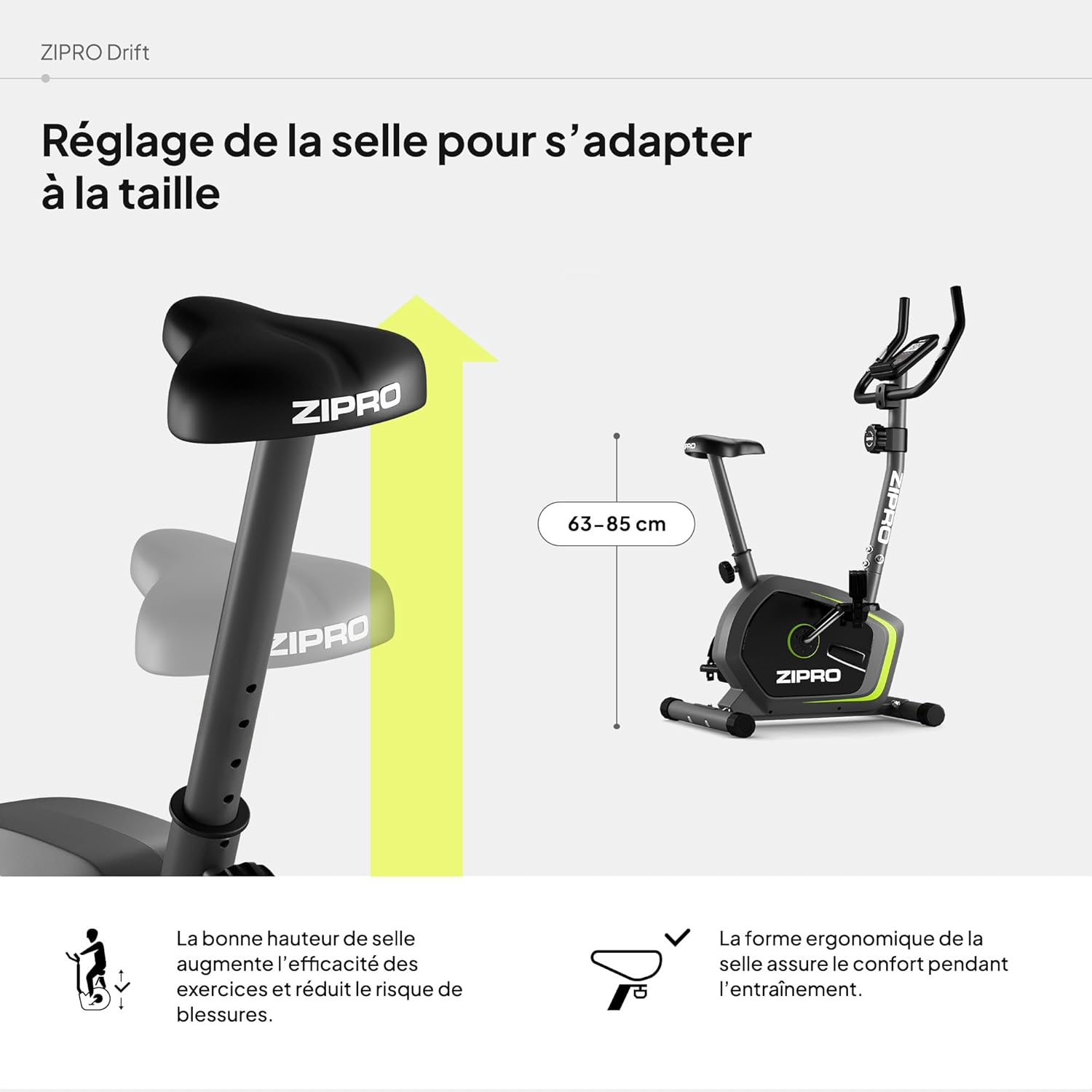

Figure 8: Illustration of the adjustable saddle, allowing users to find their optimal riding position for comfort and exercise efficiency.

4.4 pedaler

The non-slip pedals are equipped with adjustable straps to keep your feet securely in place during your workout, ensuring efficient power transfer and safety.

• Place your feet firmly on the pedals.
• Adjust the straps over your instep to a snug fit.

Figure 9: Detail of the non-slip pedals with adjustable straps, designed for secure foot placement and efficient pedaling.

5. Vedligeholdelse

Regular maintenance ensures the longevity and safe operation of your Zipro Drift exercise bike.

• Rensning: Tør cyklen af ​​efter hver brug med en reklameamp klud til at fjerne sved og støv. Undgå at bruge slibende rengøringsmidler eller opløsningsmidler.
• Inspektion: Periodically check all nuts, bolts, and moving parts for tightness. Tighten any loose components immediately.
• Smøring: The magnetic resistance system is generally maintenance-free. No lubrication is required for the internal mechanism.
• Opbevaring: Opbevar cyklen et tørt, køligt sted væk fra direkte sollys og ekstreme temperaturer.

6. Fejlfinding

7. Specifikationer

• Model: 1592570
• Mærke: ZIPRO
• Dimensioner (L x B x H): 80 x 50 x 117 cm (31.5 x 19.7 x 46.1 tommer)
• Produktvægt: 19.3 kg (42.5 lbs)
• Maksimal brugervægt: 120 kg (264 lbs)
• Modstandssystem: Magnetisk
• Modstandsniveauer: 8 (manuel justering)
• Saddle Height Adjustment: 63-85 cm (from ground)
• Power Source (Computer): Batteridrevet
• Farve: Grey-Green

8. Garanti og support

For detailed warranty information, product support, or to inquire about replacement parts, please contact ZIPRO customer service directly. Keep your purchase receipt as proof of purchase.

Fabrikant: Morele.net Sp. Zoo
