ZIPRO Boost Exercise Bike User Manual

1. Introduktion

Thank you for choosing the ZIPRO Boost Exercise Bike. This manual provides essential information for the safe and effective assembly, operation, and maintenance of your new fitness equipment. Please read this manual thoroughly before first use and keep it for future reference.

2. Sikkerhedsoplysninger

• Kontakt en læge, før du starter et træningsprogram.
• Sørg for, at alle dele er forsvarligt fastgjort før hver brug.
• Hold børn og kæledyr væk fra udstyret under drift.
• Placer motionscyklen på en flad, stabil overflade.
• Brug passende træningstøj og fodtøj.
• Overskrid ikke den maksimale brugervægtkapacitet på 120 kg.
• Stop med at træne med det samme, hvis du føler dig svimmel, føler dig svag eller oplever smerter.

3. Pakkens indhold

Før montering skal du kontrollere, at alle komponenter er til stede og ubeskadigede:

• Hovedramme
• For- og bagstabilisatorer
• Pedaler (venstre og højre)
• Sadelpind og sadel
• Styrstolpe og styr
• Træningscomputer
• Samlebeslag (bolte, skiver, møtrikker)
• Assembly Tools (wrenches, Allen keys)
• Brugermanual

4. Monteringsvejledning

Follow these steps for proper assembly. It is recommended to have two people for certain steps.

1. Fastgør stabilisatorer: Secure the front and rear stabilizers to the main frame using the provided bolts and washers. Ensure they are firmly tightened.

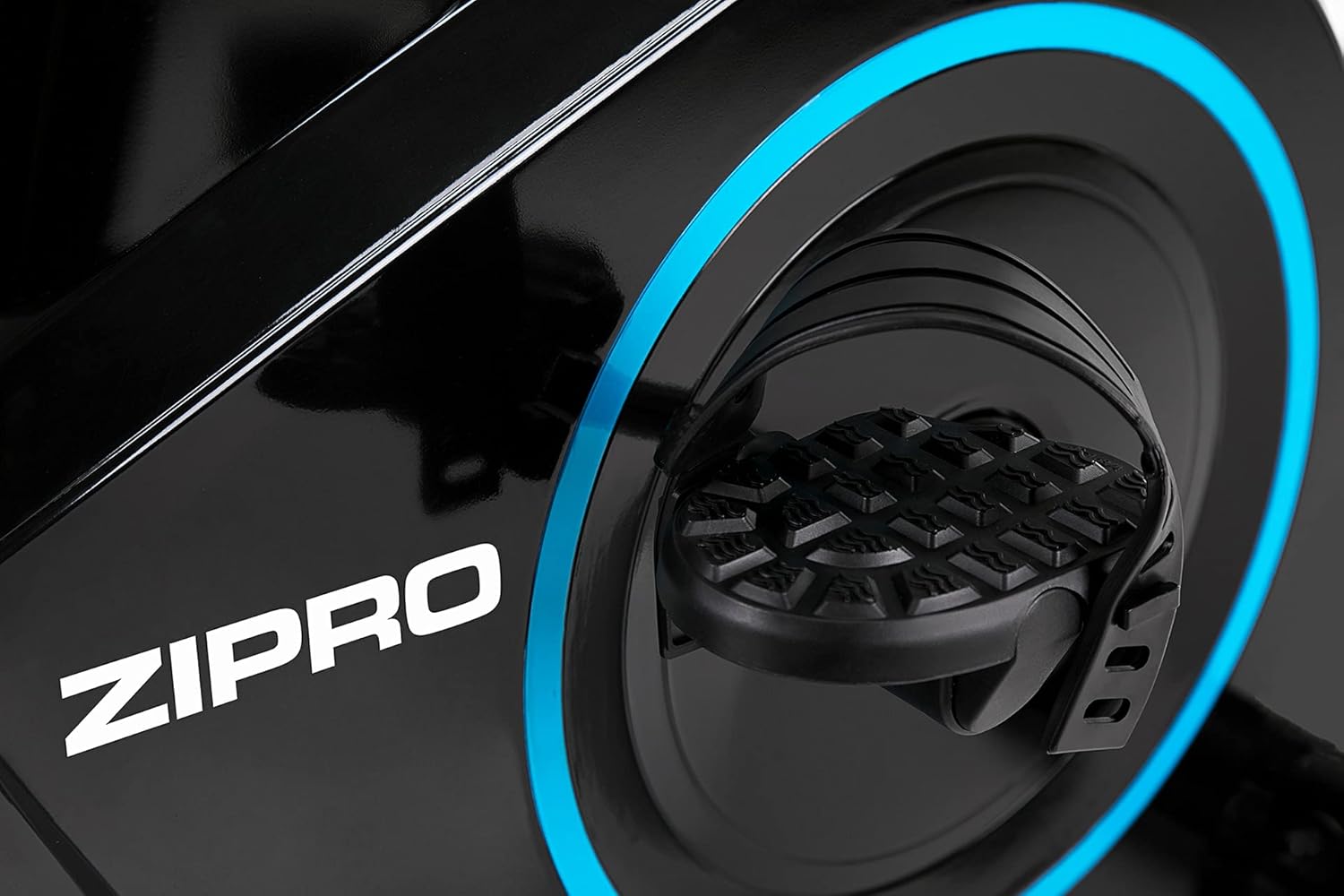

2. Installer pedaler: Identify the left (L) and right (R) pedals. The left pedal screws counter-clockwise, and the right pedal screws clockwise. Tighten securely.
3. Montering af sadelpind og sadel: Insert the seat post into the main frame and adjust to the desired height. Attach the saddle to the seat post and secure it.
4. Attach Handlebar Post: Insert the handlebar post into the main frame.
5. Install Handlebars and Computer: Attach the handlebars to the handlebar post. Connect the sensor wires from the main frame to the exercise computer. Mount the computer onto the handlebar post.

Figure 4.1: Detailed assembly diagram for the ZIPRO Boost Exercise Bike.

Figur 4.2: Eksploderet view of the exercise bike components, illustrating how parts fit together during assembly.

5. Betjeningsvejledning

5.1 Justering af modstand

The ZIPRO Boost features an 8-level magnetic resistance system. To adjust the resistance, turn the tension control knob located below the computer display. Turn clockwise to increase resistance (harder) and counter-clockwise to decrease resistance (easier).

Figure 5.1: The resistance adjustment knob, showing levels 1 through 8.

Figure 5.2: Demonstrating how to adjust the magnetic resistance using the tension control knob.

5.2 Saddle and Handlebar Adjustments

Proper adjustment of the saddle and handlebars ensures comfort and effective training.

• Saddelhøjde: Loosen the adjustment knob on the seat post, raise or lower the saddle to your desired height (ensure a slight bend in your knee at the bottom of the pedal stroke), and tighten the knob securely.
• Saddle Horizontal Position: Loosen the knob beneath the saddle to slide it forward or backward for optimal positioning relative to the pedals. Tighten securely.
• Styrhøjde: Loosen the adjustment knob on the handlebar post, raise or lower the handlebars to a comfortable position, and tighten the knob securely.

Figure 5.3: Adjusting the saddle's vertical position for user comfort.

Figure 5.4: Adjusting the saddle's horizontal position for optimal riding posture.

Figure 5.5: Adjusting the handlebar height to suit different user preferences and workout styles.

5.3 Computer Functions

The integrated computer tracks your workout data. It measures time, distance, speed, calories burned, and pulse (via sensors in the handlebar). The SCAN function cycles through all data alternately on the screen.

• MODE knap: Press to select the display function (Time, Speed, Distance, Calories, Odometer, Pulse).
• Genstarts knap: Press and hold to clear all current workout data (Time, Distance, Speed, Calories).
• SET -knap: Used to set target values for Time, Distance, or Calories.
• Pulssensorer: Grip the metal plates on the handlebars to measure your heart rate.
• Mobile Device Shelf: A convenient shelf is provided above the computer for your smartphone or tablet.

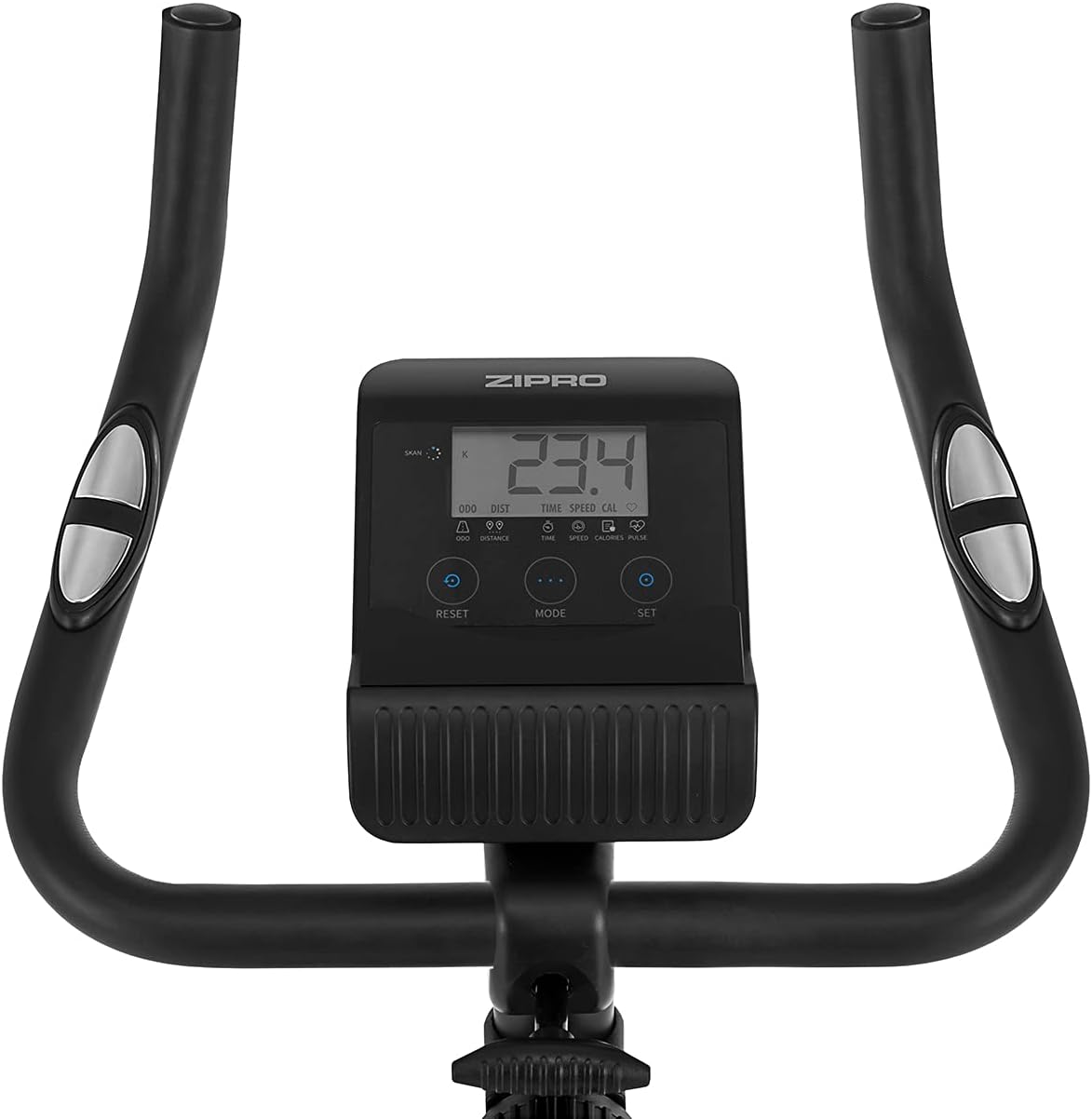

Figure 5.6: The exercise computer display with MODE, RESET, and SET buttons.

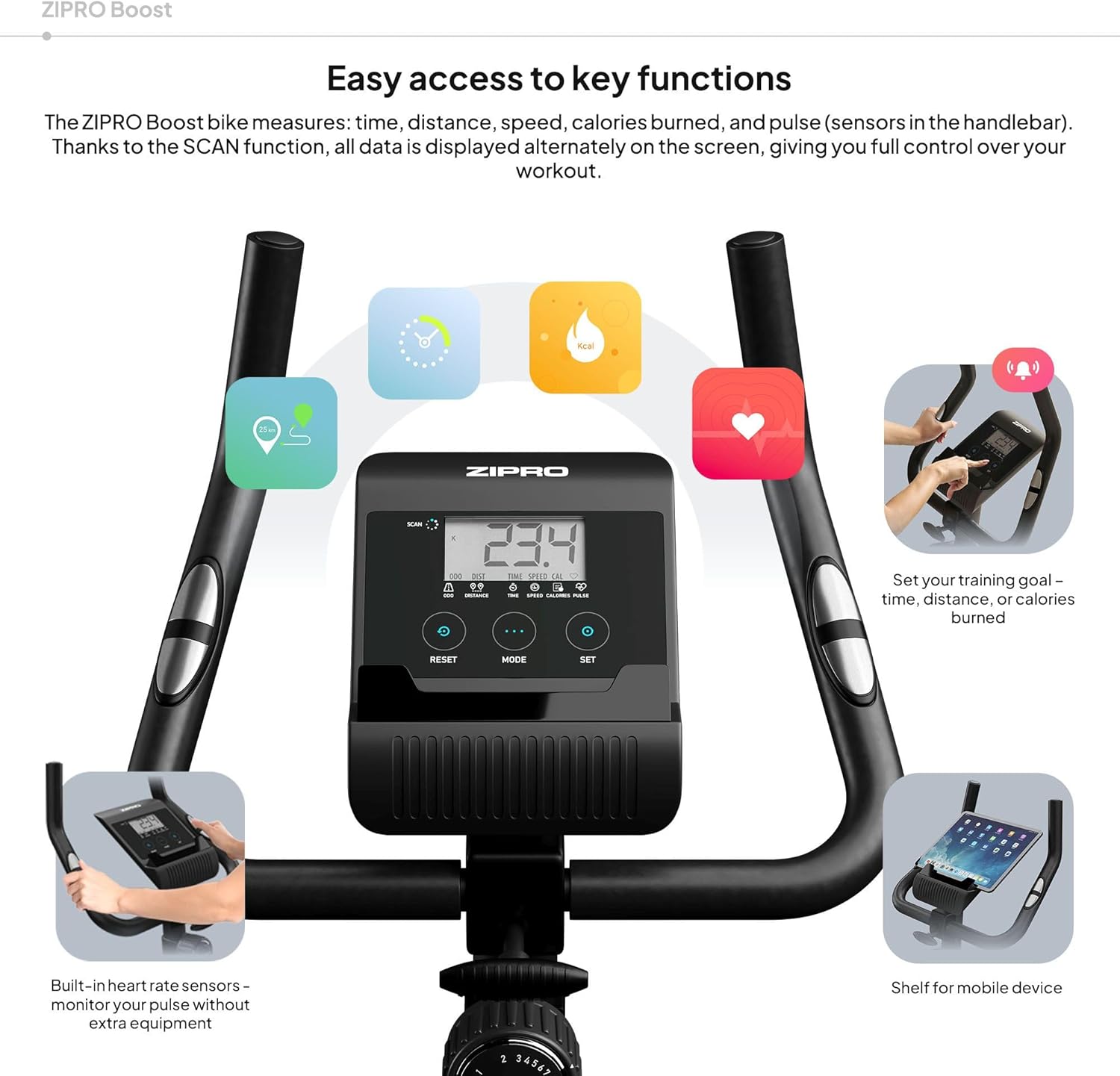

Figur 5.7: Overview of the computer display and integrated pulse sensors.

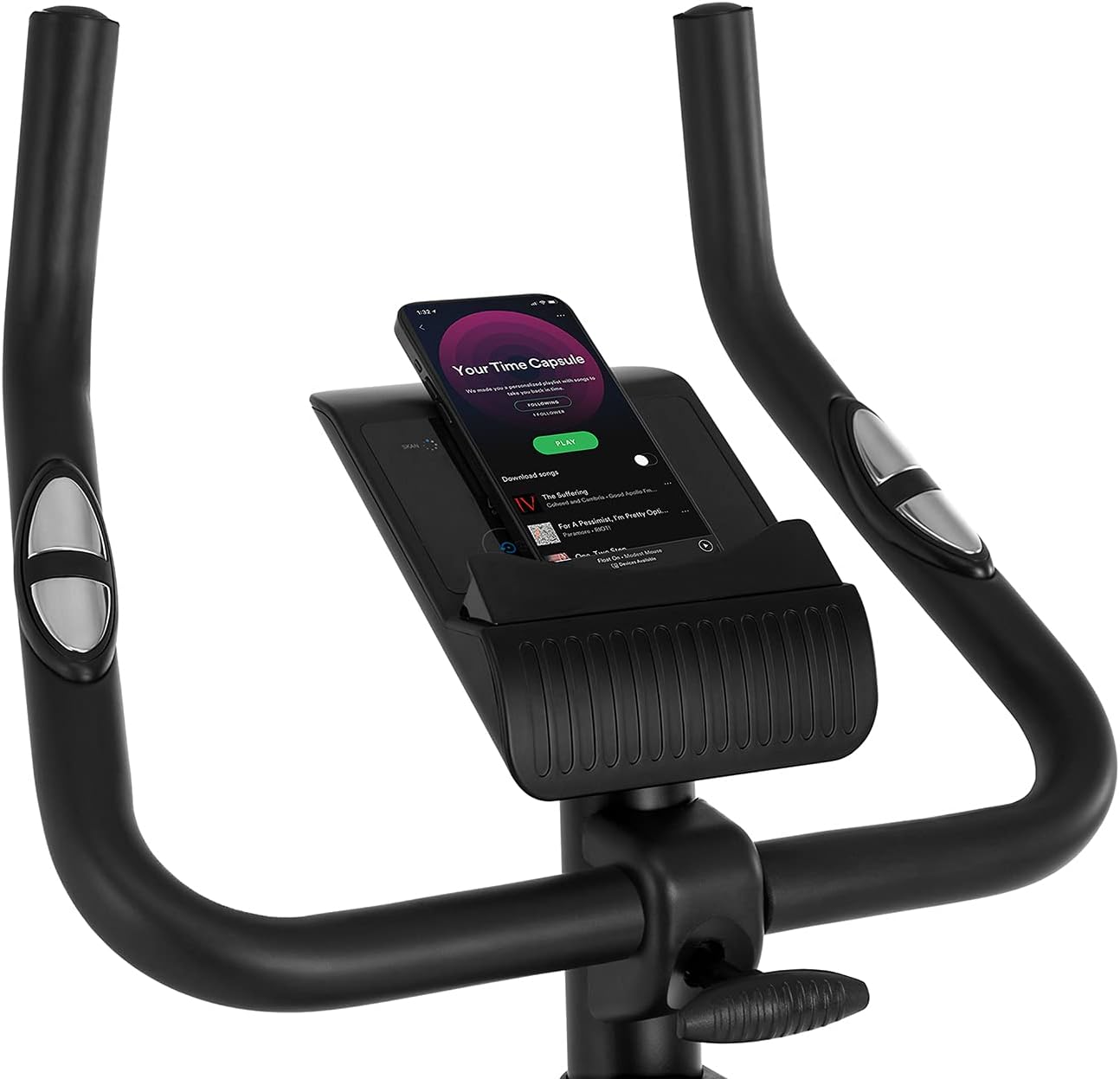

Figure 5.8: The integrated shelf designed to hold a mobile device like a tablet during workouts.

6. Vedligeholdelse

Regelmæssig vedligeholdelse sikrer din motionscykels lange levetid og sikre drift.

• Rensning: Tør cyklen af ​​med annonceamp en klud efter hver brug for at fjerne sved og støv. Brug ikke slibende rengøringsmidler.
• Tjek forbindelser: Kontrollér regelmæssigt alle bolte, møtrikker og skruer for at sikre, at de er spændte. Spænd om nødvendigt.
• Smøring: The magnetic resistance system is generally maintenance-free. If you notice any squeaking from moving parts (e.g., pedal axles), apply a small amount of silicone-based lubricant.
• Opbevaring: When not in use, store the bike in a dry, cool place away from direct sunlight. The integrated transport wheels allow for easy movement.

Figure 6.1: The exercise bike features transport wheels for easy relocation after use.

7. Fejlfinding

8. Specifikationer

Figure 8.1: Key dimensions and user specifications for the exercise bike.

9. Garanti og support

Your ZIPRO Boost Exercise Bike comes with a standard manufacturer's warranty. Please refer to the warranty card included in your package for specific terms and conditions. For technical support, spare parts, or any inquiries not covered in this manual, please contact ZIPRO customer service through their official webwebstedet eller den forhandler, hvor du købte produktet.
