Creative SBS E2500 2.1 Højttalersystem Brugermanual

Indledning

The Creative SBS E2500 is a high-performance 2.1 speaker system designed to deliver powerful and immersive audio. Featuring Bluetooth 5.0 connectivity, a down-firing subwoofer, and multiple input options including FM, USB, and Aux, this system is ideal for enhancing audio from your TV, computers, and laptops. This manual provides detailed instructions for setting up, operating, and maintaining your speaker system.

Figure 1: Creative SBS E2500 2.1 Speaker System

Pakkens indhold

Sørg venligst for, at alle varer er til stede i pakken:

• Subwoofer
• Satellithøjttalere (2 enheder)
• Garantikort
• Brugermanual
• Audio kabler

Produktegenskaber

• 2.1 Speaker System with Far-field Drivers
• Down-firing Quality MDF Subwoofer
• Convenient Control Buttons on Subwoofer
• Bluetooth 5.0 Connectivity for wireless audio streaming
• Multiple Input Options: FM, USB, and Aux
• Fjernbetjening til bekvem betjening
• Total System Power: 60W Peak / 30W RMS
• Subwoofer diameter: 5 tommer
• Speaker Size: 130 Millimetres
• Maximum Range: 10 metres (Bluetooth)

Opsætningsvejledning

Follow these steps to set up your Creative SBS E2500 speaker system:

1. Placering

Place the subwoofer on a flat, stable surface, preferably on the floor for optimal bass response. Position the satellite speakers on either side of your listening area, facing towards you for the best stereo imaging.

Figure 2: Recommended speaker placement in a room.

2. Connecting Speakers to Subwoofer

Connect the satellite speakers to the corresponding output ports on the rear of the subwoofer. Ensure the cables are securely inserted.

Figure 3: Subwoofer rear panel with speaker output and input ports.

3. Strømtilslutning

Plug the power cable from the subwoofer into a standard wall outlet. The system is powered by corded electric.

4. Lydkildetilslutning

Choose your preferred audio input method:

• Auxiliary (Aux) Input: Use the provided audio cable to connect your device (e.g., TV, computer, laptop) to the "AUX INPUT" port on the rear of the subwoofer.
• USB-indgang: Indsæt et USB-flashdrev med lyd files into the USB port on the front panel of the subwoofer.
• Bluetooth: For trådløs forbindelse, se afsnittet "Bluetooth-parring" under betjeningsvejledningen.
• FM-radio: Ensure the FM antenna is connected to the "ANTENNA" port on the rear of the subwoofer for optimal reception.

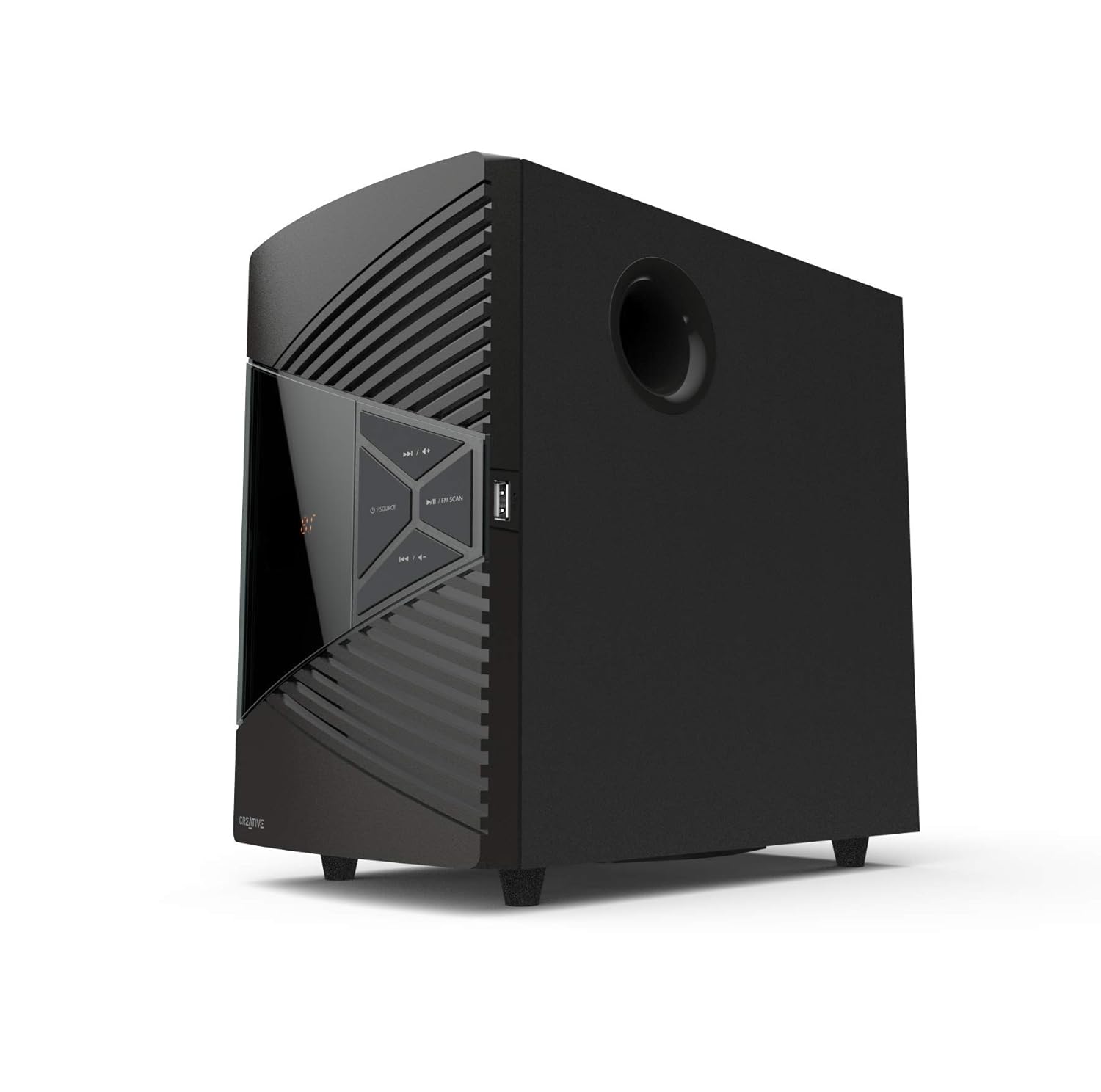

Figure 4: Subwoofer control panel with USB port.

Betjeningsvejledning

Tænd/sluk

Press the Power button on the subwoofer's front panel or the remote control to turn the system on or off.

Valg af tilstand

Press the "Source" button on the subwoofer or the remote control to cycle through available input modes: Bluetooth, FM, USB, and Aux.

Lydstyrkekontrol

Adjust the volume using the dedicated volume buttons on the subwoofer or the "VOL+" and "VOL-" buttons on the remote control.

Bluetooth-parring

1. Switch the speaker system to Bluetooth mode. The LED display will indicate "BT".
2. On your Bluetooth-enabled device, search for "Creative SBS E2500" in the list of available devices.
3. Select "Creative SBS E2500" to pair. Once paired, the system will confirm the connection.
4. Hvis du bliver bedt om en adgangskode, skal du indtaste "0000".

Betjening af FM-radio

• Skift til FM-tilstand.
• Press the "Play/Pause" button to auto-scan and save available FM stations.
• Brug knapperne "Forrige/Næste nummer" til at navigere mellem gemte stationer.

USB-afspilning

• Insert a USB flash drive into the USB port. The system will automatically switch to USB mode and begin playback.
• Use the "Play/Pause", "Previous Track", and "Next Track" buttons to control playback.

Fjernbetjeningsfunktioner

The included remote control provides full functionality for your speaker system:

Figure 5: Remote Control for Creative SBS E2500.

• Power knap: Til/Fra.
• Nummertastatur (0-9): Direct track selection in USB mode, or direct frequency input in FM mode.
• AUX/USB/FM/BT Buttons: Direct mode selection.
• VOL +/-: Juster lydstyrken.
• Afspil/pause: Play/pause audio, auto-scan in FM mode.
• Forrige/næste nummer: Skip tracks, change FM stations.
• EQ/TUNING: Equalizer settings or manual tuning in FM mode.

Opretholdelse

To ensure the longevity and optimal performance of your Creative SBS E2500 speaker system, follow these maintenance guidelines:

• Rensning: Use a soft, dry cloth to wipe down the surfaces of the subwoofer and satellite speakers. Avoid using abrasive cleaners, waxes, or solvents as they may damage the finish.
• Støvforebyggelse: Keep the speakers in a clean, dust-free environment. Dust can accumulate in vents and affect performance.
• Ventilation: Ensure proper ventilation around the subwoofer to prevent overheating. Do not block any ventilation openings.
• Kabelstyring: Hold kablerne organiseret og uden viklede ledninger for at forhindre skader og sikre stabile forbindelser.
• Undgå fugt: Do not expose the speaker system to water or excessive moisture. This product is not waterproof.
• Temperatur: Operate and store the system within recommended temperature ranges. Avoid extreme heat or cold.

Fejlfinding

If you encounter issues with your Creative SBS E2500 speaker system, refer to the following common problems and solutions:

Specifikationer

Figur 6: Subwooferens dimensioner.

Garanti og support

The Creative SBS E2500 speaker system comes with a 1 års garanti. For warranty claims or technical support, please contact Creative Technology customer service.

Fabrikant: Creative Technology, CREATIVE LABS PTE LTD 31 INTERNATIONAL BUSINESS PARK #03-01 CREATIVE RESOURCE SINGAPORE 609921

Importør (Indien): Fortune Marketing Private Limited

For further assistance, please refer to the official Creative support webwebstedet eller kontaktoplysningerne på dit garantikort.
