Ipega PG-9078 Universal Trådløs Bluetooth Spilcontroller Brugermanual

1. Introduktion

This manual provides detailed instructions for the setup, operation, maintenance, and troubleshooting of your ipega PG-9078 Universal Wireless Bluetooth Game Controller. Please read this manual carefully before use to ensure proper functionality and to extend the lifespan of your device. The PG-9078 is designed to provide a versatile gaming experience across multiple platforms including Android, iOS, Tablet, TV, and PC.

ipega PG-9078 controller, detachable phone bracket, USB charging cable, and user manual laid out on a white surface.

Figure 1.1: Package Contents - ipega PG-9078 Controller, detachable bracket, USB cable, and user manual.

2. Opsætning

2.1. Opladning af controlleren

Before initial use, fully charge the controller. Connect the supplied USB cable to the Micro-USB port on the controller and the other end to a USB power source (e.g., computer USB port, USB wall adapter). The charging indicator light will illuminate during charging and turn off when fully charged.

2.2. Attaching the Phone Bracket

The PG-9078 comes with a detachable bracket for holding smartphones. To attach, align the bracket's base with the slot on the top of the controller and slide it into place until it clicks securely. To remove, gently press the release button (if present) or slide it off in the opposite direction.

ipega PG-9078 controller with the phone bracket extended upwards, ready to hold a smartphone.

Figure 2.1: Controller with Phone Bracket Attached.

2.3. Bluetooth-parring

The pairing process varies slightly depending on the operating system. Ensure the controller is charged before attempting to pair.

Android/PC Mode: Press and hold the 'X' button + 'HOME' button simultaneously until the indicator light flashes rapidly. On your device, enable Bluetooth, search for "PG-9078" and select it to pair.
iOS-tilstand: Press and hold the 'Y' button + 'HOME' button simultaneously until the indicator light flashes rapidly. On your iOS device, enable Bluetooth, search for "PG-9078" and select it to pair.
Direct Play Mode (Android/iOS): For certain games, press and hold the 'A' button + 'HOME' button. This mode is designed for direct connection without mapping.
PC Wired Mode: Connect the controller directly to your PC using the USB cable. The controller will be recognized as a standard gamepad.

ipega PG-9078 controller with a smartphone securely mounted in its bracket, displaying a game on the screen.

Figure 2.2: Controller Paired with a Smartphone.

3. Betjeningsvejledning

3.1. Controllerlayout

Familiarize yourself with the buttons and controls of the PG-9078 controller:

Venstre analoge pind: Movement control.
D-Pad (retningspad): Retningsbestemt input.
SELECT -knap: Function varies by game/system.
HJEM knap: Power on/off, pairing mode, return to home screen.
START-knap: Function varies by game/system.
Højre analoge pind: Camera control or secondary movement.
Handlingsknapper (A, B, X, Y): Primary game actions.
Shoulder Buttons (L1, R1): Top triggers.
Trigger Buttons (L2, R2): Bottom triggers.

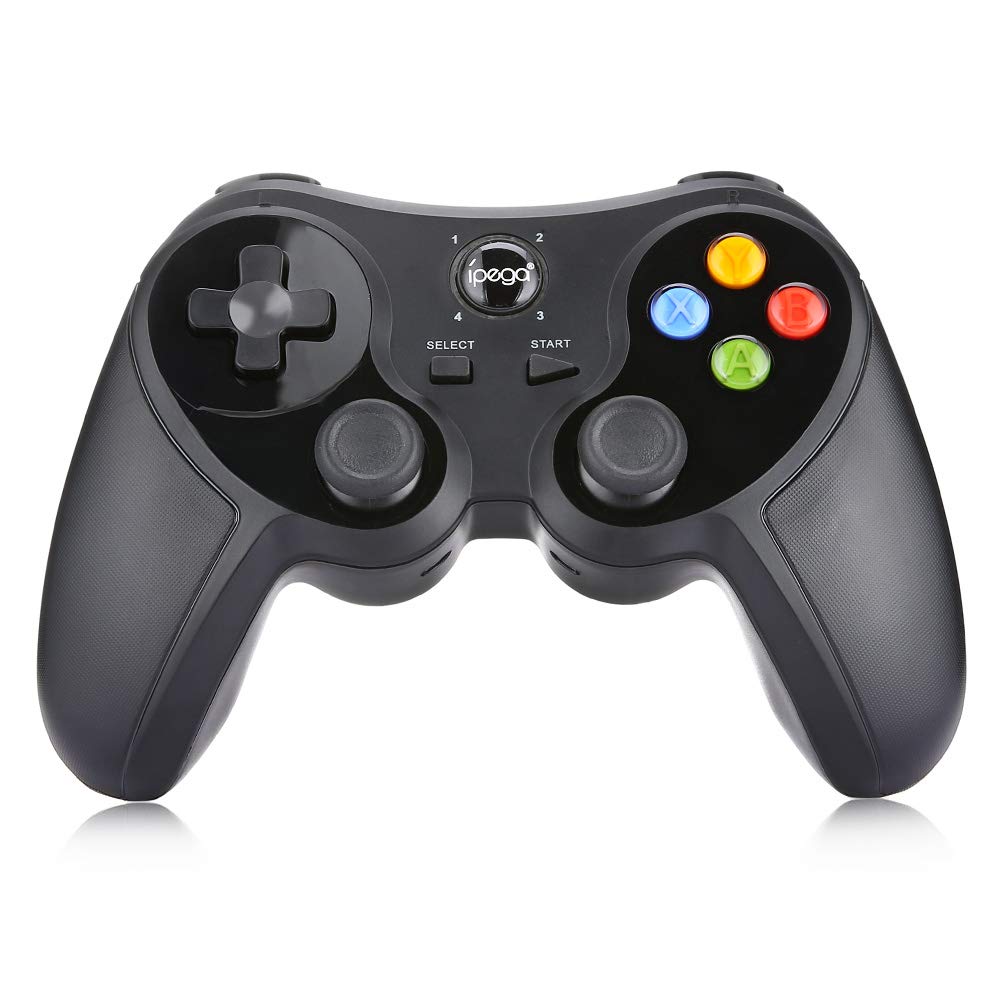

Front view of the ipega PG-9078 controller, showing all buttons, D-pad, and analog sticks.

Figur 3.1: Forside View of the Controller.

3.2. Spiloplevelse

Once paired, the controller should be recognized by compatible games and applications. For optimal performance, ensure your device's operating system and game applications are up to date. Some games may require in-game controller settings adjustments.

A pair of hands holding the ipega PG-9078 controller with a smartphone mounted, demonstrating a comfortable grip during gameplay.

Figure 3.2: Hands-on View of the Controller in Use.

4. Vedligeholdelse

Rensning: Brug en blød, tør klud til at rengøre controlleren. Ved genstridigt snavs, gnid letamp En klud kan bruges, men sørg for, at der ikke kommer fugt ind i enheden. Brug ikke skrappe kemikalier eller slibende rengøringsmidler.
Opbevaring: Store the controller in a cool, dry place away from direct sunlight and extreme temperatures. If storing for extended periods, ensure the battery is partially charged (around 50%) to preserve battery health.
Batteripleje: Avoid fully discharging the battery frequently. Recharge the controller when the low battery indicator appears. Do not attempt to replace the internal battery yourself.

5. Fejlfinding

Problem	Mulig årsag	Løsning
Controlleren tænder ikke.	Lavt batteri.	Oplad controlleren helt.
Kan ikke parres via Bluetooth.	Incorrect pairing mode; Bluetooth interference; device not discoverable.	Ensure correct pairing mode (Android/iOS) is selected. Turn off and on Bluetooth on your device. Move closer to the device. Try resetting the controller (if a reset button is available, usually a small pinhole).
Buttons are unresponsive or laggy.	Low battery; software conflict; distance from device.	Recharge the controller. Restart the game/device. Ensure no other Bluetooth devices are causing interference.
Controlleren afbryder ofte forbindelsen.	Lavt batteri; afstand fra enhed; interferens.	Charge the controller. Stay within effective Bluetooth range. Reduce wireless interference.

6. Specifikationer

Model: PG-9078
Forbindelse: Bluetooth trådløs
Kompatibilitet: Android, iOS, Tablet, TV, PC
Input bindtage: DC5V
Indgangsstrøm: 500mA
Arbejdsstrøm: 30mA
Fremstille: Fremstillet i Kina

Tilbage view of the ipega PG-9078 controller, showing the label with input voltage, working current, and 'Made in China' text.

Figure 6.1: Controller Back Panel with Specifications.

7. Garanti og support

For garantioplysninger og teknisk support henvises til den dokumentation, der blev leveret ved køb, eller kontakt din forhandler. Gem din købsbevis i tilfælde af garantikrav.
