Electrolux Masterblender Explore 7 Blender User Manual

1. Introduktion

Welcome to the user manual for your new Electrolux Masterblender Explore 7 Blender, model E7TB1-2MTL. This appliance is designed to provide efficient and versatile blending for a variety of culinary tasks. Featuring exclusive Power-T 10 Pro® Technology, it combines intelligent speed control, jar inclination, and a unique blade angle to ensure ingredients are blended smoothly, reducing air bubble formation and delivering superior texture results. Please read this manual thoroughly before first use to ensure safe and optimal operation.

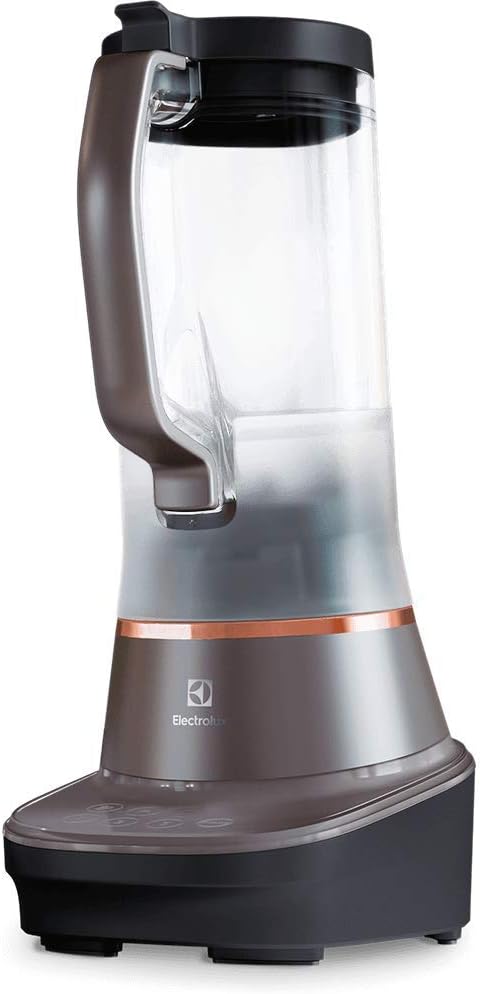

Figure 1: Electrolux Masterblender Explore 7 Blender (Model E7TB1-2MTL)

This image displays the Electrolux Masterblender Explore 7 Blender from a front-side perspective, highlighting its sleek design and the transparent Tritan jar. The base is dark grey with a copper accent ring, and the control panel is visible at the front.

2. Vigtige sikkerhedsinstruktioner

For at mindske risikoen for brand, elektrisk stød eller personskade skal du altid følge disse grundlæggende sikkerhedsforanstaltninger:

• Læs alle instruktioner før brug af apparatet.
• Nedsænk ikke motorbasen i vand eller andre væsker.
• Tag altid blenderens stik ud af stikkontakten, når den ikke er i brug, før du samler eller adskiller dele, og før du rengør den.
• Undgå kontakt med bevægelige dele.
• Brug ikke noget apparat med en beskadiget ledning eller stik, eller efter at apparatet ikke fungerer korrekt eller er blevet tabt eller beskadiget på nogen måde.
• Brug af tilbehør, der ikke anbefales eller sælges af producenten, kan forårsage brand, elektrisk stød eller personskade.
• Må ikke bruges udendørs.
• Lad ikke ledningen hænge ud over kanten af ​​bordet eller bordpladen eller røre ved varme overflader.
• Hold hænder og redskaber væk fra beholderen under blendning for at forhindre risikoen for alvorlig personskade eller beskadigelse af blenderen. En skraber må kun bruges, når blenderen ikke kører.
• Bladene er skarpe. Håndter med forsigtighed.
• Sørg for, at låget er forsvarligt låst på plads, før du bruger apparatet.
• Dette apparat er kun til husholdningsbrug.

3. Produktkomponenter

Your Electrolux Masterblender Explore 7 consists of the following main components:

• Motorbase: Indeholder motor og kontrolpanel.
• Tritan Jar: Durable 2-liter capacity blending jar.
• Bladsamling: Six unique blades for efficient blending.
• Låg: Securely seals the jar during operation.
• Measuring Cup (integrated into lid): For adding ingredients during blending.

Figur 2: Side view of the blender, showing the jar and base.

Dette billede giver en side view of the Electrolux Masterblender Explore 7, illustrating the ergonomic handle of the Tritan jar and the overall profile of the appliance. The dark grey base and transparent jar are clearly visible.

4. Opsætning og første brug

4.1 Udpakning

Carefully remove all components from the packaging. Retain the packaging for future storage or transport. Check for any damage during transit.

4.2 Indledende rengøring

Before first use, wash the Tritan jar, lid, and blade assembly in warm, soapy water. Rinse thoroughly and dry all parts. The motor base should be wiped with a damp klæde. Nedsænk ikke motorbasen i vand.

4.3 Montering

1. Placer motorbasen på en stabil, flad og tør overflade.
2. Ensure the blade assembly is securely attached to the bottom of the Tritan jar.
3. Place the assembled jar onto the motor base. Ensure it is seated correctly and locked into position.
4. Place the lid securely onto the jar. Ensure the measuring cup is inserted into the lid opening.

Figur 3: Øverst view of the blender with the lid in place.

Dette billede viser et set ovenfra og ned view of the Electrolux Masterblender Explore 7 with its lid securely placed on the Tritan jar. The design of the lid and the opening for the measuring cup are visible.

5. Betjeningsvejledning

5.1 Kontrolpanel overview

The blender features an intuitive touch control panel with various functions:

Figur 4: Forside view highlighting the touch control panel.

This image focuses on the front of the Electrolux Masterblender Explore 7, clearly displaying its touch control panel. The various buttons for speed settings and the Pulse function are illuminated.

• Speed Settings (1, 2, 3): Select desired blending speed.
• Puls funktion: Provides short bursts of power for controlled blending, ideal for delicate ingredients or achieving specific textures.
• Forudindstillede programmer: (Icons for Ice Crush, Smoothie, Soup/Hot Liquid) These buttons activate optimized blending cycles for common tasks.

Figure 5: Close-up of the illuminated control panel.

A detailed close-up of the Electrolux Masterblender Explore 7's control panel, showing the illuminated touch buttons for various functions including speed settings (1, 2, 3), Pulse, and pre-set programs for ice crushing, smoothies, and hot liquids.

5.2 Blandingsproces

1. Sørg for, at blenderen er taget ud af stikkontakten, før du tilsætter ingredienser.
2. Add ingredients to the Tritan jar. For best results, add liquids first, then soft ingredients, followed by harder ingredients and ice. Do not overfill past the maximum fill line.
3. Sæt låget sikkert på glasset.
4. Plug the blender into a 220V power outlet.
5. Select your desired speed setting (1, 2, or 3) or a pre-set program. For short bursts, use the Pulse function.
6. Lad blenderen køre indtil den ønskede konsistens er opnået.
7. Once blending is complete, turn off the blender and unplug it from the power outlet.
8. Fjern forsigtigt låget og hæld indholdet ud.

Forsigtighed: Do not operate the blender continuously for more than 2 minutes. Allow it to cool down for 10 minutes before resuming operation.

6. Pleje og vedligeholdelse

6.1 Rengøring

Regelmæssig rengøring sikrer din blenders levetid og hygiejne.

1. Tag stikket ud: Tag altid stikket ud af blenderen før rengøring.
2. Jar and Lid: Wash the Tritan jar and lid with warm, soapy water immediately after use. You can also add a small amount of water and a drop of dish soap to the jar, secure the lid, and run the blender on a low setting for a few seconds for quick cleaning. Rinse thoroughly.
3. Bladsamling: Handle the blades with extreme care as they are very sharp. Use a brush to clean around the blades if necessary.
4. Motorbase: Tør motorbasen af ​​med adamp klud. Motorbasen må ikke nedsænkes i vand eller andre væsker.
5. Tørring: Sørg for, at alle dele er helt tørre, før de monteres igen eller opbevares.

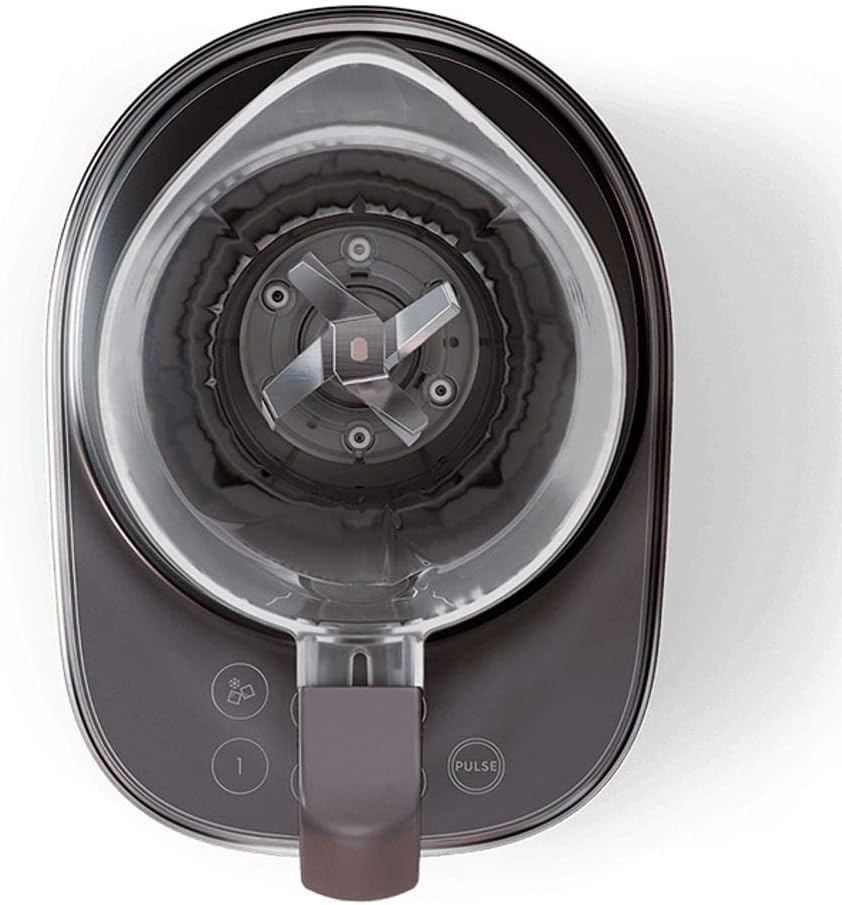

Figur 6: Øverst view showing the blade assembly inside the jar.

Dette billede viser et set ovenfra og ned view into the Tritan jar of the Electrolux Masterblender Explore 7, clearly showing the six-blade assembly at the bottom. This view is useful for understanding how to clean the blades.

6.2 Opbevaring

Store the blender in a clean, dry place, away from direct sunlight and heat sources. Ensure the cord is neatly wrapped and not kinked.

7. Fejlfinding

If you encounter any issues with your blender, please refer to the following table for common problems and solutions.

8. Tekniske specifikationer

Figure 7: Blender dimensions and weight.

This image illustrates the key dimensions (height, width, depth) and weight of the Electrolux Masterblender Explore 7 Blender, providing a clear visual reference for its physical size.

9. Garanti og support

9.1 Garantioplysninger

Electrolux products are manufactured to the highest quality standards. This product comes with a standard manufacturer's warranty against defects in materials and workmanship. Please refer to the warranty card included in your product packaging for specific terms, conditions, and duration of the warranty. Keep your purchase receipt as proof of purchase.

9.2 Kundesupport

For technical assistance, spare parts, or any questions regarding your Electrolux Masterblender Explore 7, please contact Electrolux Customer Service.

You can find contact details for your region on the official Electrolux webwebsted: www.electrolux.com.
