1. Introduktion
This manual provides detailed instructions for the installation, operation, and maintenance of your Lockly Secure Plus Bluetooth Smart Door Lock. Please read this manual thoroughly before installation and use to ensure proper function and security.

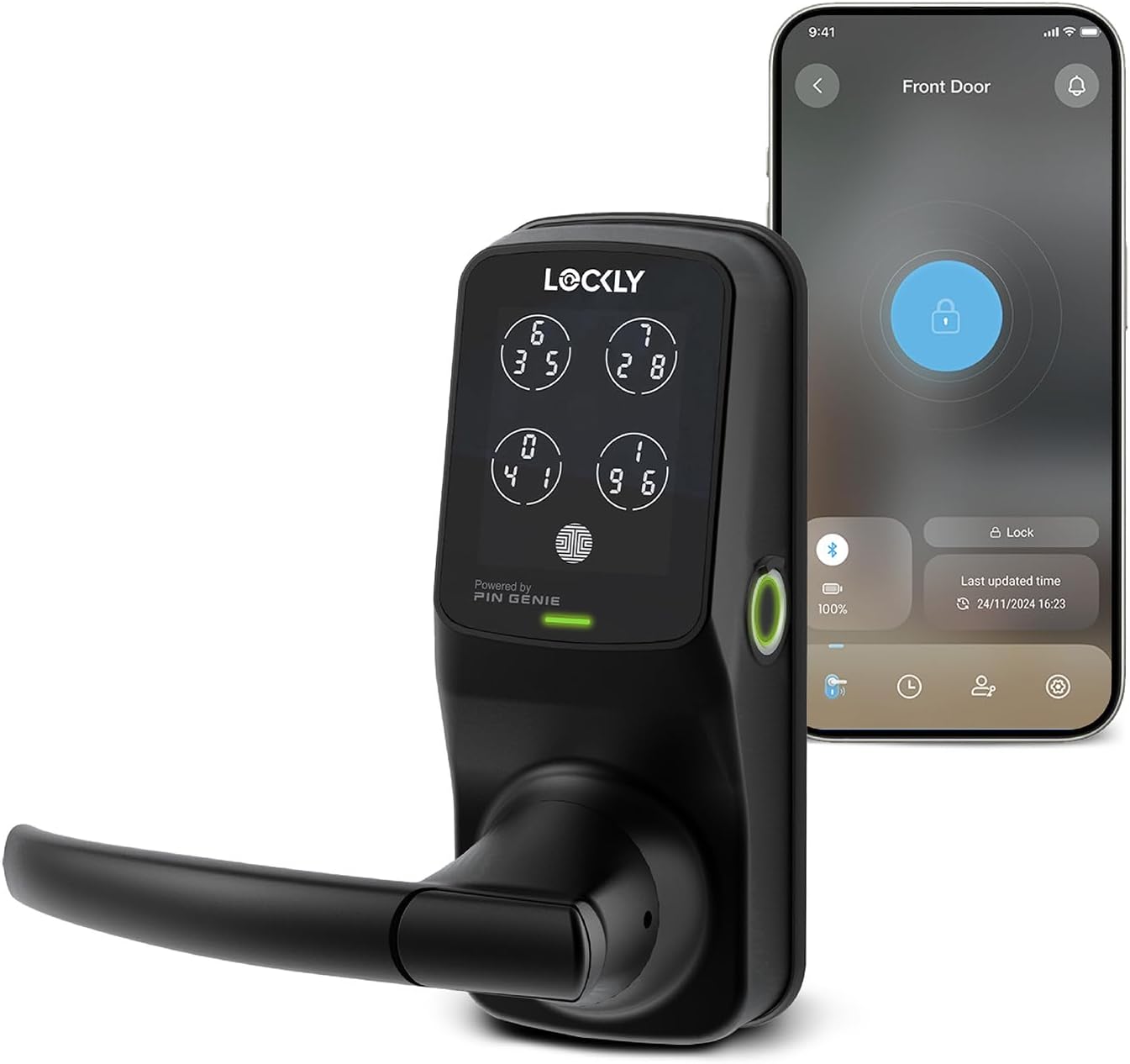

Image 1.1: The Lockly Secure Plus Smart Door Lock shown with its accompanying smartphone application interface.
2. Opsætning og installation
2.1 Pakkens indhold
Bekræft at alle komponenter er til stede i din pakke:
- Smart Lock Assembly (Exterior and Interior)
- 4 x AA batterier
- 2 x Backup Keys
- Installationshardware (skruer, slutblege osv.)
- Installationsvejledning/skabelon
2.2 Dørkompatibilitet
Før installation skal du sørge for, at din dør opfylder følgende specifikationer:
- Door Thickness: 1 3/8" to 2" (35mm to 50mm)
- Backset: 2 3/8" or 2 3/4" (60mm or 70mm)
- Cross Bore Diameter: 2 1/8" (54mm)
- Edge Bore Diameter: 1" (25mm)
Image 2.1: Diagram illustrating the required door measurements for proper installation of the Lockly Secure Plus.
2.3 Installationstrin
Follow the detailed instructions provided in the separate installation guide. A video introduction for installation is also available. Key steps include:
- Prepare the door and frame according to the template.
- Installer låsen og slutbleget.
- Installer den udvendige enhed.
- Installer den indvendige enhed.
- Tilslut kablet.
- Install the batteries (4 x AA batteries are included).
- Perform door handing and initial setup.
3. Betjeningsvejledning
The Lockly Secure Plus offers multiple methods for unlocking and managing access.
3.1 Oplåsningsmetoder
- PIN Genie Digital Keypad: Enter your secure PIN on the dynamic keypad. The numbers on the keypad shuffle after each use to prevent code guessing.
- 3D Biometric Fingerprint Sensor: Place your registered finger on the sensor for quick access. The sensor recognizes fingerprints in approximately 0.3 seconds. Up to 99 fingerprints can be stored.
- Lockly App Control: Use the Lockly smartphone application to remotely lock and unlock your door.
- Stemmestyring: With the optional Lockly Secure Link Wi-Fi Hub, you can use Amazon Alexa or Google Assistant-enabled devices to control your lock.
- Fysisk nøgle: Use the provided physical keys as a backup unlocking method.
- Offline Access Codes (OAC): Generate temporary access codes that can be used without an internet connection.
Billede 3.1: Overview of the various unlocking methods available for the Lockly Secure Plus smart lock.
3.2 PIN Genie Digital Keypad
The patented PIN Genie keypad features four virtual buttons, each containing three different numbers. The position of these numbers changes after every use, making it difficult for onlookers to guess your PIN.

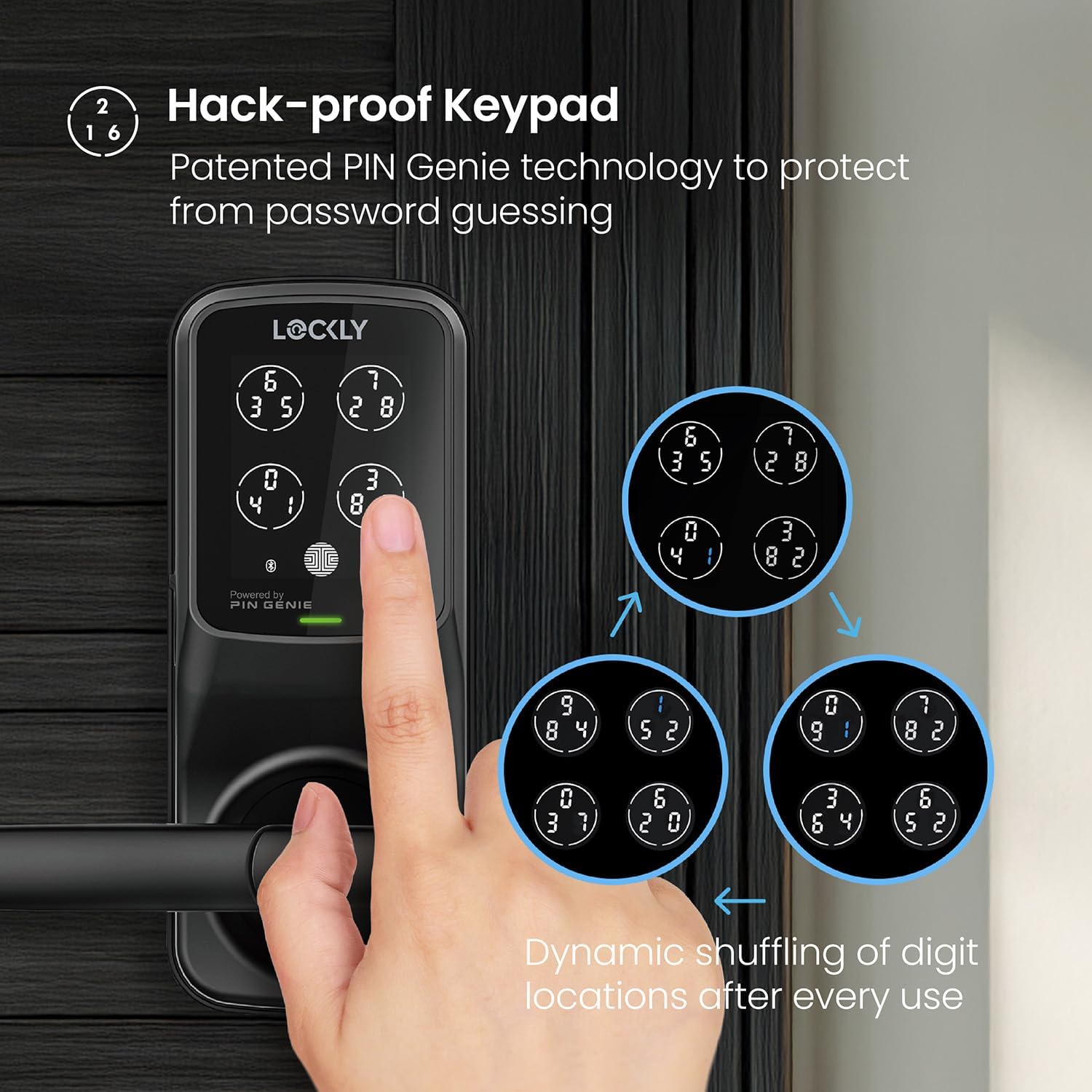

Image 3.2: The PIN Genie keypad demonstrating the dynamic shuffling of digits for enhanced security.
3.3 3D Biometric Fingerprint Sensor
The 3D biometric fingerprint sensor allows for quick and secure access. It features self-learning AI to improve recognition over time and can store up to 99 unique fingerprints.
Image 3.3: A user unlocking the Lockly Secure Plus using the integrated 3D biometric fingerprint sensor.
3.4 Lockly Mobile Application
The Lockly App provides comprehensive control and monitoring features:
- Remote lock and unlock functionality.
- Notifikationer i realtid for låseaktivitet.
- Access history logs.
- Management of eKeys and eBadges for granting revocable access.
- Generation of Offline Access Codes.
Image 3.4: The Lockly mobile application showing the access history and control options.
3.5 Programmable Auto-Lock
The auto-lock feature can be customized to automatically lock the door after a set period (5 to 300 seconds) following an unlock event.
Image 3.5: The Lockly app interface for configuring the programmable auto-lock feature.
3.6 Voice Control (Optional Wi-Fi Hub Required)
To enable voice control with Amazon Alexa or Google Assistant, the optional Lockly Secure Link Wi-Fi Hub is required. Once installed and configured, enable the Lockly Action/Skill in your voice assistant app to use voice commands for locking, unlocking, and checking door status.
Image 3.6: A user interacting with a voice assistant to control the Lockly smart lock, with the optional Wi-Fi Hub.
3.7 Velkomsttilstand
The Welcome Mode feature allows you to preset your door to be unlocked during specific times, useful for expecting guests or service personnel. This mode can be configured with recurring schedules and first unlock verification.
Image 3.7: The Lockly app interface for setting up and managing Welcome Mode.
4. Vedligeholdelse
4.1 Batteristyring
The Lockly Secure Plus operates on 4 AA alkaline batteries, providing up to 12 months of battery life. The Lockly app will provide low battery alerts. In case of complete battery depletion, a 9V battery can be used for emergency power supply via the contacts on the exterior unit.
Image 4.1: Illustration of the battery compartment and 9V emergency power supply contacts.
4.2 Rengøring
To maintain the appearance and functionality of your smart lock, wipe the exterior surfaces with a soft, damp klud. Undgå at bruge slibende rengøringsmidler eller opløsningsmidler, da disse kan beskadige overfladen og de elektroniske komponenter.
5. Fejlfinding
This section addresses common issues you might encounter with your Lockly Secure Plus.
- Låsen svarer ikke: Check battery levels. If batteries are low, replace them or use the 9V emergency power.
- PIN Genie keypad not lighting up: Ensure the lock has power. If the issue persists, contact customer support.
- Fingerprint sensor not recognizing: Sørg for, at din finger er ren og tør. Registrer dit fingeraftryk igen, hvis problemerne med genkendelsen fortsætter.
- Problemer med app-forbindelse: Ensure your smartphone's Bluetooth is enabled and you are within range. If using the Wi-Fi Hub, check its power and internet connection.
- Automatisk låsning aktiveres ikke: Verify the auto-lock settings in the Lockly app. Ensure the door is fully closed.
For more complex issues, refer to the online support resources or contact Lockly customer service.
6. Specifikationer
| Feature | Detalje |
|---|---|
| Mærke | Lockly |
| Modelnavn | Lockly Secure Plus |
| Varemodelnummer | PGD628F |
| UPC | 850003895116 |
| Låsetype | Smart Lock |
| Særlige funktioner | Biometric, Touchscreen, Patented PIN Genie Technology, Bluetooth, Smartphone, eKeys & eBadges, Offline Access Codes™ |
| Materiale | Zinklegering |
| Farve | Mat sort |
| Finish Type | Mat sort |
| Varedimensioner (L x B x H) | 7.8 x 2.9 x 7.2 tommer |
| Varens vægt | 6.48 pund |
| Strømkilde | 4 x AA alkaliske batterier (inkluderet) |
| Forbindelsesprotokol | Bluetooth |
| Controller type | Amazon Alexa, iOS (with optional Wi-Fi Hub) |
| Inkluderede komponenter | Smart Lock, 4*AA Battery, 2 Backup keys |
| Vejrbestandighed | IP54 Vejrbestandig |
| Holdbarhedstest | 72 Hours Salt Spray Test, 2,200 N Appearance Pressure Resistance, 250,000 cycles Latchbolt Test |
7. Garanti og support
7.1 Produktgaranti
The Lockly Secure Plus comes with a 2-year limited warranty from the date of purchase. This warranty covers manufacturing defects and malfunctions under normal use. Please retain your proof of purchase for warranty claims.
7.2 Kundesupport
Lockly provides professional customer service and lifetime 24/7 technical support. If you have any questions, require assistance with installation, or need troubleshooting help, please contact us via phone, email, or online chat.
Image 7.1: Lockly offers lifetime 24/7 customer support for all its products.
