1. Introduktion
Thank you for choosing the Onforu 55W 5000 LM LED Motion Sensor Floodlight. This manual provides essential information for the safe installation, operation, and maintenance of your floodlight. Please read these instructions carefully before installation and retain them for future reference.
Front view of the Onforu 3-head LED motion sensor floodlight.
2. Sikkerhedsoplysninger
- Elektrisk sikkerhed: Installationen skal udføres af en kvalificeret elektriker i overensstemmelse med alle lokale og nationale el-forskrifter. Sørg for, at strømforsyningen er afbrudt før installation eller vedligeholdelse.
- Jording: This product must be properly grounded to prevent electric shock.
- Voltage: Sørg for, at forsyningen voltage matches the floodlight's requirements (230 Volts).
- Montering: Mount the floodlight securely on a stable surface. Do not install on unstable or vibrating surfaces.
- Driftstemperatur: Do not operate the floodlight outside its specified temperature range.
- Vandtæthed: The floodlight is IP65 rated, suitable for outdoor use in rain, hail, and snow. However, do not submerge the unit in water. The sensor is IP44 rated.
- Lyskilde: Do not stare directly into the LED light source when illuminated, as it may cause eye strain or damage.
3. Produktet er slutview
The Onforu 55W LED Motion Sensor Floodlight features a robust design with three adjustable heads and an integrated PIR motion sensor. It is designed for outdoor security lighting, providing bright, cool white illumination.
Nøglefunktioner:
- Høj lysstyrke: 5000 Lumens output with 120 LED beads.
- Energieffektiv: 55W power consumption, saving up to 80% energy.
- Justerbare hoveder: Three light heads can be adjusted vertically (90°) and side heads horizontally (270°) for wide coverage.
- Bevægelsessensor (PIR): Detects movement with adjustable sensitivity, lighting duration, and ambient light settings.
- Holdbar og vandtæt: IP65 rated aluminum housing and tempered glass for outdoor use.
- Effektiv varmeafledning: Die-cast aluminum construction ensures extended lifespan.
Internal components showing LED beads and light transmission design.
4. Specifikationer
| Feature | Specifikation |
|---|---|
| Mærke | Onforu |
| Modelnummer | BDB55G-3 |
| Strømforbrug | 55 watt |
| Lysstrøm | 5000 lumen |
| Farvetemperatur | 6500 Kelvin (Cool White) |
| Voltage | 230 volt |
| Materiale | Die-cast Aluminum, Tempered Glass |
| Ingress Protection (IP) Rating | IP65 (Floodlight), IP44 (Sensor) |
| Bevægelsessensordetekteringsvinkel | 180° |
| Afstand til registrering af bevægelsessensor | 6-12 meter (justerbar) |
| Lighting Duration (TIME) | 10 seconds to 7 minutes (adjustable) |
| Gennemsnitlig levetid | 50,000 timer |
| Produktdimensioner | 27.2 x 14.8 x 12 cm |
| Varens vægt | 840 gram |
| Energieffektivitetsklasse | F |
EU Energy Label. For more details, scan the QR code or visit eprel.ec.europa.eu/qr/2366865.
5. Installation
Before beginning installation, ensure the main power supply is turned off at the circuit breaker to prevent electric shock.
5.1 Monteringssted
- Choose a mounting location that provides the desired coverage area and is within reach of the electrical wiring.
- The ideal mounting height is between 3 to 5 meters (9.84 ft - 16.4 ft) for optimal motion detection and light distribution.
- Avoid mounting near heat sources or objects that could cause false triggers for the motion sensor.

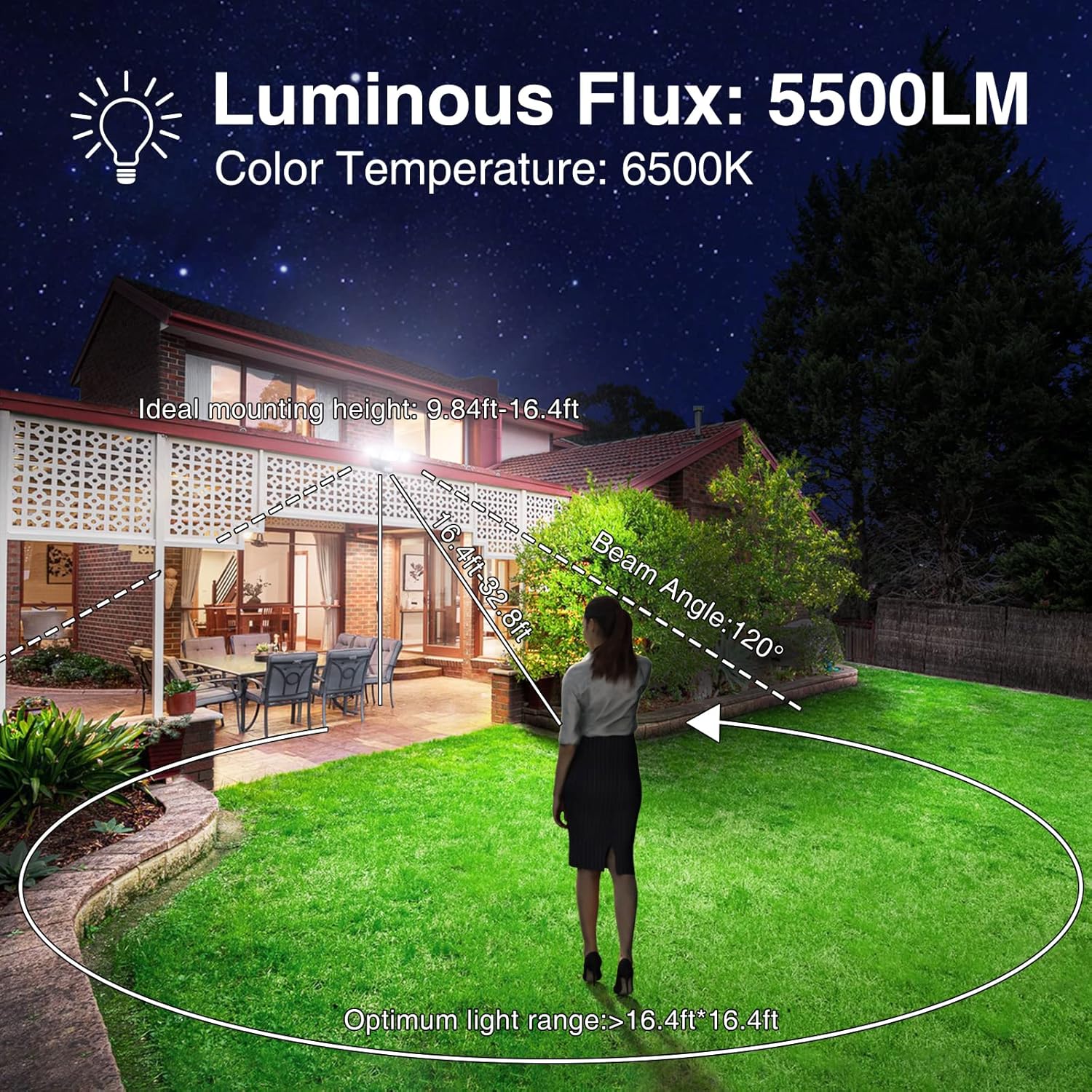

Ideal mounting height and light coverage.
5.2 Ledningsinstruktioner
The floodlight comes with pre-stripped wires for connection. Follow the standard electrical wiring color codes:
- Brun tråd: Live (L)
- Blå ledning: Neutral (N)
- Green/Yellow Wire: Ground (⍃)
Connect these wires to your household electrical circuit accordingly. Ensure all connections are secure and insulated. It is recommended to use a waterproof junction box for outdoor connections.
Wiring diagram and product dimensions.
5.3 Monteringstrin
- Marker borepunkterne på væggen eller tagudhænget ved hjælp af monteringsbeslaget som skabelon.
- Bor huller og isæt passende vægdyvler (hvis nødvendigt).
- Secure the mounting bracket to the surface with screws.
- Connect the electrical wires as described in Section 5.2.
- Attach the floodlight fixture to the mounting bracket and secure it.
- Adjust the angle of the light heads and the motion sensor to cover the desired areas.
Wall and eave mounting options.
6. Betjening
The floodlight features a PIR motion sensor with three adjustable settings: TIME, LUX, and SENS.
Motion sensor adjustment knobs for TIME, LUX, and SENS.
6.1 Adjusting Light Heads
The three light heads can be independently adjusted to direct light where needed:
- The central head can be moved vertically up or down (90°).
- The two side heads can be moved vertically up or down (90°) and rotated horizontally left or right (270°).
6.2 Motion Sensor Settings
Use the three rotary knobs on the motion sensor to configure its behavior:
- TIME (Lighting Duration): Adjusts how long the light stays on after motion is detected. The duration can be set from 10 seconds to 7 minutes. Rotate the knob clockwise to increase the duration and counter-clockwise to decrease it.
- LUX (følsomhed over for omgivende lys): Determines the ambient light level at which the sensor becomes active.
- Rotate towards the 'sun' symbol for 24-hour operation (day and night).
- Rotate towards the 'moon' symbol for night-only operation (activates only in darkness).
- SENS (Detektionsfølsomhed): Adjusts the motion detection distance. Rotate the knob to increase or decrease the detection range, typically from 6 to 12 meters.
Motion sensor detection range (180°) and distance (6-12m).
6.3 Ansøgning Eksamples
The floodlight effectively illuminates outdoor areas such as driveways and entrances.
7. Vedligeholdelse
- Rensning: Periodically clean the floodlight's surface and sensor lens with a soft, damp klud. Brug ikke slibende rengøringsmidler eller opløsningsmidler. Sørg for, at strømmen er slukket, før rengøring.
- Inspektion: Regularly check for any signs of damage to the housing, wiring, or mounting. If damage is found, disconnect power and have it inspected by a qualified technician.
- Ingen dele, der kan serviceres af brugeren: The LED light source is not replaceable. Do not attempt to open or repair the floodlight yourself.
Robust metal housing with heat sink fins for durability.
Efficient heat dissipation mechanism.
8. Fejlfinding
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Lyset tændes ikke. | No power supply; LUX setting too low; Sensor not detecting motion. | Check power connection; Adjust LUX setting towards 'sun' for testing; Verify sensor is aimed correctly and SENS is adequate. |
| Lyset forbliver tændt konstant. | Continuous motion detected; LUX setting too high (always 'sun'); Wiring error. | Check for obstructions or constant movement in detection zone; Adjust LUX setting towards 'moon'; Consult an electrician to check wiring. |
| Lyset tændes i løbet af dagen. | LUX setting too high (towards 'sun'). | Adjust LUX setting towards 'moon' to activate only in darkness. |
| Light turns off too quickly/slowly. | TIME setting incorrect. | Adjust TIME knob to desired duration (10 seconds to 7 minutes). |
| Motion sensor range is too short/long. | SENS-indstilling forkert. | Adjust SENS knob to increase or decrease detection distance. |
| Lyse flimrer. | Ustabil strømforsyning; Løs ledningsforbindelse. | Check power source stability; Ensure all wiring connections are tight. |
9. Garanti og support
Onforu products are manufactured to high-quality standards. For warranty information, please refer to the terms and conditions provided at the time of purchase or contact Onforu customer support.
For technical assistance or inquiries, please contact Onforu customer service through their official webwebstedet eller forhandleren, hvor produktet blev købt.
