QIACHIP Upgraded WiFi Universal Ceiling Fan Light Remote Control Kit Instruction Manual

1. Introduktion

This instruction manual provides detailed guidance for the installation, setup, and operation of your QIACHIP Upgraded WiFi Universal Ceiling Fan Light Remote Control Kit. This kit is designed to enhance the functionality of your existing ceiling fan by adding remote control, smart app control, and voice control capabilities.

2. Sikkerhedsoplysninger

Afbryd altid strømmen ved afbryderen før installation eller service.
Sørg for, at alle ledningsforbindelser er sikre og overholder lokale el-forskrifter.
Do not exceed the maximum electrical ratings of the receiver.
Keep the remote control and receiver away from water and excessive humidity.
Hvis du er usikker på nogen del af installationsprocessen, skal du kontakte en kvalificeret elektriker.

3. Pakkens indhold

2 x fjernbetjening
2 x modtager
2 x fjernbetjeningsstativ

4. Produktet er slutview

The QIACHIP kit consists of a compact receiver unit that integrates into your ceiling fan's canopy and a handheld remote control. The receiver enables wireless communication for fan speed control, light on/off, and timing functions. The system also supports integration with the Smart Life app and voice assistants like Amazon Alexa.

QIACHIP Universal WiFi Ceiling Fan Light Remote Control Kit components including two receivers, two remote controls, and wiring connectors.

Figur 4.1: Overview of the QIACHIP Ceiling Fan Remote Control Kit components.

Nærbillede view of the QIACHIP receiver unit.

Figur 4.2: Detaljeret view of the compact receiver unit.

5. Installation

The receiver unit (4.53 x 2.13 x 1.1 inches) is designed to fit within most standard ceiling fan canopies. Ensure your fan has sufficient space before proceeding. All wires are color-coded for straightforward connection.

Step-by-step guide showing the installation of the receiver into a ceiling fan canopy.

Figure 5.1: Physical installation steps for the receiver.

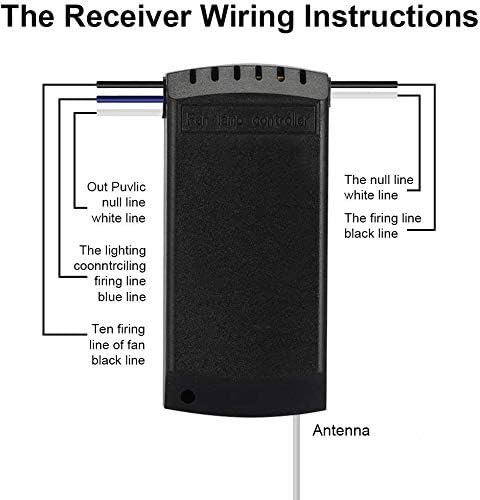

Detailed wiring diagram for the QIACHIP receiver, showing connections for light, fan, and power.

Figure 5.2: Receiver wiring instructions.

Simplified wiring diagram showing connections from main power to the receiver, and from the receiver to the fan and light.

Figure 5.3: Simplified wiring diagram for ceiling fan integration.

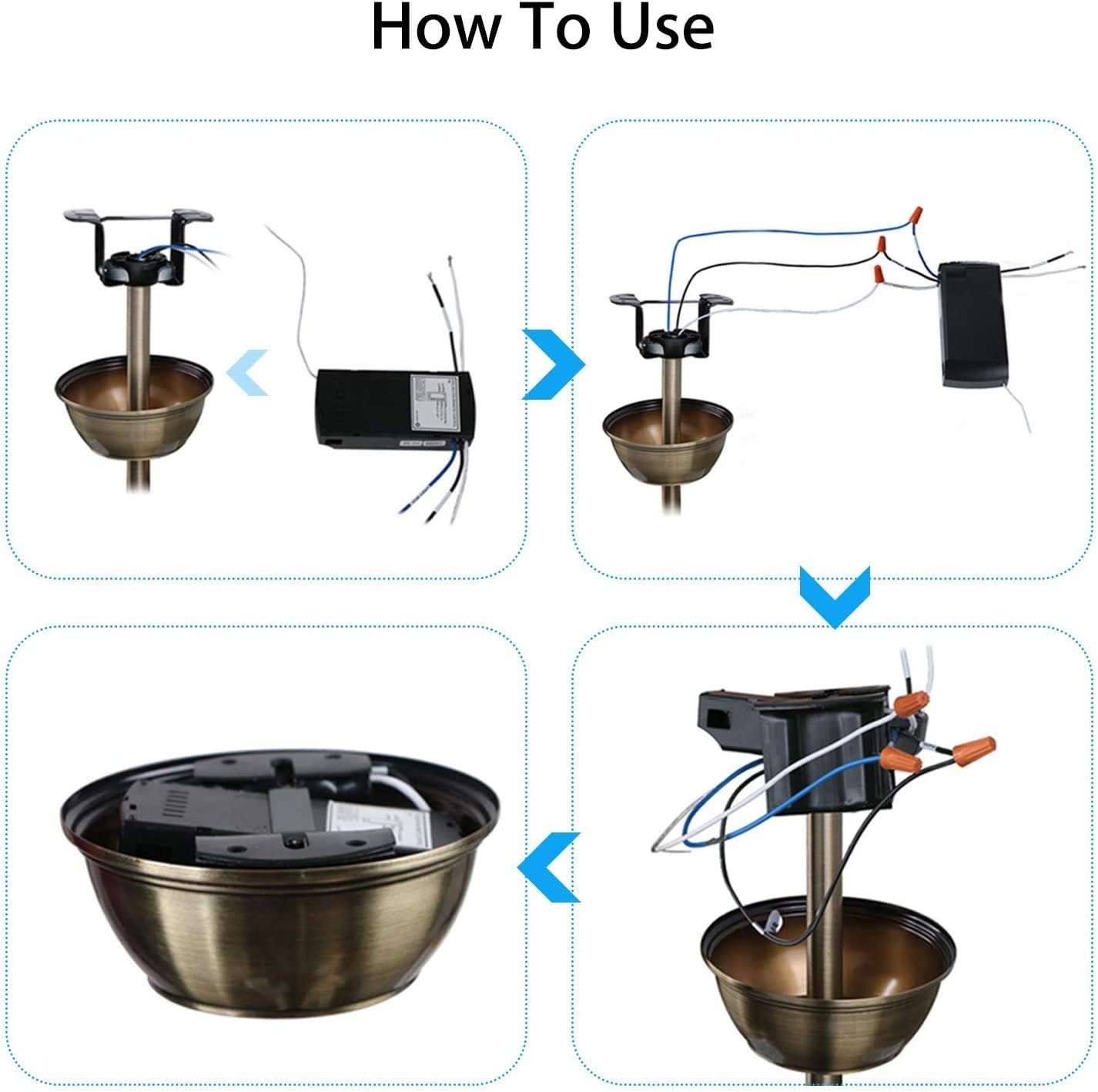

Four-panel image illustrating the process of installing the receiver into the fan's mounting bracket and connecting wires.

Figure 5.4: Step-by-step visual guide for receiver installation.

Installationsvideoguide

Video 5.1: Detailed installation and wiring instructions for the QIACHIP Universal WiFi Ceiling Fan Remote Control Kit.

6. Betjening af fjernbetjening

The remote control is pre-paired with the receiver at the factory. You can directly control your fan and light using the buttons on the remote.

MED / LOW / HI: Juster blæserhastigheden.
LYS TIL/FRA: Toggle the light.
STOP: Sluk for blæseren.
1H / 2H / 4H / 8H: Set fan timer for automatic shut-off.

Remote Control Demonstration

Video 6.1: A brief demonstration of the remote control's functions for the ceiling fan kit.

7. Smart Life App & Voice Control Setup

To enable smart control features, download the
