Mophorn 500W elektrisk pladesaks brugermanual

1. Introduktion

This manual provides essential information for the safe and effective operation, maintenance, and troubleshooting of your Mophorn 500W Electric Sheet Metal Shear. Please read this manual thoroughly before using the tool to ensure proper handling and to prevent injury or damage.

2. Sikkerhedsinstruktioner

ADVARSEL: Følg altid grundlæggende sikkerhedsforanstaltninger, når du bruger elektrisk værktøj, for at reducere risikoen for brand, elektrisk stød og personskade.

• Sikkerhed på arbejdsområdet: Hold dit arbejdsområde rent og godt oplyst. Rodede eller mørke områder indbyder til ulykker. Brug ikke elværktøj i eksplosive atmosfærer, f.eks. i nærheden af ​​brandfarlige væsker, gasser eller støv.
• Elektrisk sikkerhed: Elværktøjsstik skal passe til stikkontakten. Modificer aldrig stikket på nogen måde. Udsæt ikke elværktøj for regn eller våde forhold. Vand, der trænger ind i elværktøjet, øger risikoen for elektrisk stød.
• Personlig sikkerhed: Always wear eye protection. Use safety glasses or goggles. Wear appropriate personal protective equipment such as dust masks, non-skid safety shoes, hard hats, or hearing protection for appropriate conditions.
• Brug og pleje af værktøj: Tving ikke elværktøjet. Brug det korrekte elværktøj til din anvendelse. Tag stikket ud af strømkilden, før du foretager justeringer, skifter tilbehør eller opbevarer elværktøj.
• Opretholdelse: Få dit elværktøj efterset af en kvalificeret reparatør, der kun bruger identiske reservedele. Dette vil sikre, at elværktøjets sikkerhed opretholdes.

3. Produktet er slutview

The Mophorn 500W Electric Sheet Metal Shear is designed for efficient and precise cutting of various metal sheets. Its robust construction and powerful motor ensure reliable performance.

Samlet set view of the Mophorn 500W Electric Sheet Metal Shear, showcasing dens kompakte design og ergonomiske håndtag.

The powerful 500W full copper core motor ensures high performance and durability, supported by an efficient cooling system.

Equipped with a multi-element alloy steel cutting head for sharp and wear-resistant performance, and a sturdy aluminum alloy shell.

The high-quality plastic handle is ergonomically designed for comfortable and labor-saving operation.

Nøglefunktioner:

• Holdbart materiale: Multi-element alloy steel cutting head for strength and resistance, aluminum alloy shell for robustness.
• Kobbermotor: Smooth intake and exhaust system, excellent cooling performance, significantly improving motor durability.
• Ergonomisk håndtag: High-quality plastic handle designed for comfort and ease of use.
• Switch and Base Design: Slide switch for easy one-handed operation and a U-shaped stainless steel base for high strength and rust prevention.

4. Opsætning

Before first use, ensure the tool is properly assembled and all components are securely fastened. Inspect the cutting head for any damage or wear.

Refer to the dimensions for proper handling and storage. The tool measures approximately 8.6 inches (21.8 cm) in height, 8.2 inches (20.8 cm) in length, and 3.2 inches (8.1 cm) in width.

Connect the power cord to a suitable power outlet. Ensure the power supply matches the voltage requirements of the tool.

5. Betjeningsvejledning

The Mophorn Electric Sheet Metal Shear is designed for cutting various types of metal sheets. Always ensure the material is properly secured before cutting.

Utilize the convenient slide switch for easy operation. The self-locking switch allows for continuous use, and the stainless steel base provides stability and anti-rust properties.

This shear is widely used for cutting iron plates, steel plates, stainless steel plates, aluminum plates, and other similar materials.

Skæreprocedure:

1. Ensure the workpiece is stable and marked for cutting.
2. Hold the shear firmly with both hands, ensuring a secure grip on the ergonomic handle.
3. Align the cutting head with the marked line on the material.
4. Engage the slide switch to start the tool.
5. Apply steady, even pressure to guide the shear along the cutting line. Do not force the tool.
6. Once the cut is complete, release the switch and allow the tool to come to a complete stop before setting it down.

6. Vedligeholdelse

Regular maintenance ensures the longevity and optimal performance of your electric sheet metal shear.

Rensning:

• After each use, disconnect the tool from the power supply.
• Clean the cutting head and surrounding areas of any metal shavings or debris using a brush or compressed air.
• Tør værktøjets yderside af med en ren, tør klud.amp klæde. Brug ikke skrappe kemikalier eller slibende rengøringsmidler.

Udskiftning af kulbørste:

Carbon brushes are wear parts and need to be replaced periodically to maintain motor efficiency.

Locate the carbon brush caps on the motor housing. Unscrew the old carbon brushes and install new ones, ensuring they are properly seated.

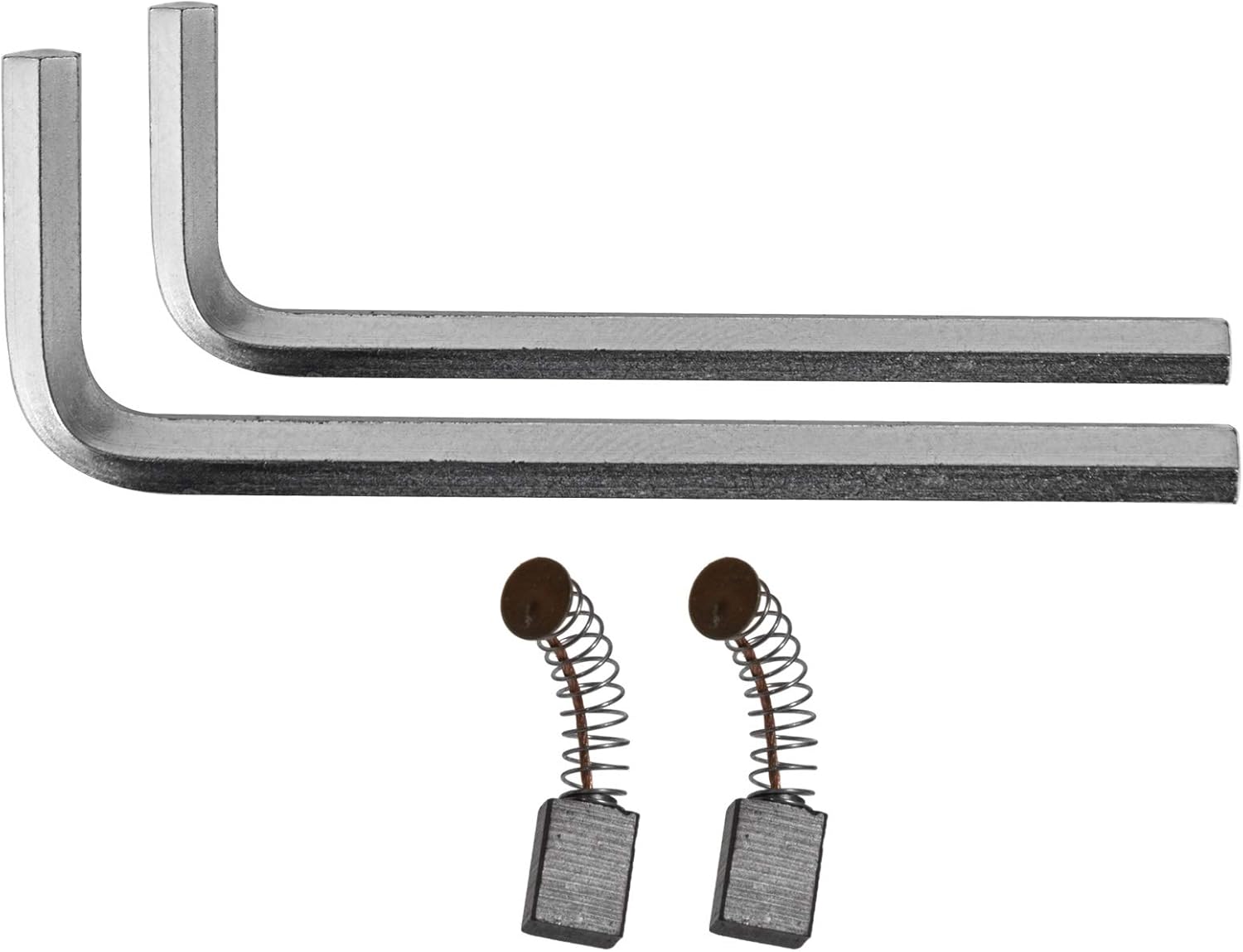

The tool comes with essential accessories, including hex keys for adjustments and spare carbon brushes for future replacement.

Opbevaring:

Store the tool in a dry, secure place, out of reach of children. Protect it from direct sunlight and extreme temperatures.

7. Fejlfinding

If you encounter issues with your Mophorn Electric Sheet Metal Shear, refer to the following common troubleshooting tips:

• Værktøjet starter ikke: Check if the power cord is securely plugged into a working outlet. Ensure the switch is fully engaged. Verify the power supply is active.
• Reduceret skæreydelse: Inspect the cutting head for wear or damage. Replace carbon brushes if they are worn out. Ensure the material being cut is within the tool's specified capacity.
• Overdreven støj eller vibration: Disconnect power and check for any loose parts or foreign objects. If the issue persists, professional inspection may be required.

For problems not listed here, or if the issue persists after attempting these solutions, please contact customer support.

8. Specifikationer

9. Garanti og support

For warranty information or technical support, please refer to the documentation included with your purchase or contact Mophorn customer service through their official channels. Keep your purchase receipt as proof of purchase for any warranty claims.
