1. Produktet er slutview

The Intermatic ET2725C is a versatile electronic timer designed for precise control of electrical loads. It features an easy-to-use interface for scheduling, offering to-the-minute programming capabilities for a wide range of applications. This model supports 50 holiday blocks with independent scheduling and up to 96 ON/OFF events, accommodating complex scheduling requirements. A key feature is its 100-hour backup power, provided by a supercapacitor, eliminating the need for batteries.

Nøglefunktioner:

• 100-hour supercapacitor backup, eliminating battery requirements.
• Up to 96 programmable set points or events.
• Up to 50 holiday blocks with independent scheduling capabilities.
• Automatisk input voltage selection from 120 to 277 Vac, 60 Hz.
• Additional mode of operation that converts ON/OFF buttons into 2-hour overrides.

2. Hvad er der i æsken

Når du åbner pakken, skal du kontrollere, at alle komponenter er til stede og ubeskadigede.

• Intermatic Electronic Timer (Model ET2725C)
• Instruktionsmanual (dette dokument)

3. Sikkerhedsoplysninger

ADVARSEL: Risiko for brand eller elektrisk stød

• Always disconnect power at the circuit breaker(s) or disconnect switch(es) before installing or servicing this equipment.
• More than one circuit breaker or disconnect switch may be required to de-energize the equipment completely before servicing.
• Installation and/or wiring must be performed in accordance with all national and local electrical code requirements.
• Use COPPER conductors ONLY for wiring connections.
• Do NOT remove the internal insulator.

For wiring, lift the terminal cover, remove the screw, and swing it aside. Replace the screw and plastic insulator covering the terminal before powering on the device.

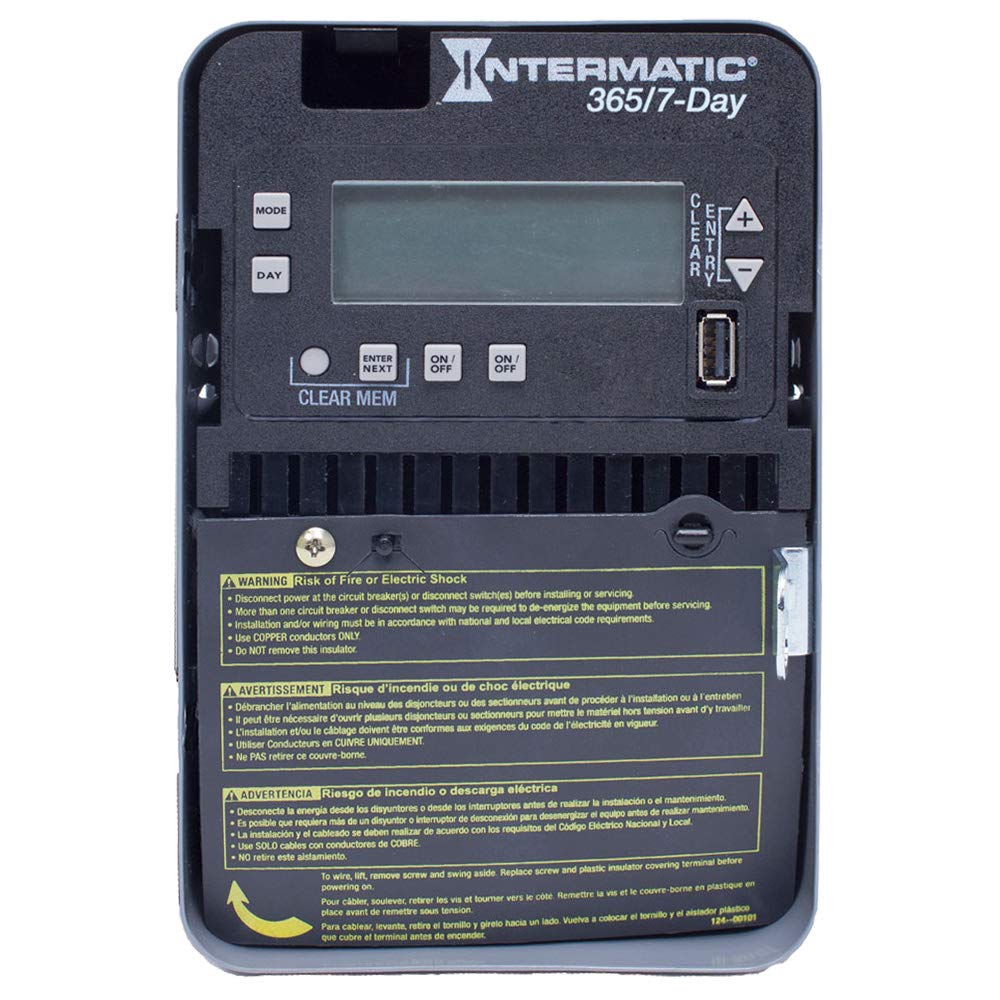

Figure 1: Front panel of the Intermatic ET2725C Electronic Timer, showing the display, control buttons (MODE, DAY, ENTER/NEXT, ON/OFF, CLEAR/ENTRY, +, -), and multi-language safety warnings at the bottom.

4. Installation og ledningsføring

Proper installation is crucial for the safe and reliable operation of the ET2725C timer. Ensure all safety precautions are followed.

4.1 Montering

Mount the timer securely in a suitable enclosure or location, ensuring it is protected from environmental elements and accessible for programming and maintenance. Refer to local electrical codes for specific mounting requirements.

4.2 Ledningsinstruktioner

1. Afbryd strømmen: Before beginning any wiring, ensure that power to the circuit is completely disconnected at the main circuit breaker or disconnect switch. Verify with a voltage tester.
2. Access Terminals: To access the wiring terminals, lift the terminal cover, remove the retaining screw, and swing the cover aside.
3. Tilslut ledninger: Connect the appropriate copper conductors to the timer terminals as per the wiring diagram provided with the unit and local electrical codes. The timer supports 120 to 277 Vac, 60 Hz.
4. Sikre forbindelser: Sørg for, at alle ledningsforbindelser er tætte og sikre.
5. Replace Insulator: Before restoring power, replace the plastic insulator covering the terminals and secure the terminal cover with its screw. This is critical for safety.
6. Gendan strøm: Once all wiring is complete and verified, restore power to the circuit.

5. Betjening og programmering

The ET2725C timer features a user-friendly interface for setting time, date, and programming events. The display and buttons (MODE, DAY, ENTER/NEXT, ON/OFF, CLEAR/ENTRY, +, -) are used for navigation and input.

5.1 Initial Setup (Setting Time and Date)

1. Upon initial power-up or after a prolonged power outage (beyond 100 hours), the display may show default settings or require time/date input.
2. Tryk på MODE knappen for at åbne opsætningsmenuen.
3. Brug + or - buttons to adjust the current time (hour and minute).
4. Trykke DAG for at indstille den aktuelle ugedag.
5. Trykke ENTER/NÆSTE to confirm settings and move to the next parameter.
6. Continue adjusting year, month, and day as prompted until the current date and time are correctly set.

5.2 Programmering af TIL/FRA-hændelser

The timer allows for up to 96 ON/OFF events. Each event can be programmed for specific times and days.

1. Trykke MODE repeatedly until "PROG" or "EVENT" mode is displayed.
2. Bruge ENTER/NÆSTE to select an event number (e.g., P1 ON).
3. Bruge + or - to set the desired ON time for the event.
4. Trykke DAG to select the days of the week for this event (e.g., Mon-Fri, Daily, Weekends, or individual days).
5. Trykke ENTER/NÆSTE to move to the OFF time for the same event (e.g., P1 OFF).
6. Repeat steps 3-4 for the OFF time.
7. Fortsæt med ENTER/NÆSTE to program additional events or exit programming mode.

5.3 Ferieprogrammering

The ET2725C supports up to 50 holiday blocks, allowing for temporary schedule overrides for specific dates.

1. Access the holiday programming mode (refer to the on-screen prompts or specific button combinations).
2. Select a holiday block.
3. Indstil start- og slutdatoer for ferieperioden.
4. Define the desired ON/OFF state or program a specific schedule for the holiday period.
5. Confirm and save the holiday block.

5.4 Manuel tilsidesættelse

The ON/OFF buttons can be used for manual overrides. In a specific mode, these buttons can provide a 2-hour override function, temporarily changing the load state without affecting the programmed schedule.

• Tryk på ON/OFF button to manually switch the load ON or OFF.
• In override mode, a single press may activate a 2-hour override. Consult the display for confirmation.

5.5 Clearing Memory

To clear all programmed events and reset the timer to factory defaults (excluding current time/date), use the CLEAR MEM function. This typically involves pressing and holding the CLEAR MEM button for a few seconds until the display confirms the reset.

6. Vedligeholdelse

The Intermatic ET2725C timer is designed for long-term, reliable operation with minimal maintenance.

• Rensning: Periodically wipe the exterior of the timer with a soft, dry cloth. Do not use abrasive cleaners or solvents.
• Forbindelser: Annually, or as required by local codes, inspect wiring connections to ensure they remain tight and free from corrosion. Always disconnect power before inspecting connections.
• Superkondensator: The internal supercapacitor provides backup power for up to 100 hours. No user maintenance or replacement is required for this component.

7. Fejlfinding

If you encounter issues with your ET2725C timer, refer to the following common troubleshooting steps:

If troubleshooting steps do not resolve the issue, please contact Intermatic customer support.

8. Specifikationer

9. Garanti og support

For warranty information, technical support, or service inquiries regarding your Intermatic ET2725C Electronic Timer, please contact Intermatic customer service directly. Refer to the official Intermatic webwebstedet eller produktemballagen for at få de seneste kontaktoplysninger og garantivilkår.

Fabrikant: Intermatic

Dato først tilgængelig: 13. maj 2019
