1. Introduktion
This manual provides comprehensive instructions for the Unitek CFast Card Reader, Model AR-1078ABK. This device is designed to facilitate high-speed data transfer from CFast 2.0 memory cards to various computing devices. It supports both USB 3.0 (Type-A) and USB-C connections, ensuring broad compatibility and efficient workflow for professionals handling high-resolution images and video recordings.
The Unitek CFast Card Reader is engineered for durability and portability, featuring an aluminum alloy casing for effective heat dissipation and a compact design for easy transport. It operates on a plug-and-play basis, requiring no external power supply or driver installation.
Figure 1.1: Unitek CFast Card Reader with included cables.
2. Pakkens indhold
Bekræft at alle varer er til stede i pakken:
- 1 x Unitek CFast Card Reader (Model: AR-1078ABK)
- 1 x USB-C to USB-C/USB-A Cable
- 1 x Brugermanual (dette dokument)
Note: This device is specifically designed for CFast cards and is not compatible with Compact Flash cards. Please ensure you are using the correct card type.
Figure 2.1: Compatibility illustration for CFast 2.0 cards only.
3. Opsætningsvejledning
Follow these steps to set up your Unitek CFast Card Reader:
- Tilslut kablet: Use the provided USB-C to USB-C/USB-A cable. Connect the USB-C end to the port on the CFast card reader.
- Opret forbindelse til værtsenhed: Connect the other end of the cable (either USB-A or USB-C, depending on your device's available port) to your computer, laptop, or compatible mobile device. The card reader is bus-powered and does not require an external power adapter.
- Insert CFast Card: Carefully insert your CFast 2.0 memory card into the card slot on the reader. Ensure the card is inserted correctly, aligning with the slot's shape. Do not force the card.
- Enhedsgenkendelse: Your operating system (Windows, macOS, Linux, Chrome OS) should automatically detect the card reader and the inserted CFast card. No additional drivers are typically required. The card will appear as a removable drive in your file opdagelsesrejsende.
Figure 3.1: Dual connector cable for versatile connectivity.

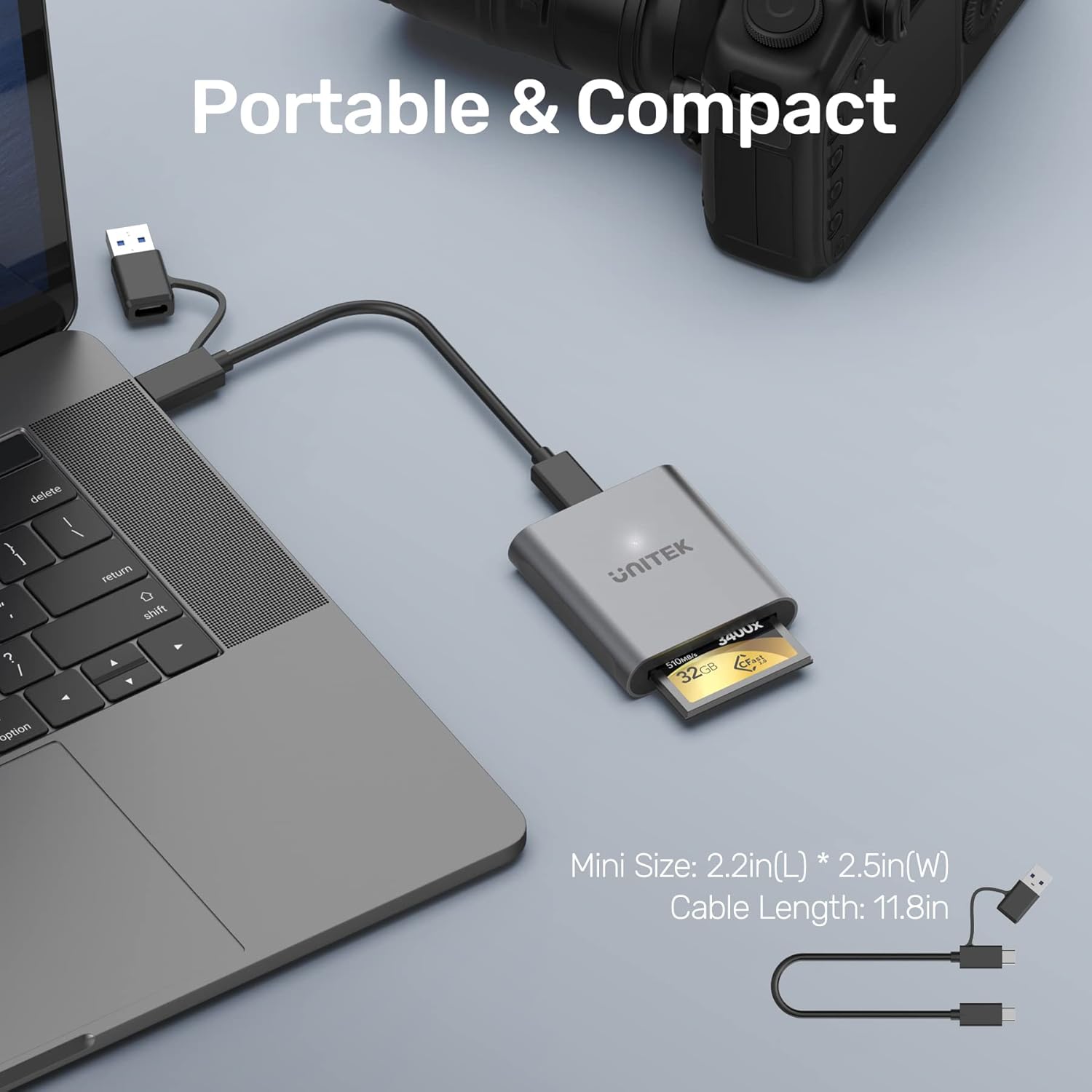

Figure 3.2: Card reader connected to a laptop with a CFast card inserted.
Video 3.1: Unboxing and initial setup of the Unitek CFast Card Reader, demonstrating cable connection and card insertion.
4. Betjeningsvejledning
Once the CFast card is inserted and the reader is connected to your device, you can begin data transfer:
- Adgang Files: Åbn din computers file explorer (e.g., 'This PC' on Windows, 'Finder' on macOS). The CFast card will appear as a removable storage device. Double-click to open and view dens indhold.
- Dataoverførsel: Træk og slip files or folders between your computer and the CFast card. The reader supports USB 3.0 SuperSpeed data transfer rates up to 5Gbps, enabling quick transfer of large files. It is backward compatible with USB 2.0 and USB 1.1, though speeds will be limited by the slower standard.
- Sikker fjernelse: Always safely eject the CFast card reader from your operating system before physically disconnecting it. This prevents data corruption.
Figure 4.1: Data transfer speed comparison between USB 2.0 and USB 3.0.
Figure 4.2: Accessing files from the CFast card reader on a mobile device.
Figure 4.3: Wide compatibility with multiple operating systems.
Video 4.1: En kort gennemgangview of the Unitek CFast 2.0 Card Reader's features and usage.
5. Specifikationer
| Feature | Beskrivelse |
|---|---|
| Mærke | Unitek |
| Modelnummer | AR-1078ABK |
| Medietype | CFast 2.0 |
| Forbindelsesteknologi | USB Type C (includes USB-A adapter) |
| Dataoverførselshastighed | Up to 5Gbps (USB 3.0 SuperSpeed) |
| Operativsystemkompatibilitet | Windows XP/Vista/7/8/8.1/10, Mac OS, Linux, Chrome OS |
| Særlige funktioner | Thunderbolt 3 compatible, USB C 3.1, Plug & Play, Hot-swapping, Bus-powered |
| Materiale | Aluminiumslegering |
| Varens vægt | 2.2 ounce |
| Produktmål (LxBxH) | 2.44 x 2.24 x 0.59 tommer |
| Farve | Grå |
6. Fejlfinding
- Kort ikke genkendt:
- Ensure the CFast card is fully and correctly inserted into the reader.
- Verify that the card is a CFast card, not a Compact Flash card. This reader is only compatible with CFast.
- Try connecting the reader to a different USB port on your computer.
- Test with a different CFast card if available to rule out a card issue.
- Sørg for, at din computers operativsystem er opdateret.
- Langsom dataoverførsel:
- Confirm that you are connected to a USB 3.0 or USB-C port on your computer. Older USB 2.0 ports will result in slower speeds.
- The actual transfer speed can be affected by the performance of your CFast card and your computer's storage drive.
- Undgå at køre flere krævende applikationer under store file overførsler.
- Intermitterende forbindelse:
- Ensure the USB cable is securely connected to both the reader and the host device.
- Try using a different USB cable if available.
- Avoid placing the reader in areas with strong electromagnetic interference.
7. Garanti og support
Unitek provides a 2-year warranty for this product. For technical support, warranty claims, or any inquiries, please contact Unitek customer service. Refer to the contact information provided on the product packaging or the official Unitek webwebsted.
Gem venligst din købsbevis af garantihensyn.
