Indledning
This manual provides essential instructions for the safe and effective assembly, operation, and maintenance of your VOUNOT 3x3m Pop Up Gazebo. Please read all instructions carefully before use and retain this manual for future reference.
The VOUNOT 3x3m Pop Up Gazebo is designed for temporary outdoor use, providing shade and shelter for various events such as garden parties, picnics, and market stalls. Its foldable design allows for quick setup and disassembly.
Sikkerhedsoplysninger
- Vejrforhold: This gazebo is not suitable for unsupervised use or during periods of inclement weather, including strong winds, heavy rain, or snow. Always monitor weather conditions.
- Vandakkumulering: Be careful to prevent rainwater from accumulating on the roof, as this can cause the frame to break. Regularly clear any standing water.
- Forankring: Always use the provided leg weight bags, stakes, and tension cords to secure the gazebo firmly to the ground. Failure to do so may result in damage or injury.
- Forsamling: For safe and proper assembly, it is recommended that two people set up the gazebo. Uneven pressure during unfolding can damage the frame connectors.
- Brandsikkerhed: Hold alle flammer og varmekilder væk fra pavillonstoffet. Stoffet er ikke brandsikkert.
- Valg af websted: Choose a level surface free from obstructions and overhead hazards.
Pakkens indhold
Kontroller, at alle komponenter er til stede, før monteringen påbegyndes:
- 1 x Gazebo Frame (Folding Steel Structure)
- 1 x Roof Cover (100% Polyester, PA-coated, 160g/m²)
- 4 x Detachable Leg Weight Bags
- 8 x Stakes (Sardines)
- 4 x Tension Cords
- 1 x 420D Oxford Carrying Bag
- 1 x Samlevejledning (denne manual)
Image: All components included in the VOUNOT 3x3m Pop Up Gazebo package, including the folded frame, roof cover, carrying bag, leg weight bags, stakes, and tension cords.
Opsætningsinstruktioner
Follow these steps for proper assembly. Two people are recommended for easier and safer setup.
- Udpak komponenter: Remove all items from the carrying bag and lay them out on a clear, flat surface.
- Partially Expand Frame: With two people, each standing on opposite sides, gently pull the frame outwards to partially expand it. Do not fully extend the legs yet.
- Fastgør tagdækning: Drape the roof cover over the partially expanded frame. Ensure the corners of the cover align with the corners of the frame. Secure the cover to the frame using any integrated fasteners (e.g., Velcro straps).
- Fully Expand Frame: With two people, continue to pull the frame outwards until it is fully expanded. Ensure that the frame locks into place at all four corners. Apply even pressure to avoid damaging connectors.
Image: Illustration showing the correct method for unfolding the gazebo frame with two people, applying homogeneous pressure and keeping legs at the same level to prevent connector damage. Incorrect single-person unfolding is also shown, which can lead to broken connectors.
- Stræk benene ud: Extend each leg to the desired height, ensuring the locking pins engage securely.
- Secure with Weight Bags: Fill the provided leg weight bags with sand or other suitable material and attach them to each leg of the gazebo.
- Anchor with Stakes and Cords: Use the stakes to secure the gazebo legs to the ground. Attach the tension cords to the corners of the roof and stake them into the ground at an angle to provide additional stability.
Image: The VOUNOT 3x3m Pop Up Gazebo fully assembled and secured, ready for use in an outdoor setting.
Betjeningsvejledning
The VOUNOT Pop Up Gazebo is designed for temporary shade and shelter. Adhere to the following guidelines during use:
- Tiltænkt brug: Use the gazebo for outdoor activities such as picnics, garden events, market stalls, or temporary shelter from sun.
- Vejrovervågning: Always be aware of changing weather conditions. If strong winds, heavy rain, or storms are forecast, disassemble and store the gazebo immediately.
- Stabilitetstjek: Periodically check that all leg locks are engaged, and anchoring stakes/cords are taut. Ensure leg weight bags are properly filled and attached.
- Rainwater Management: In light rain, regularly push up on the underside of the roof to prevent water pooling, which can stress the frame.

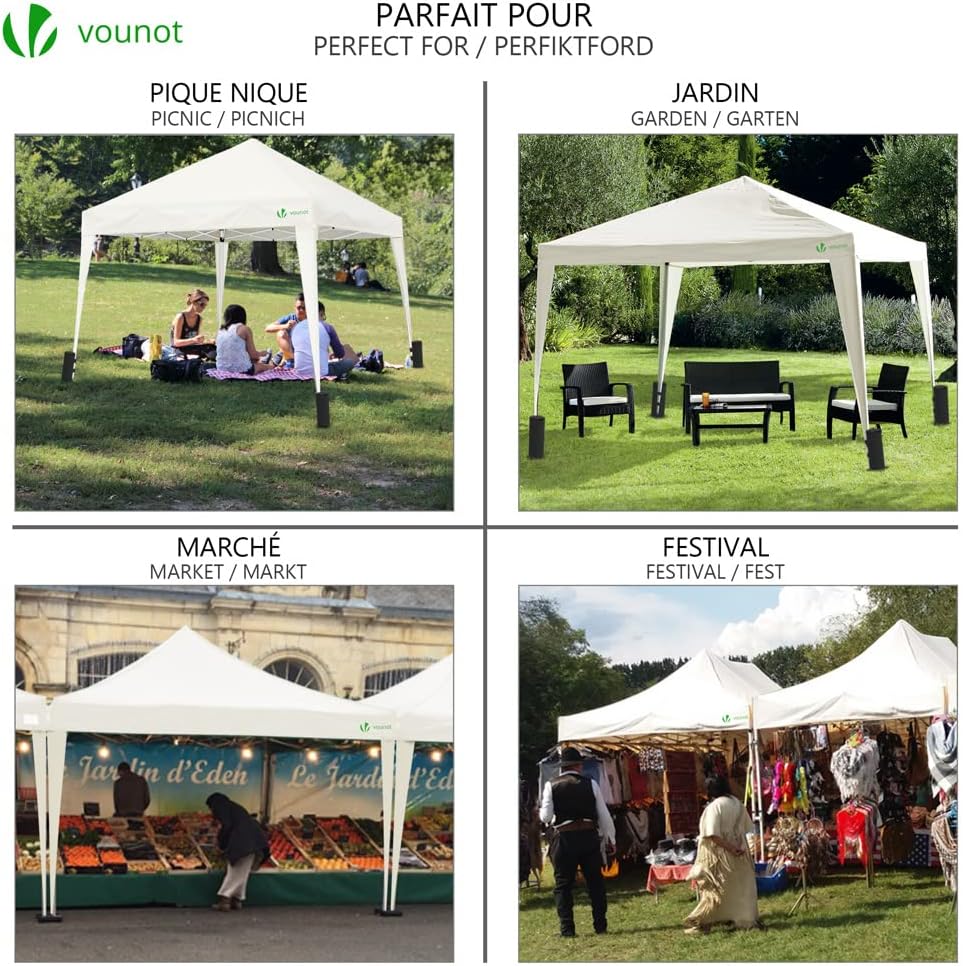

Billede: Eksamples of the VOUNOT Gazebo being used in different outdoor scenarios, including a picnic, garden seating area, market stall, and festival setup.
Opretholdelse
- Rengøring af stoffet: Clean the roof cover with a mild soap solution and water. Do not use harsh chemicals or abrasive cleaners. Allow the fabric to air dry completely before folding and storing.
- Rammepleje: Undersøg stålrammen regelmæssigt for tegn på rust eller skader. Fjern snavs eller affald fra rammen. Hvis der opstår rust, skal den rengøres og påføres en rusthæmmende maling.
- Opbevaring: When not in use, disassemble the gazebo and store all components in the provided carrying bag in a dry, cool place, away from direct sunlight and extreme temperatures. Ensure the fabric is completely dry to prevent mildew.
- Komponentkontrol: Before each use, check all frame connectors, leg locks, stakes, and cords for wear or damage. Replace any damaged parts immediately.
Fejlfinding
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Gazebo is unstable or wobbles. | Insufficient anchoring; uneven ground; loose leg locks. | Ensure all leg weight bags are filled and attached. Use all stakes and tension cords. Verify leg locks are fully engaged. Relocate to a more level surface if necessary. |
| Rainwater pools on the roof. | Insufficient tension in roof fabric; heavy rainfall. | Regularly push up on the underside of the roof to clear water. If rain is heavy, disassemble the gazebo to prevent damage. |
| Frame difficult to expand/collapse. | Uneven pressure during operation; dirt in joints. | Ensure two people operate the frame, applying even pressure. Clean joints and apply a silicone-based lubricant if necessary. |
| Fabric tears or rips. | Excessive force; sharp objects; prolonged exposure to harsh weather. | Handle fabric carefully. Avoid contact with sharp objects. Do not use in strong winds. Small tears may be repaired with a fabric repair kit. |
Specifikationer
| Feature | Detalje |
|---|---|
| Mærke | VÆRDIG |
| Modelnummer | 3294107041892 |
| Produktmål (L x B x H) | 300cm x 300cm x 250cm (118"L x 118"W x 98"H) |
| Etageareal | 9 kvadratmeter |
| Varens vægt | Cirka 10 kg (22 pund) |
| Rammemateriale | Belagt stål |
| Dækmateriale | 100% Polyester with PA coating (160g/m²) |
| Farve | Fløde hvid |
| Vandmodstandsniveau | Not Water Resistant (as per product specifications) |
| UV beskyttelse | Ja |
| Montering påkrævet | Ja |
Demontering og opbevaring
To disassemble and store your gazebo:
- Remove Anchoring: Detach all tension cords, remove stakes, and empty/remove leg weight bags.
- Retract Legs: Retract each leg to its shortest position, ensuring locking pins are disengaged.
- Remove Roof Cover: Carefully remove the roof cover from the frame. Fold the cover neatly.
- Skjul ramme: With two people, gently push the frame inwards from opposite sides until it is fully collapsed. Ensure all locking mechanisms disengage smoothly.
- Ren og tør: Clean all components as per the Maintenance section. Ensure the roof cover and frame are completely dry before storage to prevent mildew and rust.
- Pak væk: Place all components into the carrying bag. Store the bag in a cool, dry place.
Garantioplysninger
Specific warranty details are not provided in the product information. Please refer to your purchase documentation or contact the retailer for warranty terms and conditions.
Kundesupport
For further assistance or inquiries, please contact VOUNOT customer support through the retailer's platform or the official VOUNOT webwebsted, hvis tilgængeligt.
