Digoo DG-FT2103 Bluetooth Digital Cooking Thermometer User Manual

1. Introduktion

The Digoo DG-FT2103 is a Bluetooth-enabled digital cooking thermometer designed to help you achieve precise cooking temperatures for various foods. It features an LED touch screen, a stainless steel temperature probe, and connectivity to a smartphone application for remote monitoring and control. This manual provides detailed instructions for the proper use and maintenance of your thermometer.

2. Pakkens indhold

Kontroller venligst pakkens indhold for at sikre, at alle varer er til stede:

• 1 x Digoo DG-FT2103 LED Touch Screen Digital Bluetooth Cooking Thermometer Unit
• 1 x Digoo DG-FT2103 Stainless Steel Temperature Probe
• 1 x Digoo DG-FT2103 User Manual

Image: The Digoo DG-FT2103 thermometer unit, its stainless steel probe, and a smartphone showing the accompanying application interface.

3. Produktet er slutview

The Digoo DG-FT2103 consists of a main display unit and a detachable temperature probe. The main unit features an LED touch screen for displaying temperatures and settings, along with touch controls for operation.

Billede: Forside view of the Digoo DG-FT2103 thermometer, showcasing its LED display and integrated stand.

3.1 Hovedenhedens funktioner

• LED-berøringsskærm: Displays current and target temperatures.
• Kontrolelementer: Touch buttons for power, temperature adjustment, and mode selection.
• Integreret stativ: Allows for upright placement on a countertop.
• Bluetooth-forbindelse: For pairing with a smartphone application.

Billede: Side profile of the Digoo DG-FT2103 thermometer, highlighting its slim design and adjustable stand.

3.2 Temperatursonde

The stainless steel probe is designed for insertion into food to measure internal temperature. It is connected to the main unit via a durable cable.

Image: The stainless steel temperature probe, showing its pointed tip, cable, and connector.

4. Opsætning

4.1 Batteriinstallation

1. Find batterirummet på bagsiden af ​​termometerenheden.
2. Åbn batterirummets dæksel.
3. Insert two 1.5V AA batteries (not included), ensuring correct polarity (+/-).
4. Luk batterirummets dæksel forsvarligt.

4.2 Probetilslutning

1. Insert the probe connector firmly into the designated port on the side of the main thermometer unit.
2. Ensure the connection is secure to prevent inaccurate readings.

4.3 Appinstallation og Bluetooth-parring

To utilize the smart features, download the companion application to your smartphone.

1. Søg efter "SmartThermo" or the recommended app name (if available) in your smartphone's app store (e.g., Apple App Store or Google Play Store).
2. Download og installer applikationen.
3. Sørg for, at Bluetooth er aktiveret på din smartphone.
4. Power on the Digoo DG-FT2103 thermometer unit.
5. Open the installed application on your smartphone.
6. Follow the in-app instructions to pair the thermometer. Typically, this involves selecting a "Pair" or "Connect" option within the app.

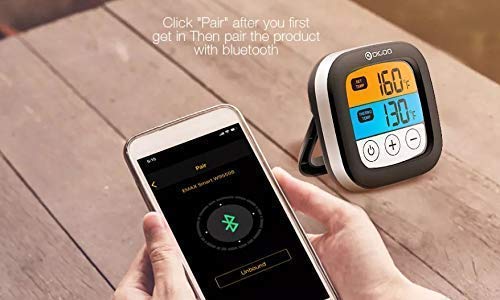

Image: A smartphone displaying the Bluetooth pairing screen within the companion application, ready to connect to the thermometer.

Image: A smartphone showing the "SmartThermo" application interface, indicating successful connection and readiness for use during a BBQ session.

5. Betjeningsvejledning

5.1 Tænd/sluk

• Press and hold the power button (usually indicated by a circle with a vertical line) on the touch screen to turn the unit on or off.

5.2 Valg af temperaturenhed

• On the device or within the app settings, you can switch between Celsius (°C) and Fahrenheit (°F) temperature units.

5.3 Setting Target Temperatures

The thermometer offers preset temperature settings for various types of meat and doneness levels, as well as the option to set custom temperatures.

Using Preset Temperatures:

• Access the preset menu on the device or through the app.
• Select the desired meat type (e.g., Beef, Lamb, Chicken, Pork, Turkey, Fish, Hamburger) and preferred doneness level (e.g., Rare, Medium, Well Done).
• The target temperature will be automatically set.

Setting Custom Temperatures:

• Use the '+' and '-' buttons on the device's touch screen or the app interface to manually adjust the target temperature to your desired value.

5.4 Timer funktion

The DG-FT2103 can also function as a cooking timer.

• Switch to timer mode using the appropriate button or app setting.
• Set the desired countdown time.
• An alarm will sound when the timer expires.

5.5 Using the Smartphone Application

The companion app provides enhanced control and monitoring capabilities:

• Fjernovervågning: View current and target temperatures from your smartphone within the Bluetooth range (up to 300ft).
• Temperaturindstillinger: Easily select preset meat types and doneness levels or set custom temperatures.
• Timer kontrol: Start, stop, and reset the cooking timer.
• Alarms and Notifications: Receive alerts on your phone when the target temperature is reached or the timer expires.
• Tilpasning: Adjust notification sounds and other app settings.

Image: The smartphone application interface showing real-time temperature monitoring and cooking progress, allowing users to manage their cooking remotely.

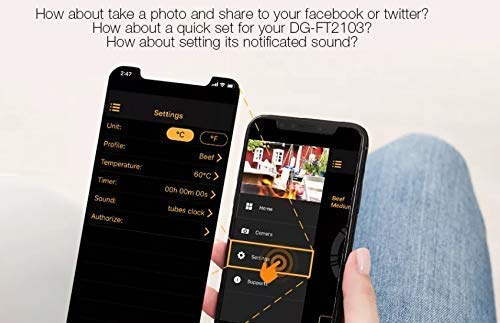

Image: The settings screen within the smartphone application, where users can customize units, profiles, temperatures, timers, and notification sounds.

6. Vedligeholdelse

6.1 Rengøring

• Thermometer Unit: Tør hovedenheden af ​​med adamp klæde. Nedsænk ikke enheden i vand.
• Temperaturprobe: The stainless steel probe can be cleaned with warm soapy water. Ensure the probe connector and cable are kept dry. The probe is oven safe, but the main unit is not.
• Do not use abrasive cleaners or scouring pads, as these may damage the surface.

6.2 Opbevaring

• Opbevar termometeret og sonden et rent og tørt sted, når de ikke er i brug.
• Fjern batterierne, hvis enheden ikke skal bruges i længere tid, for at forhindre lækage.

7. Fejlfinding

• Ingen strøm:
  • Kontroller, om batterierne er installeret korrekt med den rigtige polaritet.
  • Replace old batteries with new 1.5V AA batteries.
• Unøjagtige temperaturmålinger:
  • Ensure the probe is fully inserted into the thickest part of the meat, avoiding bone.
  • Check that the probe connector is securely plugged into the main unit.
  • Verify that the probe cable is not damaged.
• Problemer med Bluetooth-forbindelse:
  • Sørg for, at Bluetooth er aktiveret på din smartphone.
  • Make sure the thermometer unit is powered on and within the 300ft Bluetooth range.
  • Restart both the thermometer and your smartphone.
  • Prøv at ophæve parringen og parre enheden igen via appindstillingerne.
  • Sørg for, at appen er opdateret til den nyeste version.
• App Not Receiving Notifications:
  • Check your smartphone's notification settings for the app to ensure they are enabled.
  • Ensure the app is running in the background or foreground.

8. Specifikationer

9. Garanti og support

This Digoo DG-FT2103 thermometer comes with a 14 dages garanti fra købsdatoen, dækker fabrikationsfejl. Gem venligst din købsbevis i tilfælde af garantikrav.

For technical support or warranty inquiries, please contact your retailer or the Digoo customer service department. Refer to the product packaging or the official Digoo webwebsted for kontaktoplysninger.
