1. Produktet er slutview
The WTAntenna Super Search Enhanced GPS Beidou Signal Active External Antenna is designed to provide robust and reliable signal reception for GPS and Beidou systems. Featuring a 26dB gain and a 3-meter cable with an SMA port, this antenna ensures enhanced signal acquisition and stability for various applications.
Figure 1: WTAntenna GPS Beidou Signal Active External Antenna, showing the main unit with its label (Model: GPS-001, Voltage: 3V-5V, Frequency: 1575.42MHz) and the coiled 3-meter cable ending in an SMA connector.
Nøglefunktioner:
- Enhanced Signal Reception: 26dB total antenna gain for strong and stable GPS and Beidou signal acquisition.
- Lang kabellængde: 3 meters (approximately 9.8 feet) cable provides flexibility in placement.
- Standardforbindelse: Equipped with a high-quality SMA port for easy and secure connection.
- Holdbar konstruktion: Made with a high-quality PCB plastic shell and imported stable chips for reliability.
- Bred kompatibilitet: Supports both GPS and Beidou satellite navigation systems.
Figur 2: Øverst view of the WTAntenna, showing its compact design and the cable extending from one side.
2. Opsætning
Follow these steps to set up your WTAntenna:
- Identify the SMA Port: Locate the SMA female port on your GPS/Beidou receiver device.
- Tilslut antennen: Carefully align the SMA male connector of the WTAntenna with the SMA female port on your device.
- Sikre forbindelsen: Gently screw the connector clockwise until it is finger-tight. Do not overtighten.
- Placer antennen: Place the antenna in an outdoor location with a clear, unobstructed view of the sky to ensure optimal satellite signal reception. Avoid placing it near large metal objects or other electronic devices that may cause interference.

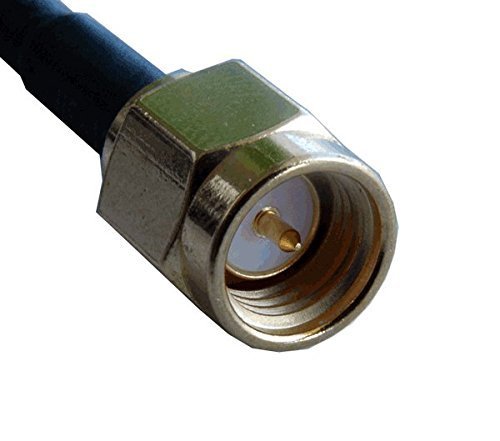

Figur 3: Nærbillede view of the high-quality SMA male connector, highlighting its threaded design for secure attachment.
3. Betjeningsvejledning
The WTAntenna is an active external antenna designed to enhance GPS and Beidou signal reception. Once properly connected and positioned, it operates automatically to capture and amplify satellite signals for your compatible receiver.
- Ensure your GPS/Beidou receiver is powered on and configured to use an external antenna.
- The antenna will draw power from your receiver (Voltage: 3V-5V) to operate its internal amplivligere.
- Monitor your receiver's signal strength indicator to confirm successful signal acquisition.
4. Vedligeholdelse
To ensure the longevity and optimal performance of your WTAntenna, follow these simple maintenance guidelines:
- Rensning: Wipe the antenna's exterior with a soft, damp klæde. Brug ikke skrappe kemikalier eller slibende rengøringsmidler.
- Kabelinspektion: Periodically check the 3-meter cable for any signs of damage, kinks, or fraying. Ensure the SMA connector remains clean and free of corrosion.
- Miljøbeskyttelse: While designed for outdoor use, extreme weather conditions (e.g., prolonged heavy rain, snow, or direct sunlight) can affect its lifespan. Consider protective measures if exposed to harsh elements.
- Opbevaring: If storing the antenna for an extended period, disconnect it from the device and store it in a cool, dry place away from direct sunlight.
5. Fejlfinding
If you encounter issues with your WTAntenna, refer to the following troubleshooting tips:
| Problem | Mulig årsag | Løsning |
|---|---|---|
| No/Weak Signal Reception |
|
|
| Antenna Not Powering On |
|
|
6. Specifikationer
| Attribut | Detalje |
|---|---|
| Modelnummer | WTAntenna |
| Mærke | WITMOTION |
| Antenne type | Active External GPS/Beidou Antenna |
| Total Antenna Gain | 26dB |
| Arbejdsstrøm | 18mA (typisk) |
| Udgangsimpedans | 50 Ohm |
| Kabellængde | 3 meter |
| Connector Type | SMA Port |
| Varens vægt | 74 g |
| Pakkedimensioner | 8.1 x 7.9 x 2.9 cm |
| Dato først tilgængelig | 29. april 2019 |
Figure 4: Product packaging displaying compliance marks such as CE, ISO 9001, RoHS, and UKCA, indicating adherence to quality and environmental standards.
Figure 5: Product packaging with recycling symbols, indicating proper disposal guidelines for electronic waste.
Figure 6: A label from the product packaging detailing manufacturer information, including product name (Wireless sensor), model number (WI-wireless sensor), manufacturer (WitMotion ShenZhen Co., Ltd.), address, and email support.
7. Garanti og support
WITMOTION is committed to providing high-quality products and customer satisfaction.
Returpolitik:
This product is subject to a 30-day return policy for refund or replacement, as per standard Amazon terms.
Producentsupport:
For technical assistance, product inquiries, or warranty claims, please contact the manufacturer:
- Fabrikant: WitMotion ShenZhen Co., Ltd.
- E-mail support: support@wit-motion.com
- Company Description: Focus on attitude sensors and promise to be a global sensor supplier. With over 20 professional engineering teams in the industry, we have a long-term collaboration with the Ph.D. team at Beihang University.
