Indledning
Thank you for choosing the Volkano Resonance Series Dual Dynamic Driver Wireless Earphones. These earphones are designed for an immersive audio experience with powerful dual-driver technology, sweatproof design, and convenient features for an active lifestyle. This manual provides essential information for the safe and optimal use of your device.
Hvad er der i æsken
- Volkano Resonance Series Wireless Earphones
- Beskyttende bæretaske
- USB Micro Charge Cable
- 6 sets of ear tips (assorted sizes)
- Instruktionsmanual (dette dokument)

Figur 1: Included accessories, featuring the hard carry case, USB charging cable, and multiple ear tip sizes.
Specifikationer
| Bluetooth version | 4.2 |
| Chip | CSR 8635 |
| Profiles | HFP / HSP / A2DP / AVRCP |
| Driftsafstand | 10 meter |
| IP-vurdering | IPX5 (Water and Splash Resistant) |
| Frekvensrespons | 20 Hz – 20 kHz |
| Følsomhed | 95 dB +/- 2 dB |
| Chauffør | 6 mm x 2 (Dual Dynamic Drivers) |
| Impedans | 16 ohms +/- 15% |
| Batterikapacitet | 60 mAh |
| Opladningstid | +/- 1.5 timer |
| Afspilningstid | 2 – 4 timer |
| Strømbehov | 5 V DC, 0.06 A |

Figur 2: Dual-driver technology for enhanced audio clarity and bass.
Opsætning
1. Opladning af øretelefonerne
Before first use, fully charge your earphones. Connect the supplied USB Micro charge cable to the charging port on the earphones and to a standard USB power source (e.g., computer USB port or USB wall adapter). The indicator light will show charging status and turn off or change color when fully charged. A full charge takes approximately 1.5 hours.

Figur 3: USB Micro charging cable for power input.
2. Valg af ørepropper
For optimal sound quality and a secure fit, choose the ear tips that best suit your ears. The package includes 6 sets of ear tips in assorted sizes. Experiment with different sizes to find the most comfortable and secure fit that creates a good seal in your ear canal.

Figur 4: Assorted ear tip sizes for personalized comfort and fit.
3. Bluetooth-parring
- Sørg for, at øretelefonerne er fuldt opladede og slukkede.
- Press and hold the multi-function button on the in-line control until the LED indicator flashes red and blue, indicating pairing mode.
- Activate Bluetooth on your device (smartphone, tablet, etc.) and search for available devices.
- Select "Volkano Resonance" (or similar name) from the list of found devices.
- Once paired, the LED indicator will flash blue slowly, and you will hear an audible confirmation.
Note: The earphones will automatically attempt to reconnect to the last paired device when powered on.
Betjeningsvejledning
Tænd/sluk
- Tænd: Tryk på multifunktionsknappen, og hold den nede i cirka 3 sekunder, indtil LED-indikatoren blinker blåt, og du hører en tændingstone.
- Sluk: Tryk på multifunktionsknappen, og hold den nede i cirka 3 sekunder, indtil LED-indikatoren blinker rødt, og du hører en slukketone.
Musikafspilning
- Afspil/pause: Tryk én gang på multifunktionsknappen.
- Næste nummer: Tryk på knappen Lydstyrke op (+), og hold den nede.
- Forrige nummer: Tryk og hold nede på lydstyrke ned-knappen (-).
Lydstyrkekontrol
- Forøg lydstyrke: Tryk én gang på knappen Lydstyrke op (+).
- Skru ned for lydstyrken: Tryk én gang på lydstyrke ned-knappen (-).

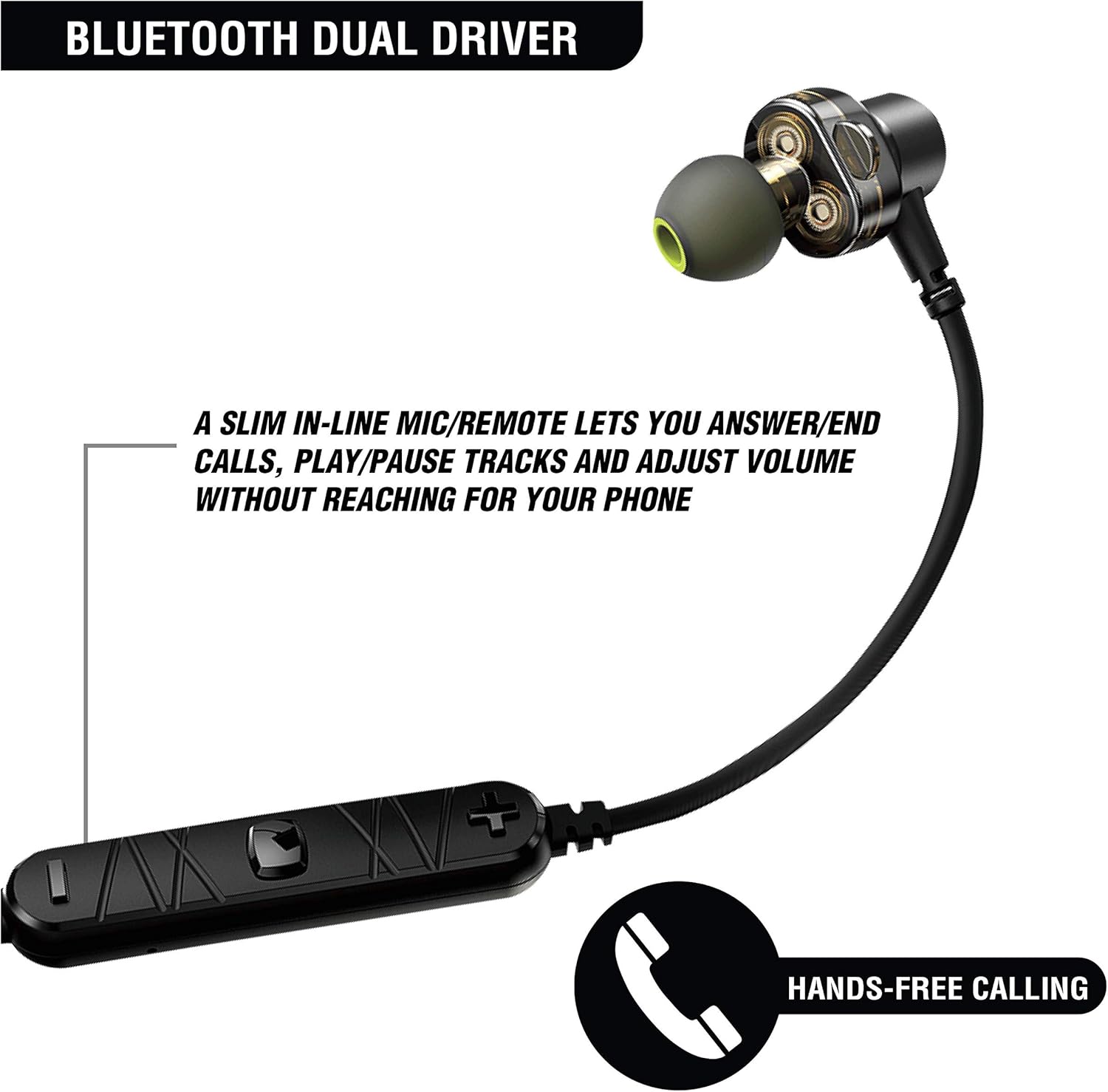

Figur 5: In-line controls for audio and call management.
Opkaldsstyring
- Besvar/afslut opkald: Tryk én gang på multifunktionsknappen.
- Afvis opkald: Tryk og hold multifunktionsknappen nede i cirka 2 sekunder.
- Genopkald sidste nummer: Dobbelttryk på multifunktionsknappen.
Magnetisk kabelhåndtering
The earbuds feature magnets that allow them to attach to each other back-to-back. This helps prevent tangling and allows you to wear them securely around your neck when not in use.

Figur 6: Magnetized earbuds for convenient storage and wear.
Opretholdelse
- Rensning: Gently wipe the earphones and ear tips with a soft, dry cloth. Do not use abrasive cleaners or solvents.
- Opbevaring: When not in use, store the earphones in the provided protective carry case to prevent damage and tangling.
- Vandtæthed: The earphones are IPX5 water and splash resistant. This means they can withstand light rain and sweat. Do not submerge them in water or expose them to heavy water jets. Ensure the charging port cover is securely closed.

Figur 7: IPX5 water resistance for protection against sweat and splashes.
Fejlfinding
| Problem | Løsning |
| Høretelefonerne tændes ikke. | Ensure the earphones are fully charged. Connect them to a power source using the USB cable. |
| Kan ikke parres med enheden. |
|
| Ingen lyd eller lav lydstyrke. |
|
| Intermitterende forbindelse. |
|
Garanti og support
The Volkano Resonance Series Wireless Earphones come with a 1 års garanti from the date of purchase. This warranty covers manufacturing defects and ensures trouble-free support.
For technical support, warranty claims, or any questions regarding your product, please contact Volkano customer service. Refer to the contact information provided on the product packaging or the official Volkano webwebstedet for de mest opdaterede supportoplysninger.
Gem venligst din købsbevis af garantihensyn.
