SEEKONE Professional Heat Gun 2000W User Manual

1. Produktet er slutview

The SEEKONE Professional Heat Gun 2000W (Model SDL-2816) is a high-power industrial hot air gun designed for various applications requiring precise temperature and airflow control. It features a large digital LCD display, power-on memory, and a power-off delay function for enhanced safety and convenience.

Image 1: SEEKONE Professional Heat Gun 2000W with various nozzles and digital display unit.

Nøglefunktioner:

• High Power with 2 Modes: 2000W heating element provides rapid heating up to 600°C. Two operating modes: Mode I (50°C ~ 400°C) and Mode II (50°C ~ 600°C).
• Large Digital LCD Display: Allows for precise adjustment and clear display of air volume and temperature.
• Power-On Memory Function: The heat gun retains the last set temperature and speed settings upon restart.
• Temperaturenhedskonvertering: Easily switch between Celsius (°C) and Fahrenheit (°F) by pressing both speed buttons simultaneously for a few seconds.
• Overbelastningsbeskyttelse: Built-in protection prevents overheating by blocking the heating element, ensuring safety.
• Funktion til slukforsinkelse: Cools down the heating wire after shutdown, extending the lifespan of the device.
• Ergonomisk design: Lightweight and scientifically designed handle reduces strain during prolonged use.
• Alsidigt tilbehør: Includes four nozzles (deflector, two concentrated, and reflector) for various applications.

2. Sikkerhedsoplysninger

Always read and understand all safety warnings and instructions before operating the heat gun. Failure to follow these warnings and instructions may result in electric shock, fire, and/or serious injury.

• Personlig sikkerhed: Always wear appropriate personal protective equipment (PPE) such as heat-resistant gloves and eye protection.
• Sikkerhed på arbejdsområdet: Ensure the work area is well-ventilated and free from flammable materials. Do not use in explosive atmospheres.
• Elektrisk sikkerhed: Do not expose the heat gun to rain or wet conditions. Do not abuse the cord. Always unplug the tool when not in use or before making adjustments.
• Heat Gun Use and Care: Do not direct hot air at people or animals. Do not block the air inlet or outlet. Allow the tool to cool down completely before storing.
• Overophedning: The heat gun is equipped with overload protection. If the tool shuts off due to overheating, unplug it and allow it to cool down before resuming operation.

3. Opsætning

Før første brug skal du sørge for, at alle komponenter er til stede og ubeskadigede.

1. Udpakning: Carefully remove the heat gun and all accessories from the packaging. Retain packaging for future storage or transport.
2. Dysefastgørelse: Vælg den passende dyse til din anvendelse. Ret dysen ind i forhold til varmepistolens udløb, og tryk den godt fast på plads. Sørg for, at den sidder godt fast, inden brug.
3. Strømtilslutning: Connect the heat gun's power cord to a suitable 220V AC power outlet.

4. Betjeningsvejledning

4.1 Tænd/sluk

• To turn on the heat gun, slide the power switch to either Mode I or Mode II.
• To turn off, slide the power switch to the "0" (off) position. The power-off delay function will activate, cooling down the heating element before completely shutting off.

4.2 Temperature and Air Volume Control

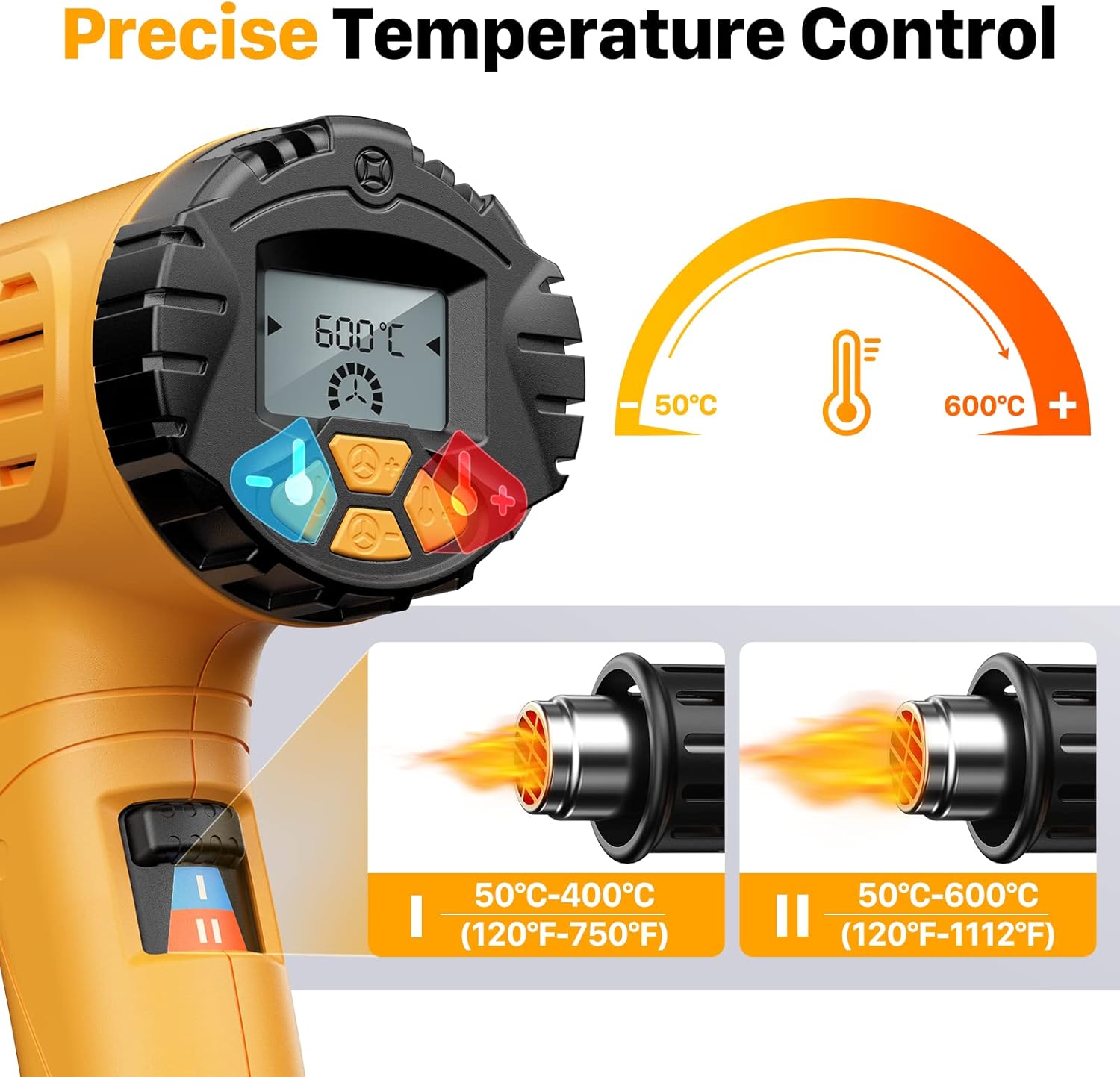

Image 2: Digital LCD display for precise temperature and air volume control.

• Tilstand I (lav luftstrøm): Provides temperature range from 50°C to 400°C (120°F to 750°F). Suitable for delicate tasks.
• Tilstand II (høj luftstrøm): Provides temperature range from 50°C to 600°C (120°F to 1112°F). Suitable for heavy-duty tasks.
• Brug + og - buttons on the digital display to adjust the temperature. Press and hold for rapid adjustment.
• The air volume can also be adjusted via the digital controls, indicated on the LCD.

Image 3: Illustration of variable air volume settings from 5.5m/s to 10m/s.

4.3 Celsius/Fahrenheit Conversion

Image 4: Instructions for converting temperature units on the LCD display.

To switch between Celsius (°C) and Fahrenheit (°F), press and hold both the + og - temperature adjustment buttons simultaneously for a few seconds.

4.4 Power-On Memory Function

Image 5: The heat gun remembers the last used temperature and speed settings.

The heat gun is equipped with a power-on memory function. When you turn the device back on, it will automatically resume operation at the last set temperature and air speed, eliminating the need to reconfigure settings for repetitive tasks.

4.5 Almindelige applikationer

Billede 6: Eks.amples of heat gun applications such as paint stripping, bending pipes, and heat shrinking.

• Fjernelse af maling: Use a deflector nozzle to soften paint for easy scraping.
• Rørbøjning: Apply heat evenly to plastic pipes to make them pliable for bending.
• Shrinking PVC: Ideal for heat-shrink tubing and packaging.
• Optøning af frosne rør: Apply heat gradually and evenly to thaw frozen water pipes.
• Loosening Rusted Bolts: Heat can help expand metal, making rusted fasteners easier to remove.
• Drying and Defrosting: Can be used for quick drying of surfaces or defrosting.

5. Vedligeholdelse

Proper maintenance ensures the longevity and optimal performance of your heat gun.

• Rensning: Regularly clean the air inlet and outlet vents to prevent dust and debris buildup, which can impede airflow and cause overheating. Use a soft, dry cloth. Do not use solvents.
• Opbevaring: Store the heat gun in a dry, secure place, out of reach of children. Ensure the tool is completely cool before storing.
• Ledningsinspektion: Periodically inspect the power cord for any signs of damage. If damaged, have it repaired by a qualified professional.

6. Fejlfinding

7. Specifikationer

8. Garanti og support

SEEKONE is committed to providing quality tools and services. While specific warranty details are not provided in this manual, the manufacturer offers ongoing technical support for the life of your device.

For technical assistance, troubleshooting, or any inquiries regarding your SEEKONE Professional Heat Gun, please contact SEEKONE customer support through the retailer's platform or the official SEEKONE webwebsted.

Please retain your proof of purchase for any support or service requests.
