Produkt overview
The Amazon Basics Swivel and Tilt TV Wall Mount is designed to securely hold TVs ranging from 13 to 23 inches, with a maximum weight capacity of 44 lbs (20 kg). This mount offers flexible viewing options through its swivel and tilt mechanisms, allowing users to adjust the screen position without the need for additional tools.
Nøglefunktioner omfatter:
- Compatible with 13-23 inch Plasma, LCD, or LED televisions.
- Easy-to-use tilt and turn mechanism for flexible viewing.
- Integrated spirit level for accurate installation.
- Safety locking screw for secure TV support.
- Cushioned pads for TV protection and improved audio performance.
- Conforms to VESA standards with a 100 x 100 mm hole pattern.

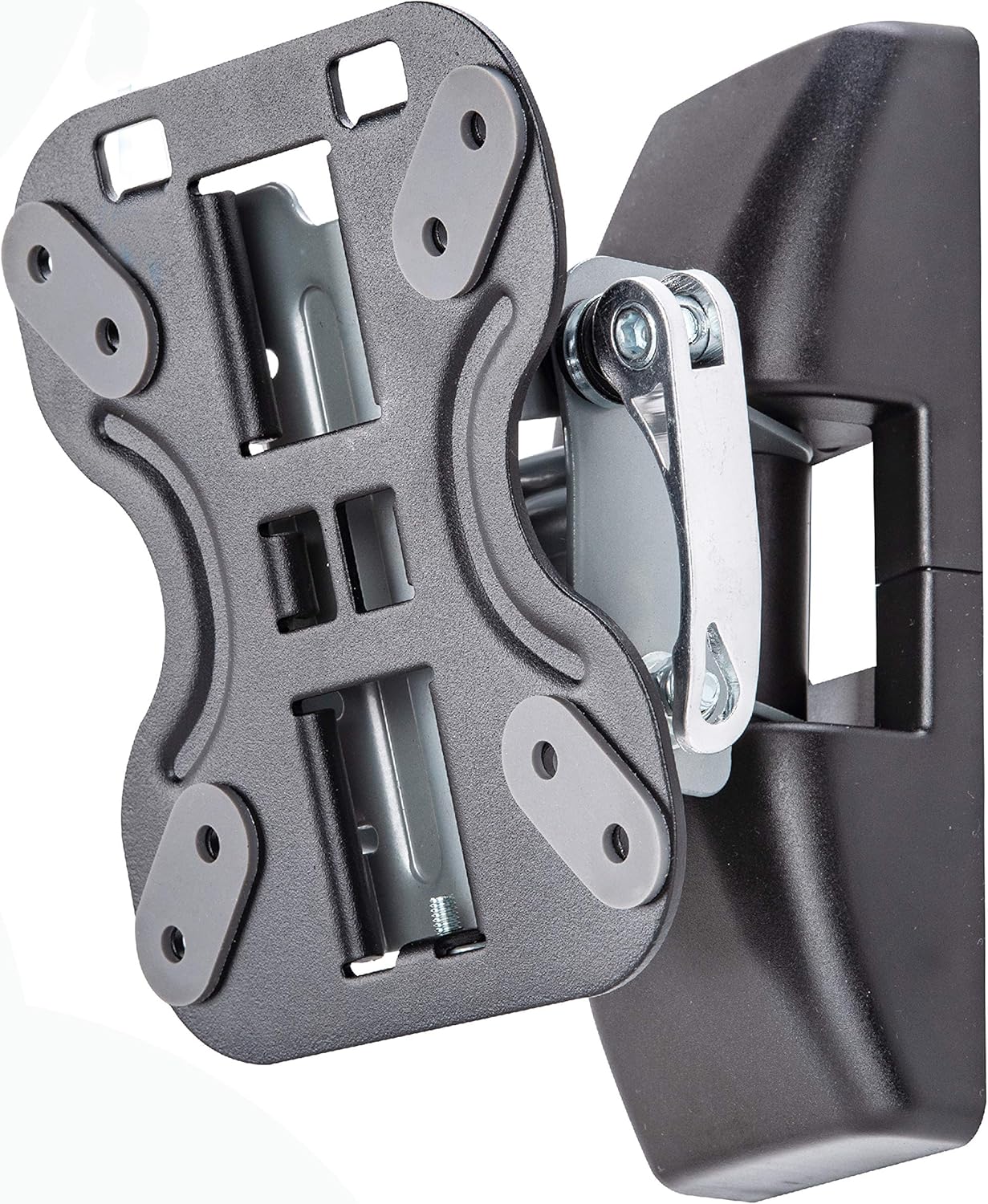

Image: The Amazon Basics Swivel and Tilt TV Wall Mount, showcasing its robust design and articulating arm.
Opsætning og installation
Proper installation is crucial for the safety and stability of your television. Always ensure you have the correct tools and follow all steps carefully. It is recommended to have assistance when mounting the TV.
1. Check TV Compatibility
Verify that your TV's size and VESA pattern are compatible with this mount. This mount supports TVs between 13 and 23 inches and VESA patterns of 75x75 mm and 100x100 mm. The maximum weight capacity is 44 lbs (20 kg).
Image: Diagram illustrating VESA hole patterns supported by the mount, specifically 75x75mm and 100x100mm.
Image: The mount with neo protective pads, indicating compatibility with TVs from 13 to 23 inches (33x58cm).
2. Vægforberedelse
Locate a suitable wall stud for secure mounting. Use a stud finder to ensure the mount is anchored into solid wood. The mount includes a built-in spirit level to assist with accurate horizontal alignment during installation.
3. Attaching the Mount to the Wall
Secure the wall plate of the mount to the wall stud using appropriate screws and anchors provided. Ensure all connections are tight and the mount is level before proceeding.
4. Montering af TV'et på beslaget
Attach the TV brackets to the back of your television using the correct VESA screws. Carefully lift the TV and hook the brackets onto the wall mount. Engage the safety locking screw to secure the TV in place.
Billede: Side view of a TV mounted, showing a distance of 3.5 inches (89mm) from the wall.
Betjeningsvejledning
The Amazon Basics TV wall mount allows for easy adjustment of your TV's viewvinkel.
Justering af hældning
To adjust the vertical tilt of your TV, gently push or pull the top or bottom edge of the TV. The mount supports a tilt range of -15° to +15°.
Billede: Side view of a mounted TV demonstrating the tilt functionality.
Adjusting Swivel
To adjust the horizontal swivel of your TV, gently push or pull the side edge of the TV. The mount allows for swiveling up to ±25°.
Image: A mounted TV illustrating both swivel (up to ±25°) and tilt (from -15° to +15°) ranges for optimal viewing.
Opretholdelse
To ensure the longevity and proper function of your TV wall mount, follow these simple maintenance guidelines:
- Rensning: Brug en blød, tør klud til at tørre beslaget af. Undgå slibende rengøringsmidler eller opløsningsmidler, der kan beskadige finishen.
- Periodiske kontroller: Periodically check all screws and connections to ensure they remain tight and secure. Over time, vibrations or adjustments may cause them to loosen slightly.
- Smøring: The swivel and tilt mechanisms are designed for smooth operation. If you notice any stiffness, a small amount of silicone-based lubricant can be applied to the moving parts, avoiding contact with the TV or wall.
- Safety Locking Screw: Always ensure the safety locking screw is engaged after mounting the TV to prevent accidental dislodgement.
Fejlfinding
If you encounter issues during installation or use, consider the following common solutions:
- Mount feels unstable after installation:
- Ensure the mount is securely fastened to a wall stud. Drywall anchors alone are not sufficient for supporting the TV's weight.
- Verify that all screws are tightened appropriately.
- TV does not fit the mount:
- Check your TV's VESA pattern against the mount's compatibility (75x75mm or 100x100mm).
- Confirm your TV's size is within the 13-23 inch range and its weight does not exceed 44 lbs (20 kg).
- Difficulty with tilt or swivel movement:
- Ensure no cables are obstructing the movement.
- Check for any overtightened bolts on the articulating arm that might restrict motion.
- Missing or incorrect hardware:
- Refer to the parts list in your packaging. If parts are missing or incorrect, contact Amazon Basics customer support.
Specifikationer
| Mærkenavn | Grundlæggende om Amazon |
| Varemodelnummer | LN2ST100-ZD |
| Varens vægt | 2.02 pund (0.92 kg) |
| Produktdimensioner | 4.72 x 3.5 x 6.5 tommer (12 x 8.9 x 16.5 cm) |
| Farve | Sort |
| Monteringstype | Vægmontering |
| Bevægelsestype | Tilt, Swivel |
| Minimum kompatibel tv-størrelse | 13 tommer |
| Maksimal kompatibel tv-størrelse | 23 tommer |
| Maksimal vægtkapacitet | 44 lbs (20 kg) |
| VESA-kompatibilitet | 100 x 100 mm (also supports 75x75mm) |
| Kompatible enheder | Television |
| UPC | 192233073231 |
Garanti og support
This Amazon Basics TV wall mount comes with a fem års garanti, hvilket sikrer ro i sindet med hensyn til dens kvalitet og holdbarhed.
For product support, technical assistance, or warranty claims, please visit the official Amazon Basics support page or contact their customer service directly. Keep your purchase receipt as proof of purchase for warranty purposes.
Du kan finde flere oplysninger og supportressourcer ved at besøge Amazon Basics Store.
