Indledning
This manual provides detailed instructions for the safe and effective use of your OttLite Power-Up LED Desk Lamp. Denne alsidige lamp features OttLite's exclusive ClearSun LED Technology, designed to reduce eyestrain, along with convenient wireless Qi charging and a USB charging port. Please read this manual thoroughly before operation and retain it for future reference.
Figure 1: OttLite Power-Up LED Desk Lamp.
Produktegenskaber
- ClearSun LED Technology: Designed to match the spectral output of the sun, reducing eyestrain by up to 51% and providing a 95+ Color Rendering Index (CRI) for accurate color representation.
- Fleksibel hals: Allows for easy positioning of light, adjusting the lamp height from 13 to 21 inches.
- Wireless Qi Charging Base: Conveniently charges Qi-compatible smartphones and smartwatches.
- USB opladningsport: A 5V, 2.1A USB port for charging tablets and other USB-powered devices.
- 3 lysstyrkeindstillinger: Easily adjustable light output via a touch-sensitive switch, with a maximum output of 400 lumens.
Figure 2: Key features of the OttLite Power-Up LED Desk Lamp.
Figur 3: Lamp dimensions and adjustable height.
Opsætning
- Pakker ud: Fjern forsigtigt lamp and all packaging materials from the box.
- Placering: Placer lamp on a stable, flat surface. Ensure the base (7.5 x 5.125 inches) has sufficient space.
- Tilslut strøm: Sæt strømadapteren i l'enamp's power input port, then plug the adapter into a standard electrical outlet.
- Juster hals: Gently adjust the flexible neck to position the light as desired. The height can be adjusted from 13 to 21 inches.

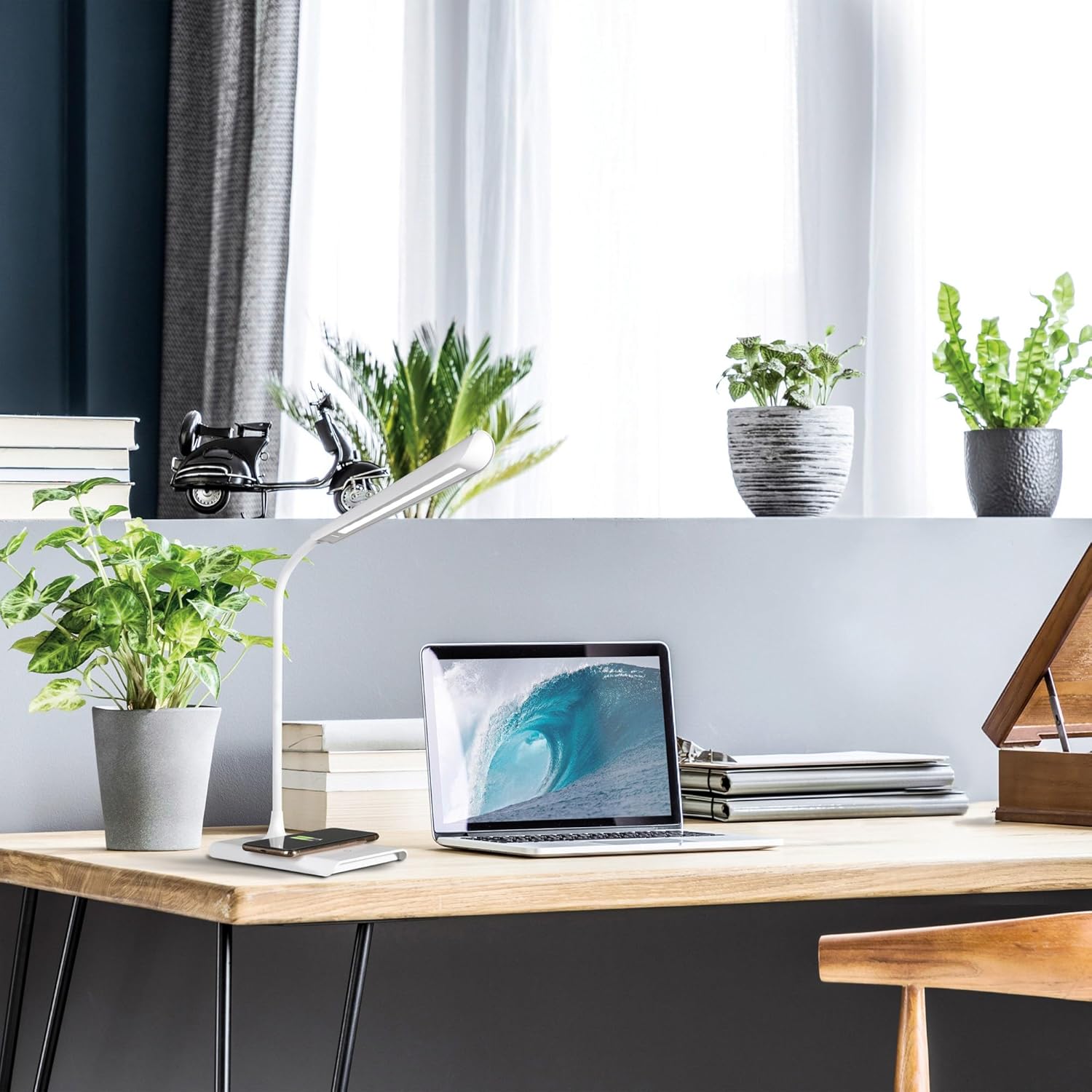

Figur 4: Lamp in a typical desk setup.
Betjeningsvejledning
Let drift
- Tænd/sluk: Locate the touch-sensitive power switch on the lamp base. Tap the switch once to turn the lamp til eller fra.
- Juster lysstyrke: To cycle through the 3 brightness settings, tap the touch-sensitive switch repeatedly. The lamp will adjust from low to medium to high brightness.
Trådløs Qi-opladning
- Placering: Place your Qi-compatible device (e.g., smartphone, smartwatch) directly on the wireless charging pad located on the lamp grundlag.
- Opladningsindikator: The charging indicator light on the base will illuminate to confirm that your device is charging. Ensure the device is centered on the pad for optimal charging.
Figure 5: Wireless Qi charging in progress.
USB-opladningsport
- Tilslut enhed: Plug your USB charging cable into the 5V, 2.1A USB port located on the back of the lamp grundlag.
- Oplade: Connect the other end of the cable to your device (e.g., tablet, phone) to begin charging.
Opretholdelse
- Rensning: Sørg for at lamp er taget ud af stikkontakten før rengøring. Brug en blød, tør klud til at tørre afamp. Brug ikke slibende rengøringsmidler eller opløsningsmidler.
- LED-levetid: The integrated LEDs are rated to last up to 40,000 hours and are not replaceable.
- Opbevaring: Hvis du opbevarer lamp for an extended period, unplug it and store it in a cool, dry place.
Fejlfinding
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Lamp tændes ikke. | Not plugged in; power outlet issue; touch switch not activated correctly. | Sørg for, at strømadapteren er korrekt tilsluttet stikketamp and a working outlet. Try a different outlet. Ensure you are tapping the touch-sensitive switch firmly. |
| Trådløs opladning virker ikke. | Device not Qi-compatible; device not positioned correctly; phone case too thick. | Verify your device supports Qi wireless charging. Reposition the device on the charging pad, ensuring it is centered. Remove thick phone cases that may interfere with charging. |
| USB-opladning virker ikke. | USB cable faulty; device not compatible; port issue. | Prøv et andet USB-kabel. Sørg for, at din enhed er kompatibel med USB-opladning. |
Specifikationer
| Attribut | Detalje |
|---|---|
| Modelnummer | CS030QI-SHPR |
| Produktdimensioner | 7.5"D x 5.12"W x 21"H (adjustable height 13" to 21") |
| Varens vægt | 1.81 pund |
| Lyskildetype | LED (ClearSun Technology) |
| Lysstyrke | 400 Lumens (Max Output) |
| Wattage | 6 watt |
| Kontrolmetode | Tryk på Aktiveret |
| Forbindelse | Wireless Qi Charging, USB (5V, 2.1A) |
| Materiale | Plast, Metal |
| Strømkilde | Elektrisk med ledning |
| Fabrikant | OttLite Technologies |
| UPC | 761712016511 |
Garanti og support
For warranty information, technical support, or replacement parts, please contact OttLite Technologies directly. Refer to the product packaging or the official OttLite webhjemmeside for de seneste kontaktoplysninger.
Du kan besøge OttLite-butik på Amazon for yderligere produktinformation og supportressourcer.
Additional Information: ClearSun Technology
OttLite's ClearSun LED technology is engineered to provide a healthier lighting experience by closely mimicking natural daylight. This balanced spectrum helps reduce eyestrain and improves visual clarity, making it ideal for reading, crafting, and detailed tasks.
Video 1: En overview of OttLite's ClearSun LED technology and its benefits for eye health.
Video 2: Further explanation of OttLite's ClearSun technology across their product collection.
Figure 6: ClearSun LED Technology for reduced eyestrain.
Figure 7: Unmatched color accuracy with ClearSun LEDs (CRI 95+).
