1. Introduktion
This manual provides comprehensive instructions for the setup, operation, maintenance, and troubleshooting of your Rapoo X1800S 2.4GHz Wireless Optical Keyboard and Mouse Set. Please read this manual carefully to ensure proper use and to maximize the lifespan of your device.

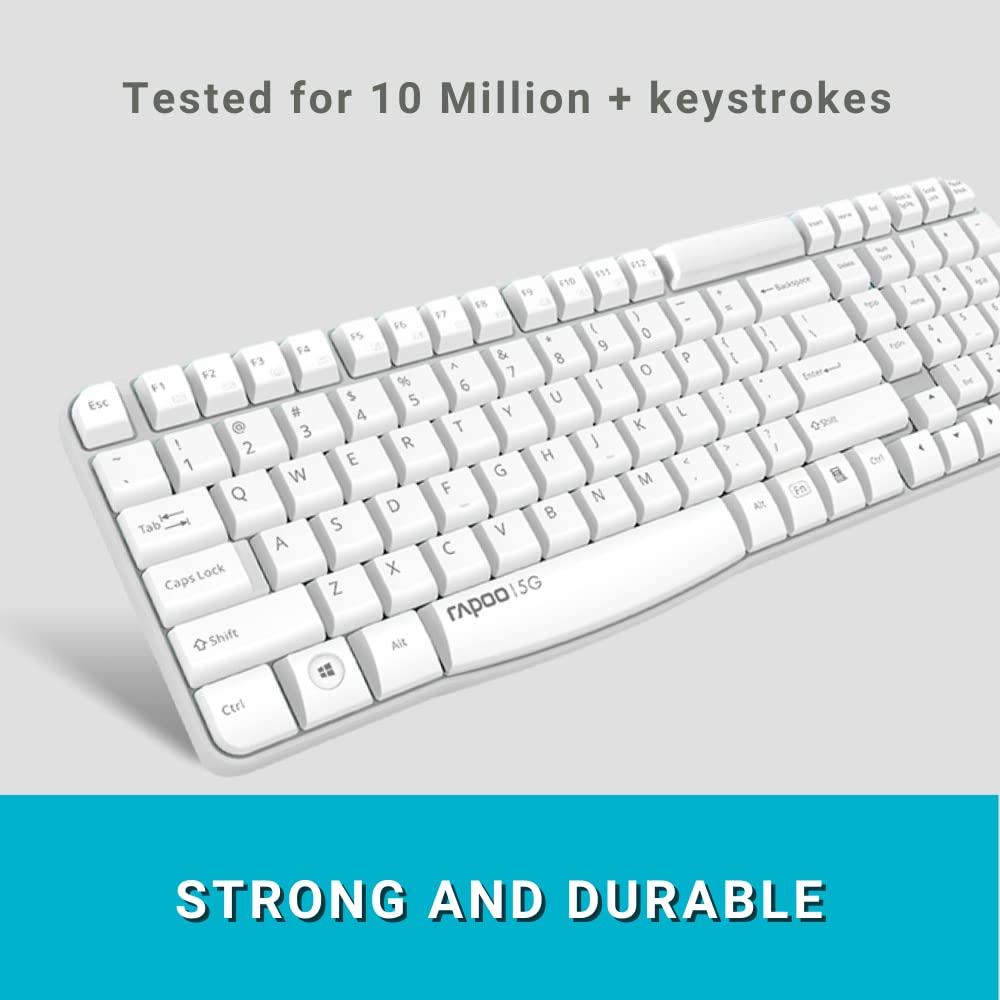

Image 1.1: Rapoo X1800S Wireless Keyboard and Mouse Set.
2. Pakkens indhold
Bekræft at alle varer er til stede i din pakke:
- Trådløst tastatur
- Trådløs mus
- USB-modtager
- 2 AA alkaliske batterier (forudinstalleret)
- Hurtig startvejledning
3. Opsætningsvejledning
- Indsæt batterier: The Rapoo X1800S keyboard and mouse come with pre-installed AA alkaline batteries. If replacing, ensure correct polarity.
- Tilslut USB-modtager: Plug the USB receiver into an available USB port on your computer. The system will automatically detect and install the necessary drivers.
- Tænd enheder: Locate the ON/OFF switch on the underside of both the keyboard and the mouse. Slide the switches to the 'ON' position.
- Test forbindelse: Move the mouse and type on the keyboard to confirm functionality. If the devices do not respond, refer to the Troubleshooting section.
4. Betjeningsvejledning
4.1 Trådløs forbindelse
The Rapoo X1800S utilizes advanced 2.4 GHz wireless technology, providing a stable connection with a range of up to 10 meters and 360-degree coverage. This allows for flexible placement of your keyboard and mouse.
4.2 Betjening af mus
The optical mouse features a 1000 DPI sensor for precise tracking. Its design is optimized for quiet operation, suitable for various work environments.
Image 4.1: Rapoo X1800S Mouse highlighting 10-meter range and 1000 DPI.
4.3 Multimediefunktioner
The keyboard includes dedicated multimedia hotkeys for quick access to various functions. These keys allow you to control media playback, adjust volume, and access your homepage directly from the keyboard.
Image 4.2: Rapoo X1800S Keyboard with multimedia function keys highlighted.
5. Spildsikkert design
The Rapoo X1800S keyboard features a spill-resistant design. This protection helps safeguard the keyboard against accidental liquid splashes, allowing you to continue working with peace of mind. In case of a spill, gently wipe the liquid from the surface of the keyboard.
Image 5.1: Rapoo X1800S Keyboard demonstrating spill-resistant feature.
6. Strømbesparelse og batterilevetid
The Rapoo X1800S set incorporates energy-saving technologies. With the integrated ON/OFF switch, the keyboard can achieve a battery life of up to 12 months, and the mouse up to 9 months, depending on usage. To conserve battery power, always switch off the devices when not in use for extended periods.
Image 6.1: Visual representation of battery life for the Rapoo X1800S keyboard and mouse.
7. Vedligeholdelse
To ensure optimal performance and longevity of your Rapoo X1800S set, follow these maintenance guidelines:
- Rensning: Brug en blød, tør klud til at rengøre overfladerne på tastaturet og musen. Ved genstridigt snavs kan du bruge en let tør klud.amp klud kan bruges, så det sikres, at der ikke trænger fugt ind i de indvendige komponenter.
- Udskiftning af batteri: When battery performance diminishes, replace the AA batteries in both the keyboard and mouse with new alkaline batteries.
- Opbevaring: Opbevar enhederne et køligt, tørt sted væk fra direkte sollys og ekstreme temperaturer, når de ikke er i brug i længere perioder.
8. Fejlfinding
If you encounter issues with your Rapoo X1800S set, refer to the following common solutions:
- Ingen reaktion fra tastatur/mus:
- Ensure the ON/OFF switches on both devices are in the 'ON' position.
- Kontroller batteriniveauer og udskift om nødvendigt.
- Sørg for, at USB-modtageren er korrekt tilsluttet en fungerende USB-port på din computer. Prøv en anden USB-port.
- Genstart din computer.
- Intermitterende forbindelse:
- Flyt tastaturet og musen tættere på USB-modtageren.
- Avoid placing the receiver near other wireless devices or large metal objects that may cause interference.
- Ensure there are no physical obstructions between the devices and the receiver.
- Musemarkøren hopper eller er unøjagtig:
- Rengør den optiske sensor på undersiden af musen.
- Brug musen på en ren, ikke-reflekterende overflade. En musemåtte anbefales.
9. Specifikationer
| Mærke | Rapoo |
| Model | X1800S |
| Forbindelsesteknologi | 2.4 GHz Radio Frequency Wireless |
| Wireless Range | Op til 10 meter |
| Mus DPI | 1000 DPI |
| Bevægelsesdetektion | Optisk |
| Tastaturfunktioner | Spill-Resistant, Multimedia Hotkeys |
| Kompatible enheder | Bærbar, personlig computer |
| Batterier påkrævet | 2 x AA Alkaline (included) |
| Anslået batterilevetid | Keyboard: Up to 12 months, Mouse: Up to 9 months |
| Produktmål (tastatur) | 39.2 x 12.5 x 2.9 cm |
| Varevægt (sæt) | 400 g |
10. Garanti og support
The Rapoo X1800S Wireless Optical Keyboard and Mouse Set comes with a 3-year warranty from the date of purchase. This warranty covers manufacturing defects under normal use conditions.
For technical support, warranty claims, or further assistance, please contact Rapoo customer service through their official website or the contact information provided in your product packaging. Please retain your proof of purchase for warranty validation.
