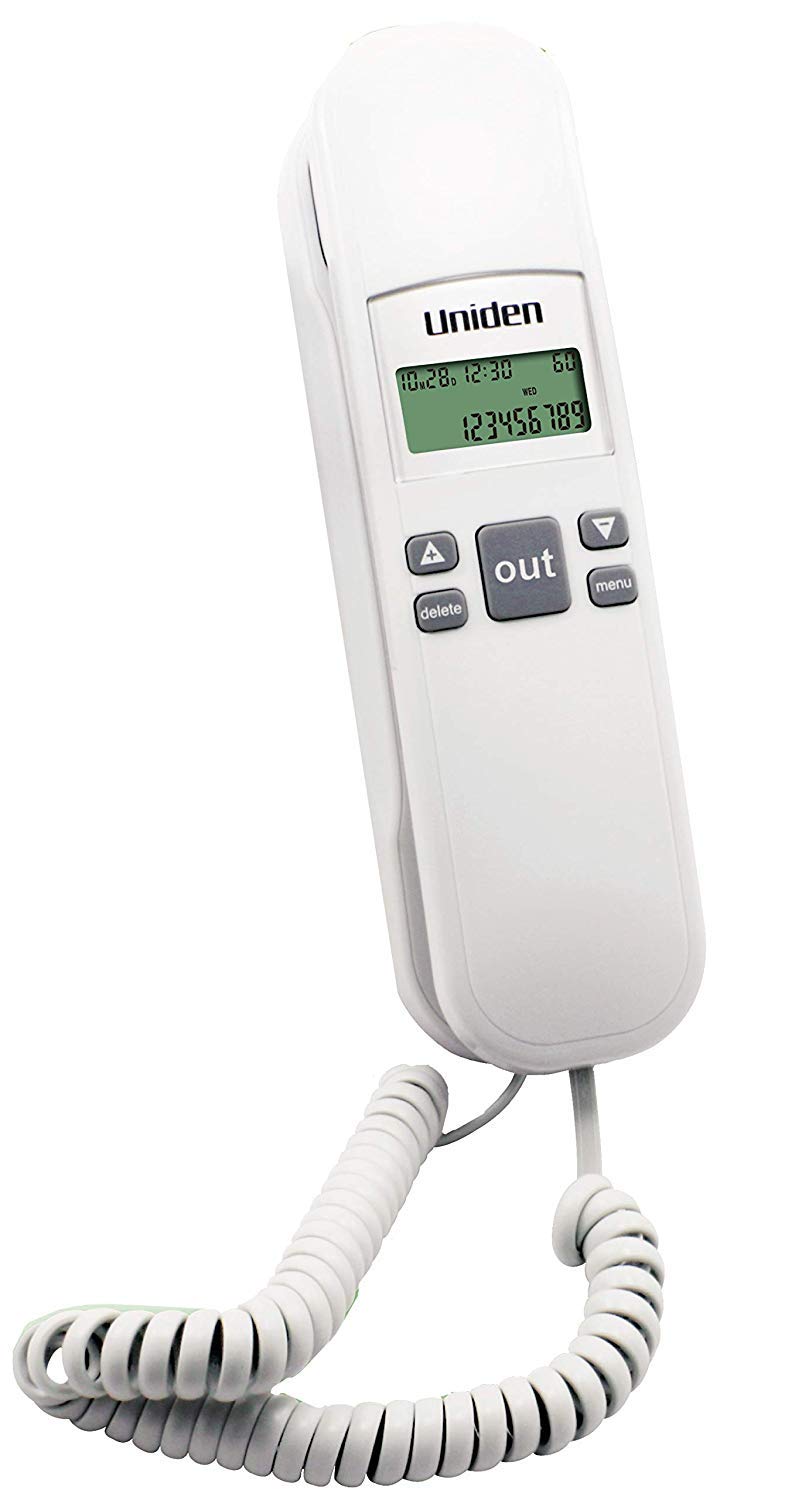

Uniden AS 7103 Corded Landline Phone User Manual

1. Introduktion

This manual provides detailed instructions for the installation, operation, and maintenance of your Uniden AS 7103 Corded Landline Phone. Please read this manual thoroughly before using your new phone to ensure proper functionality and to take full advantage af dens funktioner.

Nøglefunktioner:

• FSK / DTMF Caller ID
• 59 Caller ID Memory Record
• 10 Speed Dial Memory
• Redial and Dial Back Function
• Flash funktion
• Flash Time Selectable (100 / 300 / 600 / 1000ms)
• Tone / Pulse Selectable Dialing Mode
• Ringer On / Off Control
• Vægmonterbart design
• Operates without external battery power

2. Pakkens indhold

Tjek venligst pakken for følgende varer:

• Basisenhed
• Håndsæt
• Linjeledning
• Coil Cord (for handset)
• Brugermanual

3. Opsætning og installation

3.1 Tilslutning af telefonen

1. Connect one end of the coil cord to the handset and the other end to the handset jack on the base unit.
2. Connect one end of the line cord to the LINE jack on the base unit.
3. Plug the other end of the line cord into a standard telephone wall jack.
4. The phone is now ready for use. This model operates without the need for external batteries.

3.2 Vægmontering (valgfrit)

The Uniden AS 7103 can be conveniently mounted on a wall. Follow these steps:

1. Locate the wall mounting holes on the back of the phone base.
2. Install two screws (not provided) into the wall, spaced appropriately to match the mounting holes. Ensure the screws are securely fastened and protrude slightly.
3. Align the phone's mounting holes with the screws and slide the phone downwards to secure it.
4. Ensure all cords are neatly routed to prevent tangling.

4. Betjeningsvejledning

4.1 Foretage og modtage opkald

• Sådan foretager du et opkald: Lift the handset, wait for a dial tone, then dial the desired number.
• Sådan modtager du et opkald: Når telefonen ringer, løft røret for at besvare.
• Sådan afslutter du et opkald: Place the handset back on the base unit.

4.2 Caller ID (FSK / DTMF)

The phone displays the caller's number (and name, if available and subscribed to service) before you answer. The AS 7103 supports both FSK and DTMF caller ID formats.

• Viewing Caller ID Records: Brug UP og NED arrow buttons to scroll through the 59 caller ID memory records.
• Ring tilbage: Mens viewing a caller ID record, press the REDIAL/DIAL BACK button to call the displayed number.
• Sletning af poster: Tryk på SLET button to remove the currently displayed caller ID record.

4.3 Speed Dial Memory (10 Entries)

Store frequently called numbers for quick dialing.

1. Sådan gemmer du et nummer:
   • Løft håndsættet.
   • Tryk på BUTIK button (if available, otherwise consult specific button labels).
   • Ring til det telefonnummer, du vil gemme.
   • Tryk på BUTIK knappen igen.
   • Press a memory location button (e.g., M1-M10 or a single digit 0-9 if applicable) to save the number.
2. To Dial a Stored Number:
   • Løft håndsættet.
   • Press the memory location button (e.g., M1-M10 or the assigned digit). The number will be dialed automatically.

Note: Specific button labels for speed dial storage may vary. Refer to the phone's keypad for "STORE" or "MEM" buttons, and dedicated memory keys if present.

4.4 Genopkaldsfunktion

Sådan genopkalder du det sidst opkaldte nummer:

1. Løft håndsættet.
2. Tryk på GENTAGELSE knappen. Det sidst opkaldte nummer vil automatisk blive ringet op.

4.5 Blitzfunktion

The Flash function is used for accessing network services such as call waiting or transferring calls. The flash time is selectable to ensure compatibility with various telephone systems.

• To Use Flash: Under et opkald skal du trykke på BLITZ knap.
• To Select Flash Time: This setting is typically adjusted via a menu or a dedicated switch on the phone base. Available options are 100ms, 300ms, 600ms, and 1000ms. Consult the phone's menu system or physical switches for adjustment.

4.6 Tone / Pulse Dialing Mode

The phone supports both Tone (DTMF) and Pulse dialing modes. Most modern telephone systems use Tone dialing. If you experience issues dialing, you may need to switch this setting.

• To Select Dialing Mode: This is usually controlled by a switch on the side or bottom of the phone base, labeled "T" for Tone and "P" for Pulse.

4.7 Ringer On / Off Control

You can turn the phone's ringer on or off as needed.

• To Control Ringer: Locate the RINGER ON/OFF switch on the side or bottom of the phone base and set it to your desired position.

5. Vedligeholdelse og pleje

• Rensning: Tør telefonen af ​​med en blød kludamp klæde. Brug ikke slibende rengøringsmidler eller opløsningsmidler.
• Undgå væsker: Hold telefonen væk fra vand og andre væsker.
• Temperatur: Do not expose the phone to extreme temperatures or direct sunlight.
• Opbevaring: If storing the phone for an extended period, ensure it is clean and dry.

6. Fejlfinding

If you encounter any issues with your Uniden AS 7103 phone, please refer to the following common problems and solutions:

7. Specifikationer

8. Garanti og support

8.1 Garantioplysninger

Your Uniden AS 7103 Corded Landline Phone comes with a 1 års begrænset garanti from the date of purchase. This warranty covers manufacturing defects under normal use. Please retain your purchase receipt as proof of purchase for warranty claims. The warranty does not cover damage caused by misuse, accidents, unauthorized repairs, or natural disasters.

8.2 Kundesupport

For technical assistance, warranty service, or further inquiries, please contact Uniden customer support. Refer to the Uniden official website or your product packaging for the most current contact information, including phone numbers and email addresses specific to your region.

You can often find support resources, FAQs, and product registration on the official Uniden webwebsted: www.uniden.com
