Seville Classics SHE18292 Pneumatisk Justerbar Skammel Brugermanual

1. Introduktion

This manual provides instructions for the assembly, operation, and maintenance of your Seville Classics SHE18292 Pneumatic Adjustable Stool. Please read these instructions carefully before assembly and use to ensure safe and proper operation.

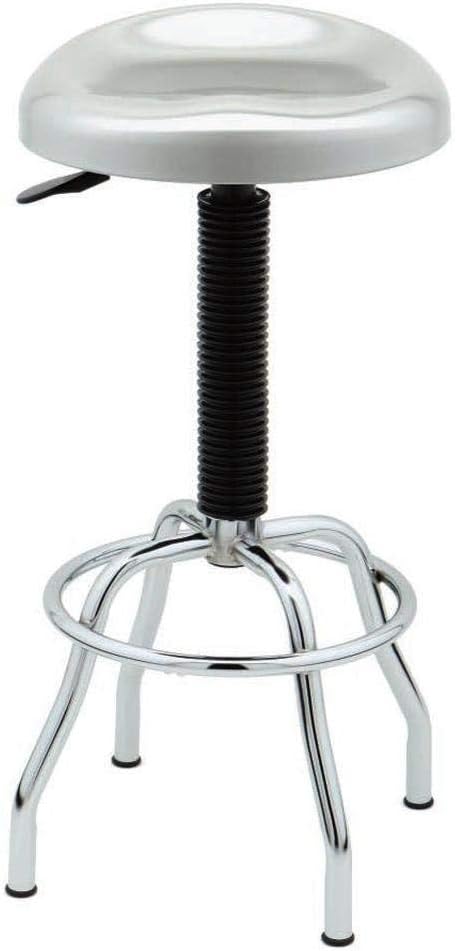

Image 1.1: The Seville Classics SHE18292 Pneumatic Adjustable Stool. This image displays the stool in its assembled form, highlighting its silver finish and pneumatic lift mechanism.

2. Sikkerhedsoplysninger

• Sørg for, at alle dele er forsvarligt fastgjort før brug.
• Overskrid ikke den maksimale vægtkapacitet på 136 kg.
• Hold hænder og fingre væk fra bevægelige dele under højdejustering.
• Brug på en flad, stabil overflade for at forhindre væltning.
• This stool is designed for seating purposes only. Do not stand on the stool.

3. Pakkens indhold

Kontroller, at alle komponenter er til stede, før monteringen påbegyndes:

• Seat (A) - 1 piece
• Pneumatic Cylinder (B) - 1 piece
• Cover (C) - 1 piece
• Leg Base (D) - 1 piece

Billede 3.1: Eksploderet view of the stool components, labeling the seat, pneumatic cylinder, cover, and leg base for easy identification during assembly.

4. Opsætning og montering

Assembly is straightforward and requires no tools. Estimated assembly time is approximately 10 minutes.

1. Trin 1: Insert the wider end of the Pneumatic Cylinder (B) into the Leg Base (D). Ensure it is seated firmly.
2. Trin 2: Slide the Cover (C) over the top of the Pneumatic Cylinder (B).
3. Trin 3: Remove the protective cap from the top of the Pneumatic Cylinder (B). Then, place the Seat (A) onto the protruding tip of the Pneumatic Cylinder (B).

Note:

• The seat may require a firm push to fully engage with the pneumatic cylinder.
• Kontroller jævnligt alle forbindelser for at sikre, at de forbliver tætte.

5. Betjeningsvejledning

5.1. Højdejustering

The stool features a pneumatic lift system for easy height adjustment. To adjust the height:

• For at hæve sædet: While standing, lift the adjustment lever located under the seat. The seat will automatically rise. Release the lever at the desired height.
• Sådan sænkes sædet: While seated, lift the adjustment lever. The seat will lower under your weight. Release the lever at the desired height.

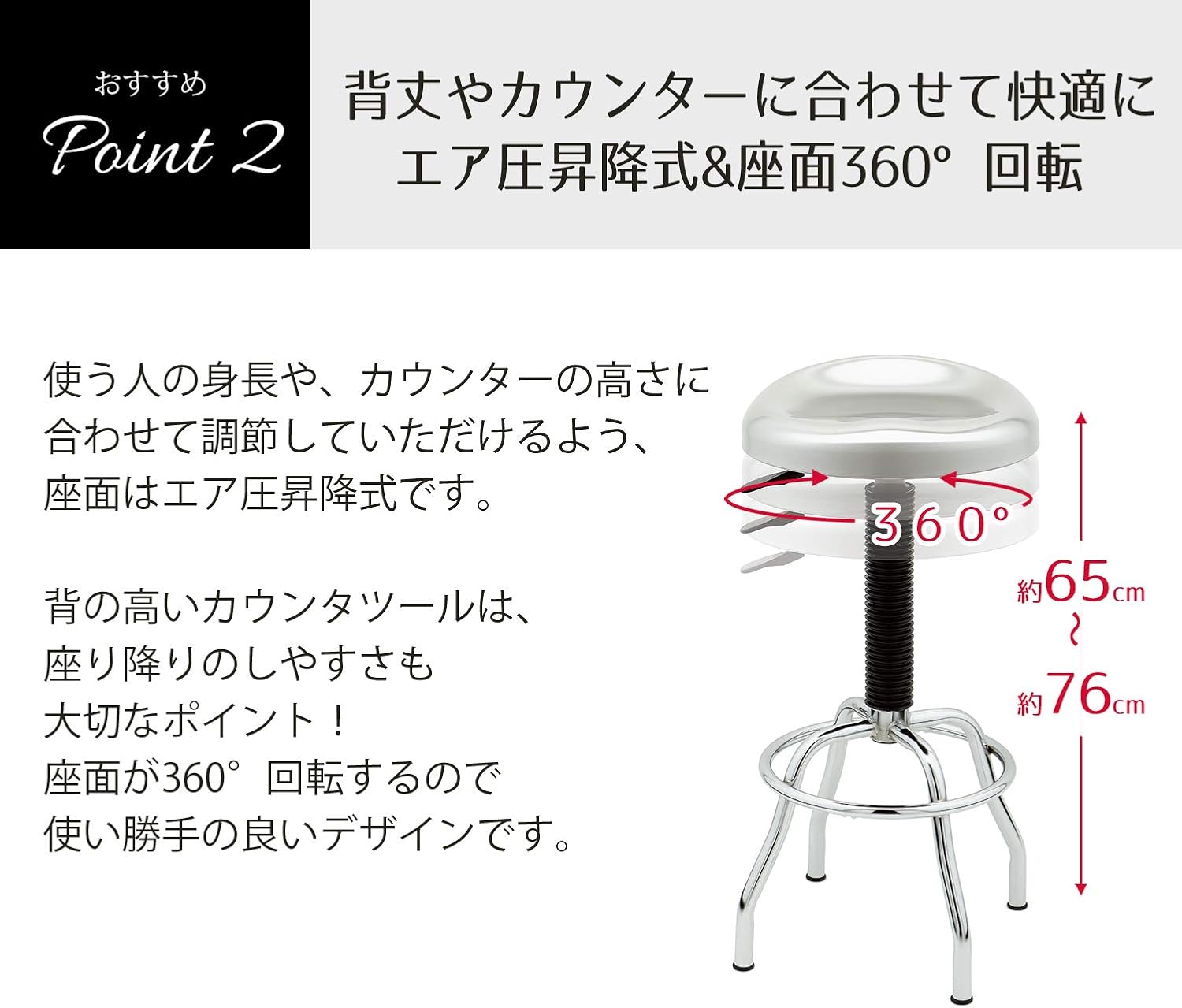

Image 5.1: This image illustrates the pneumatic height adjustment mechanism and the stool's adjustable height range, from approximately 65 cm to 76 cm (25.6 to 29.9 inches).

5.2. 360-Degree Swivel

The seat is designed to rotate 360 degrees, providing flexibility and ease of movement while seated.

5.3. Mobilitet

The stool is equipped with casters for easy movement. It also features a handle on the backrest for convenient repositioning.

6. Vedligeholdelse

• Rensning: Wipe the stool with a damp klæde. Undgå slibende rengøringsmidler eller skrappe kemikalier, der kan beskadige finishen.
• Inspektion: Periodically inspect all components for wear or damage. Ensure all connections remain secure.
• Smøring: The pneumatic cylinder is maintenance-free. Do not attempt to lubricate it.

7. Fejlfinding

• Stool does not adjust height: Ensure the protective cap has been removed from the pneumatic cylinder. Verify the seat is properly seated on the cylinder.
• Afføringen føles ustabil: Check that all parts are fully assembled and tightened. Ensure the stool is on a flat, level surface.

8. Specifikationer

Image 8.1: A diagram illustrating the key dimensions of the stool, including seat diameter (35.6 cm) and adjustable height range (65 cm to 76 cm), along with the maximum load capacity (136 kg).

9. Garanti og support

For warranty information or technical support, please refer to the contact details provided with your purchase or visit the official Seville Classics webwebsted. Gem din købsbevis til garantikrav.
