Norton BlueFire ZA/AO Grinding and Cutting Wheels

1. Introduktion

This manual provides essential information for the safe and effective use of the Norton BlueFire ZA/AO Type 27 Grinding and Cutting Wheels, model 66252843233. These 7x1/8x5/8-11 inch wheels are designed for use with right-angle grinders for various applications including cutting-off, notching, stock removal, and light-duty side grinding. The advanced blend of zirconia alumina and premium aluminum oxide abrasives ensures extended lifespan and performance on a range of materials.

2. Sikkerhedsoplysninger

WARNING: Failure to follow safety instructions may result in serious injury or death.

• Never use these wheels on plate grip air sanders.
• Always use appropriate machine guards and flanges specifically designed for Type 27 wheels.
• Do not exceed the maximum RPM (Revolutions Per Minute) indicated on the wheel.
• Avoid dropping, jamming, or overspeeding the wheel.
• Always wear appropriate personal protective equipment (PPE), including eye protection, face shields, and body protection.
• Comply with all relevant safety standards, including OSHA and ANSI B7.1. Refer to the Safety Guide provided by the manufacturer for additional information.

Always inspect the wheel for damage before use. Do not use a damaged wheel.

3. Produktet er slutview

The Norton BlueFire ZA/AO Grinding and Cutting Wheel is engineered for durability and efficiency. Its 1/8-inch thickness and depressed center design (Type 27) make it suitable for various tasks on a right-angle grinder. The abrasive blend of zirconia alumina and aluminum oxide provides a lifespan significantly longer than standard aluminum oxide wheels.

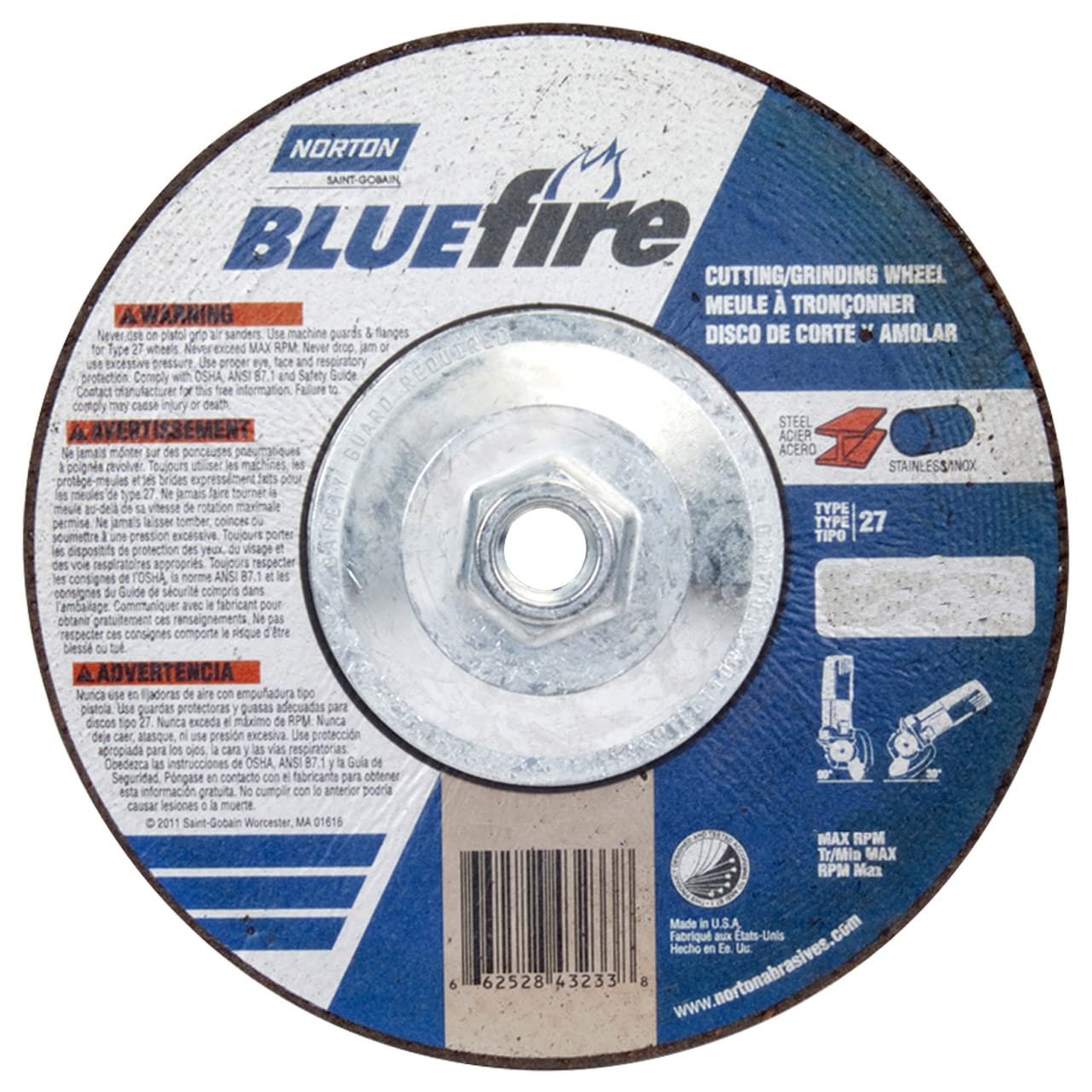

Figure 1: Norton BlueFire ZA/AO Grinding and Cutting Wheel (Model 66252843233)

This image displays the Norton BlueFire ZA/AO Grinding and Cutting Wheel. The wheel is blue with white and black text, featuring the Norton logo and 'BlueFire' branding. Key specifications such as 'CUTTING/GRINDING WHEEL', 'TYPE 27', and 'MAX RPM' are visible. Safety warnings in multiple languages are printed around the center hub. The wheel's dimensions are 7x1/8x5/8-11 inches.

4. Opsætning

Proper installation of the grinding wheel is crucial for safety and performance.

1. Inspect the Wheel: Before mounting, carefully inspect the wheel for any cracks, chips, or damage. A damaged wheel must not be used.
2. Check Grinder Compatibility: Ensure your right-angle grinder is compatible with 7-inch diameter, 5/8-11 inch arbor hole, and Type 27 depressed center wheels. Verify that the grinder's maximum RPM does not exceed the wheel's maximum RPM.
3. Install Flanges: Use the correct inner and outer flanges provided with your grinder for Type 27 wheels. Ensure they are clean and free of burrs.
4. Monter hjulet: Place the wheel onto the grinder spindle, ensuring it sits flush against the inner flange. Secure it with the outer flange and tighten the spindle nut firmly using the appropriate wrench. Do not overtighten.
5. Installer vagt: Always ensure the machine guard is properly installed and adjusted to provide maximum protection during operation.
6. Testkørsel: Before beginning work, run the grinder at operating speed for at least one minute in a protected area to ensure the wheel is properly mounted and runs true.

5. Betjeningsvejledning

These wheels are designed for cutting-off, notching, stock removal, and light-duty side grinding. Always maintain control of the grinder and apply steady, even pressure.

• Cutting-Off: Position the wheel perpendicular to the workpiece. Apply light, consistent pressure, allowing the wheel to cut through the material. Avoid twisting or bending the wheel.
• Indhak: For creating notches, use a controlled, shallow cutting motion.
• Slibning: For stock removal or light-duty side grinding, hold the wheel at a slight angle (typically 15-30 degrees) to the workpiece. Move the grinder smoothly across the surface. Avoid excessive pressure, which can lead to wheel damage or premature wear.
• Materialekontakt: Ensure the wheel makes contact with the workpiece at a consistent angle and pressure.
• Køling: Allow the wheel to cool periodically during prolonged use to prevent overheating.

6. Materialekompatibilitet

The Norton BlueFire ZA/AO wheels are versatile and suitable for a range of materials. Refer to the guide below for specific application recommendations.

Figure 2: Material/Application-To-Product Recommendation Guide

This image displays a recommendation guide for various materials and applications. It shows different Norton product lines (Quantum3, NorZon Plus, BlueFire, Gemini, Metal, Masonry) and their suitability for cutting, notching, grinding, and blending tasks on materials such as Mild Carbon/High Tensile Steel, Stainless Steel/Alloys, Cast Iron, Gray Iron, Aluminum/Bronze/Brass, Fiberglass/Plastic. The BlueFire line is recommended for FC/INOX/SS on Stainless Steel/Alloys and Foundry on Cast Iron for cutting, notching, and grinding applications.

Summary of BlueFire ZA/AO Compatibility:

Note: FC/INOX/SS indicates suitability for ferrous metals, stainless steel, and other stainless steel alloys. Foundry indicates suitability for foundry applications.

7. Vedligeholdelse

Proper maintenance and storage extend the life and ensure the safety of your grinding wheels.

• Opbevaring: Store wheels in a dry, cool place, away from extreme temperatures and humidity. Keep them in their original packaging or a suitable container to prevent damage.
• Håndtering: Handle wheels carefully to avoid dropping or impacting them, which can cause unseen damage.
• Inspektion: Always inspect wheels for damage before each use. Discard any wheel that shows signs of cracks, chips, or other defects.
• Bortskaffelse: Dispose of worn or damaged wheels responsibly according to local regulations.

8. Fejlfinding

Hvis du støder på problemer under driften, skal du overveje følgende:

• Overdreven vibration: Check if the wheel is properly mounted and the flanges are clean and correctly seated. Ensure the grinder spindle is not bent.
• Poor Cutting/Grinding Performance: Verify that the wheel is suitable for the material being worked on (refer to Section 6). Ensure sufficient pressure is applied without forcing the wheel. Check if the wheel is worn out.
• Rapid Wheel Wear: This can be caused by excessive pressure, using the wrong wheel for the application, or improper storage. Review operating techniques and material compatibility.
• Overophedning: Reduce pressure and allow the wheel to cool. Ensure proper ventilation around the workpiece and grinder.

9. Specifikationer

10. Garanti og support

For information regarding product warranty, technical support, or specific application advice, please contact Norton customer service or visit the official Norton webwebsted. Gem din købskvittering for garantikrav.
