Park Tool TS-4.2 Professional Wheel Truing Stand Instruction Manual

1. Introduktion og overview

The Park Tool TS-4.2 Professional Wheel Truing Stand is a high-precision instrument engineered for the accurate truing and building of bicycle wheels. Designed for professional mechanics and serious enthusiasts, it provides robust stability and versatile adjustability to handle a wide array of wheel sizes and tire configurations.

Figure 1.1: The Park Tool TS-4.2 Professional Wheel Truing Stand, showcasindens robuste konstruktion og design.

2. Nøglefunktioner

• Professionel konstruktion: Built with chrome-plated and powder-coated heavy-gauge steel for durability and stability.
• Wide Tire Compatibility: Accommodates tire widths up to 5 inches (127mm) or more, with or without a brake rotor mounted.
• Versatile Wheel Capacity: Designed to handle a broad range of wheel diameters and axle types.
• Precision Calipers: Features highly accurate and adjustable calipers for precise lateral and radial truing.

Figure 2.1: Detail of the TS-4.2's caliper arms, demonstrating the generous clearance for wide tires.

3. Opsætning

Before using the TS-4.2, ensure it is properly set up on a stable and level surface. This will ensure accurate truing results and safe operation.

1. Udpakning: Carefully remove the truing stand from its packaging. Inspect all components for any signs of damage during transit.
2. Placering: Place the truing stand on a sturdy workbench or a dedicated truing stand base. Ensure the surface is flat and free from wobbles.
3. Indledende inspektion: Verify that all bolts and fasteners are securely tightened. The uprights should move smoothly when adjusted.

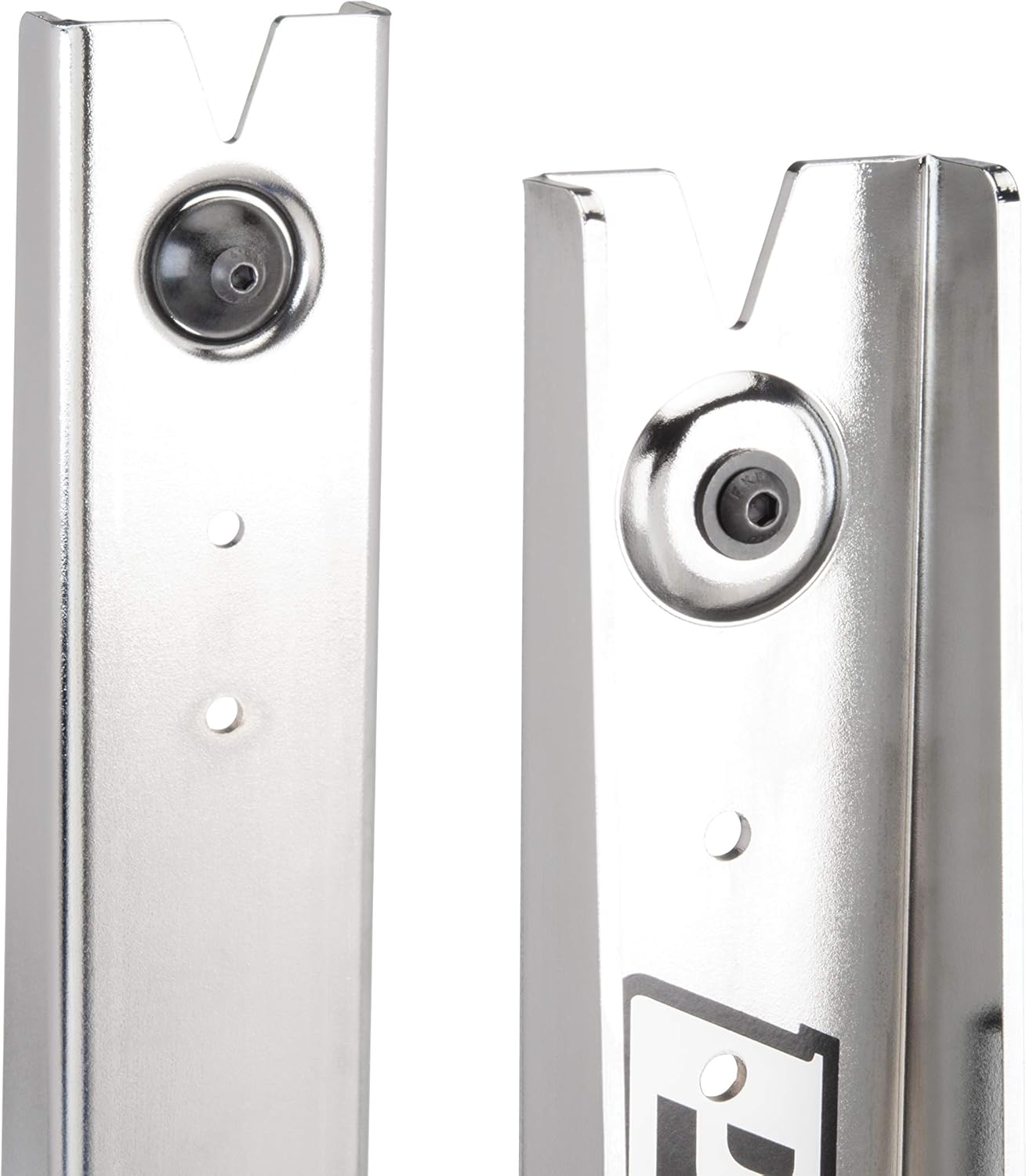

Figure 3.1: The V-shaped axle mounts on the uprights, designed to securely hold various axle types.

4. Betjeningsvejledning

4.1 Mounting the Wheel

1. Open Uprights: Loosen the main adjustment knob and slide the uprights apart to create enough space for your wheel.
2. Insert Axle: Carefully place the wheel's axle into the V-shaped mounts on top of the uprights. Ensure the wheel is centered as much as possible.
3. Sikkert hjul: Tighten the main adjustment knob until the wheel's axle is firmly held in place. Do not overtighten.

Figure 4.1: A bicycle wheel securely mounted in the TS-4.2 truing stand, ready for adjustment.

4.2 Truing the Wheel (Lateral and Radial)

The TS-4.2 features adjustable calipers to detect and correct both lateral (side-to-side) and radial (up-and-down) runout.

• Lateral Truing: Adjust the side calipers until they are close to the rim. Spin the wheel slowly and observe where the rim touches the calipers. Adjust spoke tension (tighten spokes on the opposite side, loosen on the side touching) to pull the rim into alignment.
• Radial Truing: Adjust the radial caliper (typically located at the bottom or top) close to the rim. Spin the wheel and identify high or low spots. Adjust spoke tension (tighten spokes in low spots, loosen in high spots) to achieve a round wheel.

4.3 Adjusting for Tire Clearance

The TS-4.2 is designed to accommodate very wide tires. The caliper arms can be adjusted to provide ample clearance, even with a tire and brake rotor installed.

• Caliper Arm Adjustment: Loosen the appropriate knobs to move the caliper arms away from the wheel, providing clearance for wider tires or rotors.
• Finjustering: Once the tire is cleared, reposition the caliper arms closer to the rim for accurate truing.

Figure 4.2: The main adjustment knob, used for securing the wheel and adjusting uprights.

5. Vedligeholdelse

Proper maintenance will extend the life and accuracy of your Park Tool TS-4.2 Truing Stand.

• Rensning: After each use, wipe down the stand with a clean, dry cloth to remove any dust, dirt, or grease.
• Smøring: Periodically apply a light lubricant to the threaded rod and pivot points to ensure smooth operation of the adjustment mechanisms.
• Inspektion: Regularly check all fasteners for tightness. Ensure the uprights and caliper arms move freely without excessive play.
• Opbevaring: Store the truing stand in a clean, dry environment to prevent corrosion.

6. Fejlfinding

If you encounter issues while using your TS-4.2, consider the following common solutions:

• Wheel Not Secure: Ensure the wheel's axle is fully seated in the V-mounts and the main adjustment knob is tightened sufficiently. Check for any obstructions.
• Upræcise læsninger: Verify that the truing stand is placed on a perfectly level and stable surface. Ensure the calipers are clean and free of debris.
• Stive justeringer: If adjustment knobs or uprights are stiff, apply a small amount of lubricant to the moving parts and threaded rods.
• Overdreven leg: Check all visible bolts and fasteners for tightness. If play persists, consult the Park Tool website for detailed diagrams or contact support.

7. Specifikationer

8. Garanti og support

8.1 Garantioplysninger

The Park Tool TS-4.2 Professional Wheel Truing Stand is backed by a Begrænset livstidsgaranti. For complete details regarding warranty coverage, terms, and conditions, please visit the official Park Tool webwebsted:

parktool.com/warranty

8.2 Produktsupport

For additional product information, technical assistance, or to explore other Park Tool products, you can visit the official Park Tool store on Amazon:
