OttLite Organize LED Desk Lamp Brugermanual

1. Produktet er slutview

The OttLite Organize LED Desk Lamp is designed to provide versatile and clear lighting for various tasks, including crafting, office work, and reading. It features OttLite's exclusive ClearSun LED technology, which aims to reduce eyestrain and provide accurate color representation. The lamp also includes convenient built-in storage and a USB charging port.

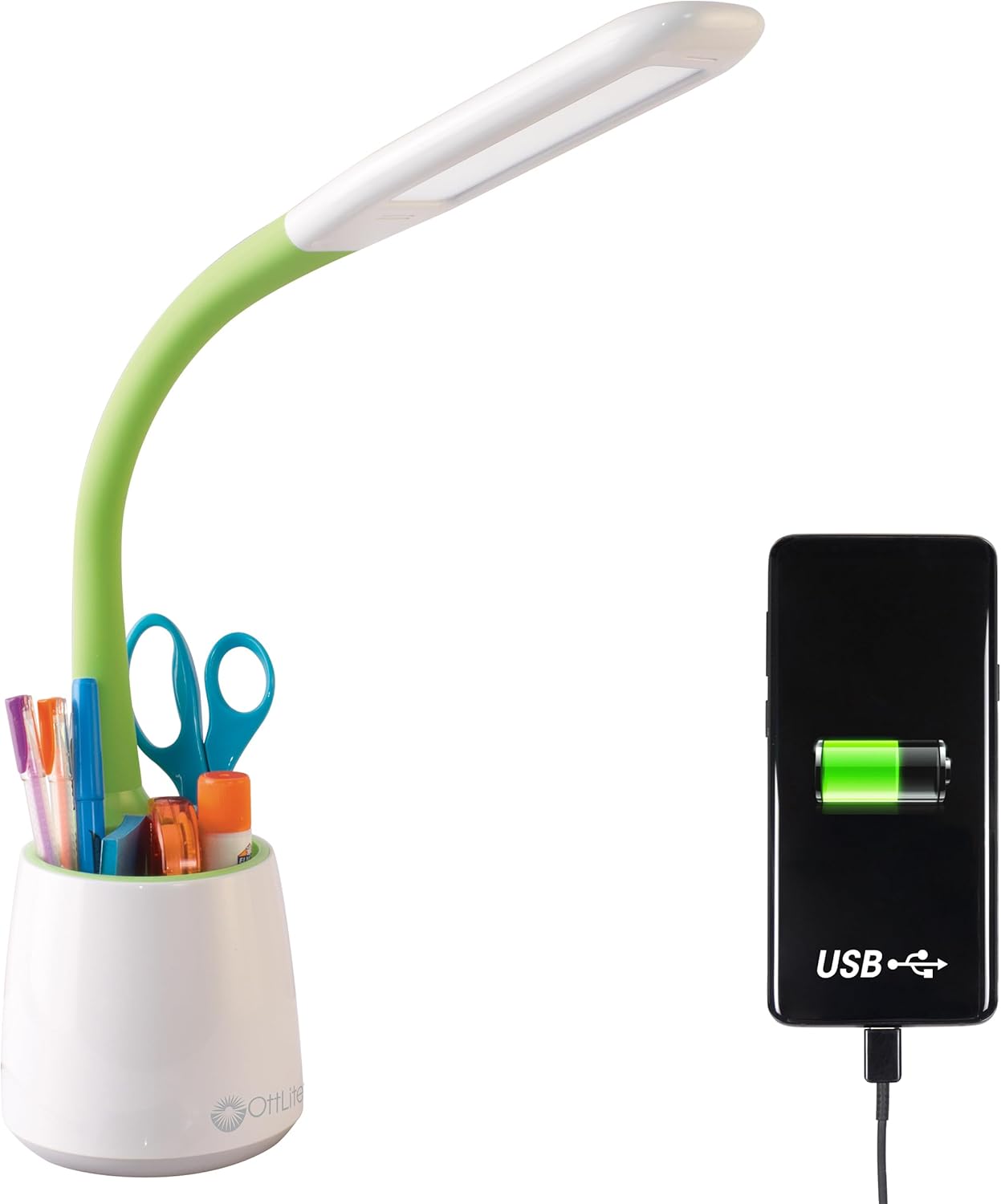

Image 1.1: The OttLite Organize LED Desk Lamp, highlighting its integrated USB charging port and storage cup.

2. Nøglefunktioner

• Alsidig belysning: Flexible neck adjusts from 11 to 23 inches, providing adaptable illumination for various activities.
• ClearSun LED-teknologi: Reduces eyestrain by up to 51% and offers a high 95+ CRI for accurate color rendering, mimicking natural daylight.
• Integreret opbevaring: A built-in compartment in the base helps keep your workspace organized by holding pens, tools, or other small items.
• USB opladningsport: Features a 5V, 2.1A USB port for convenient charging of mobile devices.
• Justerbar lysstyrke: Three touch-activated brightness levels allow you to customize the light intensity for your specific needs.

Image 2.1: Annotated diagram illustrating the key features of the OttLite Organize LED Desk Lamp.

Image 2.2: A comprehensive diagram detailing the lamp's adjustable height, brightness settings, USB port, and touch-sensitive controls.

3. ClearSun LED-teknologi

OttLite's ClearSun LED technology is engineered to provide light that closely mimics natural daylight, offering a balanced spectrum that reduces eyestrain and enhances visual clarity. This technology ensures colors are seen accurately and details are crisp, making it ideal for tasks requiring precision.

Image 3.1: A visual comparison of sunlight versus typical LED light spectrums, illustrating the unbalanced nature of standard LEDs.

Image 3.2: A demonstration of color accuracy under different Color Rendering Index (CRI) levels, highlighting the superior performance of OttLite's 95+ CRI ClearSun LEDs.

4. Opsætningsvejledning

1. Pak Lamp: Fjern forsigtigt alle komponenter fra emballagen.
2. Placer Lamp: Placer lamp on a stable, flat surface where you intend to use it. Ensure the power cord can reach an electrical outlet without strain.
3. Tilslut strøm: Insert the power cable into the lamp's power input port, typically located at the back of the base. Plug the other end of the power cable into a standard electrical outlet.
4. Juster fleksibel hals: Gently adjust the flexible neck to position the light head as desired for your task.

5. Betjeningsvejledning

1. Tænd/sluk og justering af lysstyrke: Lamp features a touch-sensitive switch, usually located on the base.
   • Tap once to turn the lamp on at the lowest brightness setting.
   • Tap again to cycle through the three brightness levels (low, medium, high).
   • Tap a fourth time to turn the lamp slukket.
2. Brug af USB-opladningsporten: The 5V, 2.1A USB charging port is located on the back of the lamp's base.
   • Connect your device's USB charging cable to the lamp's USB-port.
   • Ensure your device begins charging. The lamp does not need to be on for the USB port to function, as long as it is plugged into a power outlet.

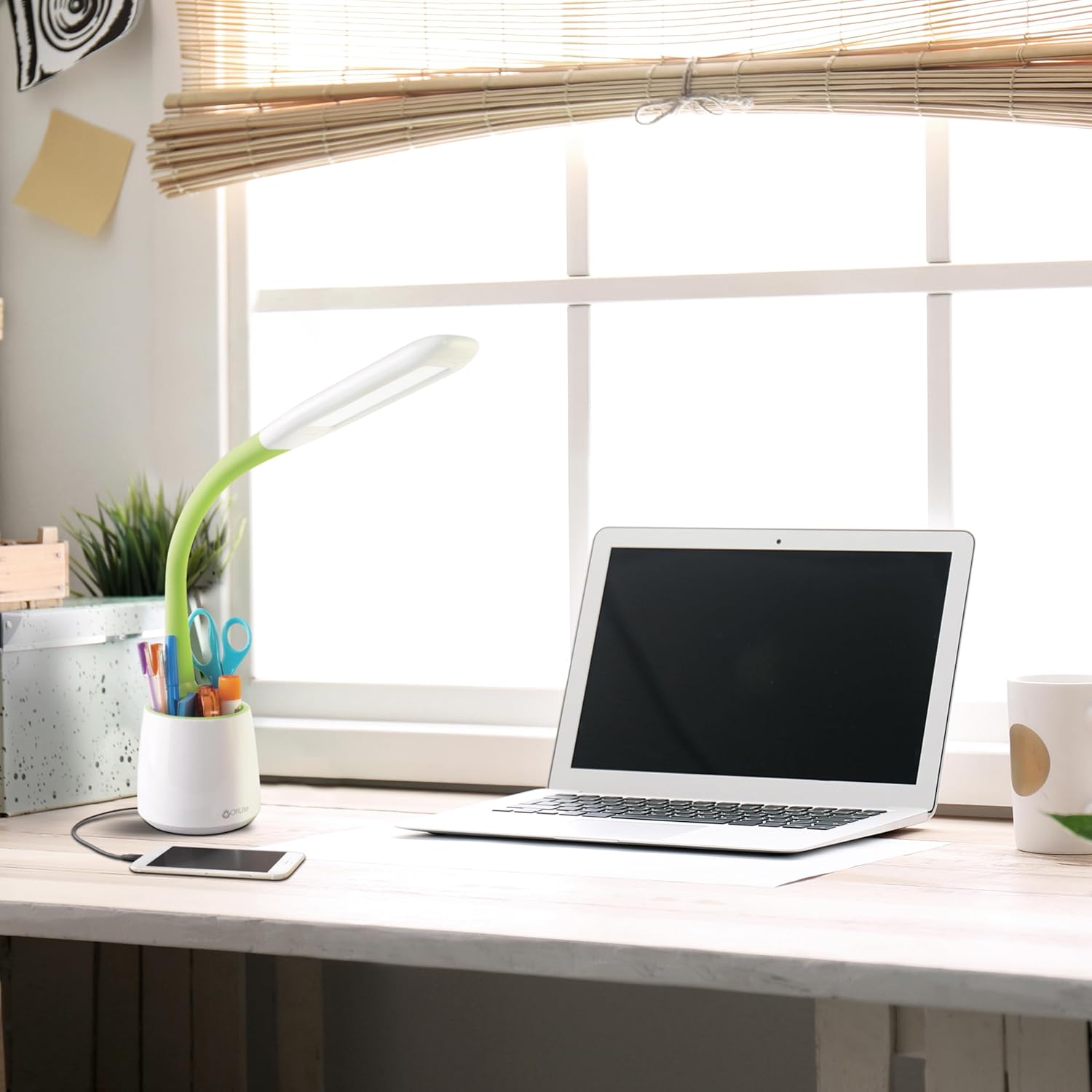

Image 5.1: The OttLite lamp in use, demonstrating a smartphone charging via its integrated USB port.

6. Vedligeholdelse

To ensure the longevity and optimal performance of your OttLite Organize LED Desk Lampfølg disse enkle vedligeholdelsesretningslinjer:

• Rensning: Afbryd lamp from the power outlet before cleaning. Use a soft, dry cloth to wipe down the lamp's surfaces. Avoid abrasive cleaners or solvents, as they may damage the finish.
• lysdioder: LED'erne i denneamp are designed for long-term use and are not user-replaceable. Do not attempt to open the light head.
• Opbevaring: Hvis du opbevarer lamp Sørg for, at den er ren og tør i en længere periode. Opbevar den et køligt, tørt sted, beskyttet mod direkte sollys.

7. Fejlfinding

If you encounter any issues with your OttLite Organize LED Desk LampSe venligst følgende almindelige fejlfindingstrin:

• Lamp Tænder ikke:
  • Sørg for, at strømkablet er korrekt tilsluttet i begge stik.amp og en fungerende stikkontakt.
  • Test the outlet with another device to confirm it is receiving power.
• USB-port oplades ikke:
  • Bekræft lamp is plugged into a live electrical outlet.
  • Check that your device's USB cable is fully inserted into the lamp's USB port and your device.
  • Prøv et andet USB-kabel eller en anden enhed for at udelukke problemer med kablet eller enheden.
• Inkonsekvent lysstyrke:
  • Ensure the touch-sensitive switch area is clean and free from debris.
  • Cycle through the brightness levels by tapping the switch multiple times.

If these steps do not resolve the issue, please contact OttLite customer support for further assistance.

8. Produktspecifikationer

9. Garanti og support

This OttLite Organize LED Desk Lamp comes with a standard manufacturer's warranty. For specific details regarding warranty coverage, duration, and terms, please refer to the documentation included with your product or visit the official OttLite webwebsted.

For technical support, troubleshooting assistance beyond what is provided in this manual, or warranty claims, please contact OttLite customer service directly. Contact information can typically be found on the manufacturer's webwebsted eller produktemballage.
