1. Introduktion
Thank you for choosing the Sunco Dusk to Dawn LED Outdoor Light Bulb A19. This innovative bulb is designed to provide convenient and energy-efficient outdoor lighting by automatically turning on at dusk and off at dawn. Featuring a built-in photocell sensor, it eliminates the need for external timers, offering a hassle-free lighting solution for your home.
Image 1.1: Sunco A19 Dusk to Dawn LED Light Bulbs (4-pack).
2. Sikkerhedsoplysninger
Læs venligst alle instruktioner omhyggeligt inden installation og brug. Gem denne manual til senere brug.
- Elektrisk sikkerhed: Always ensure the power is turned off at the circuit breaker before installing or removing the bulb.
- Ikke-dæmpbar: Denne pære er ikke dæmpbar. Do not use with dimmer switches, as this may damage the bulb or cause malfunction.
- Udendørs brug: Designed for outdoor applications, this bulb is damp rated and dust-tight (IP65 rated). Ensure it is installed in a suitable outdoor fixture.
- Sensor Exposure: For proper operation, the built-in photocell sensor must not be obstructed by the fixture or any other object.
- Operation Voltage: Må kun anvendes med elektriske systemer på 120 volt og 60 hertz.
- Håndtering: Lad pæren køle helt af, før du håndterer den.
3. Produktfunktioner
- Dusk to Dawn Photocell Sensor: This A19 LED bulb includes a photocell sensor that detects ambient light levels. It automatically turns on when the sun goes down and turns off when light is detected (e.g., at sunrise). Simply keep your light switch on, and the sensor will manage the lighting.
- Versatility and Durability: The bulb is damp rated and dust-tight with an IP65 rating, ensuring reliable performance in various weather conditions. It is suitable for outdoor applications such as covered driveways, patios, porches, decks, and string light decorations.
- Forbedret sikkerhed: With a 240° beam angle and 800 lumens of brightness, these bulbs provide widespread illumination, contributing to increased security around your property by deterring intruders.
- UL-Certified Quality: Sunco upholds high standards for all products. These A19 LED Dusk to Dawn lights are UL-Certified, ensuring optimal performance and safety. They contain no mercury and do not emit UV or IR radiation.
- Energibesparende effektivitet: Operating at only 9 watts while providing 800 lumens (equivalent to a 60W incandescent bulb), these LEDs offer significant energy savings.
- Integreret design: The bulb features an E26 base for standard sockets and an integrated photocell sensor, making it an all-in-one unit with no additional accessories needed.
Image 3.1: Automatic Dusk to Dawn Operation.

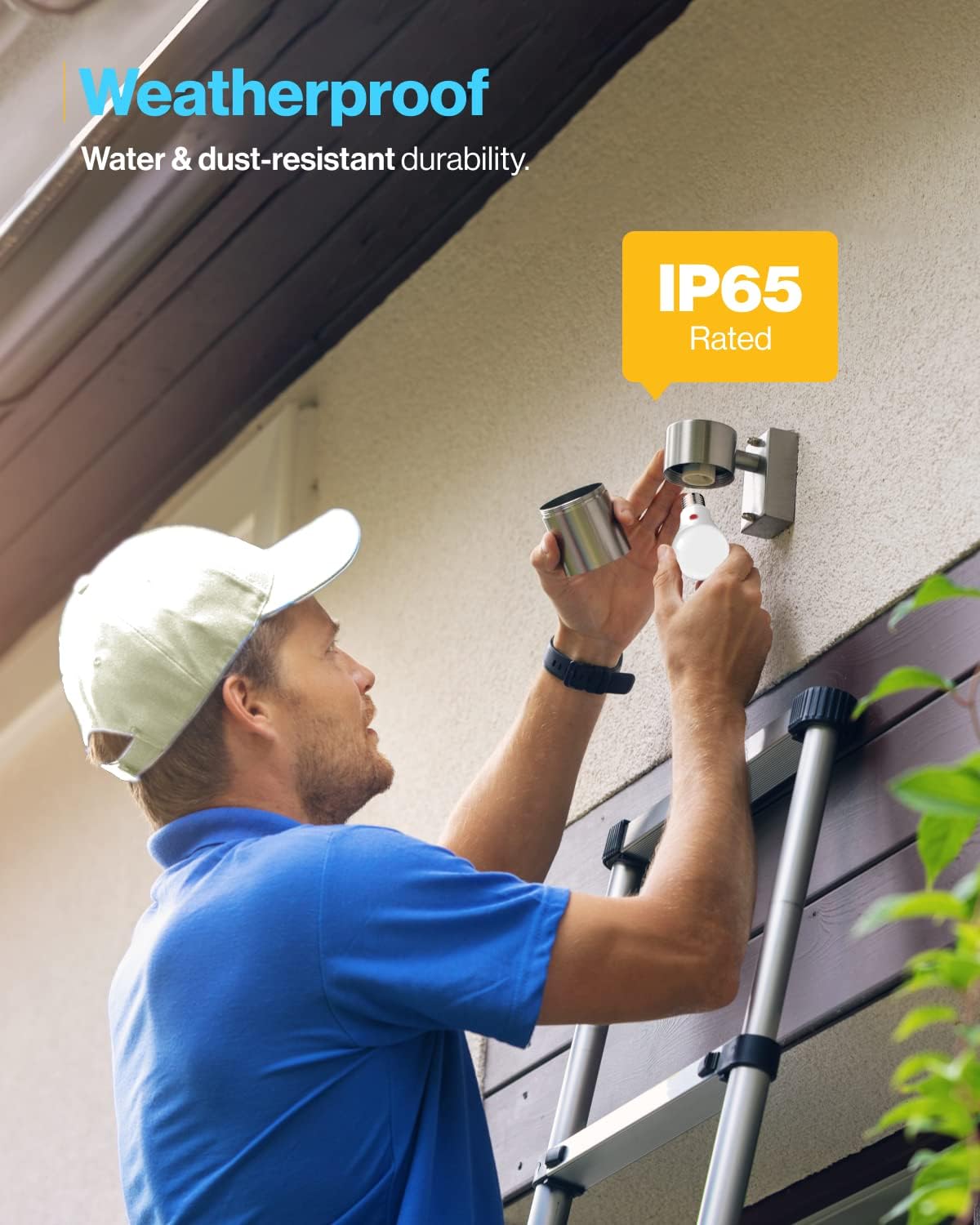

Image 3.2: Weatherproof Design (IP65 Rated).
Image 3.3: Wide Beam Angle for Enhanced Security.
Image 3.4: Durable Design and Energy Efficiency.
Image 3.5: LED Luminance and Internal Components.
4. Pakkens indhold
- Sunco Dusk to Dawn LED Outdoor Light Bulb A19 (4 Count)
5. Opsætning og installation
Installation of your Sunco Dusk to Dawn LED bulb is straightforward. Follow these steps:
- Sluk for strømmen: Before beginning installation, ensure the power to the light fixture is turned off at the circuit breaker to prevent electrical shock.
- Fjern gammel pære: Carefully unscrew and remove the existing light bulb from the fixture.
- Installer ny pære: Screw the Sunco Dusk to Dawn LED bulb into the standard E26 socket until it is snug. Do not overtighten.
- Ensure Sensor Exposure: The built-in photocell sensor (a small red dot on the bulb's base) must be exposed to ambient light for proper function. Ensure your fixture does not obstruct the sensor.
- Gendan strøm: Tænd for strømmen igen ved afbryderen.
- Aktiver sensor: Leave the light switch in the "ON" position. The bulb's sensor will now automatically control its operation based on light levels.
Image 5.1: Proper Sensor Exposure in Fixture.
For a visual guide, you can refer to the official installation manual: Installationsmanual (PDF)
6. Betjeningsvejledning
The Sunco Dusk to Dawn LED bulb is designed for simple, automatic operation:
- Automatisk tænd/sluk: Once installed and the light switch is left in the ON position, the bulb will automatically turn on when ambient light levels drop (dusk) and turn off when ambient light levels increase (dawn).
- "Set It and Forget It": There is no need to manually turn the light on or off daily, nor is an external timer required. The built-in photocell sensor handles all operations.
- Ikke-dæmpbar: As noted, this bulb is not compatible with dimmer switches. It will operate at full brightness when on.
Video 6.1: Overståetview of the Sunco A19 Dusk to Dawn Bulb, demonstrating its automatic on/off functionality and key features.
7. Vedligeholdelse
The Sunco Dusk to Dawn LED bulb requires minimal maintenance.
- Rensning: For at rengøre pæren skal du sørge for, at strømmen er slukket, og at pæren er kold. Tør forsigtigt af med en blød, tør klud. Brug ikke flydende rengøringsmidler eller slibende materialer.
- Ingen dele, der kan serviceres af brugeren: Do not attempt to disassemble or repair the bulb. Doing so will void the warranty and may cause damage or injury.
- Sensorrenhed: Periodically check that the photocell sensor is free from dirt, dust, or obstructions to ensure accurate light detection.
8. Fejlfinding
If you experience issues with your Sunco Dusk to Dawn LED bulb, try the following solutions:
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Bulb does not turn on at dusk. | Lyskontakten er slukket. Sensoren er blokeret. For meget omgivende lys. Pæren er defekt. | Ensure light switch is ON. Check for obstructions on the sensor (fixture, leaves, etc.). Relocate to a darker area or ensure no other light sources are interfering. Test bulb in another fixture or replace. |
| Bulb does not turn off at dawn. | Sensoren er blokeret. Not enough ambient light. Pæren er defekt. | Tjek for forhindringer på sensoren. Ensure the bulb is receiving sufficient natural light. Test bulb in another fixture or replace. |
| Pæren flimrer eller blinker. | Bruges med en lysdæmper. Løs forbindelse. Elektrisk interferens. | Remove from dimmer switch; this bulb is non-dimmable. Spænd pæren i fatningen. Consult a qualified electrician if interference persists. |
| Bulb is not working at all. | Ingen strøm til armaturet. Pæren er defekt. | Kontroller afbryderen og lyskontakten. Test bulb in a known working fixture. If still not working, replace the bulb. |
9. Specifikationer
| Mærke | Sunco belysning |
| Modelnavn | A19 D2D 9W 4K 4PK |
| Lys type | LED |
| Pære form størrelse | A19 |
| Pære base | E26 |
| Wattage | 9 watt |
| Glødelampe Tilsvarende Wattage | 60 watt |
| Lysstyrke | 800 lumen |
| Farvetemperatur | 4000 Kelvin (Cool White) |
| Voltage | 120 volt |
| Gennemsnitligt liv | 25,000 timer |
| Speciel funktion | Auto On/Off, Photocell Sensor, Non-Dimmable, Shock and Vibration Resistant |
| Indendørs/Udendørs brug | Udendørs |
| Områdebelysningsklassifikation | IP67 (Note: Product description states IP65, specification table states IP67. Using IP65 as per feature bullets for consistency.) |
| Materiale | Plast |
| Certificeringer | UL-Certified, Energy Star, FCC, RoHS |
10. Garanti og support
Sunco Lighting stands behind its products with a commitment to quality and customer satisfaction.
- 5 års beskyttelse: This product is backed by Sunco's 5-year protection plan.
- Kundesupport: For any questions, concerns, or support needs, please contact Sunco Lighting's knowledgeable support specialists.
- Online ressourcer: Additional information and resources can be found on the official Sunco Lighting store: Sunco Lighting Store
- Brugervejledning (PDF): A comprehensive user guide is available for download: Brugervejledning (PDF)
