3M PPS Series 2.0 Adapter #S28 (Model 26120) Instruction Manual

1. Introduktion

This manual provides instructions for the proper use and maintenance of the 3M PPS Series 2.0 Adapter #S28 (Model 26120). This adapter is designed to integrate specific Krautzberger paint guns with the 3M PPS Series 2.0 Spray Cup System, enhancing efficiency and reducing waste in paint application processes.

2. Sikkerhedsoplysninger

Kun til industriel/erhvervsmæssig brug. Ikke til salg eller brug til forbrugere.

3M industrial and occupational products are intended, labeled, and packaged for sale to trained industrial and occupational customers for workplace use. These products are not intended, labeled, or packaged for sale to or use by consumers (e.g., for home, personal, primary or secondary school, recreational/sporting, or other uses not described in the applicable product packaging or literature). Products must be selected and used in compliance with applicable health and safety regulations and standards (e.g., U.S. OSHA, ANSI), as well as all product literature, user instructions, warnings, and other limitations. The user must take any action required under any recall, field action, or other product use notice. Misuse of 3M industrial and occupational products may result in injury, sickness, death, or property damage. For help with product selection and use, consult your on-site safety professional, industrial hygienist, or other subject matter expert. For additional product information, visit www.3M.com.

3. Produktet er slutview

The 3M PPS Series 2.0 Adapter #S28 (Model 26120) is a crucial component for integrating your Krautzberger HS-25 or SM-901 paint gun with the advanced 3M PPS Series 2.0 Spray Cup System. This adapter is engineered for durability and ease of use, featuring robust stainless steel construction and a design that ensures a stable connection between the spray gun and the PPS 2.0 lid.

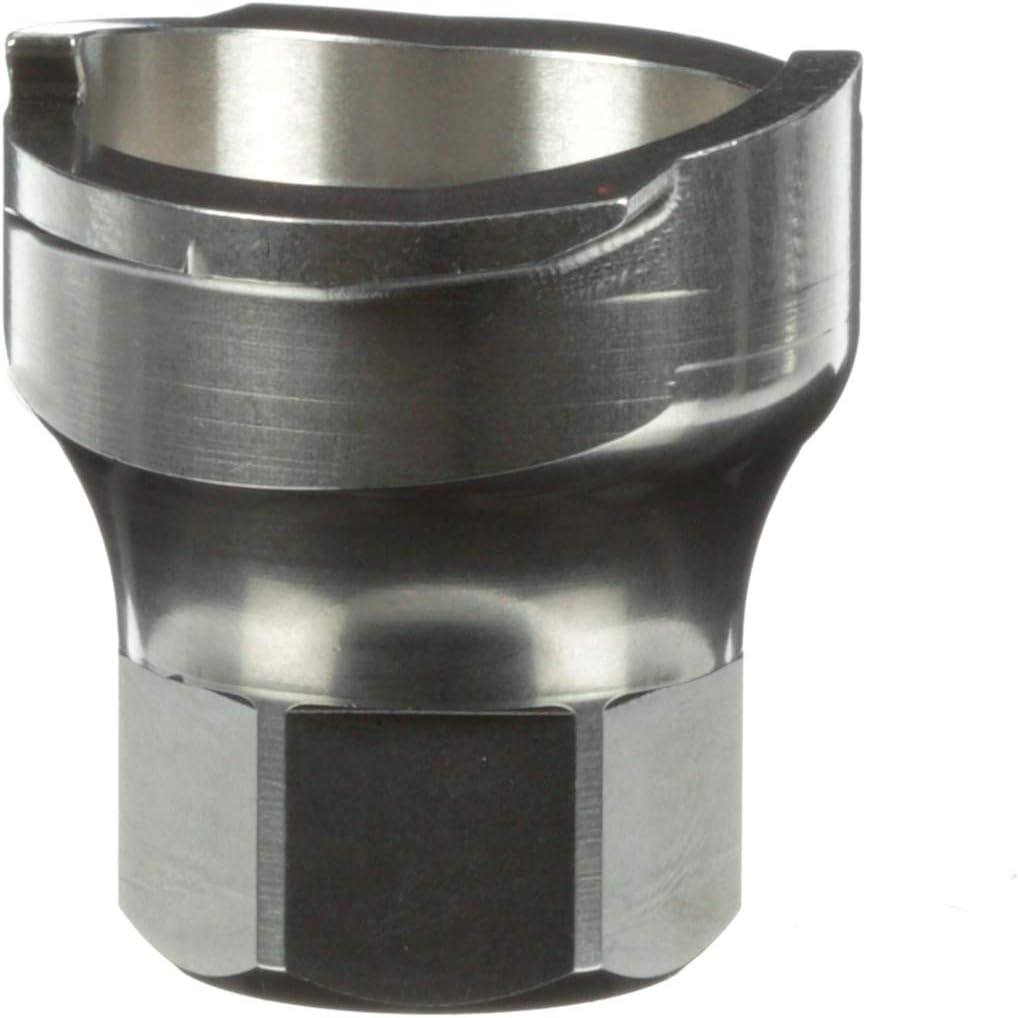

Figur 1: Front view of the 3M PPS Series 2.0 Adapter #S28. This image shows the adapter's stainless steel construction and its design for connecting to a spray gun and the PPS 2.0 system.

Figur 2: Side view of the 3M PPS Series 2.0 Adapter #S28, highlighting its robust build and connection points.

4. Kompatibilitet

The 3M PPS Series 2.0 Adapter #S28 (Part Number 26120) is specifically designed for use with the following Krautzberger paint gun models:

• Krautzberger HS-25
• Krautzberger SM-901

This adapter features a 17.5mm female connection with 19 Gg thread, ensuring a secure and stable fit with the specified spray guns and the 3M PPS Series 2.0 Spray Cup System.

Figur 3: Visual representation of the 3M PPS Series 2.0 Adapter #S28 and its compatibility with Krautzberger HS-25 and SM-901 spray guns.

4.1 General PPS 2.0 Adapter Compatibility Chart

For a comprehensive list of spray gun compatibility with various 3M PPS Series 2.0 Adapters, refer to the charts below. Locate your spray gun manufacturer and model to identify the correct PPS 2.0 adapter.

Figur 4: Page 1 of the 3M PPS and PPS Series 2.0 Adapters compatibility chart, listing various spray gun manufacturers and their corresponding adapter part numbers.

Figur 5: Page 2 of the 3M PPS and PPS Series 2.0 Adapters compatibility chart, continuing the list of spray gun manufacturers and adapter part numbers.

Figur 6: Page 3 of the 3M PPS and PPS Series 2.0 Adapters compatibility chart, further detailing spray gun models and their required adapters.

Figur 7: Page 4 of the 3M PPS and PPS Series 2.0 Adapters compatibility chart, providing additional compatibility information and a note on warranty and support.

5. Opsætningsvejledning

Follow these steps to properly assemble the 3M PPS Series 2.0 Adapter #S28 with your compatible spray gun and the PPS 2.0 Spray Cup System components.

1. Ensure your spray gun (Krautzberger HS-25 or SM-901) is clean and free of debris.
2. Thread the 3M PPS Series 2.0 Adapter #S28 onto the fluid inlet of your spray gun. Tighten securely by hand.
3. Take a new 3M PPS Series 2.0 disposable liner and place it inside a new hard cup.
4. Pour your prepared paint material into the disposable liner.
5. Place a new 3M PPS Series 2.0 lid (with integrated filter) onto the liner and hard cup.
6. Align the quarter-turn locking collar of the PPS 2.0 lid with the adapter.
7. Twist the lid onto the adapter until it locks securely into place. The four points of connection will provide stability.
8. Ensure all connections are tight before proceeding with paint application.

Figur 8: Diagram illustrating the assembly process of the #S28 adapter with the 3M PPS Series 2.0 cup, liner, and lid components, ready for attachment to a spray gun.

6. Betjeningsvejledning

Once the 3M PPS Series 2.0 Adapter #S28 and PPS 2.0 Spray Cup System are assembled onto your spray gun, operate the system according to your spray gun manufacturer's instructions and best practices for paint application.

• Blanding: The PPS 2.0 cups feature printed universal mix ratios for accurate material preparation. A clear access window allows for easy visibility of material levels.
• Sprøjtning: The domed lid design and wider fluid spout of the PPS 2.0 system are engineered for consistent spray performance and improved fluid flow, reducing sputter.
• Refilling/Tinting: The clear access window also allows you to hold the liner for easier, cleaner lid removal during refills or tinting.
• Temporary Sealing: Larger sealing plugs on the PPS 2.0 lids can be used to temporarily seal and protect unused material, helping to keep the built-in filter wet.

The PPS 2.0 system is designed to minimize paint waste, mess, and contamination compared to traditional metal paint cup systems. It can also reduce cleaning solvent usage by up to 70% and shorten prep and cleanup time by as much as 50%.

7. Vedligeholdelse

Proper maintenance of the 3M PPS Series 2.0 Adapter #S28 ensures its longevity and optimal performance.

• Cleaning the Adapter: After each use, detach the adapter from the spray gun. The adapter's wide bowl design facilitates fast and easy cleaning. Use appropriate cleaning solvents recommended for your paint materials. Ensure all paint residue is removed from the adapter's threads and internal surfaces.
• Opbevaring: Store the adapter in a clean, dry place when not in use.
• Inspektion: Regularly inspect the adapter for any signs of wear, damage, or corrosion. Replace the adapter if any damage is observed to ensure proper sealing and function.

Since the PPS 2.0 lids and liners are disposable, they do not require cleaning. This significantly reduces overall cleanup effort.

8. Fejlfinding

This section addresses common issues that may arise during the use of the 3M PPS Series 2.0 Adapter #S28.

• Utæt forbindelse:
  • Ensure the adapter is securely threaded onto the spray gun.
  • Verify the PPS 2.0 lid is properly aligned and twisted onto the adapter until the quarter-turn locking collar engages.
  • Check for any damage to the adapter threads or the PPS 2.0 lid. Replace damaged components.
• Poor Spray Performance (Sputtering, Inconsistent Flow):
  • Ensure the PPS 2.0 lid's integrated filter is not clogged. Always use a new lid for each application.
  • Verify the paint material is properly mixed and thinned according to manufacturer specifications.
  • Check your spray gun settings and ensure it is clean and functioning correctly.
• Difficulty Attaching/Detaching PPS 2.0 Lid:
  • Ensure the adapter and lid are clean and free of dried paint or debris.
  • Apply gentle, firm pressure and twist the quarter-turn locking collar. Do not force.

If issues persist, consult your spray gun's instruction manual or contact 3M technical support.

9. Ansøgninger

The 3M PPS Series 2.0 system, when used with the #S28 adapter, is suitable for a wide range of industrial and occupational paint application projects. It is designed for applying various coatings efficiently and effectively.

• Biler
• Lastbiler
• Møbel
• cabinetry
• Erhvervskøretøjer
• Marine applikationer
• General Industrial uses
• Luftfartsapplikationer

Use to apply paints, stains, varnishes, basecoats, undercoats, primers, sealers, clearcoats, gelcoats, sprayable adhesives, and more.

Figur 9: Illustrates various applications where the 3M PPS Series 2.0 system, including this adapter, can be utilized for paint and coating application.

10. Specifikationer

11. Garanti og support

Warranty and Limited Remedy: 3M warrants that each 3M product meets the applicable 3M product specification at the time 3M ships the product. 3M MAKES NO OTHER WARRANTIES OR CONDITIONS, EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OR CONDITION OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE OR ANY IMPLIED WARRANTY ARISING OUT OF A COURSE OF DEALING, CUSTOM, OR USAGE OF TRADE. If a 3M product does not conform to this warranty, the sole and exclusive remedy is, at 3M's option, replacement of the 3M product or refund of the purchase price. Limitation of Liability: Except for the limited remedy above, and except to the extent prohibited by law, 3M will not be liable for any loss or damage arising from or related to the 3M product, whether direct, indirect, special, incidental, or consequential (including, but not limited to, lost profits or business opportunity), regardless of the legal or equitable theory asserted, including, but not limited to, warranty, contract, negligence, or strict liability.

For more information, contact your 3M representative or authorized distributor.

3M Automotive Aftermarket Division
3M Center
Building 223-6N-01
St. Paul, MN 55144-1000
USA

Web: www.3MCollision.com/PPS
Telefon: 1-877-666-2277
